thin film evaporator
Equipped with 6 blade fixed rotor
no Motor.
Entrainment separator 500 mm Diameter
Packing gland on shaft, with conical bottom
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: HM-1200
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 279 kg/h (615 lb/h)
Total Heat Transfer Surface Area: 11.5 m² (124 ft²)
jacketed thin ‘filmtruder’ evaporator system,
internal pressure -1/3.2 bar @ 200 degrees C (3900 liter), top jacket 7 bar @ 200 degrees C (11 liter), straight side jackets 7 bar @ 200 degrees C (3 x 65 liter), bottom cone jacket 7 bar @ 200 degrees C (9 liter), built to TUV,
(3) 316L stainless steel jackets on straights side, coned bottom with 316L stainless steel jacket, 750mm diameter x 4850mm long 316Ti stainless steel (1.4571) rotor, rotor driven by a 45/54kw, 3/50/60/380-420/440-480 volt, 1475/1765 rpm motor via a reduction gearbox, mechanical seal, approx 850mm internal diameter, clamped flat top, bottom outlet with a pneumatic operated ball valve, evaporator mounted on carbon steel lugs and in a carbon steel structure, system includes: (1) 8.52 square meter 316L stainless steel (1.4404/1.4435) tube, head and shell vertical condenser, manufactured by Luwa SMS, fabrik #4826102, pressure tube side vacuum @ 55 degrees C (100 liter), shell 6 bar @ 90 degrees C (224 liter), (16) 44.5mm diameter x 2 x 4m long 316L stainless steel tubes, single pass, 324mm diameter 316L stainless steel shell, 4751mm overall length, 316L stainless steel tubesheets, (2) 316L stainless steel dished heads, mounted on lugs, (1) vacuum pump, (1) liquid separator
Orientation: Vertical. Diameter: 750 mm (29.5 in). Height: 4,850 mm (191 in). Pressure: 3.2 bar (46.4 psi). Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (102 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Loher ANGA-225ME-04M.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 243 kg/h (535 lb/h)
Total Heat Transfer Surface Area: 10 m² (108 ft²)

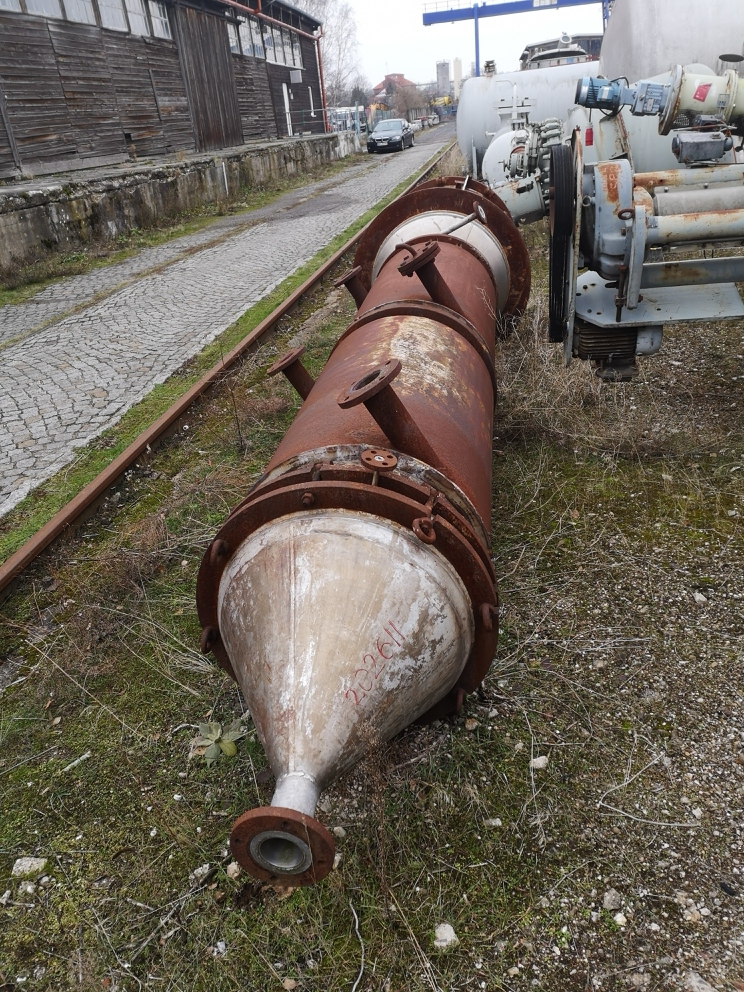

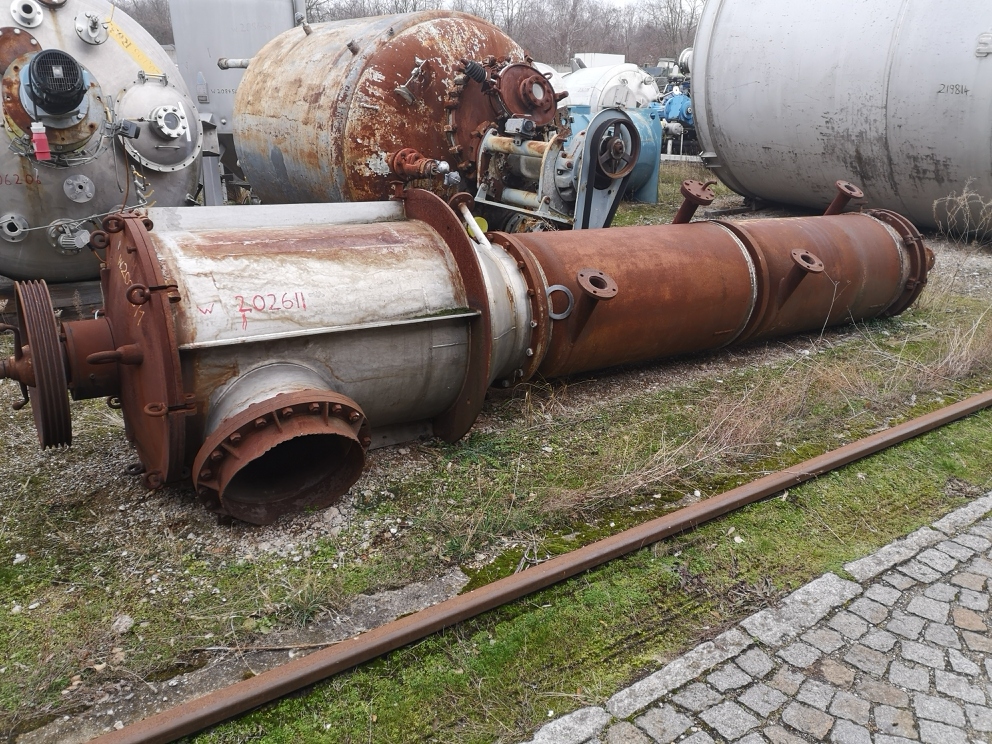

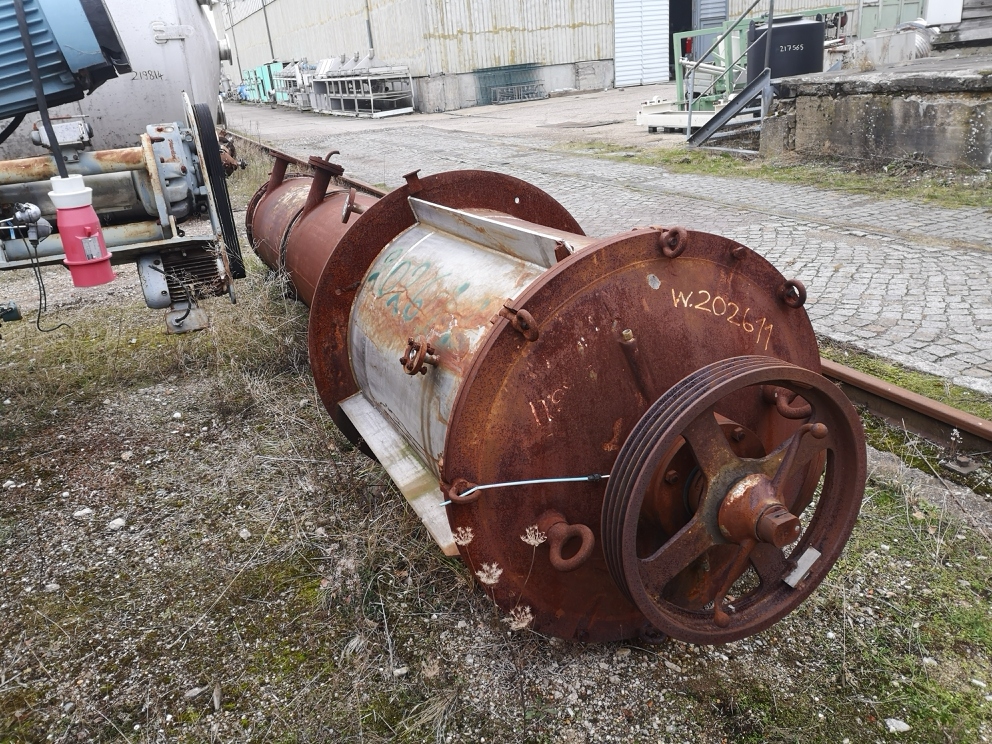

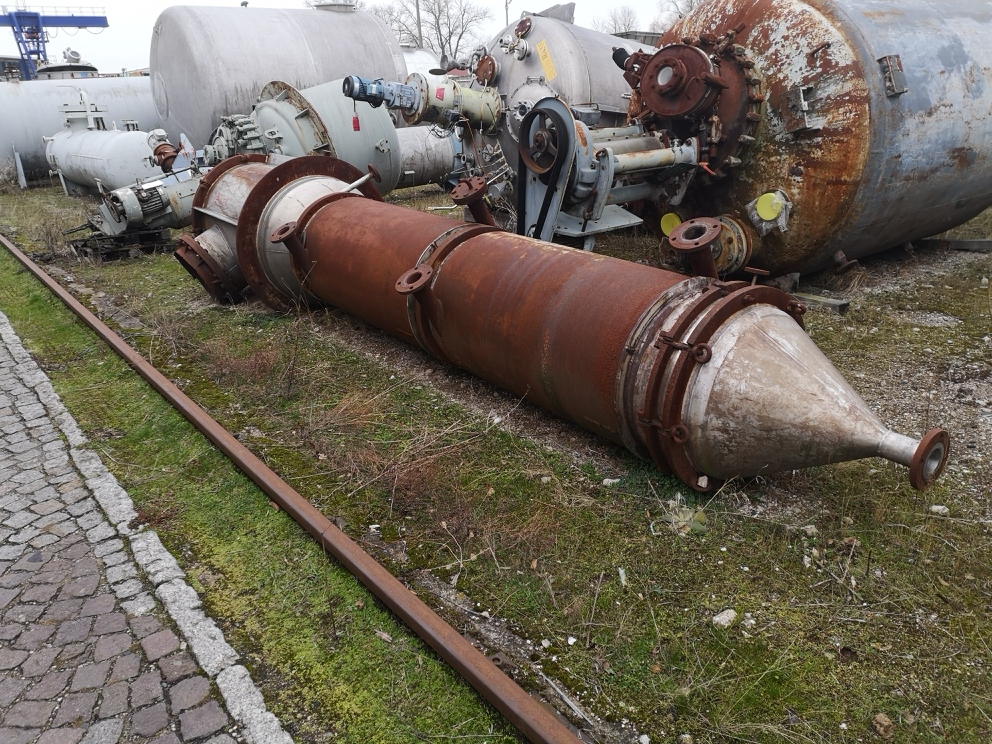

thin film evaporator

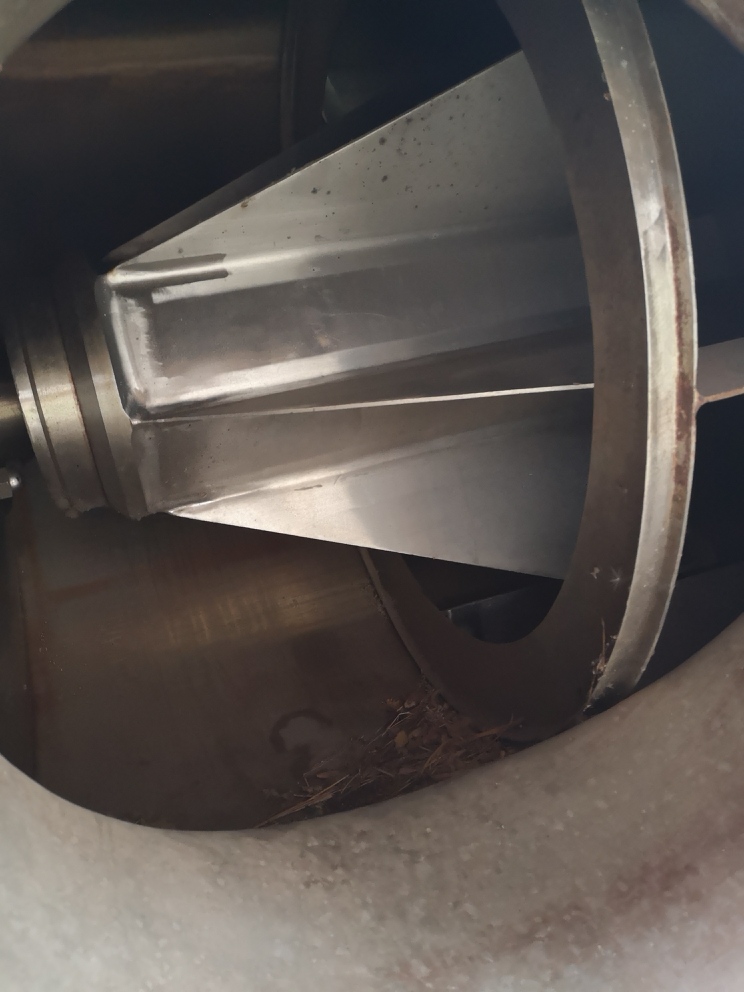

Equipped with 6 blade fixed rotor
Packing gland on shaft.
Entrainment separator 500 mm Diameter
no pulley and Motor.
Diameter: 800 mm (31.5 in). Height: 5,200 mm (205 in). Pressure: 4.5 bar (65.3 psi).
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: KH-600-S SAKO
Condition: Used
Material: Stainless Steel 316L
Evaporation Rate: 145 kg/h (320 lb/h)
Total Heat Transfer Surface Area: 6 m² (64.6 ft²)
thin film evaporator
jacket -1/1.1 bar @ 350 deg C (110ltr)
316L s/steel (1,4404) chamber, c/steel jacket on straight side only, 316L s/steel rotor, Crane 109 double mechanical seal with lubricator, speed 191 rpm, belt driven by 22kw, 3/50/380 volt, 730 rpm motor
Orientation: Horizontal. Diameter: 1,200 mm (47.2 in). Height: 3,100 mm (122 in). Pressure: 6.4 bar (92.8 psi). Temperature: 350 °C (662 °F). Vacuum: Yes. Mechanical Seal on Shaft: Yes. Drive Type: Loher DNGW-225MB-08A.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: L-425
Condition: Used
Material: Stainless Steel Austenitic
Total Heat Transfer Surface Area: 3.2 m² (34.4 ft²)
Orientation: Vertical
wiped film evaporator
Shell 22" dia x 87" long
Expansion joint on shell.
Jkt rated 25 ATM @ 230 deg C
Jkt 25 ATV @ 250 deg C.
3" btm discharge.
Diameter: 559 mm (22 in). Height: 2,210 mm (87 in). Temperature: 230 °C (446 °F). Vacuum: Yes.
