air cooled
oil free
rotary screw compressor
This is a twin shaft screw compressor, positive displacement type
55 psia @ 60 degrees F outlet pressure
The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute
321 amps

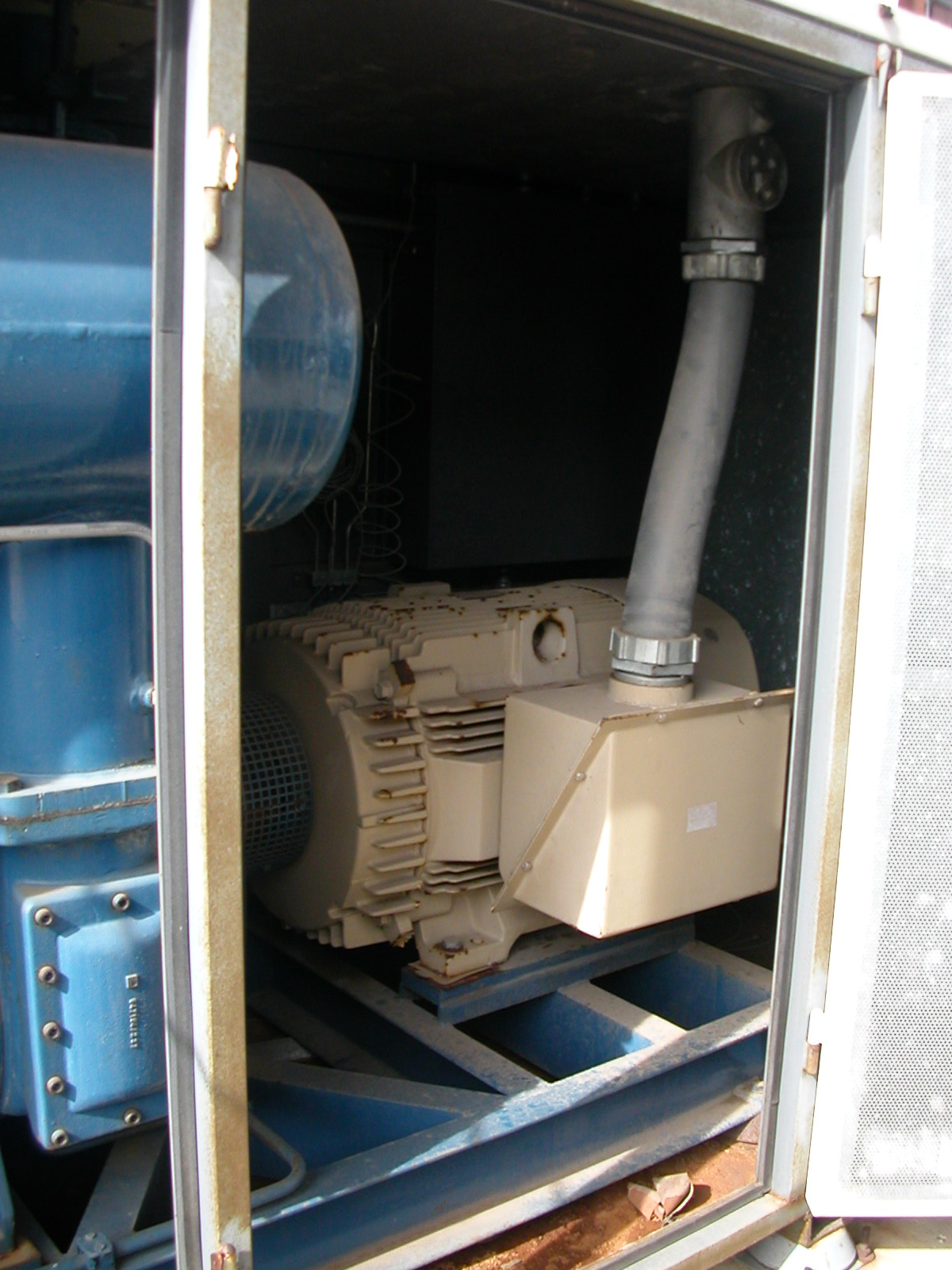

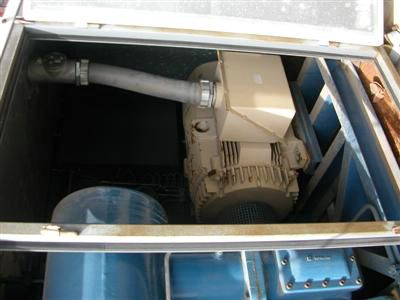

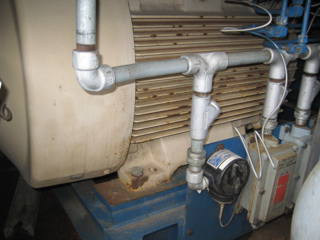

General Electric Energy Saver AC motor

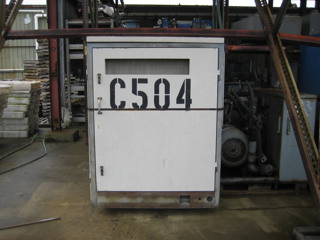

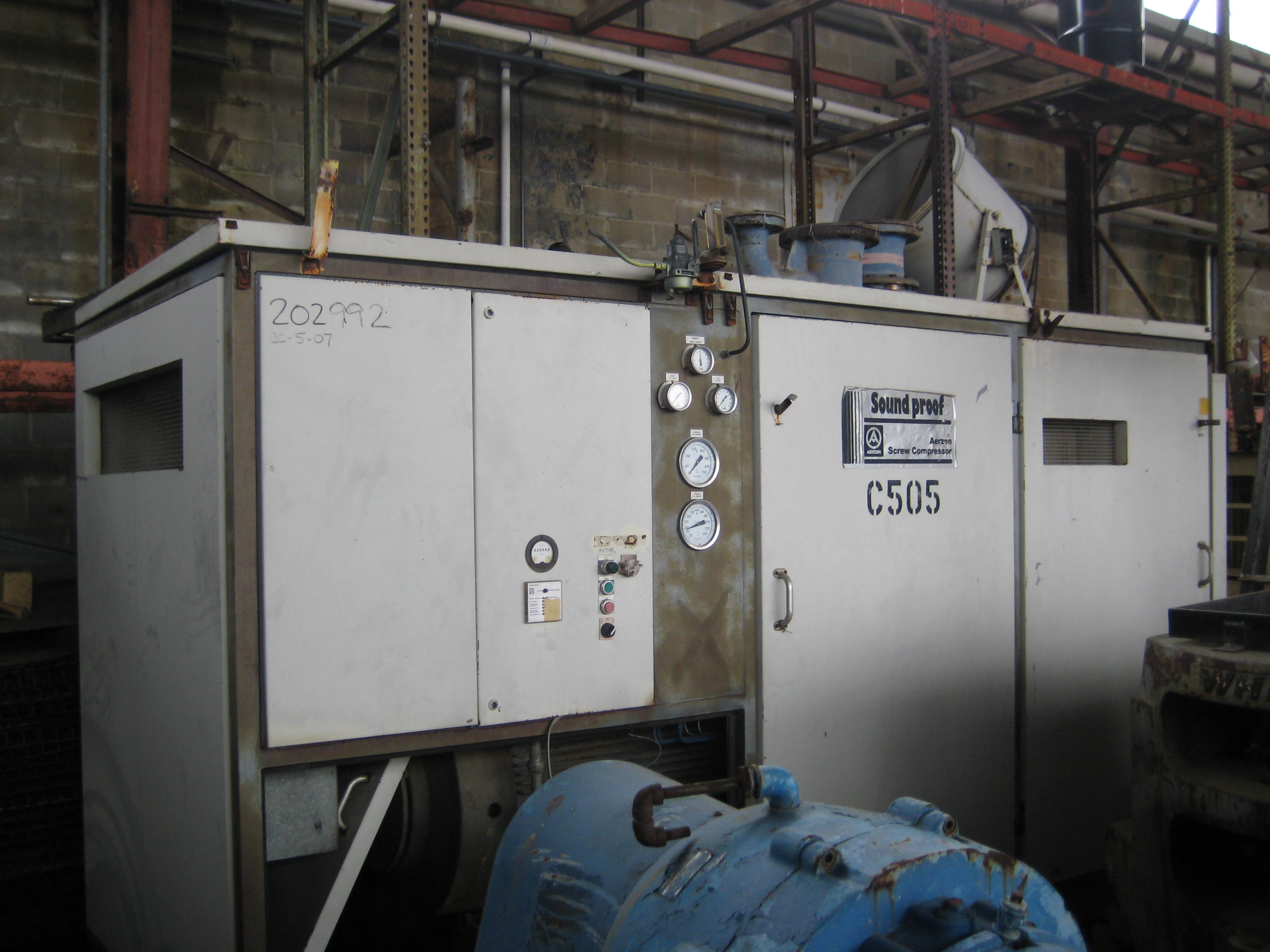

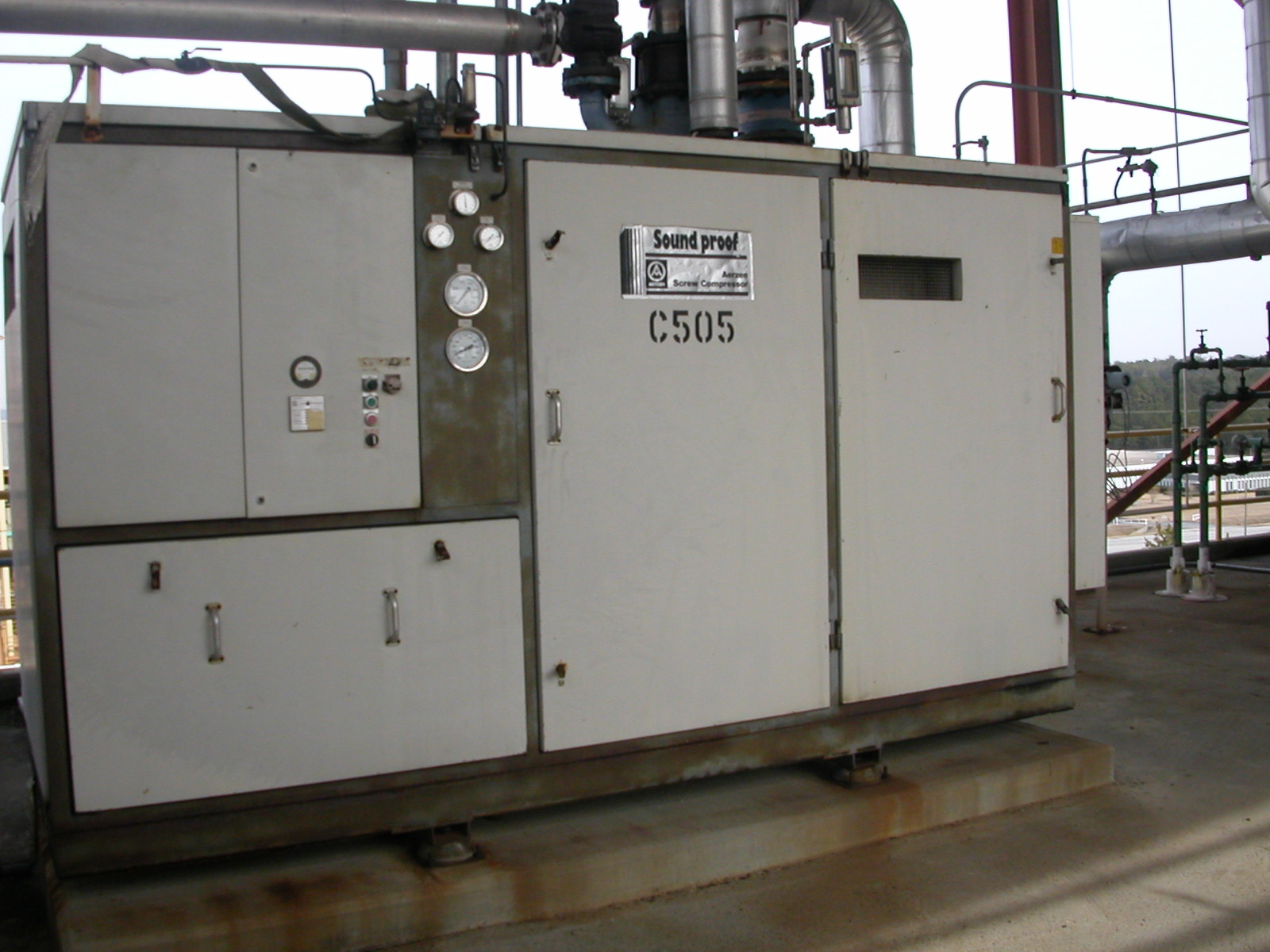

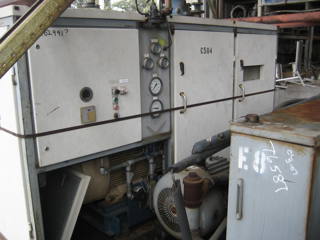

The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.
Type: Compressor
Subtype: Rotary
Manufacturer: Aerzen Corp
Model: VR 1231
Condition: Used
Compressor Type: Rotary
Inlet Pressure: 1.01 bar (14.7 psi)
air cooled
rotary screw compressor
oil free
This is a twin shaft screw compressor
This is a twin shaft
55 psia @ 60 degrees F outlet pressure
The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute
General Electric Extra Severe Duty AC motor
The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.
Discharge Pressure: 3.79 bar (55 psi). Flow Rate: 1,359 m3/h (800 CFM). Inlet Diameter: 203 mm (8 in). Speed (RPM): 3,550. Oil Free: Yes.
