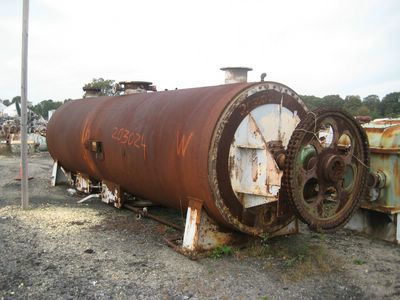

Stainless Steel 304 Dryer-Rotary Vacuum - IPP# 203024

Type: Dryer-Rotary Vacuum

Manufacturer: Stokes

Model: 900-59-125

Condition: Used

Material: Stainless Steel 316

Capacity Design: 7 m3 (247.2 ft3)

Diameter: 1,219 mm (48 in)

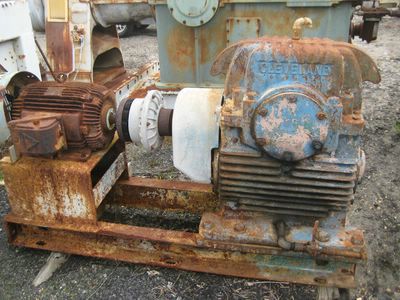

jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".

Length: 6,096 mm (240 in). Temperature: 148.9 °C (300 °F). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).

Type: Dryer-Rotary Vacuum

Model: 1.2-4-DBK

Condition: Unused

Material: Stainless Steel 304

Capacity Design: 4 m3 (141 ft3)

Capacity Working: 1.98 m3 (70 ft3)

304SS shell with CS jacket Openings: top 1-14", 1-12", 1-24" w/28" dia x 36" str side air receiver Center btm discharge 1-12" Rotor speed 6 rpm

Diameter: 1,219 mm (48 in). Length: 3,962 mm (156 in). Pressure: 2 bar (29 psi). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Agitation Seal Type: Packing. Jacket Material: Carbon Steel. Jacket Pressure: 8.1 bar (118 psi).

Type: Dryer-Rotary Vacuum

Manufacturer: Littleford Bros, Inc

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.62 m3 (22 ft3)

Capacity Working: 0.37 m3 (13 ft3)

product contact Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Center bottom discharge 15.5" ID.

Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation Seal Type: Packing. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).

Type: Dryer-Rotary Vacuum

Manufacturer: Littleford

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.62 m3 (22 ft3)

Capacity Working: 0.37 m3 (13 ft3)

Designed for batch operation. Designed for vacuum operation to -25 "hg. Internal finish polished to a 120 grit finish. Main shaft drive 10 Hp with gear reducer for output rpm of 65. Center bottom discharge 15.5" ID. No dust collector with unit.

Diameter: 939.8 mm (37 in). Length: 2,540 mm (100 in). Height: 4,064 mm (160 in). Temperature: 121.1 °C (250 °F). Pressure: 1.03 bar (14.9 psi). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Number of Choppers: 2. Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 160 °C (320 °F).
