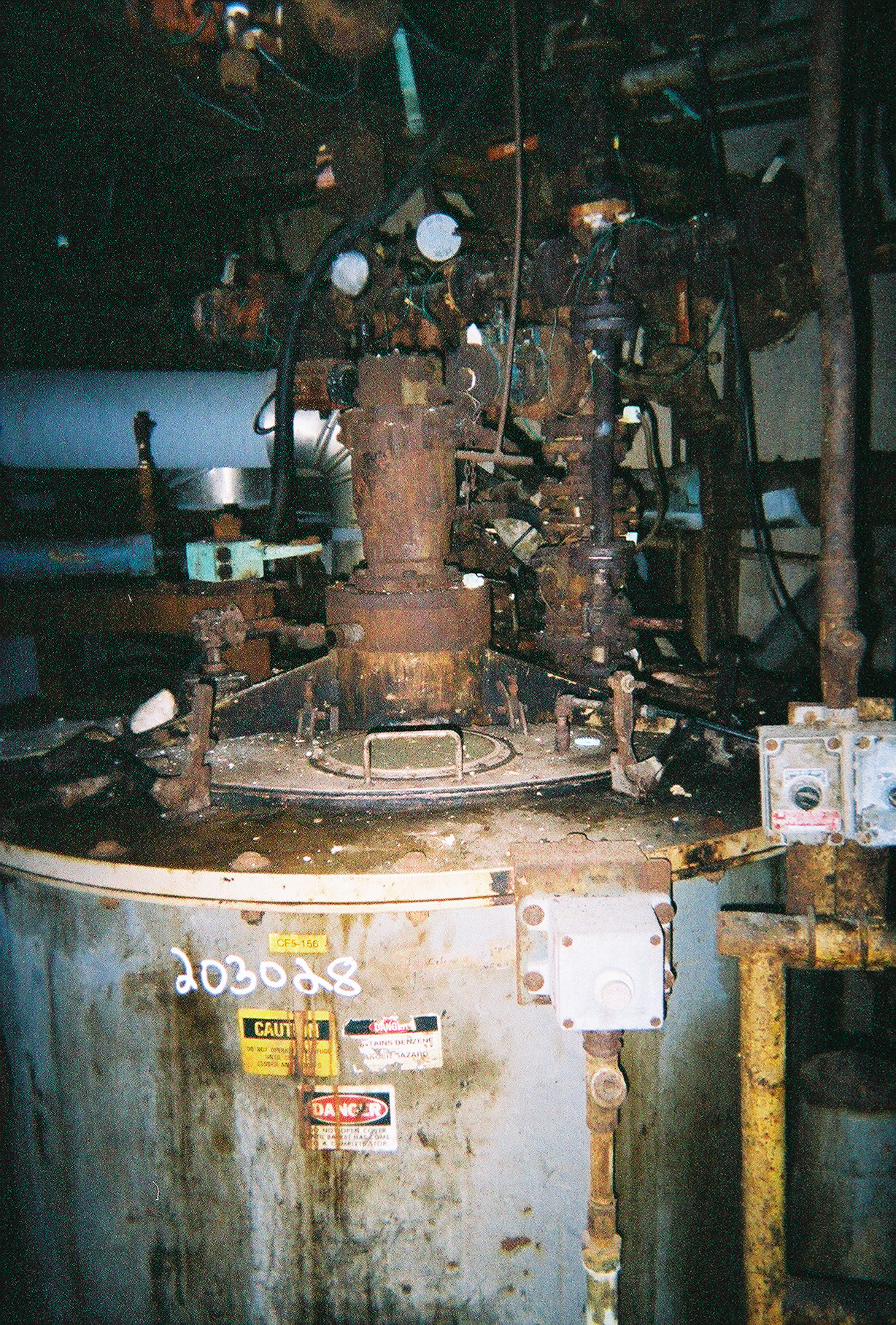

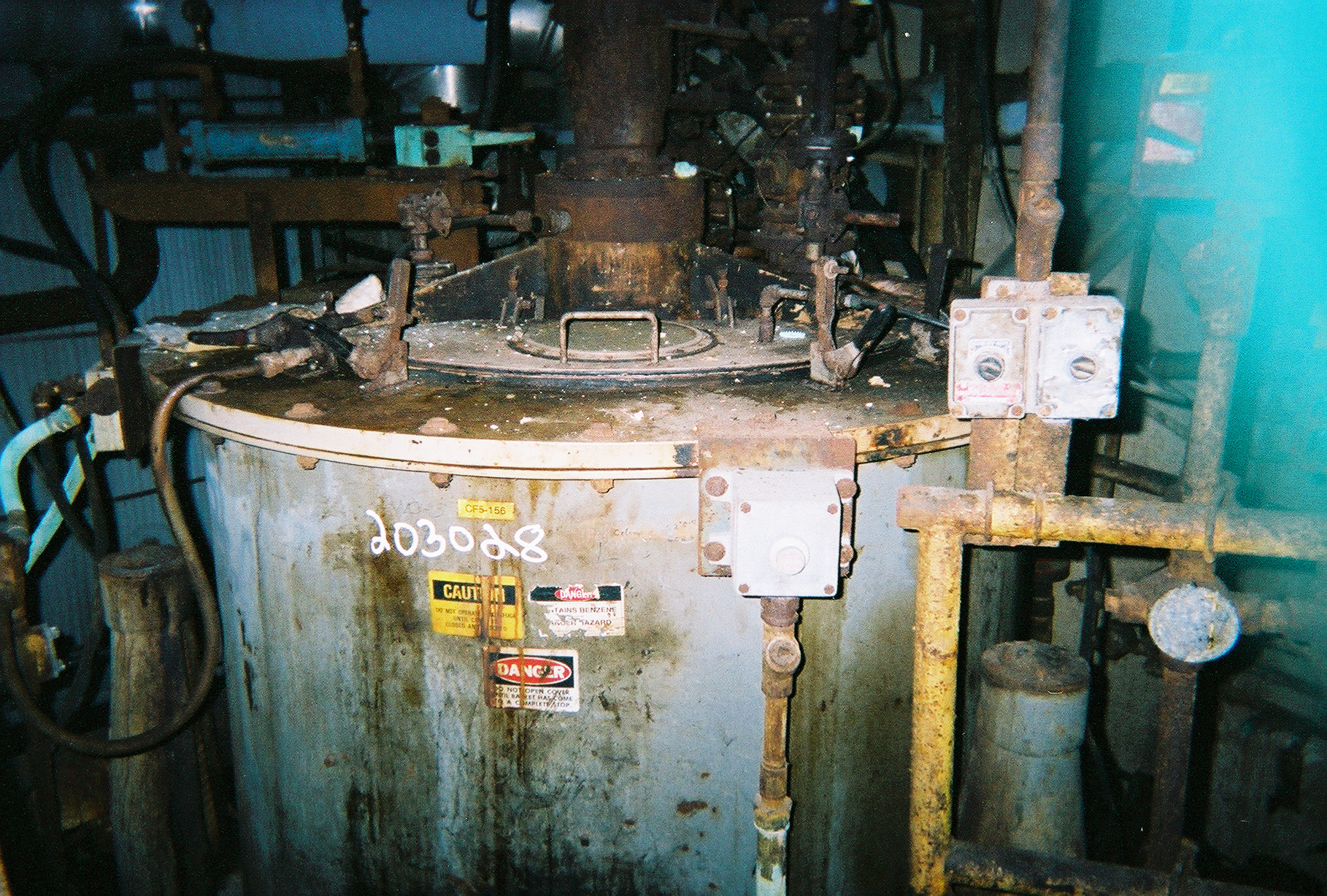

phenolic lined Ametek basket centrifuge Top load bottom discharge with hydraulic plow spray pipe
Type: Centrifuge-Basket
Subtype: Auto Discharge-Bottom
Manufacturer: Ametek
Condition: Used
Material: Lined
Basket Diameter: 1,219 mm (48 in)
Basket Depth: 762 mm (30 in)
phenolic lined basket centrifuge Top load bottom discharge with hydraulic plow spray pipe
Type: Centrifuge-Basket
Subtype: Auto Discharge-Bottom
Manufacturer: Ametek
Model: Mark III
Condition: Used
Material: Hastelloy - C276
Basket Diameter: 1,524 mm (60 in)
Basket Depth: 762 mm (30 in)
hastelloy lined centrifuge 3 speed ,75/520/950 rpm with hydraulic power pack Top feed, bottom discharge Designed for nitrogen purge, with a pneumatic cover lock for the 1/2 hinge top cover Internally complete with a hydraulic plow, cake detector. This centrifuge is equipped with a clutch motor, hydraulic drive, and 60 HP power pack.
Filtration Area: 3.5 m² (38 ft²). Motor Power: 44.7 kW (60 HP). Speed-RPM Maximum: 950.
Type: Centrifuge-Basket
Subtype: Auto Discharge-Bottom
Manufacturer: Ametek
Model: Mark III
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,219 mm (48 in)
Basket Depth: 762 mm (30 in)
Top load, bottom discharge 316SS basket Hersite coated curb teflon lined cover Designed for nitogen purge Vibration switch, the hinged access door has a safety interlock witch will not allow the basket to rotate unless the door is closed and latched, the discharger cannot operate except below a pre-selected unloading speed set at 100 rpm, and controlled by the monitoring system
Speed-RPM Maximum: 1,150. Controls: Yes.
