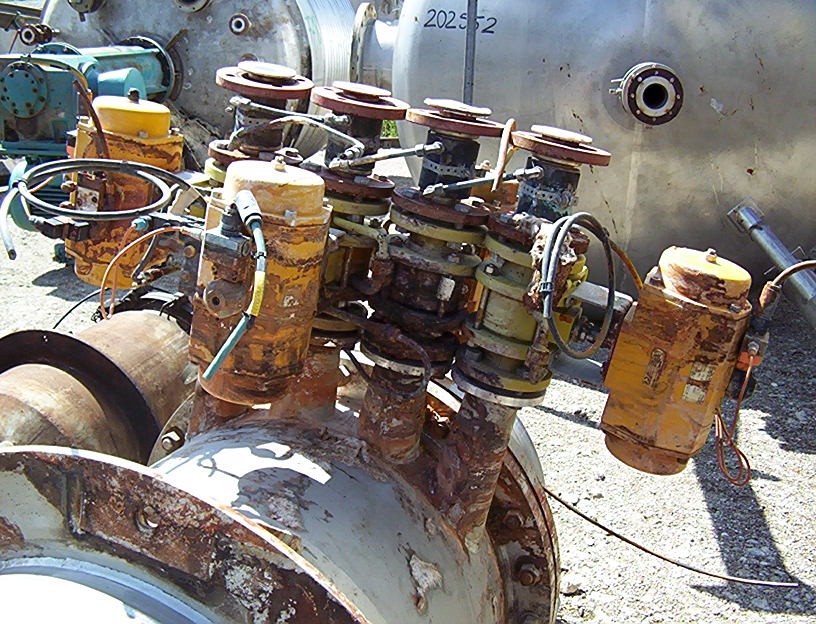

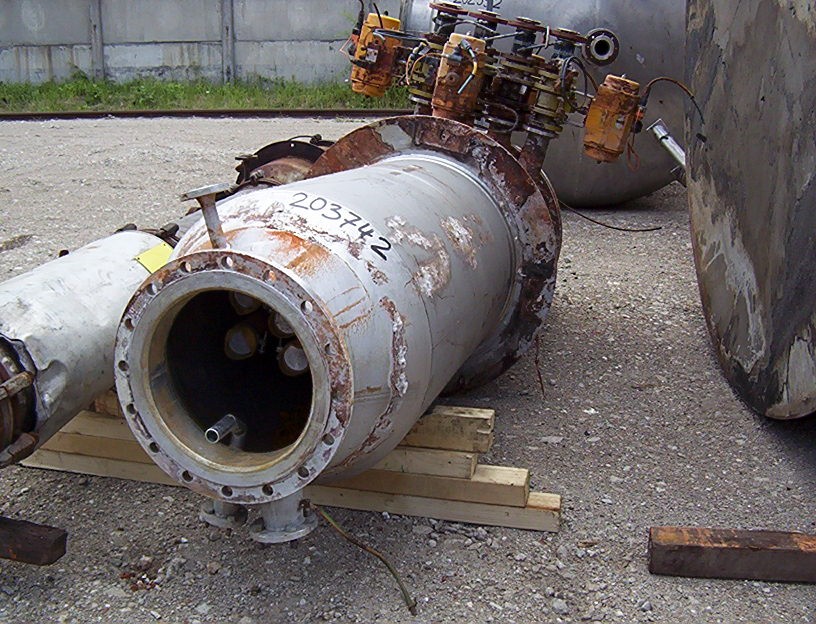

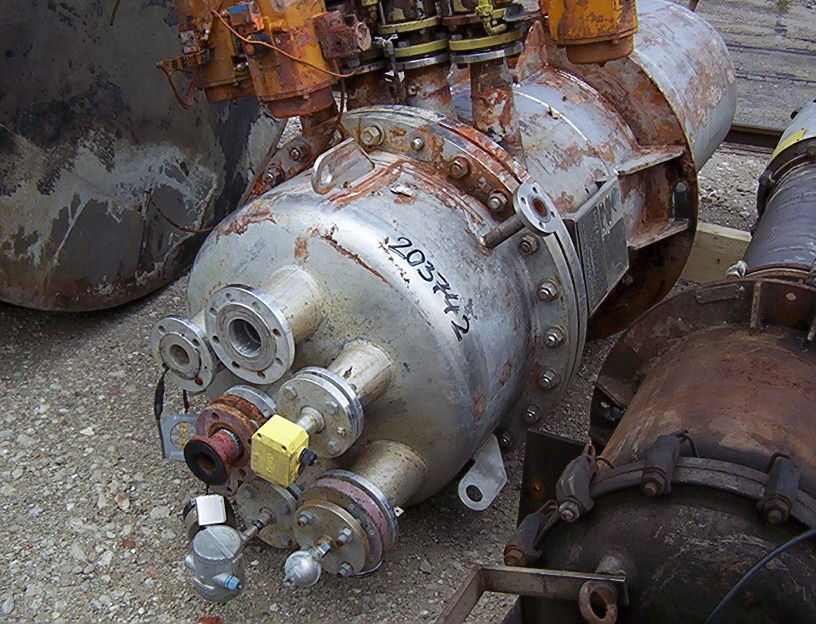

Hastelloy - C22 Dr. Mueller Fundabac Pressure Leaf Filter - IPP# 203742

Type: Filter

Subtype: Pressure Leaf

Manufacturer: DrM Group (Dr. Mueller AG)

Model: R-1.3-3-1650/T140Z

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.3 m² (14 ft²)

Diameter: 320 mm (12.6 in)

Fundabac filter
Volume: 165 liters
Pressure rating: -1/10 bar @ 0/200 degrees C
with 3 filter candles,

Pressure: 10 bar (145 psi). Temperature: 200 °C (392 °F). Overall Length: 2,230 mm (87.8 in).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Filtroba

Model: 6.3

Condition: Used

Material: Hastelloy - C22

Filtration Area: 6.3 m² (67.8 ft²)

Diameter: 1.1 mm (0.0433 in)

• design pressure internal -1/10 barg @ 200 degrees C,
• jacket -1/10 barg @ 200 degrees C,
• filter pack (heating) 10 bar + full vacuum @ 200 degrees C,
• electro polished Hastelloy C22 internals,
• elements are hot water heated
• shaft with rotary union joint
• batch operation
• Hazardous area classification is Zone 1, Gas Group IIC, Temp T4

Orientation: Vertical. Pressure: 10 bar (145 psi). Temperature: 200 °C (392 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 304L. Jacket Temperature: 200 °C (392 °F). Cake Volume: 0.285 m3 (10.1 ft3). Seal Type: Mechanical. Number of Filter Elements: 5. Filter Element Details: 5 layers sintered 'Absolta' 15 micron.
