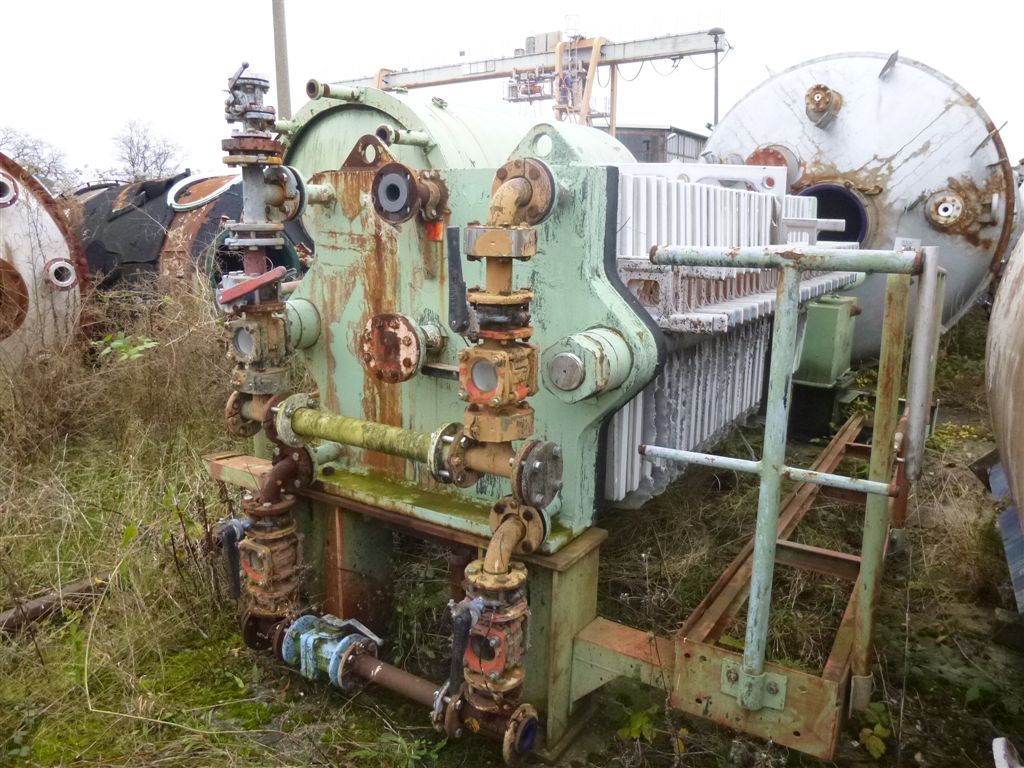

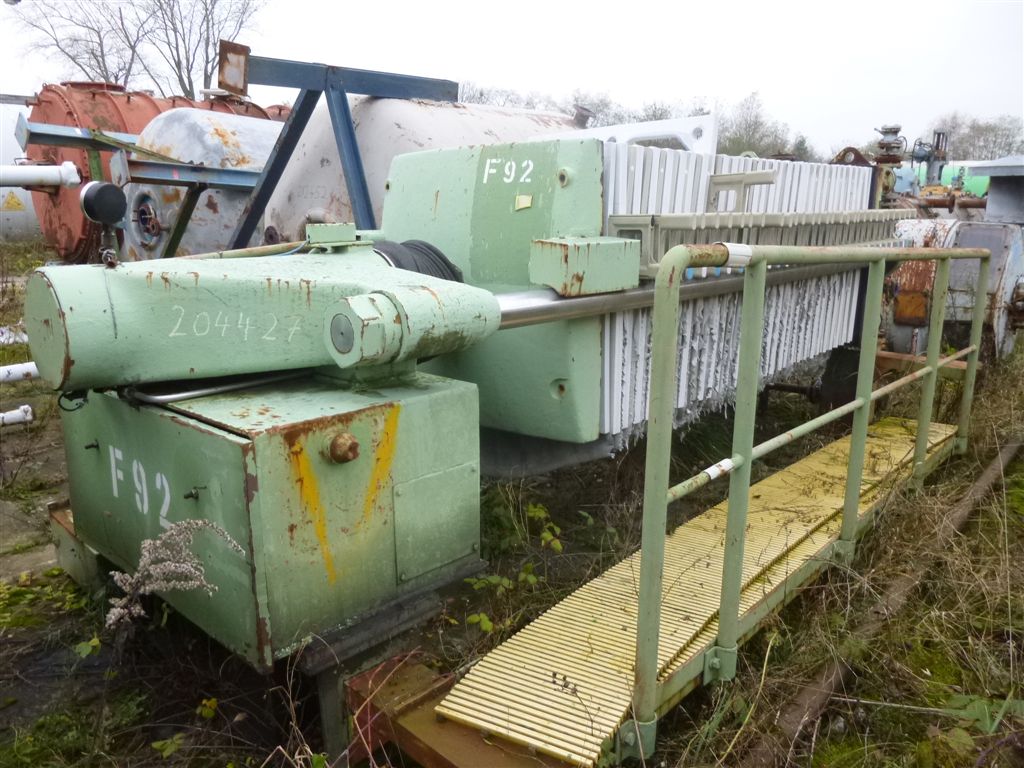

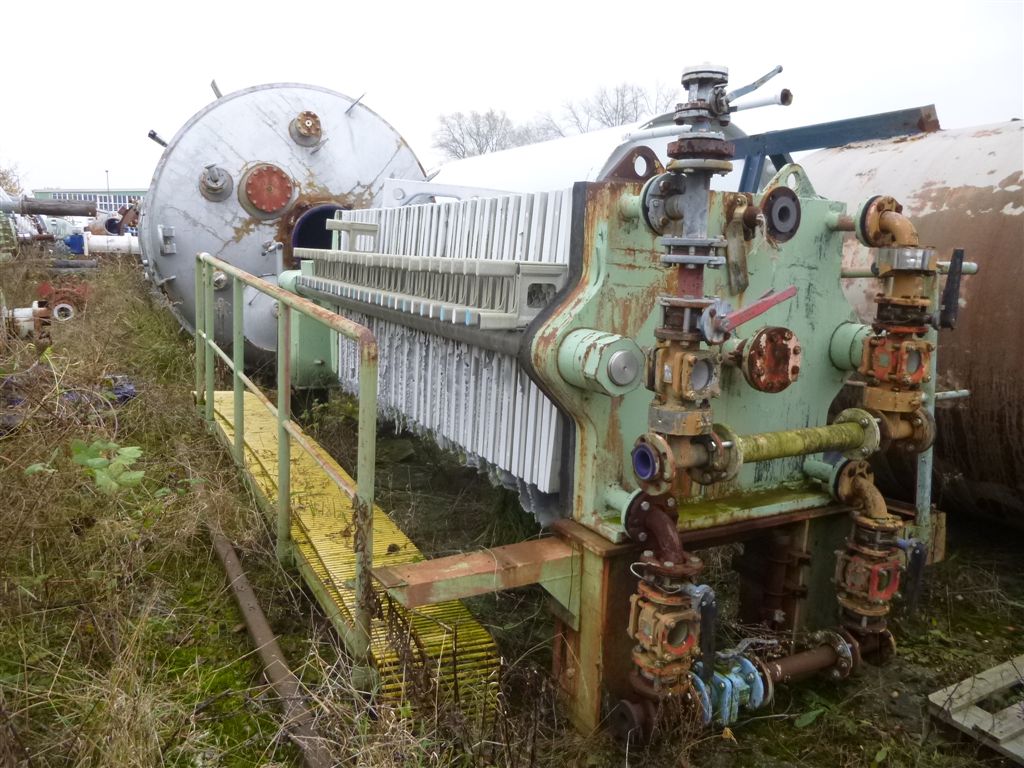

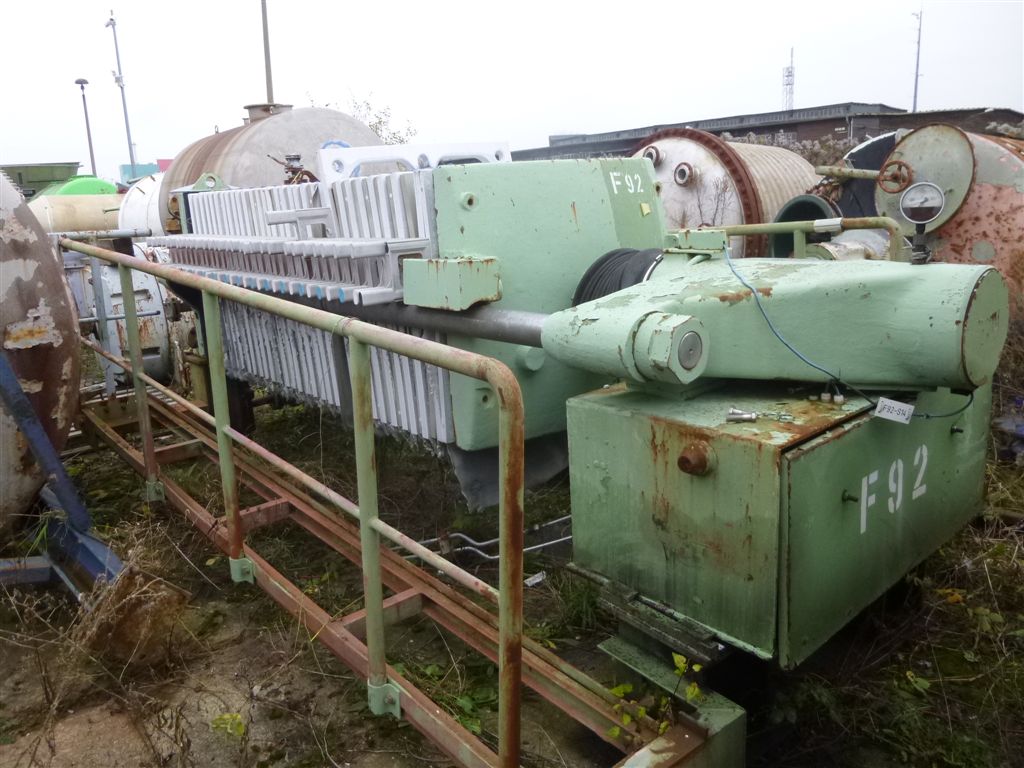

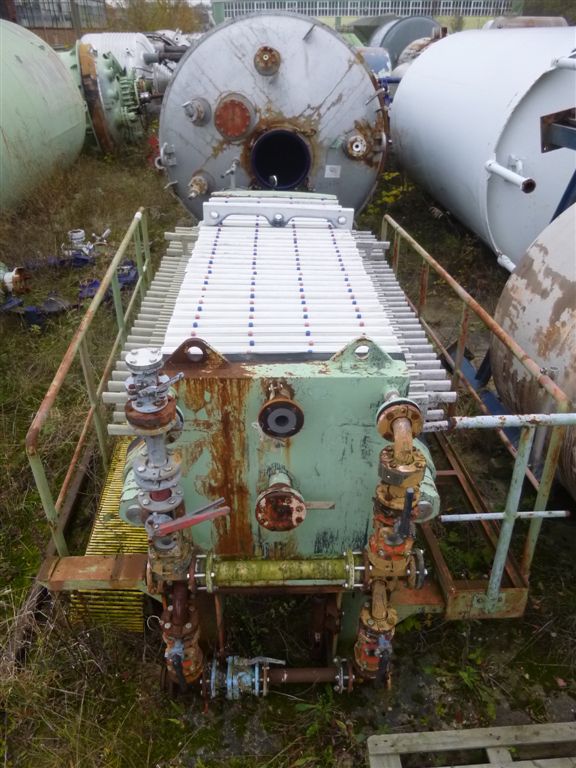

Filter Press, 473 Sq.Ft. Filtration Area, Polypropylene Plates, Manufactured by Von Roll - IPP# 204427

Type: Filter

Subtype: Press

Manufacturer: Von Roll

Condition: Used

Material: MISC

Filtration Area: 18.3 m² (197.4 ft²)

Pressure: 6 bar (87 psi)

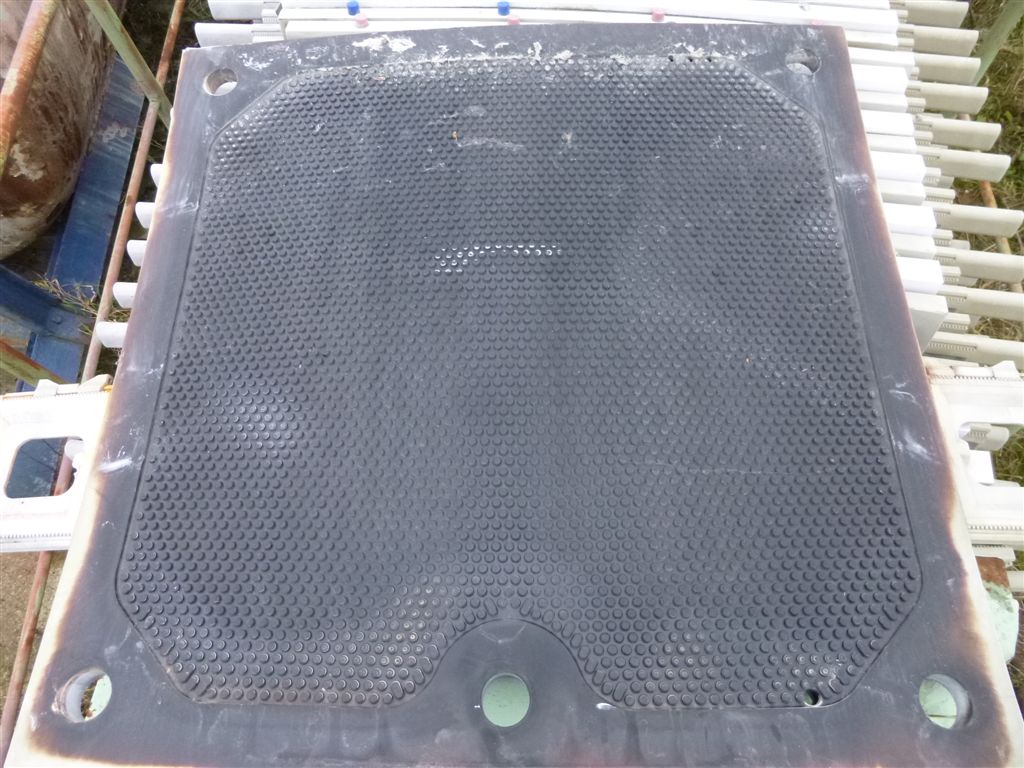

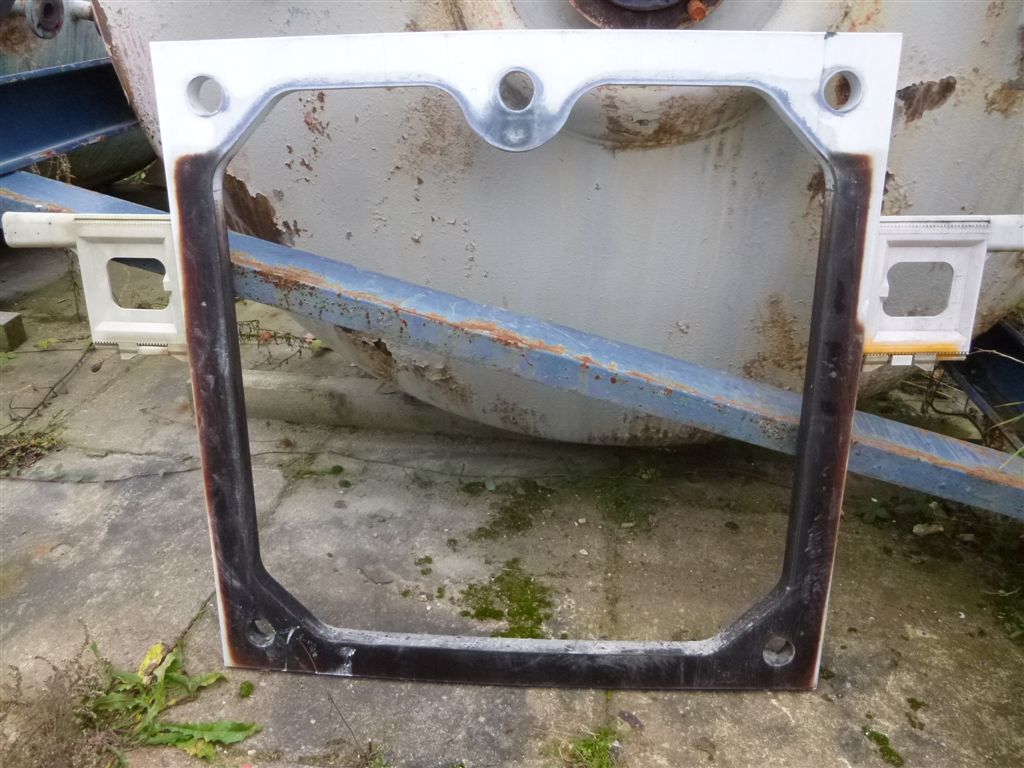

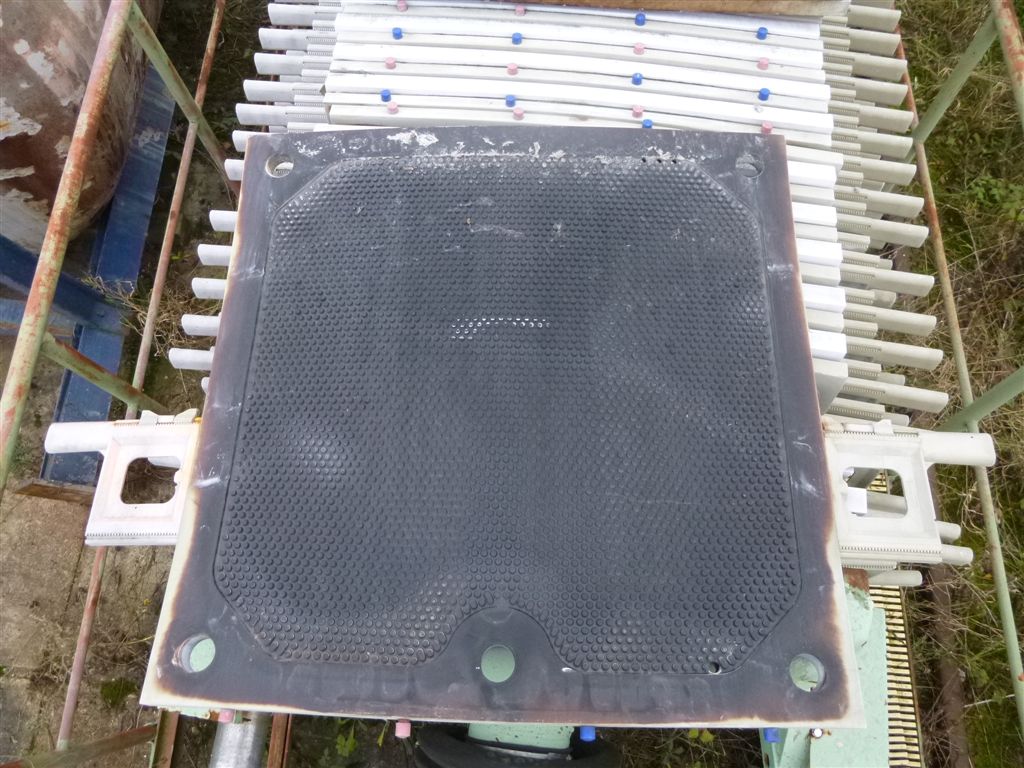

• filter press complete with 53 chambers of mixed pack membrane plates/recessed plates with (1) head plate, weight 122 kg and (1) end plate. To be top center feed, 4 corner closed discharge, Filter has 27 membrane plates, weight piece 111 kg and 26 recessed plates, weight piece 86 kg, plates manufactured by JV Kunstoffwerk GmbH, material of membrane EPDM. 50mm cake thickness before squeeze. Filter rated 6 bar @ 20 to 70 degrees C. Hydraulic closer rated 6/170 bar @ 90 degrees C.

Temperature: 70 °C (158 °F). Overall Length: 7,950 mm (312.4 in). Overall Width: 2,000 mm (77.8 in). Overall Height: 2,000 mm (78.1 in). Cake Volume: 5 m3 (178 ft3). Filter Press Plate Type: Membrane Plates. Number of Plates: 53. Plate MOC: Rubberlined. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,450 mm (57.1 in). Plate Height: 1,450 mm (57.1 in). Plates Recessed: Yes.

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.2 m² (34.8 ft²)

Overall Length: 2,650 mm (104 in)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Overall Width: 914 mm (36 in). Overall Height: 1,450 mm (56.5 in). Cake Volume: 0.03 m3 (1.2 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.
• Filter plates are suspended from an overhead beam.

Overall Length: 6,400 mm (252 in). Overall Width: 1,900 mm (74.8 in). Overall Height: 2,650 mm (104.3 in). Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 sq meter filter area, can be expanded to (60) plates (96 sq meter).
• 4 eye center feed,
• Motorized hydraulic closure. Rated 170-200 bar. With safety mirrors, Cake thickness approx 30 mm.
• Filter plates are suspended from an overhead beam.

Overall Length: 6,400 mm (252 in). Overall Width: 1,900 mm (74.8 in). Overall Height: 2,650 mm (104.3 in). Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Shifted By: Automatic.
