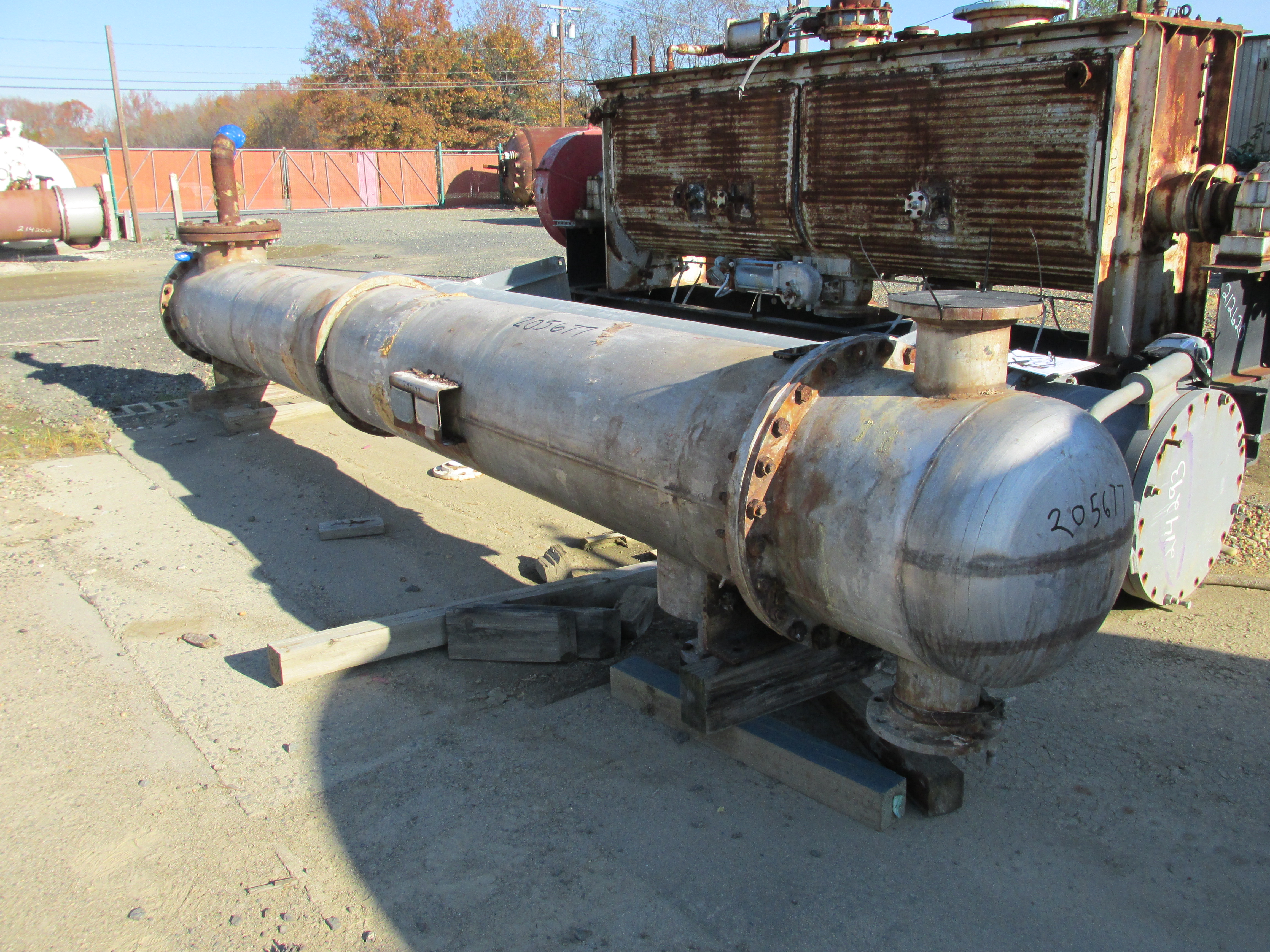

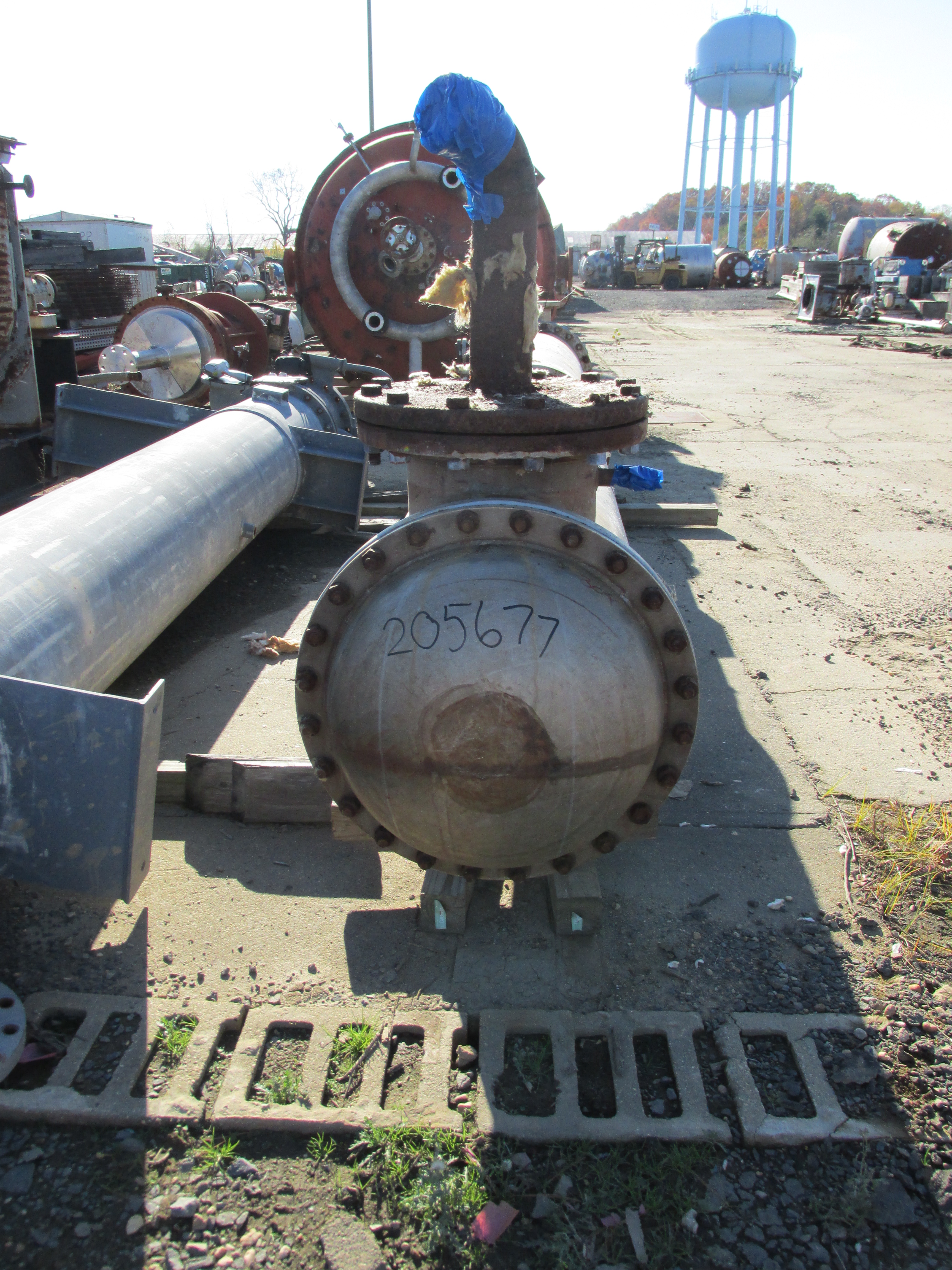

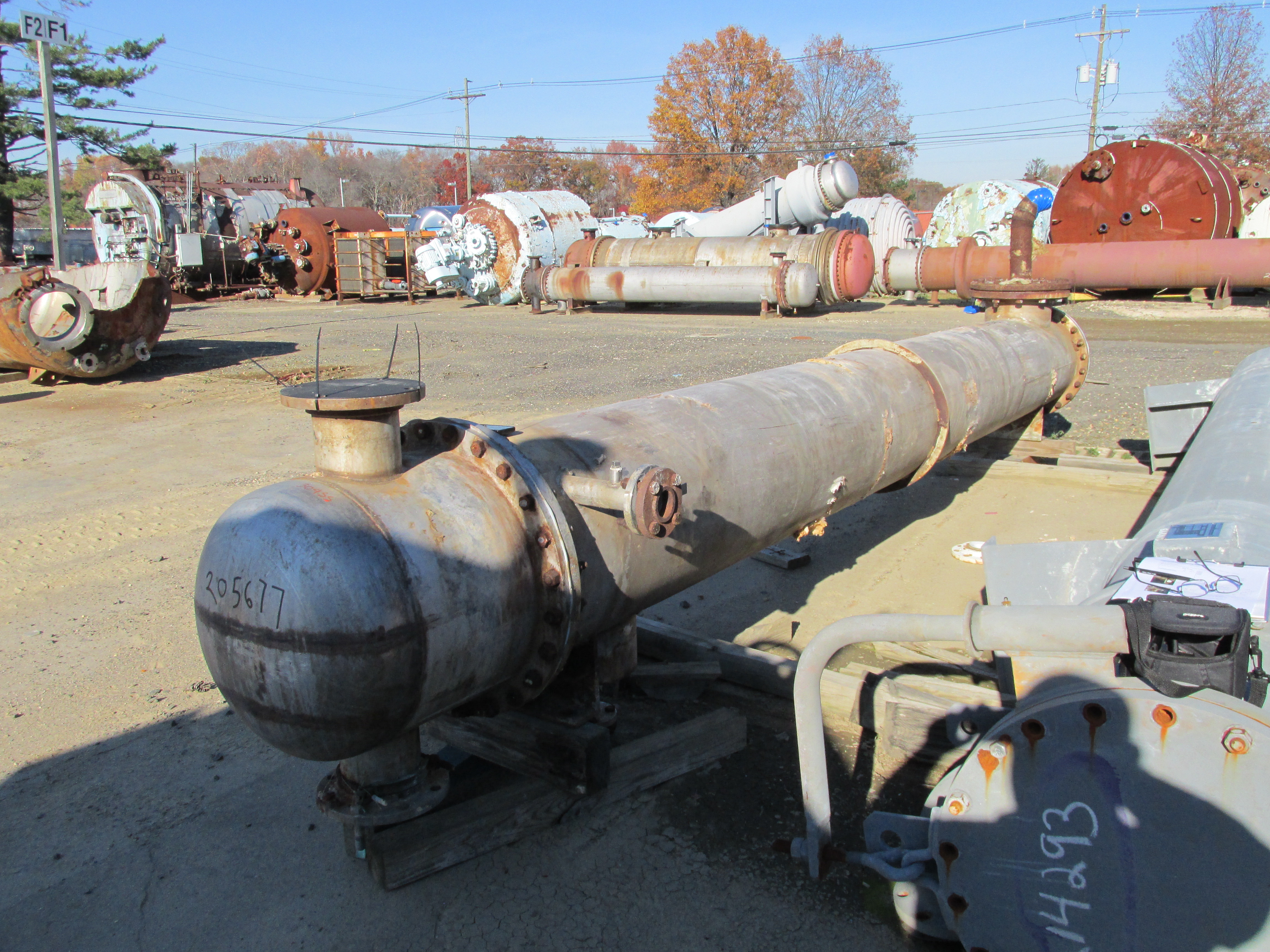

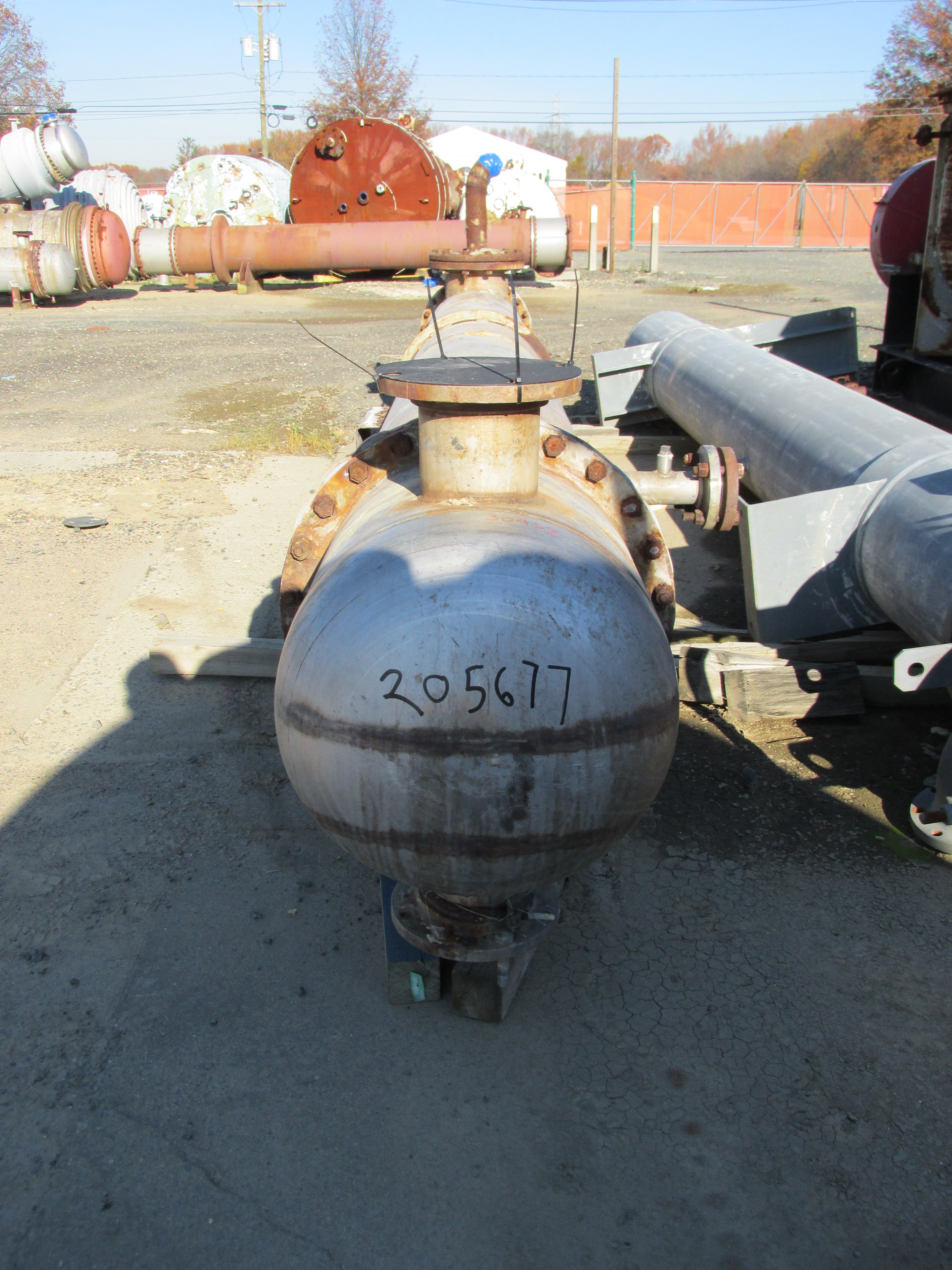

Stainless Steel Other Graham Shell and Tube Heat Exchanger - IPP# 205677

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 120.8 m² (1,300 ft²)

Orientation: Vertical

• Cooling water lines: two 8" lines. 2 pass design

Shell Pressure: 12.4 bar (180 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Stainless Steel 304. Tube Pressure: 12.4 bar (180 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Head Material: Stainless Steel 304. Length: 6,150 mm (243 in). Tube Type: Straight Tube. Tube Number: 250. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 4,900 mm (192 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Inlet: 18" vapor inlet - Outlet: 4" vapor outlet.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham

Condition: Unused

Material: Stainless Steel 304

Heat Transfer Surface Area: 68.3 m² (735 ft²)

Orientation: Horizontal

• Flash condenser for a column condenser (IPP # 216020)
• Duty: 2,957,440 BTU/hr.

Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 273.9 °C (525 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,950 mm (76 in). Head Material: Stainless Steel 304. Length: 3,650 mm (144 in). Tube Type: U-Tube. Tube Number: 156. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 16.7 m² (180 ft²)

Shell Pressure: 1.38 bar (20 psi)

Single Element Two Stage Condensing Ejector Package Shell side MAWP Tube side MAWP 8 ' high

Shell Temperature: 287.8 °C (550 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 65.6 °C (150 °F). Vacuum: Yes. Length: 3,350 mm (132 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 5.6 m² (60 ft²)

Orientation: Horizontal

Shell Pressure: 1.38 bar (20 psi). Shell Temperature: 93.3 °C (200 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 2,450 mm (96 in).
