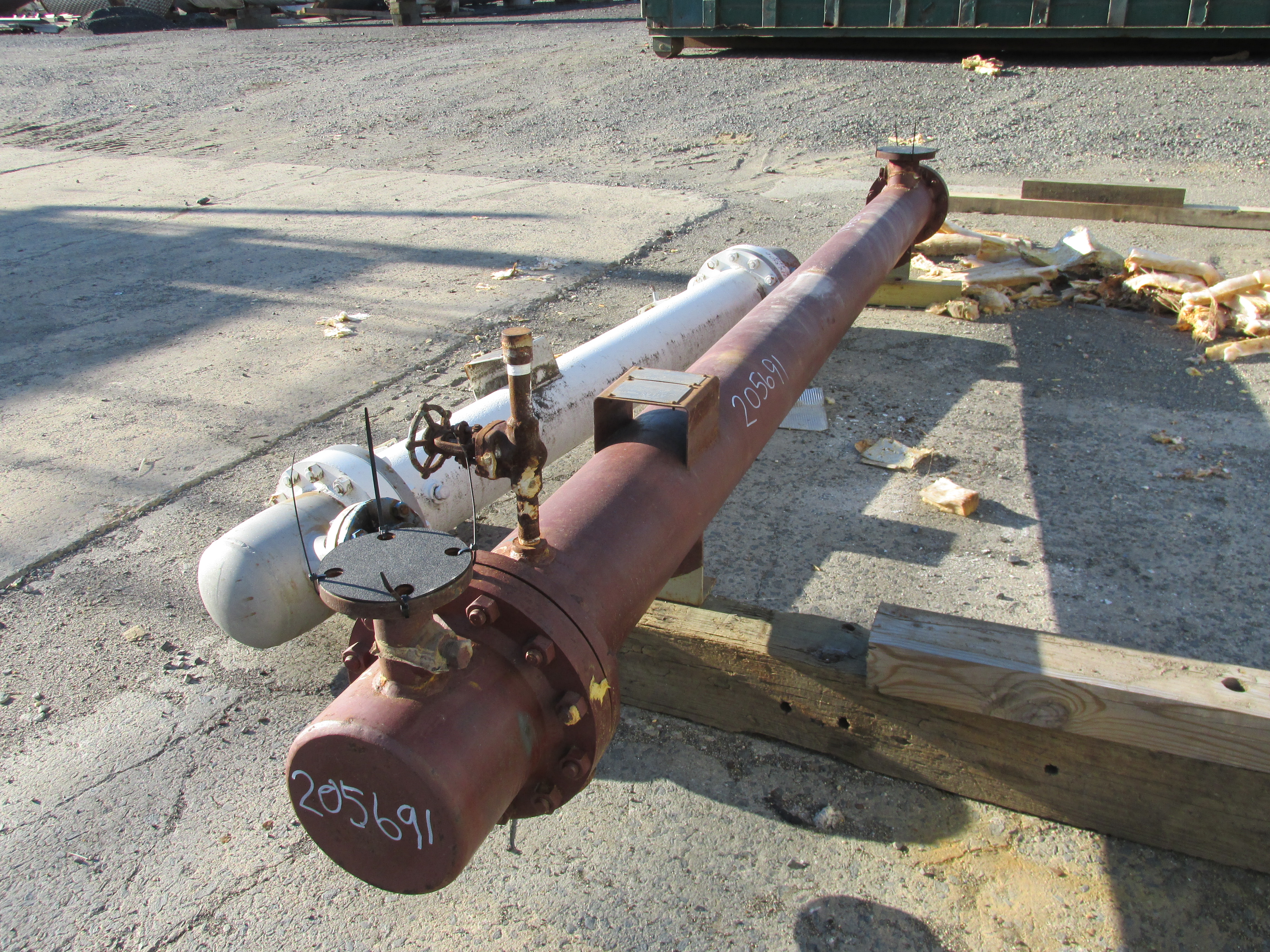

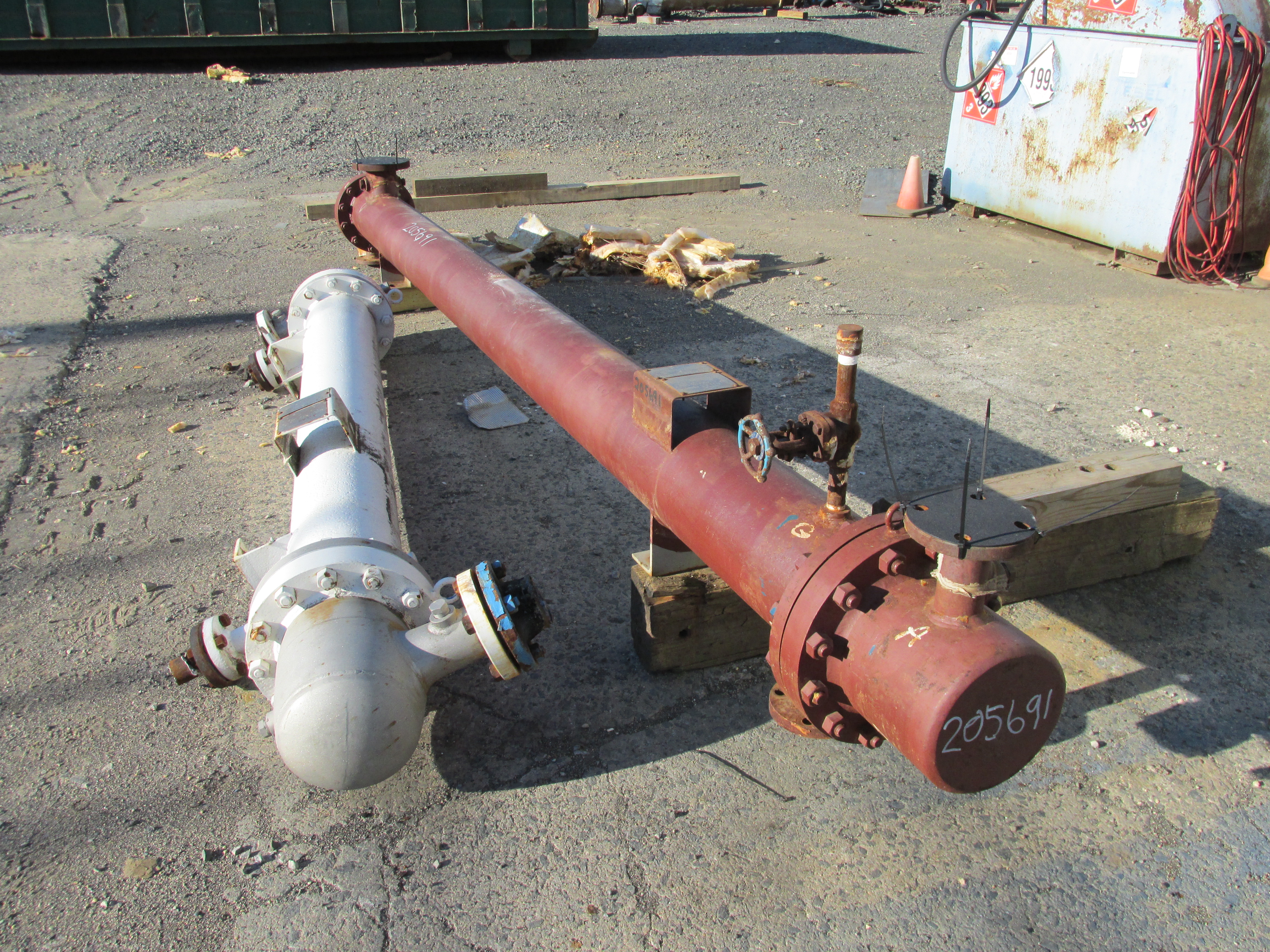

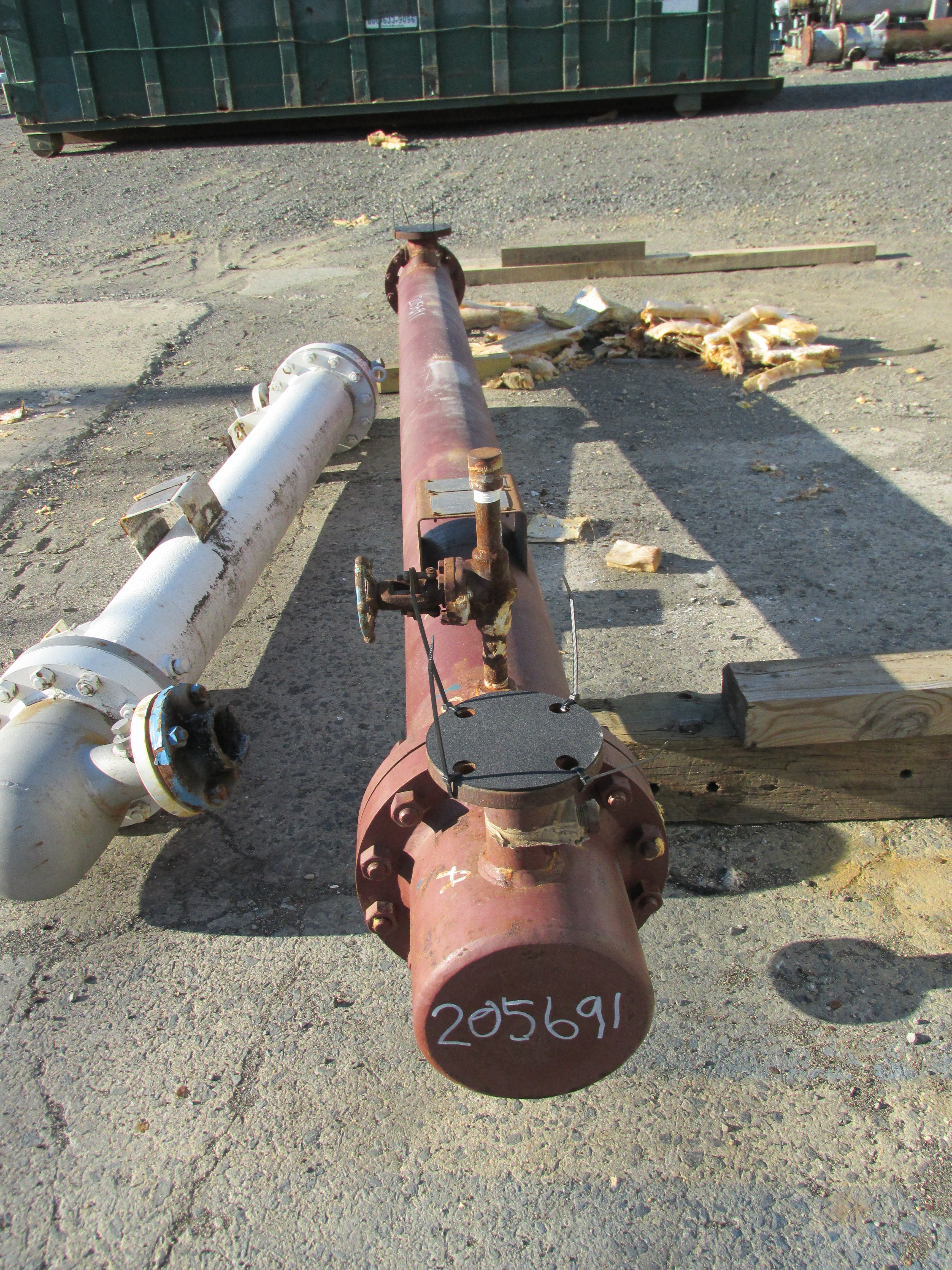

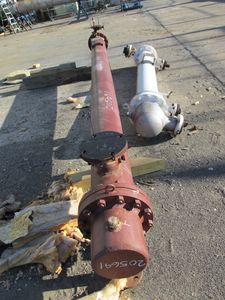

Shell and Tube Heat Exchanger 2.6 m² (28 ft²) Carbon Steel For Sale - IPP# 205691

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas

Condition: Used

Heat Transfer Surface Area: 63.8 m² (687 ft²)

Orientation: Vertical

Alloy 20 Heads/Carpenter 20 Tubes/ Alloy 20 tube sheet/ CS shell, TEMA Type N.E.M Shell has (4) 3/8" thick baffles.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tubesheet Material: Alloy 20. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Alloy 20. Length: 4,300 mm (170 in). Tube Type: Straight Tube. Tube Number: 268. Tube Diameter: 25.4 mm (1 in). Tube Length: 3,000 mm (118.5 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Top head (1) 20"; Shell - (1) 2", (1) 8"; Bottom Head - (1) 3" - Vent and drain: Two 1/2" vent & drain.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10.9 m² (117 ft²)

Orientation: Vertical

TEMA type BEM

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 273.1 mm (10.8 in). Head Material: Stainless Steel 316. Length: 2,400 mm (95 in). Tube Type: Straight Tube. Tube Number: 76. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,400 mm (95 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzles: Two 8" nozzles, Two 2" nozzles, One 4" vent, Two 0.75" drains .

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Shell and Tube Incorporated

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 186.1 m² (2,000 ft²)

Orientation: Horizontal

TEMA type: BFM, size 26-288 Vent & Drain: Two 3/4"

Shell Pressure: 36.2 bar (525 psi). Shell Temperature: 76.7 °C (170 °F). Shell Material: Carbon Steel. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: -45.6 °C (-50 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Head Material: Carbon Steel. Length: 8,300 mm (326.3 in). Shell-side Passes: 2. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 360. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 7,300 mm (288 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: Nozzles: 2-8" shell side nozzles, 2-4" tube side nozzles.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Western Supply

Model: BEM

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 299.1 m² (3,200 ft²)

Orientation: Horizontal

Pitch: 1.25" Triangular

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 260 °C (500 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 260 °C (500 °F). Tube Material: Carbon Steel. Tubesheet Material: Carbon Steel. Vacuum: Yes. Shell Diameter: 914 mm (36 in). Head Material: Carbon Steel. Length: 7,250 mm (286 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: Straight Tube. Tube Number: 625. Tube Diameter: 3,450 mm (135 in). Tube Length: 6,100 mm (240 in). Capacity: 56,800 L (15,000 gallons).
