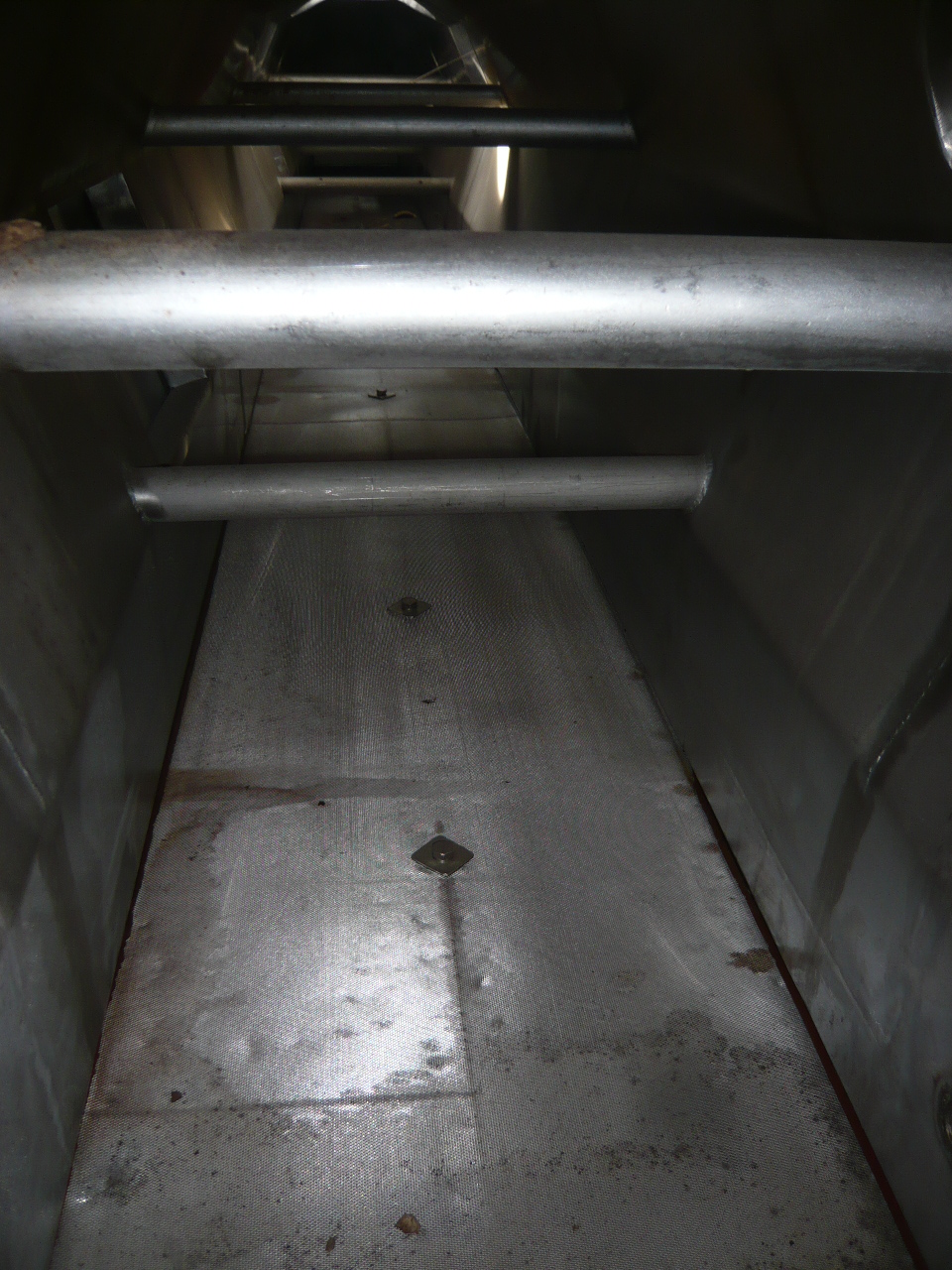

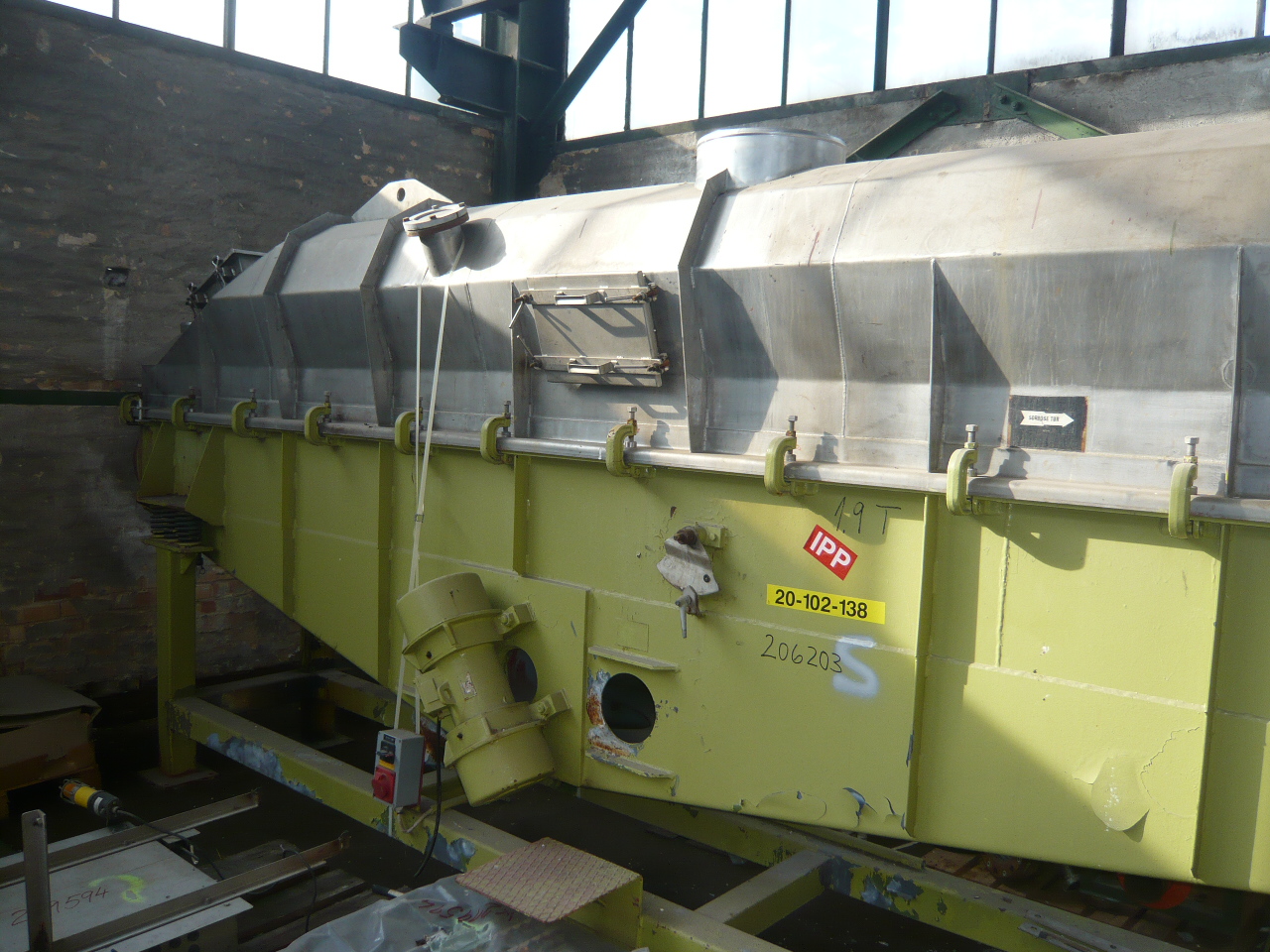

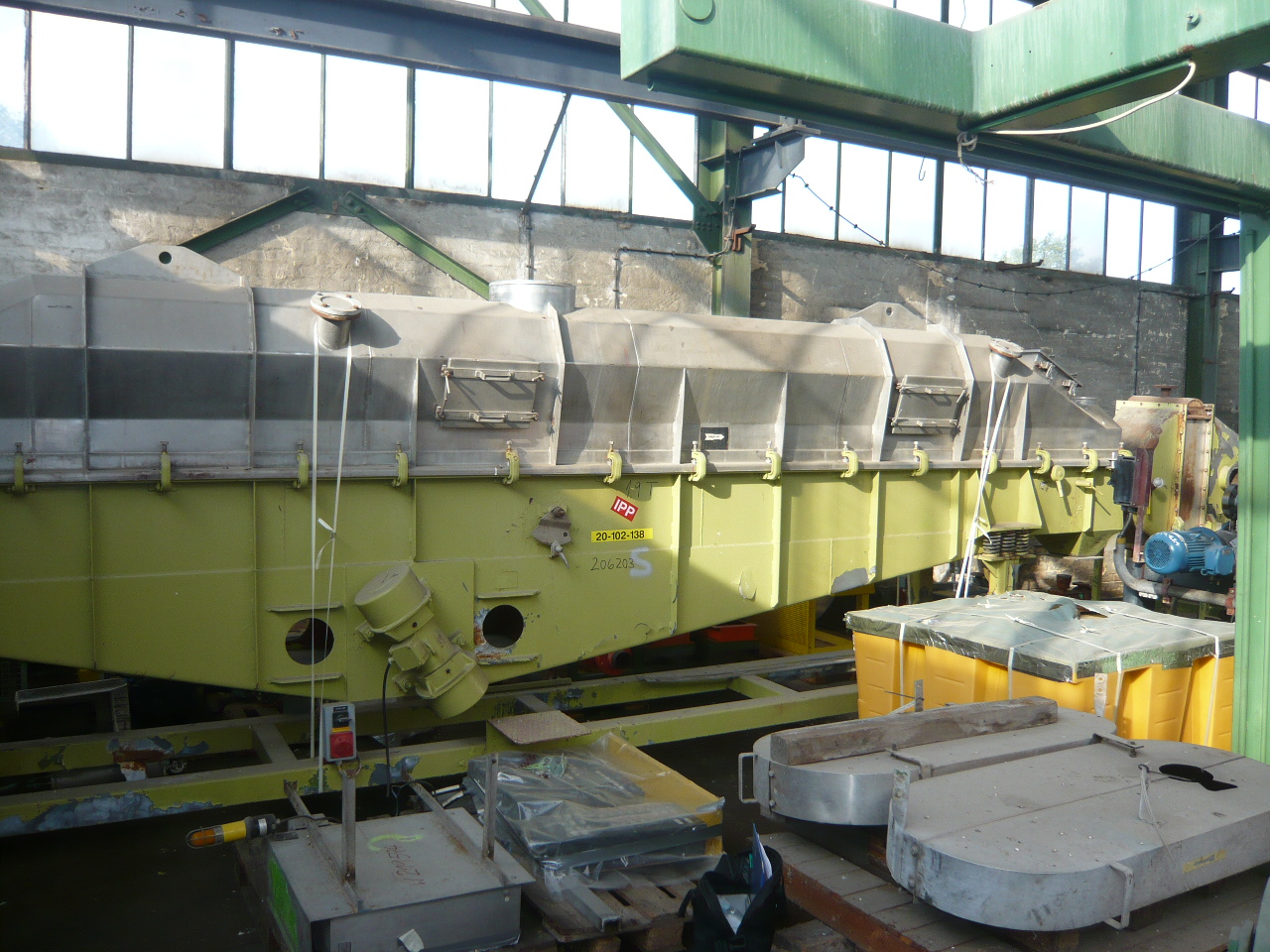

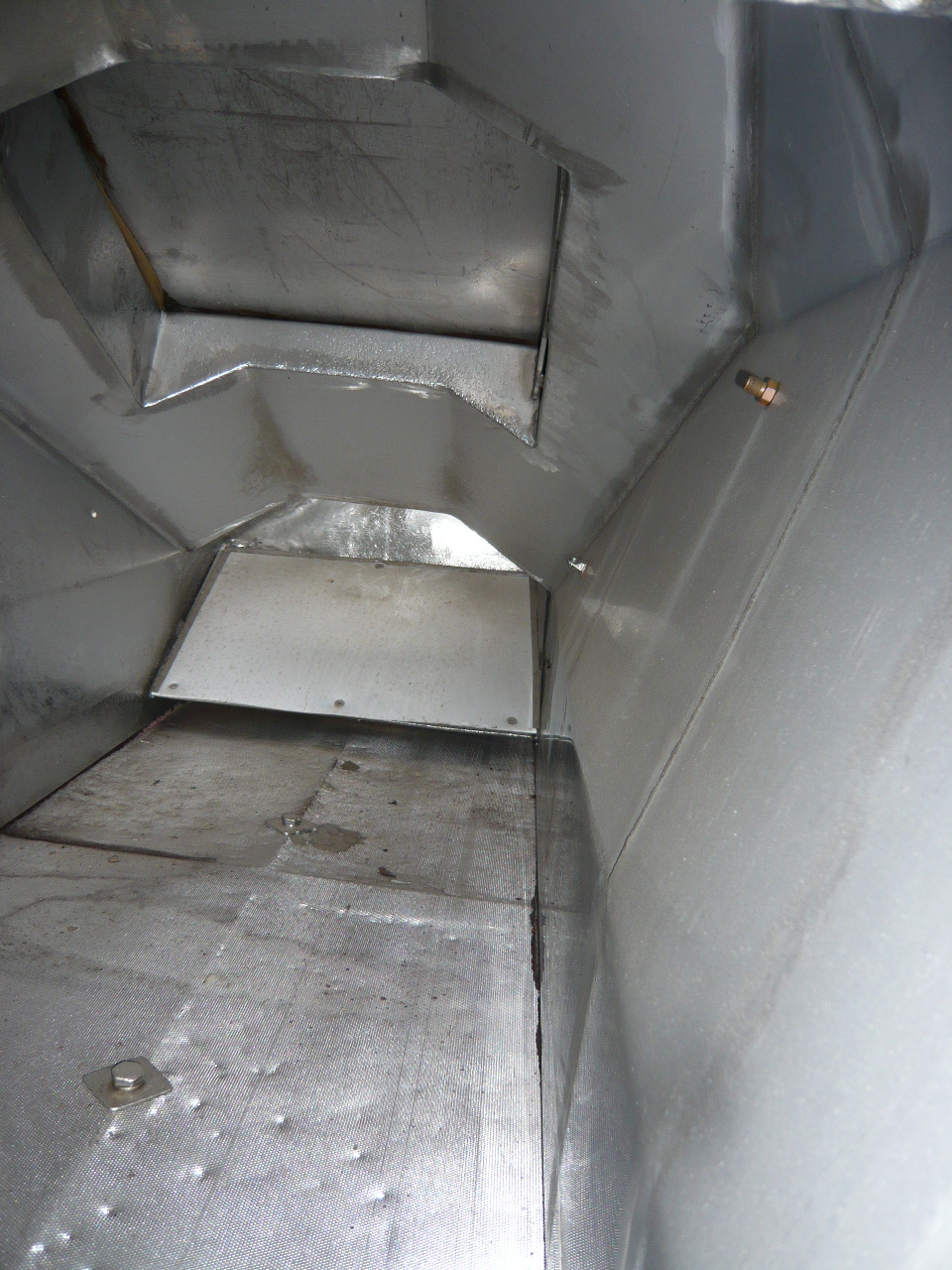

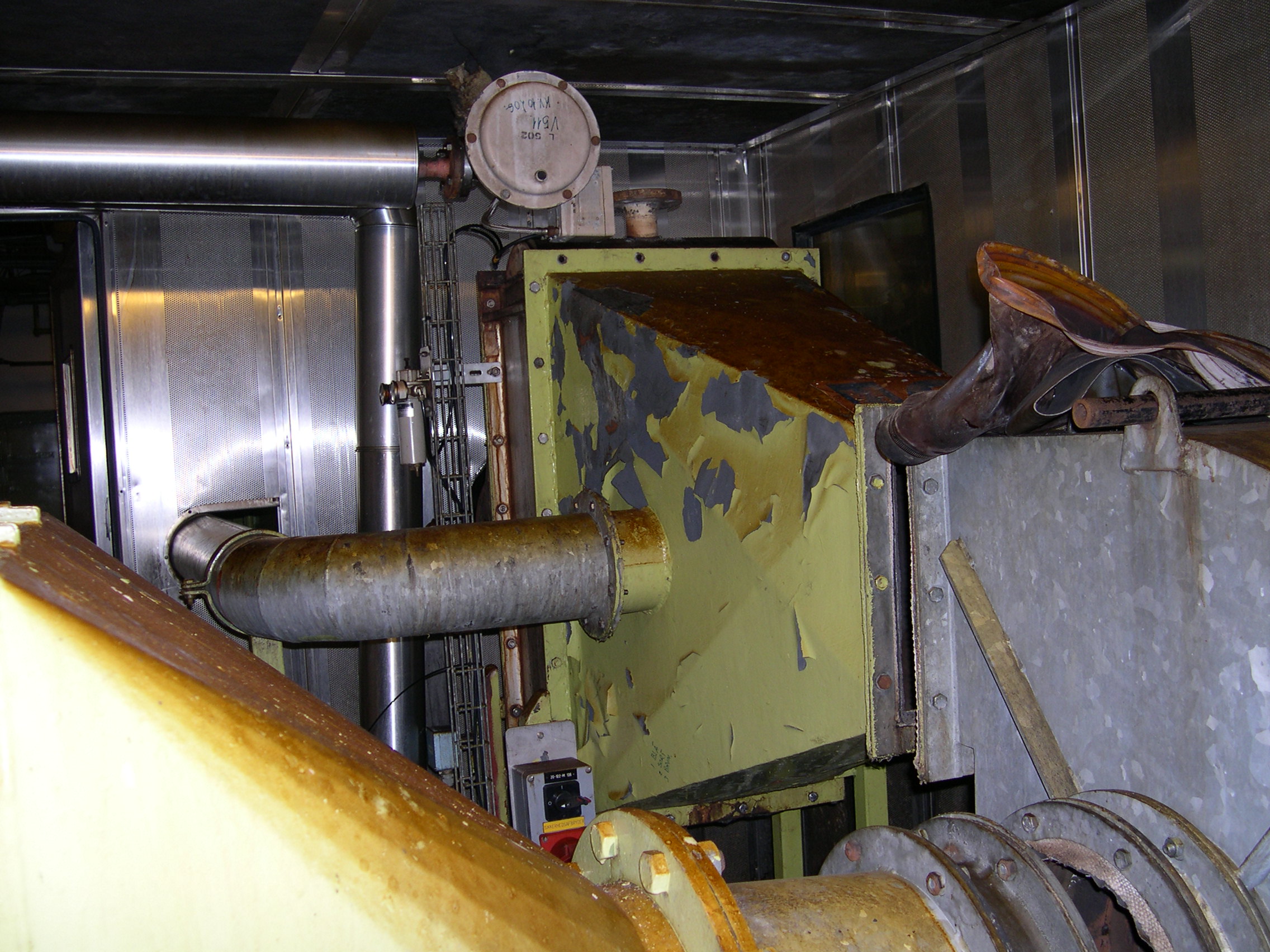

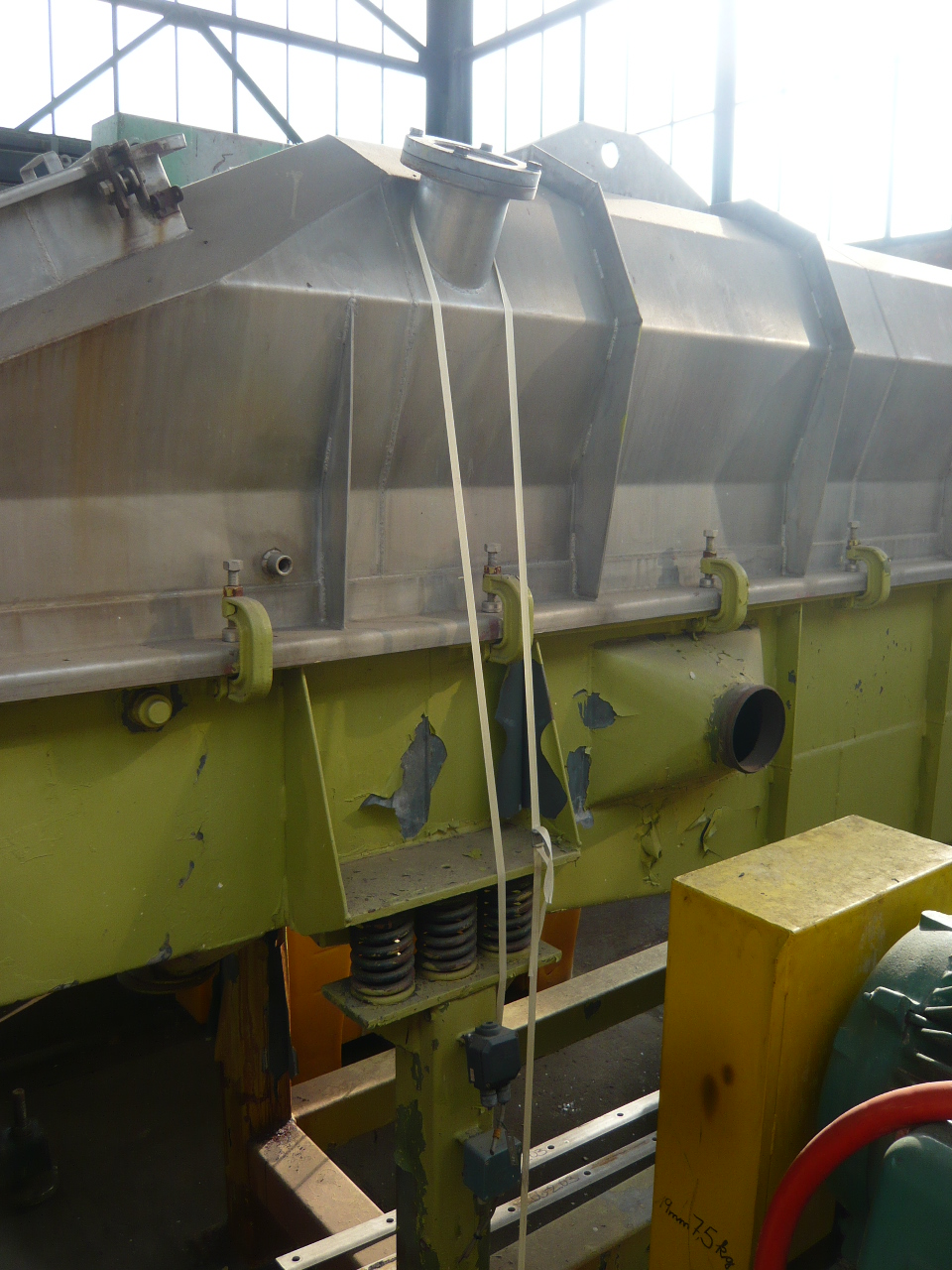

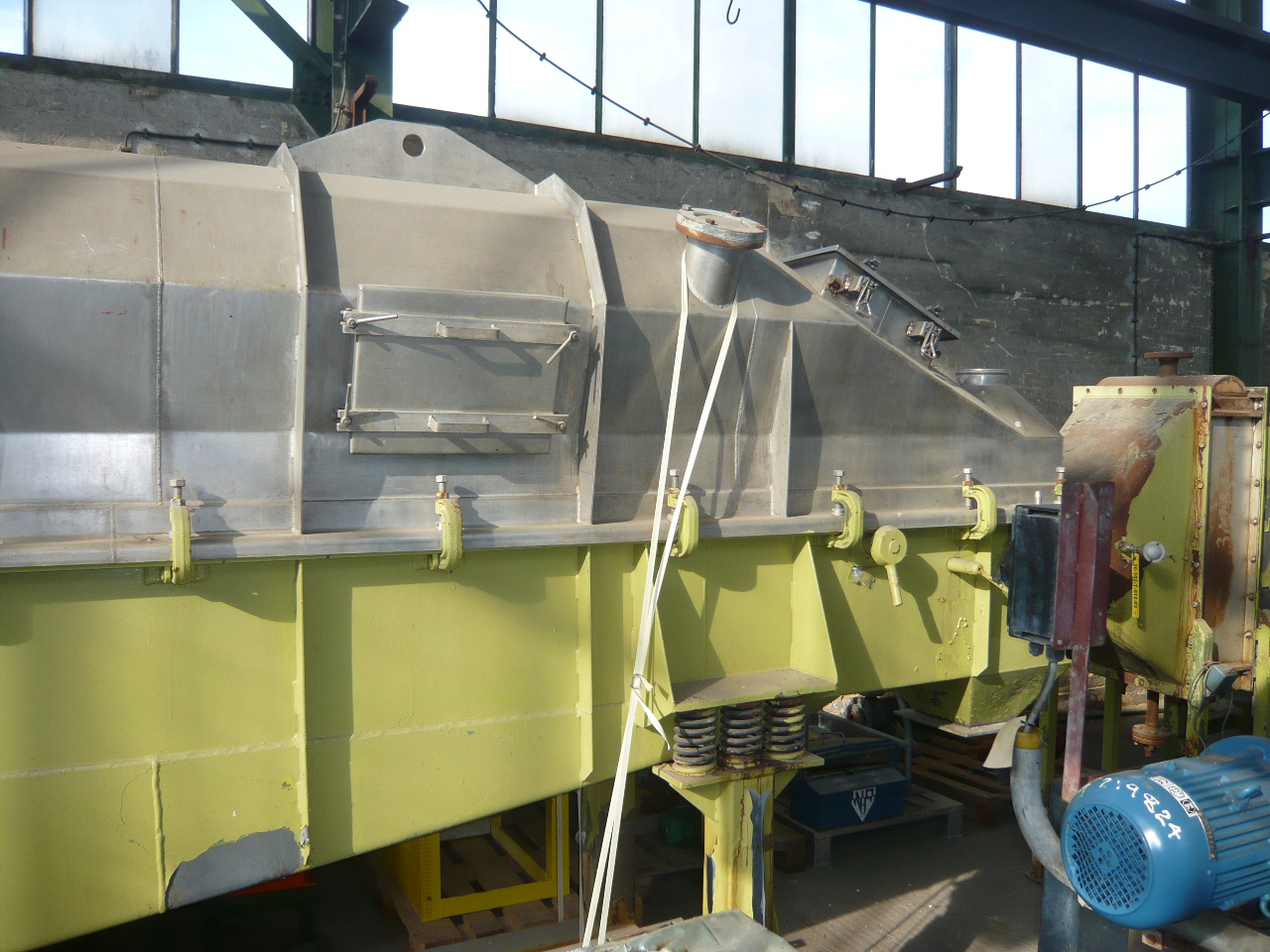

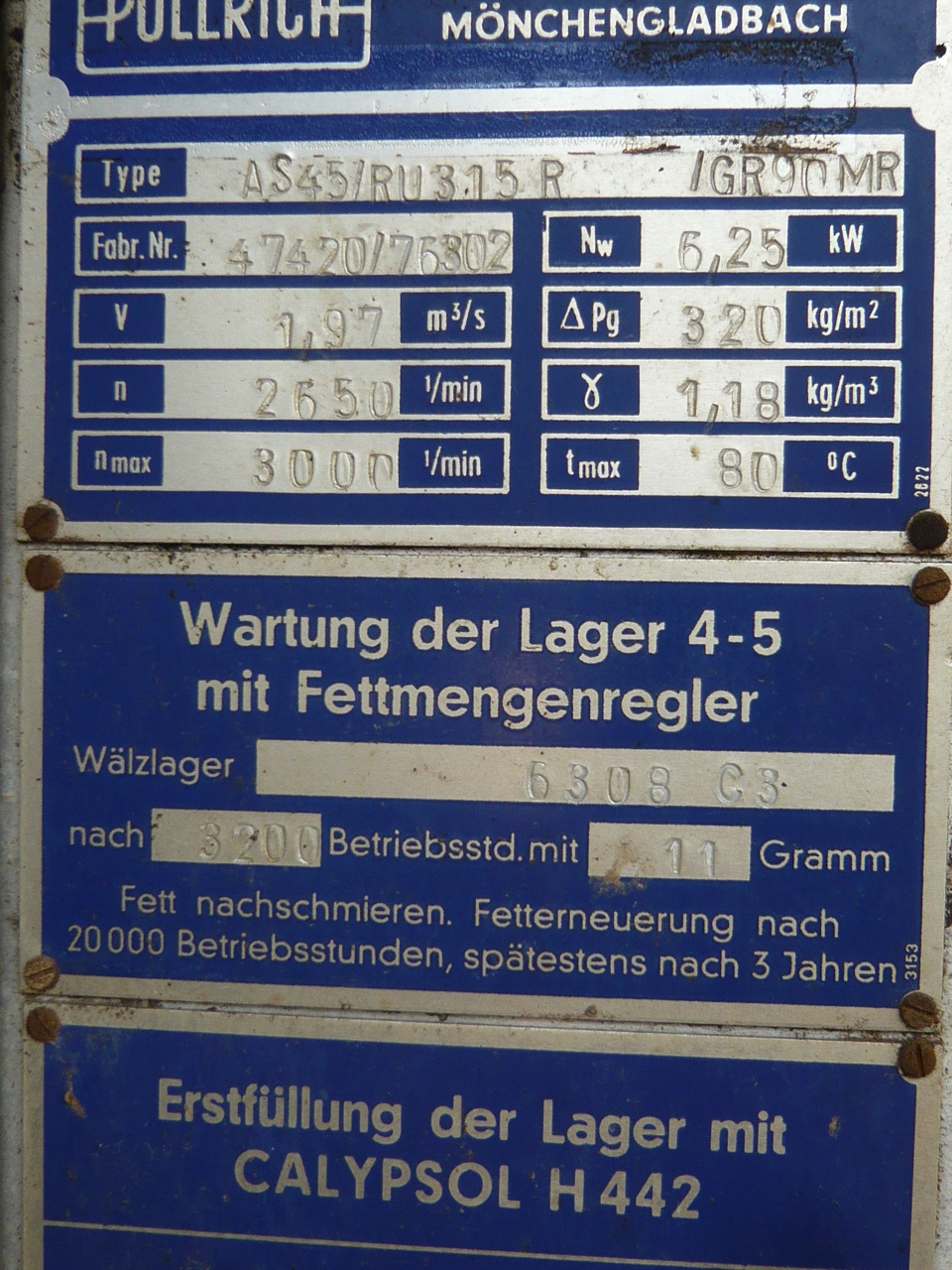

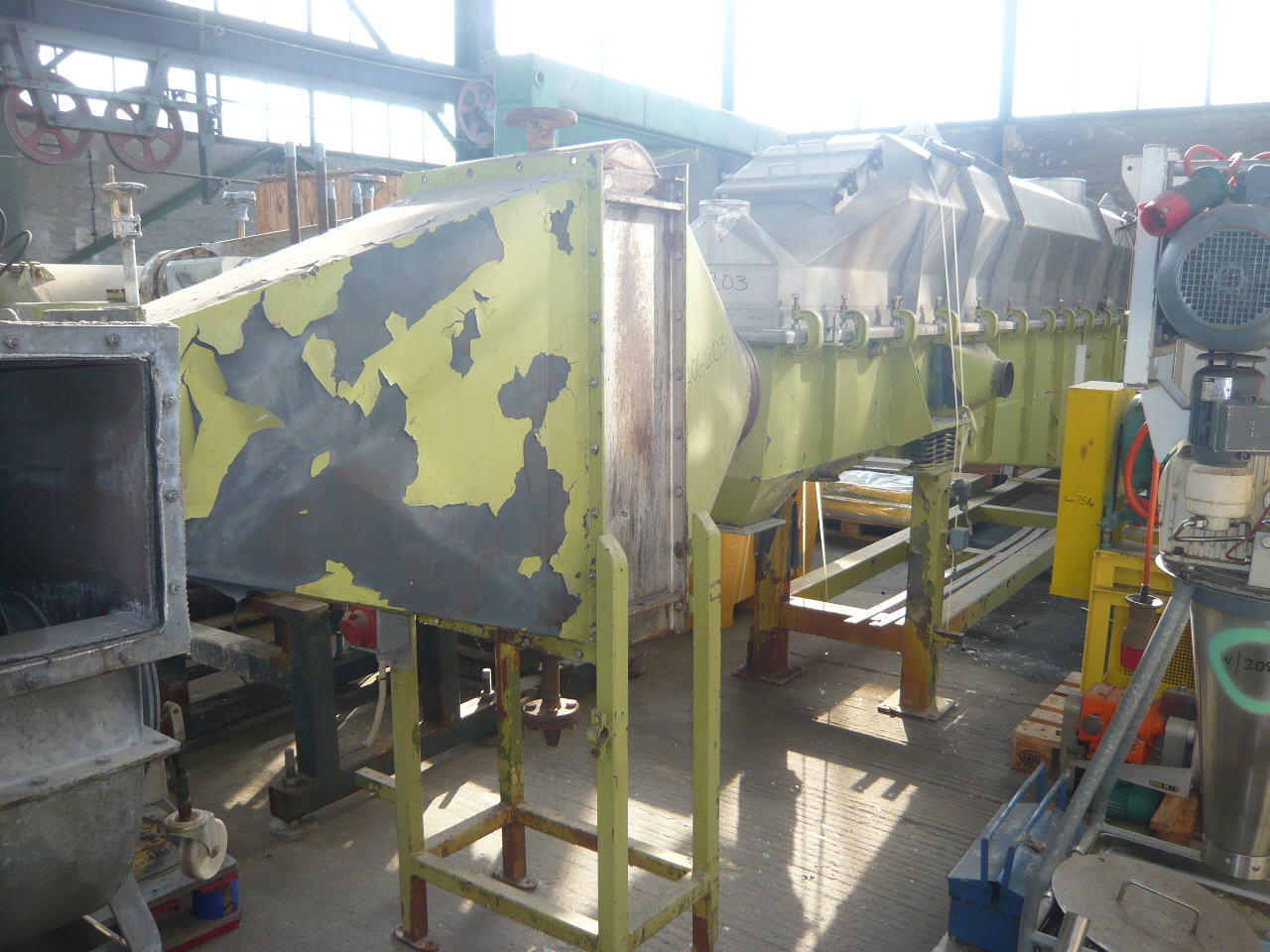

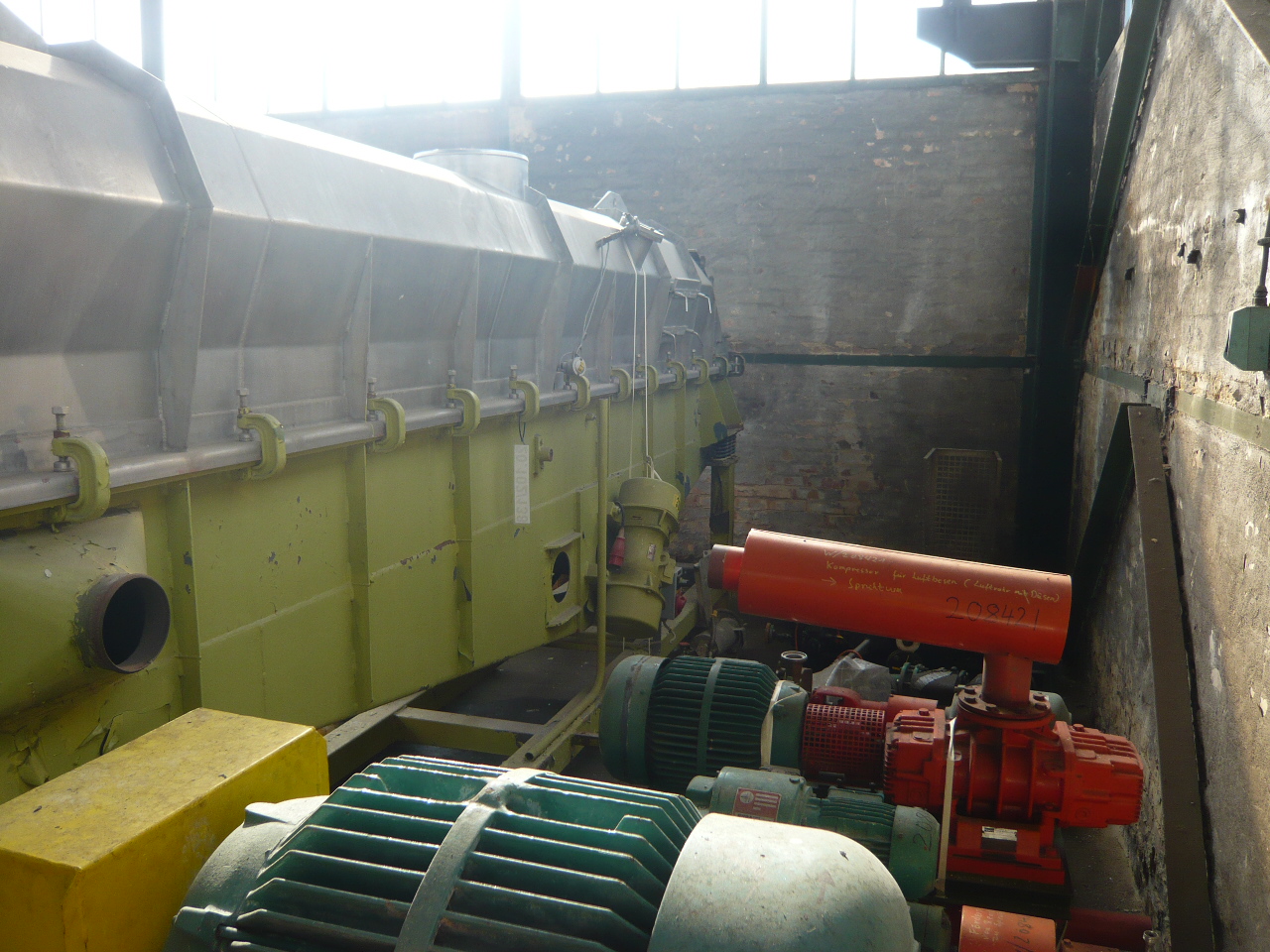

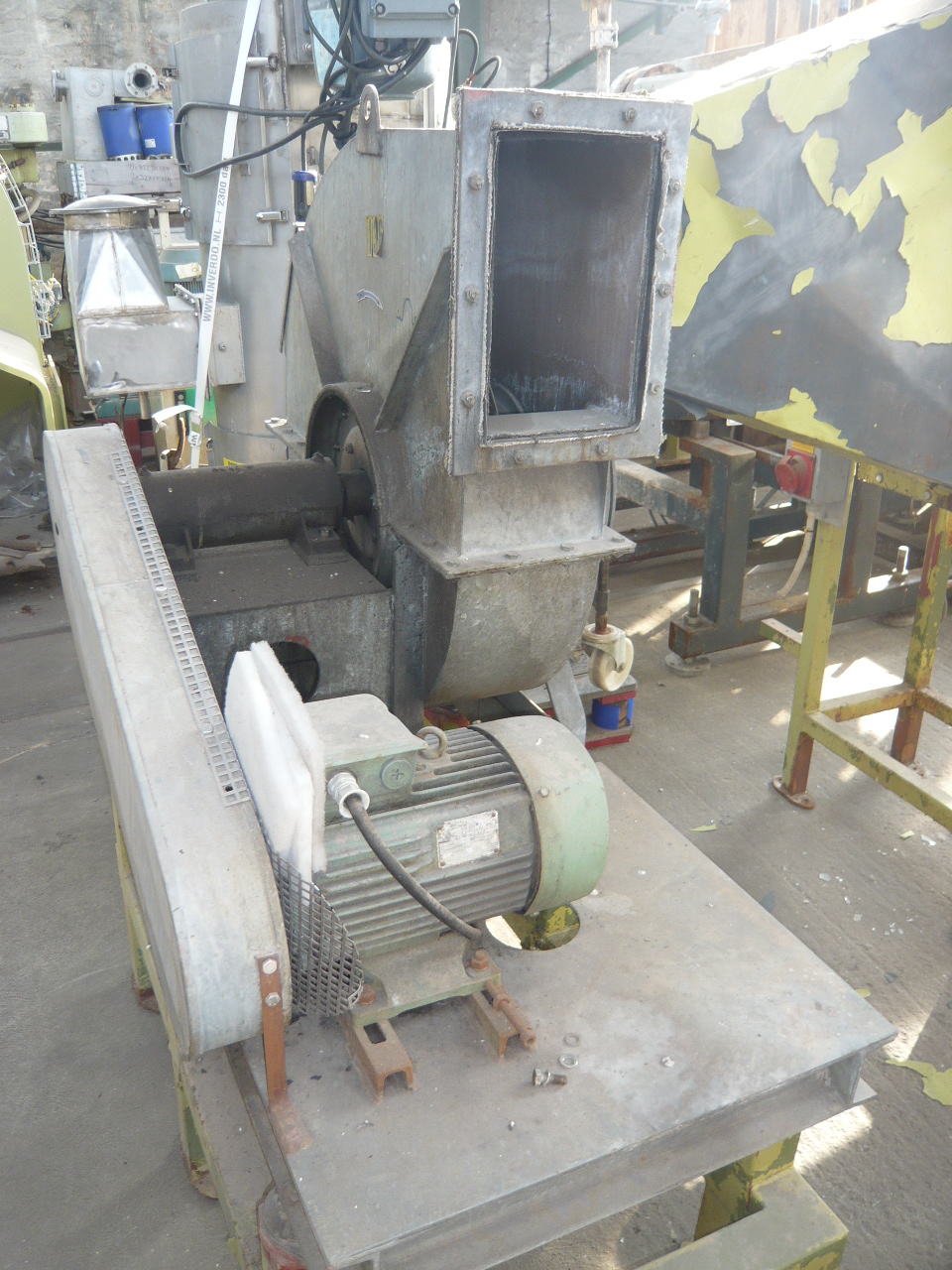

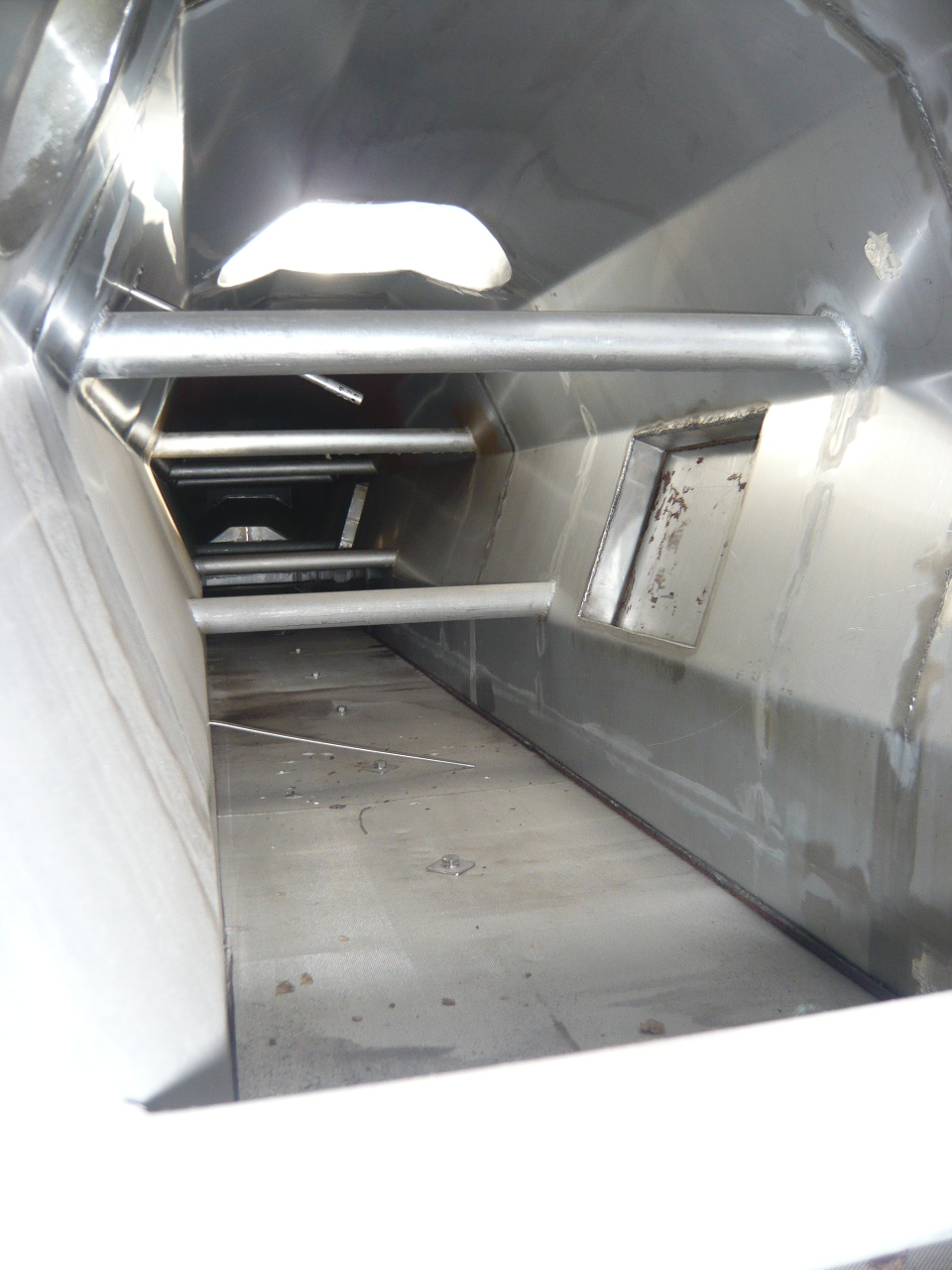

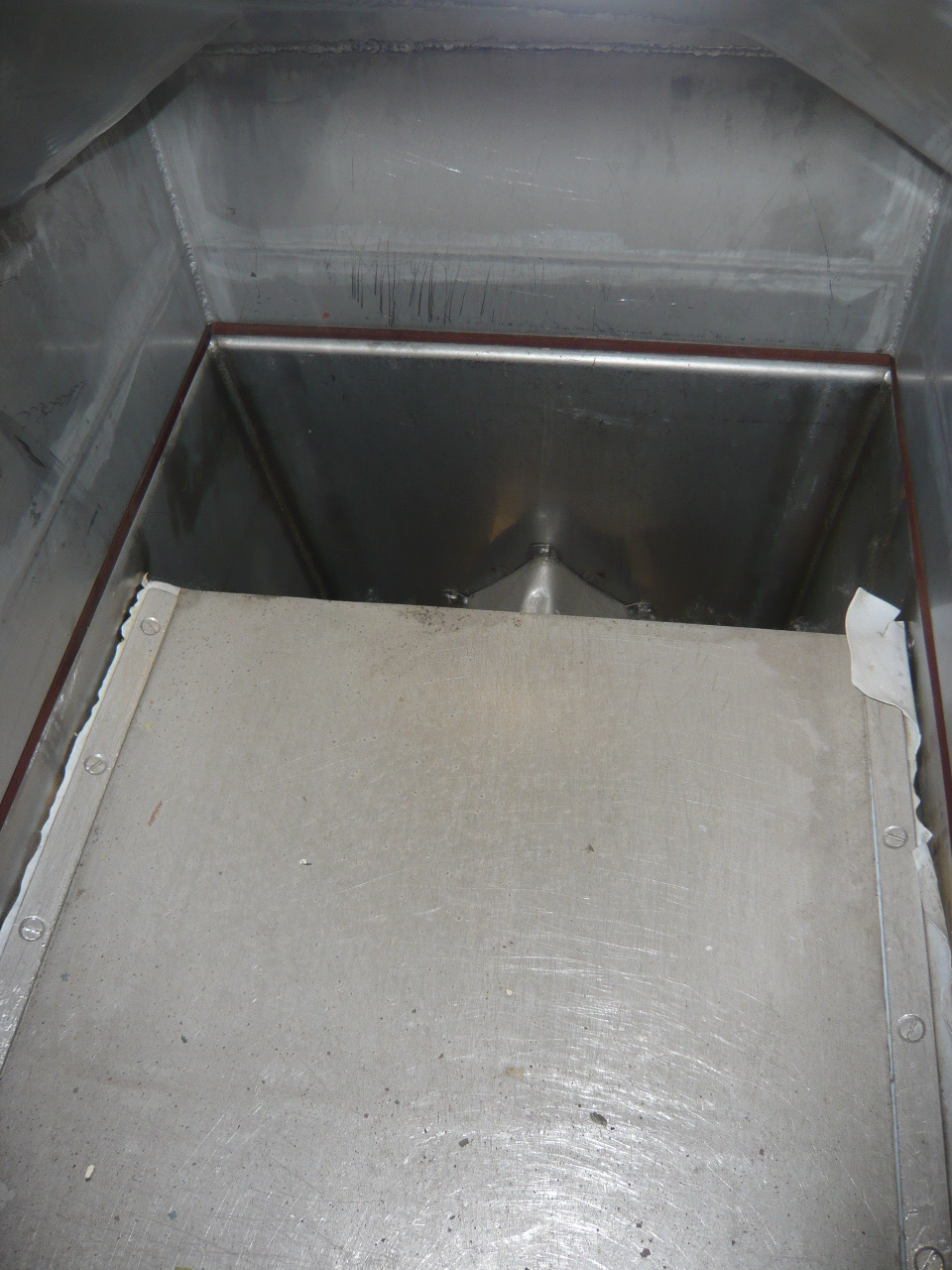

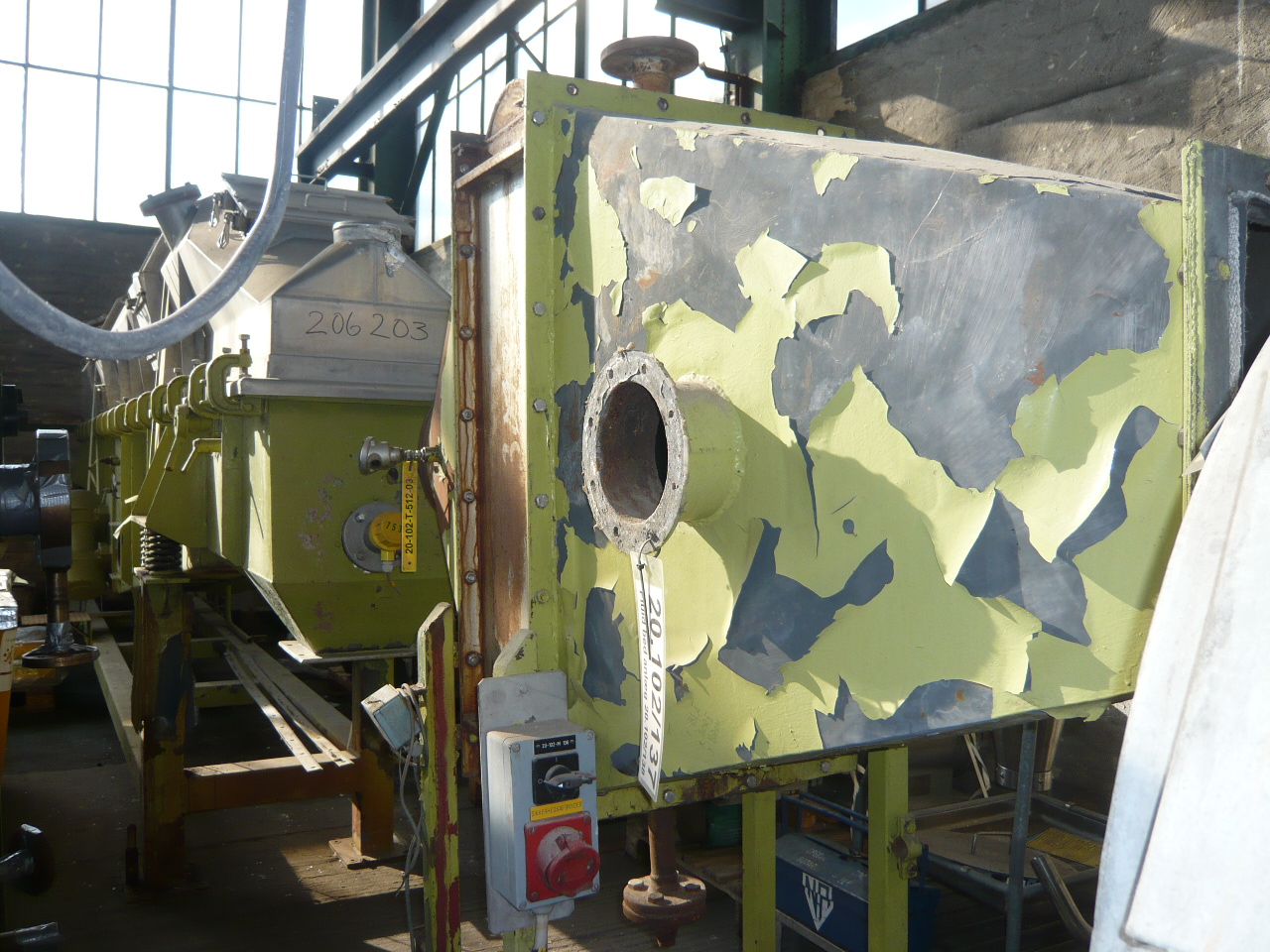

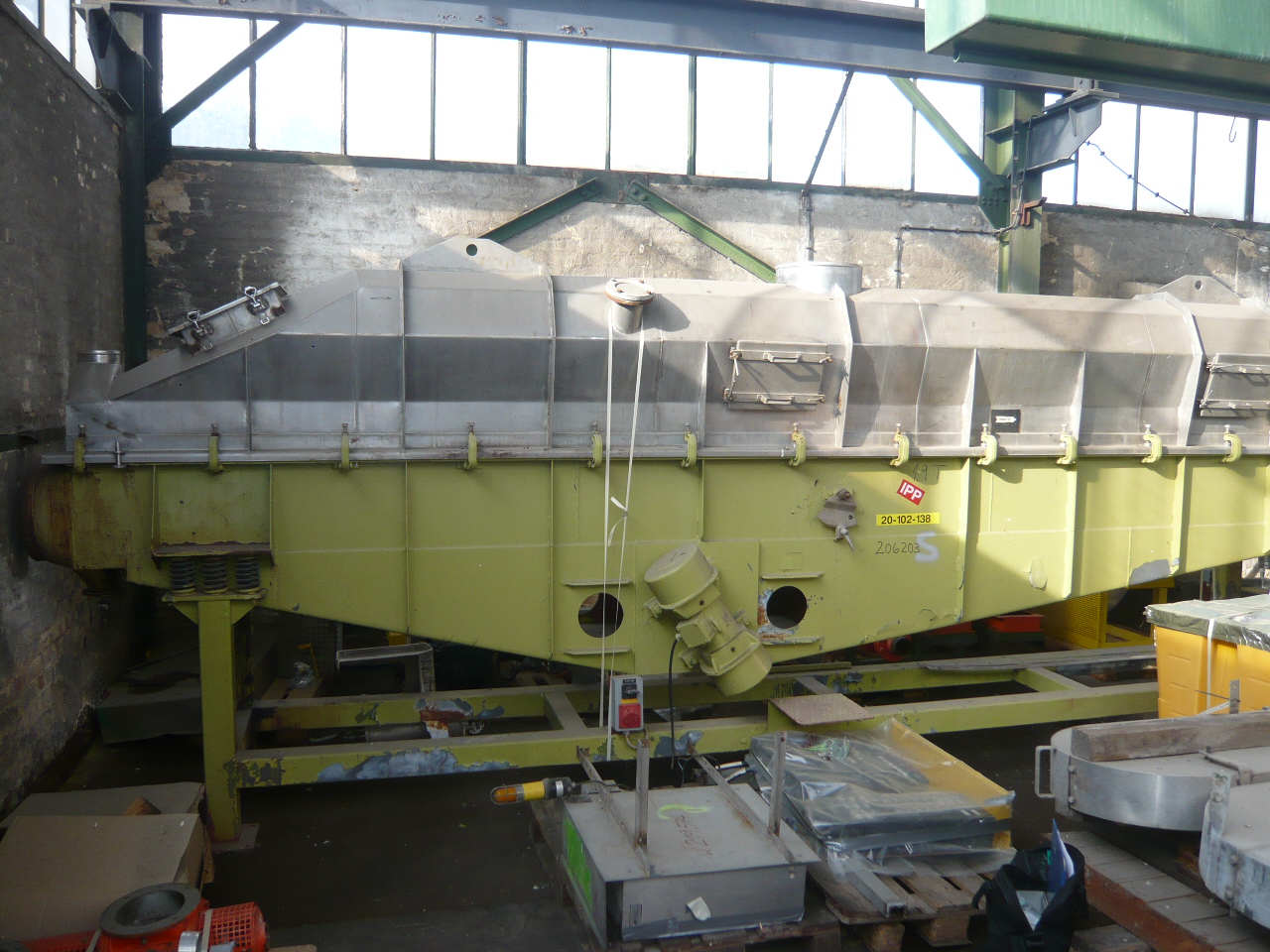

vibrating Fluid bed dryer system All contact parts are 1.4301, with CS frame Fluid bed size 480 mm wide x 6400mm long, overall 640 mm wide x 7356 length Covered drying bed with a vibrator system type SVi450/6n, driven by (2) Vibra-Maschinenfabrik electrical motors second motor: serial number 133138, 1,1kW / 50Hz/220-380V @ 940rpm System includes a GEA heat exchanger, a 5,25kW max. 3.000rpm Polrich blower type AS 56/RU315R/GR90MR driven by an electrical 7,5kW motor type KMER132Sx2ACP, serial number VDE0530, 3~/50Hz/380-660V @ 2.860rpm
Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,350 mm (52.8 in)
Bowl Height: 9,600 mm (378 in)
vibrating fluid bed dryer vibratory mechanism 304 stainless steel perforated fluid bed openings: feed: 1-800mm, powder discharge: 1-635mm, top: 1-700mm manway, 2-600mm, 1-250mm, straight side: 3-500mm manways, bottom: 2-625mm, 1-500mm manway dryer with springs but no frame
Orientation: Horizontal. Operational Mode: Continuous.
Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,100 mm (43.3 in)
Bowl Height: 6,000 mm (236.2 in)
continuous vibrating fluid bed dryer perforated fluid bed openings: feed: 1-600mm, powder discharge: 1-300mm, top: 1-750mm manway, 1-450mm, straight side: 3-450mm manways, bottom: 2-625mm each with a 625mm diameter x 980mm straight side s/steel tank dryer mounted on carbon steel frame with springs
Orientation: Horizontal. Operational Mode: Continuous.
Type: Dryer-Fluid Bed
Manufacturer: Aeromatic-Fielder AG
Model: T5-2110
Condition: Used
Material: Stainless Steel 304
Capacity: 340 L (89.8 gallons)
Air Flow Rate: 3,600 m3/h (2,100 CFM)
fluid bed dryer system 50-250 Kg With cylindrical chamber the rupture channel 950mm dia x 2345mm high Filter housing rated 2 bar and has volume of 1638 liter. Filter area 13 sq meter. W/(2) 304SS product bins, rated 2 bar, w/volume of 340 liter, base area of bin 0.45 sq meter, 1100mm/750mm dia x 500mm deep, w/60mm x 270mm sight glass. Fine dust filter 19.3 sq meter. Steam air heater rated 467,2000 Kg/hr with air inlet of -10 deg C and outlet of +80 deg C. Steam pressure 4 bar. Fan rated 1.2 cbm/sec, static pressure 5000 N/sq meter, rated 8.5 KW @ 2900 rpm. With hydraulic operated bin loader
Pressure: 2 bar (29 psi). Temperature: 80 °C (176 °F). Bowl Diameter: 1,000 mm (39.4 in). Bowl Height: 2,500 mm (98.3 in). Operational Mode: Batch.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WST120
Condition: Refurbished/Rebuilt
Material: Stainless Steel 304
Capacity: 420 L (111 gallons)
Air Flow Rate: 6,000 m3/h (3,500 CFM)
250 Kg Fluid Bed Dryer batch type Steam heater rated 140000 Kcal/hr steam Motor: 3 phase 220/380 volt With (2) product bins 1200mm upper diameter, 800mm lower diameter, sanitary polished Drying chamber 3.5m high (11'6") x 1.2m diameter (48") With a control panel indicating air temperature, timers, intervals, vibration indicator of dust collector
Pressure: 6 bar (87 psi). Bowl Diameter: 1,200 mm (47.2 in). Bowl Height: 3,500 mm (137.8 in). Product Density: 0.42 m3 (14.8 ft3). Operational Mode: Batch. Dust Collection: Yes.
