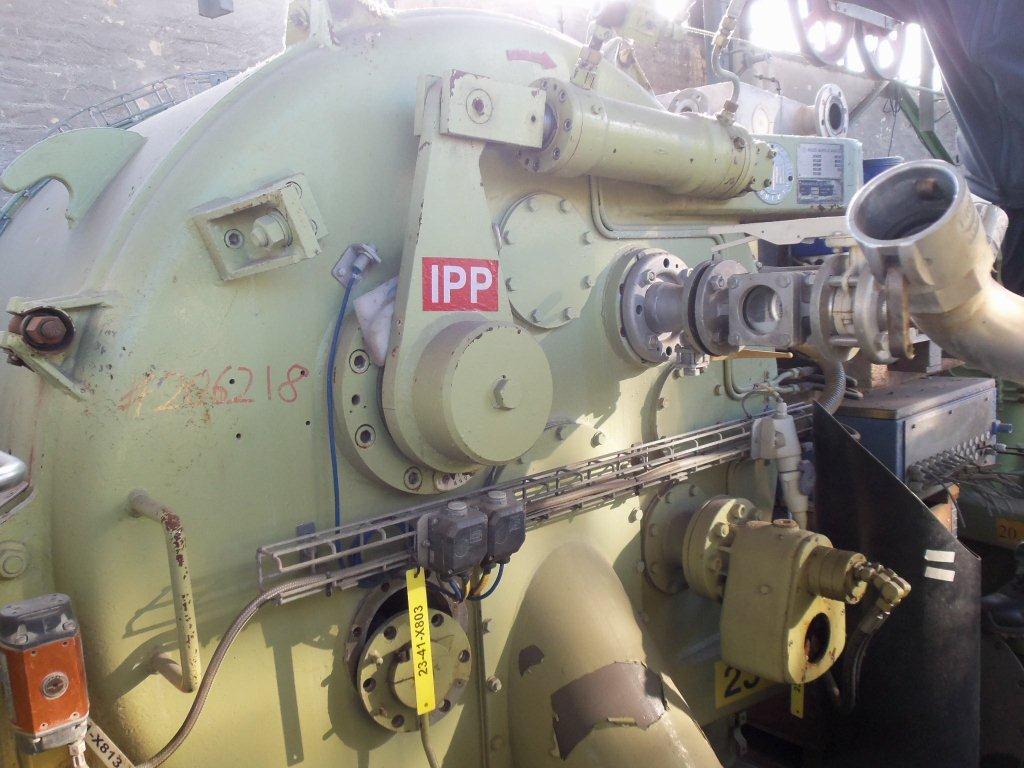

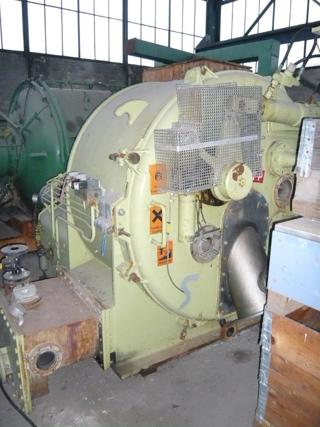

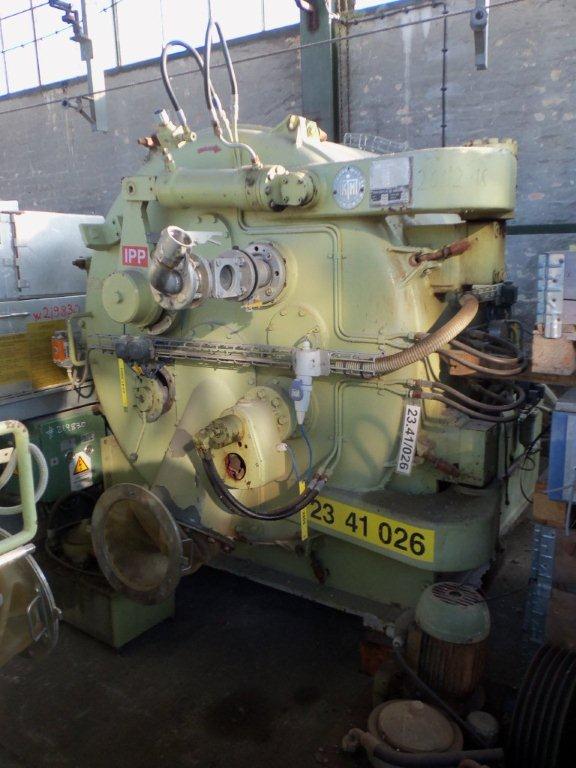

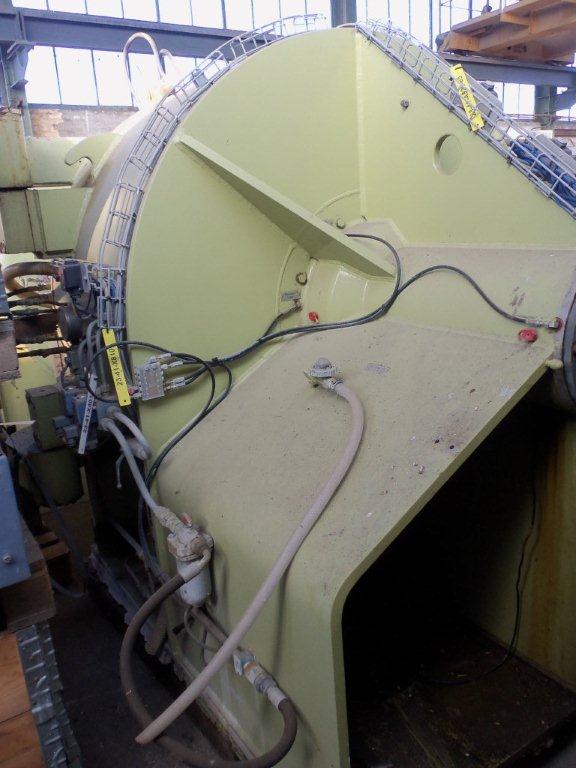

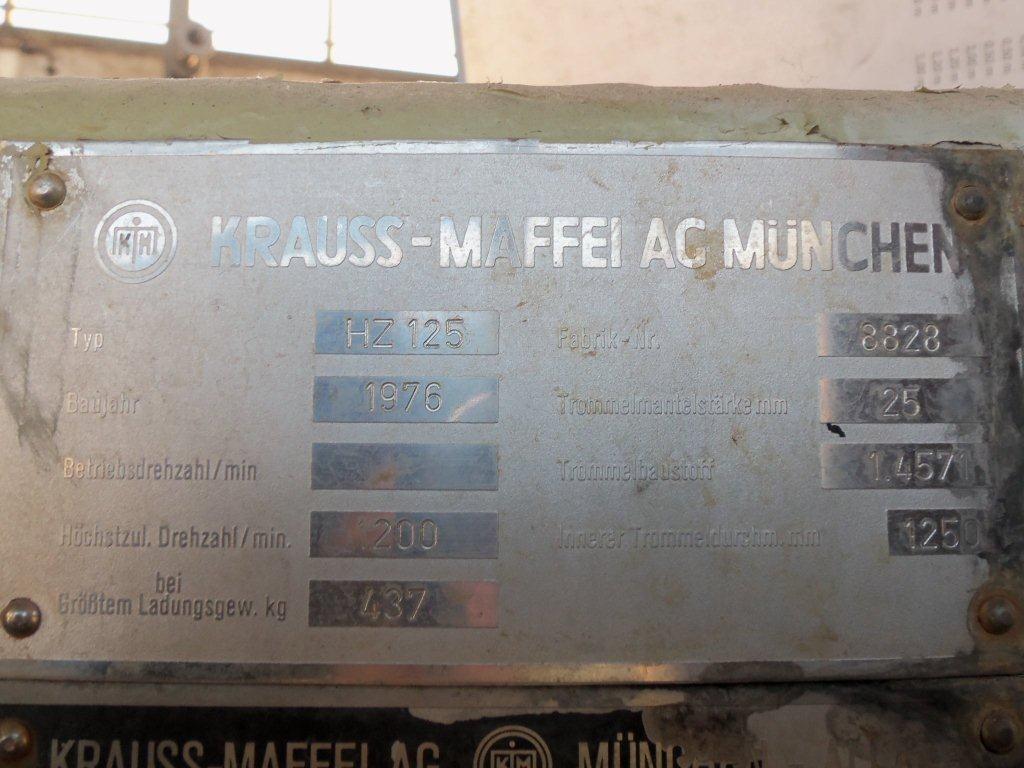

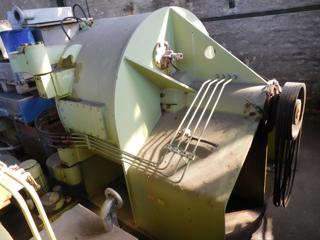

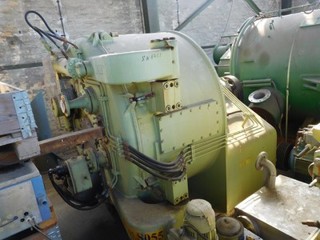

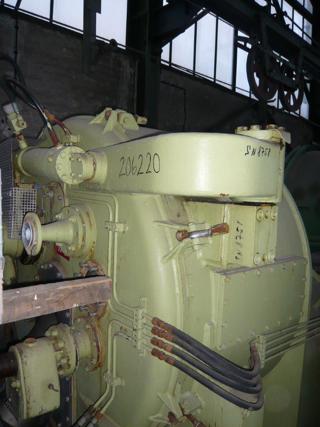

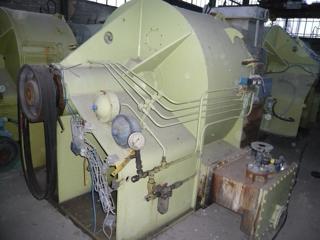

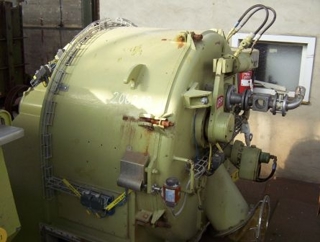

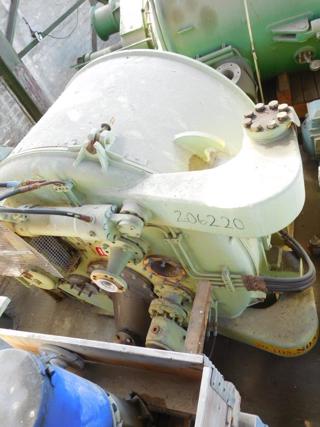

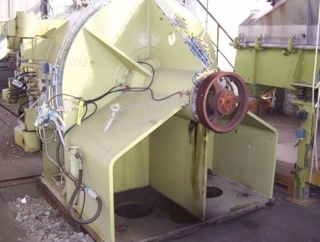

Centrifuge Peeler Krauss Maffei HZ-125 Stainless Steel Austenitic - IPP# 206218

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ-125

Condition: Used

Material: Stainless Steel Austenitic

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 625 mm (24.6 in)

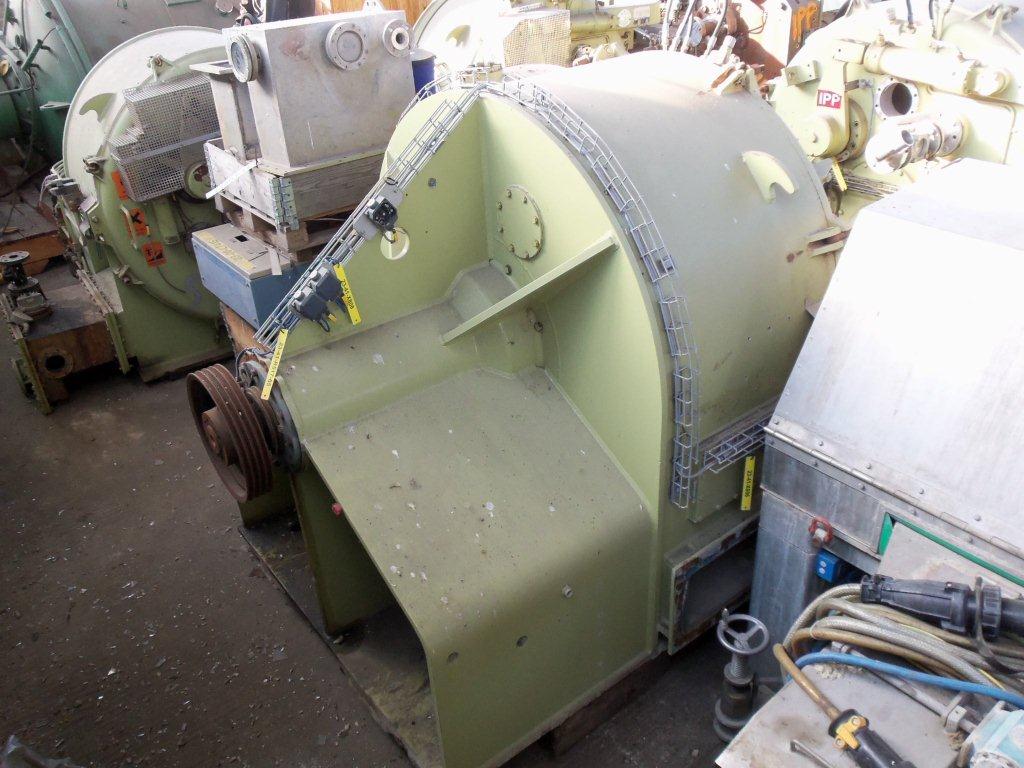

horizontal peeler centrifuge
wall thickness 25mm
380 volt
80mm feed, 300mm dischrge on front door,
260mm wide x 660mm long filtrate

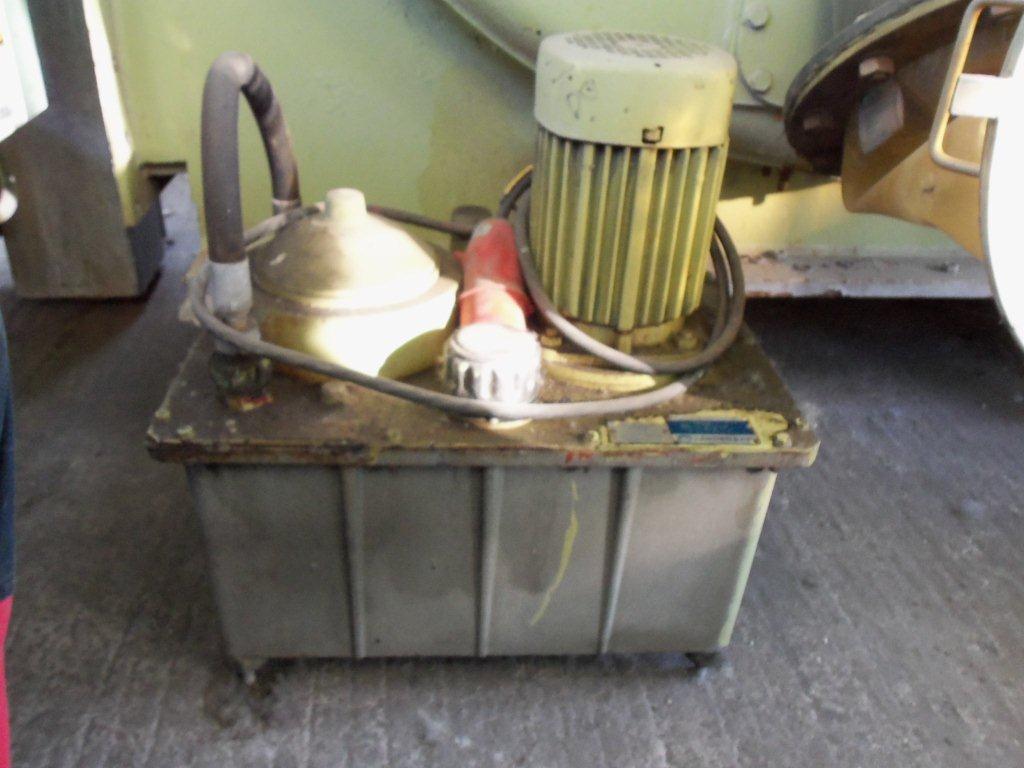

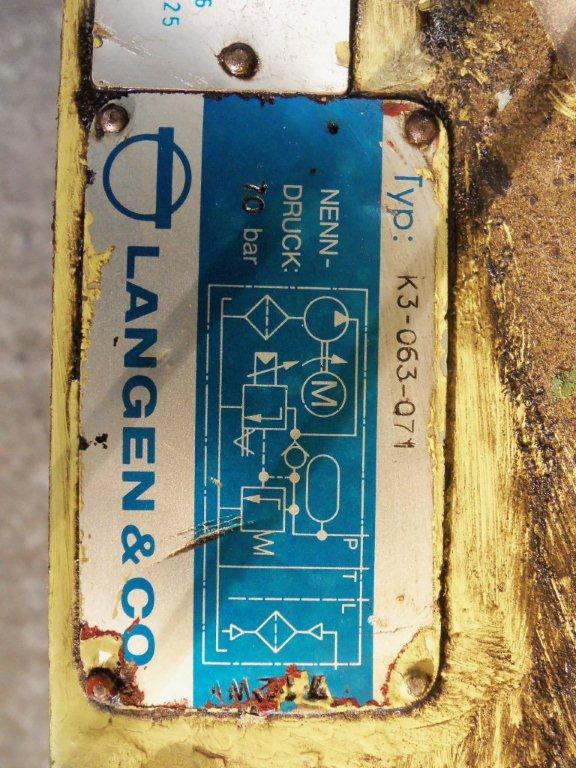

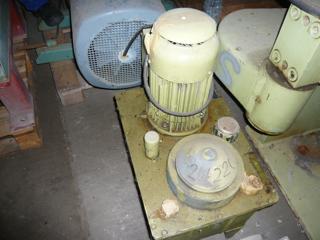

hydrauli plow, central lubrication system, and controls.

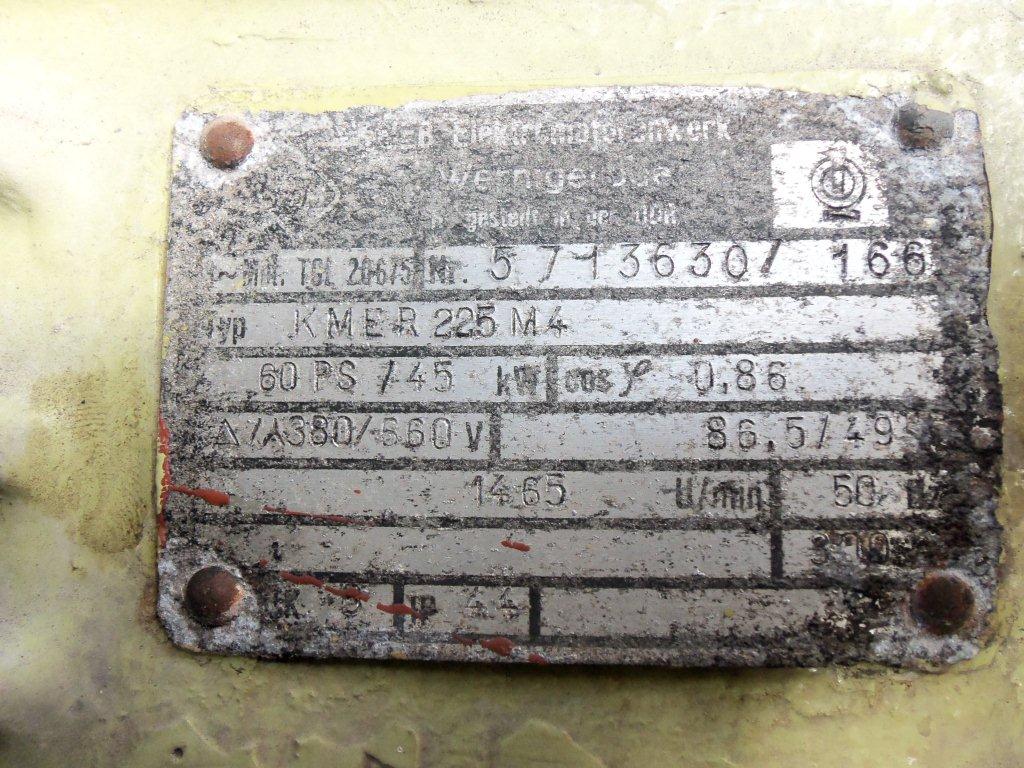

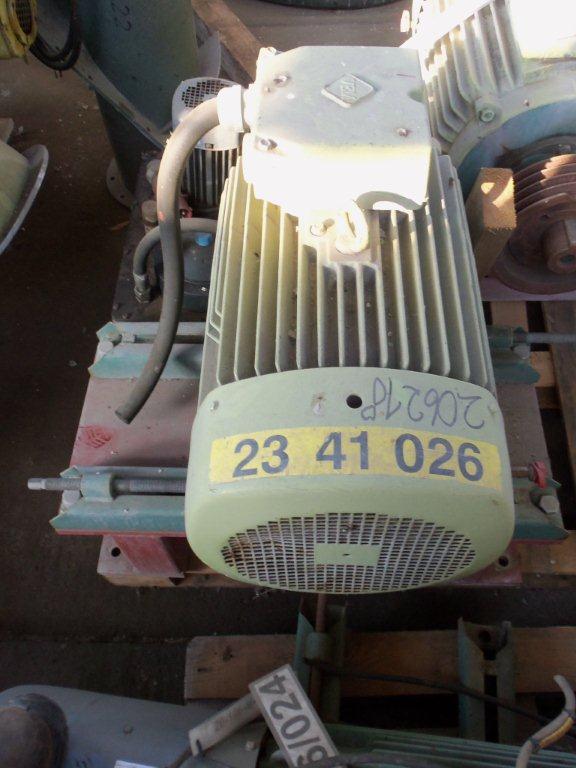

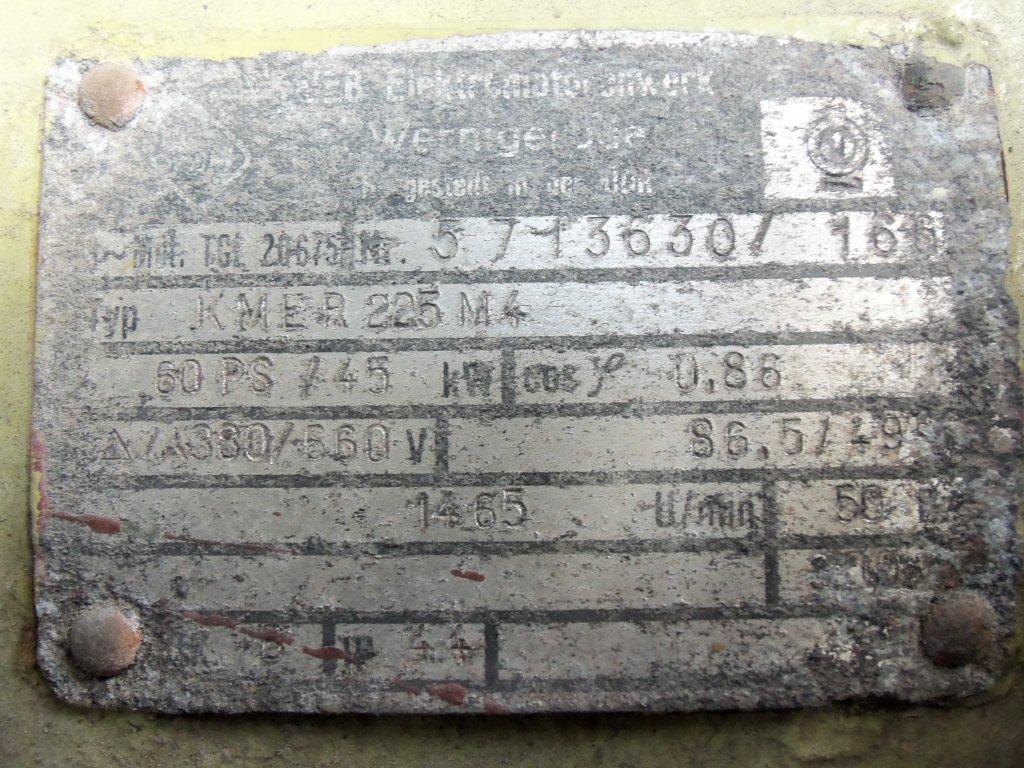

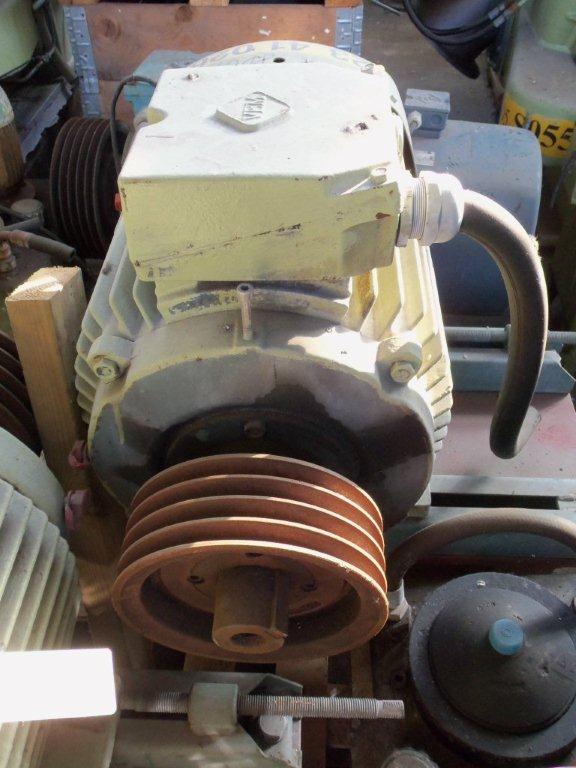

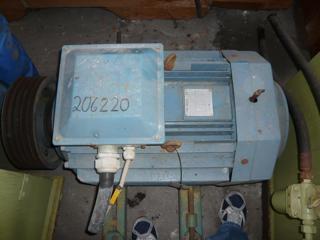

Motor Power: 45 kW (60.3 HP). Speed-RPM Maximum: 1,200. Load Weight: 437 kg (963 lb). Controls: Yes.

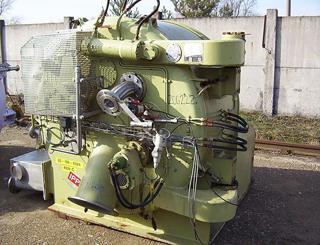

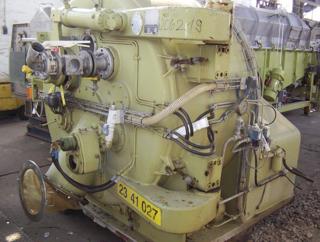

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ-125

Condition: Used

Material: Stainless Steel Austenitic

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 625 mm (24.6 in)

horizontal peeler centrifuge
wall thickness 25 mm
80mm feed, 300mm discharge on front door,
hydraulic plow,
central lubrication system, and controls

Filtration Area: 0.17 m² (1.83 ft²). Motor Power: 45 kW (60.3 HP). Speed-RPM Maximum: 1,200. Load Weight: 437 kg (963 lb). Controls: Yes.

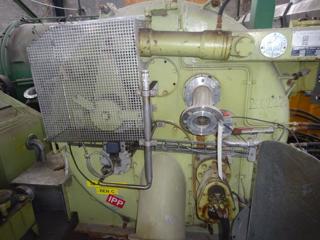

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ-125

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 1,270 mm (50 in)

Speed-RPM Maximum: 1,200

Casing and basket lined with Aluminum Zinc.
16 Stainless steel
Hydraulically actuated rotary knife and distributor
316 stainlesss steel chute with screw conveyor discharge
Hastelloy C-276 protection plates on basket hub and at overflow drain
Oil lubricated bearings. Voith fluid coupling

Load Weight: 468 kg (1,032 lb).

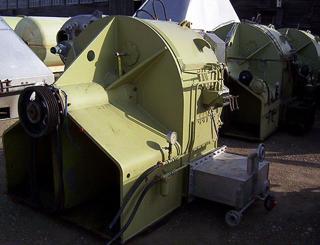

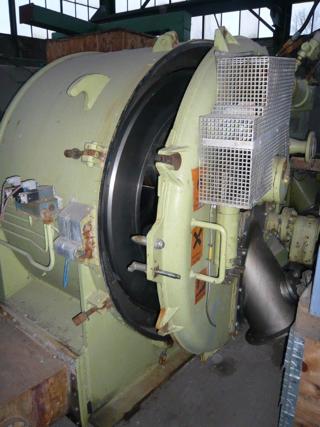

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ-125

Condition: Used

Material: Titanium

Basket Diameter: 1,250 mm (49.2 in)

Basket Depth: 625 mm (24.6 in)

horizontal peeler centrifuge

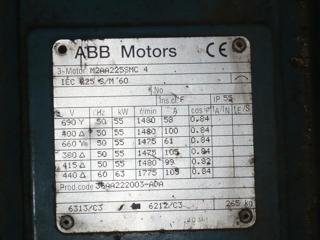

Motor is CE rated
80mm feed pipe
300mm discharge line on front door
260mm wide x 660mm long filtrate.

Filtration Area: 2.4 m² (25.8 ft²). Motor Power: 55 kW (73.8 HP). Speed-RPM Maximum: 1,075. G Force: 1,030. Load Weight: 520 kg (1,146 lb).
