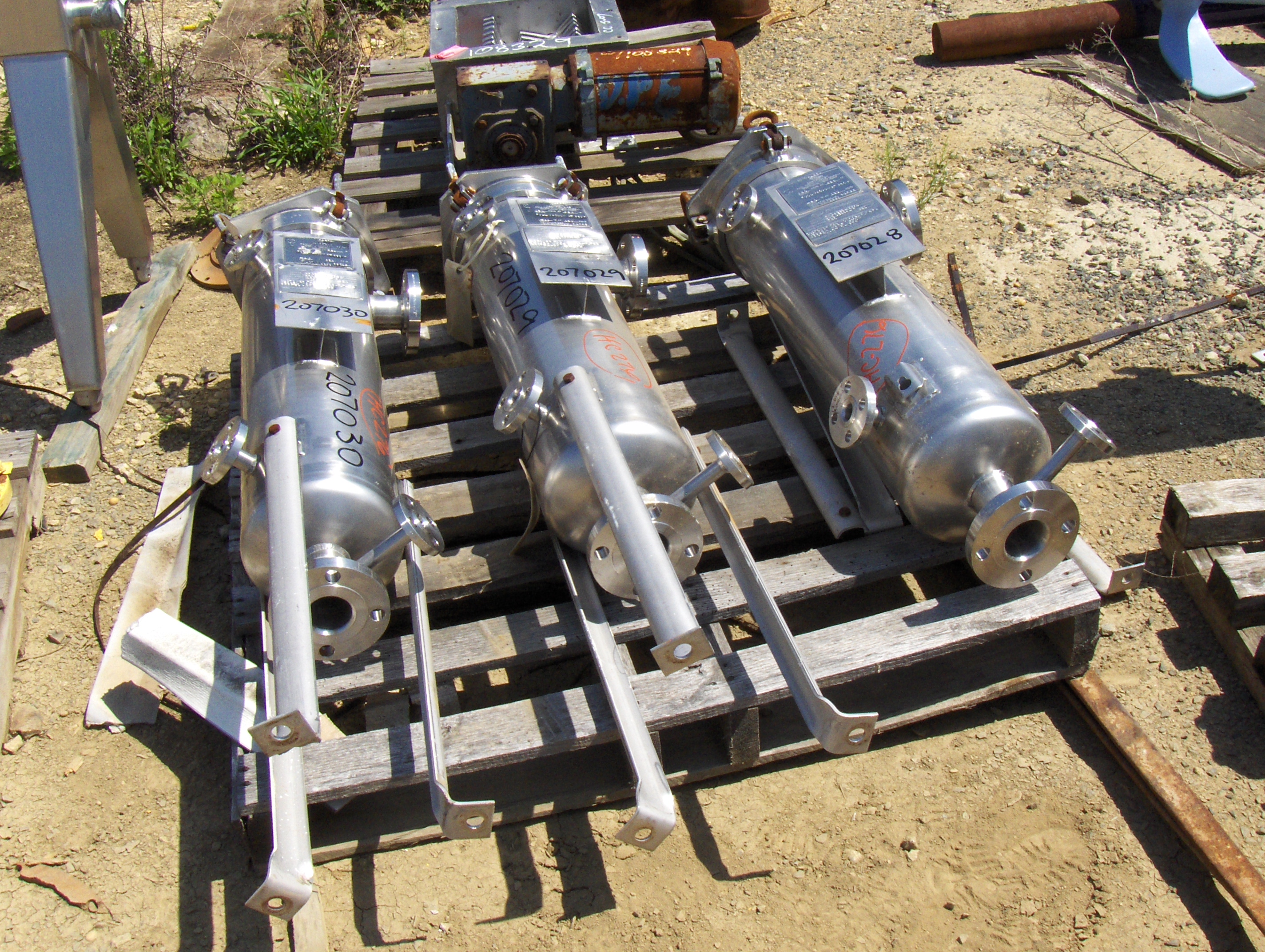

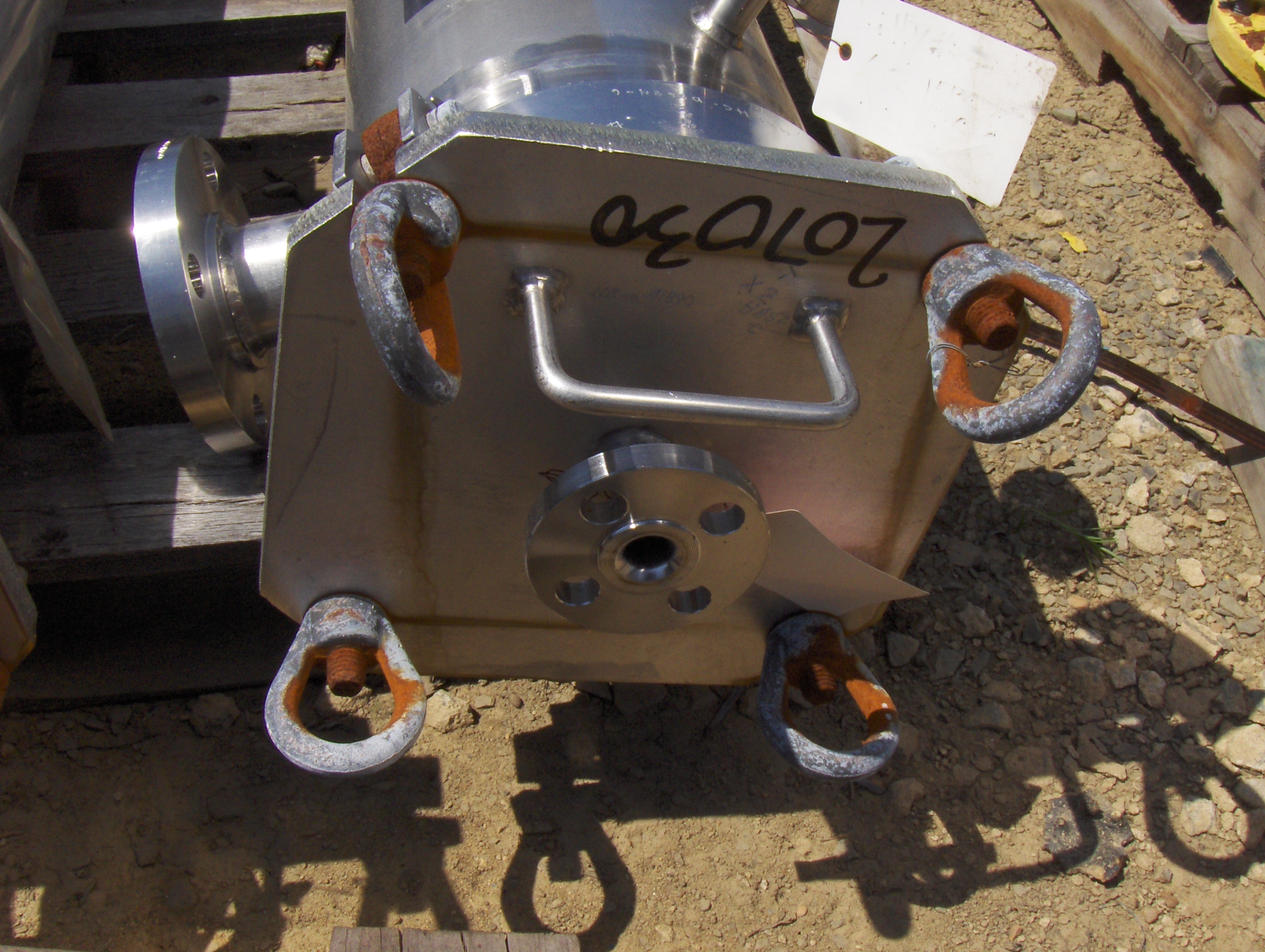

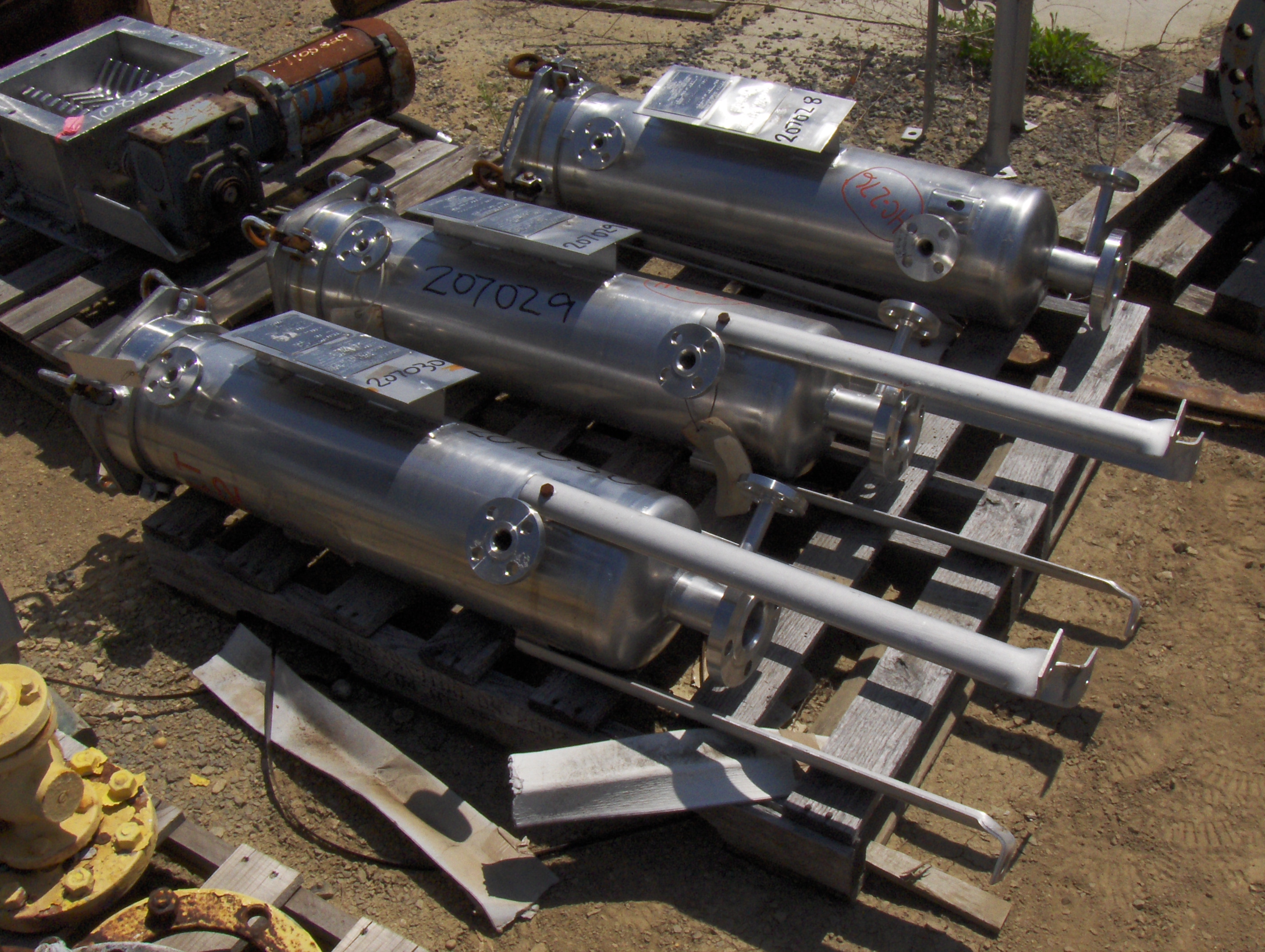

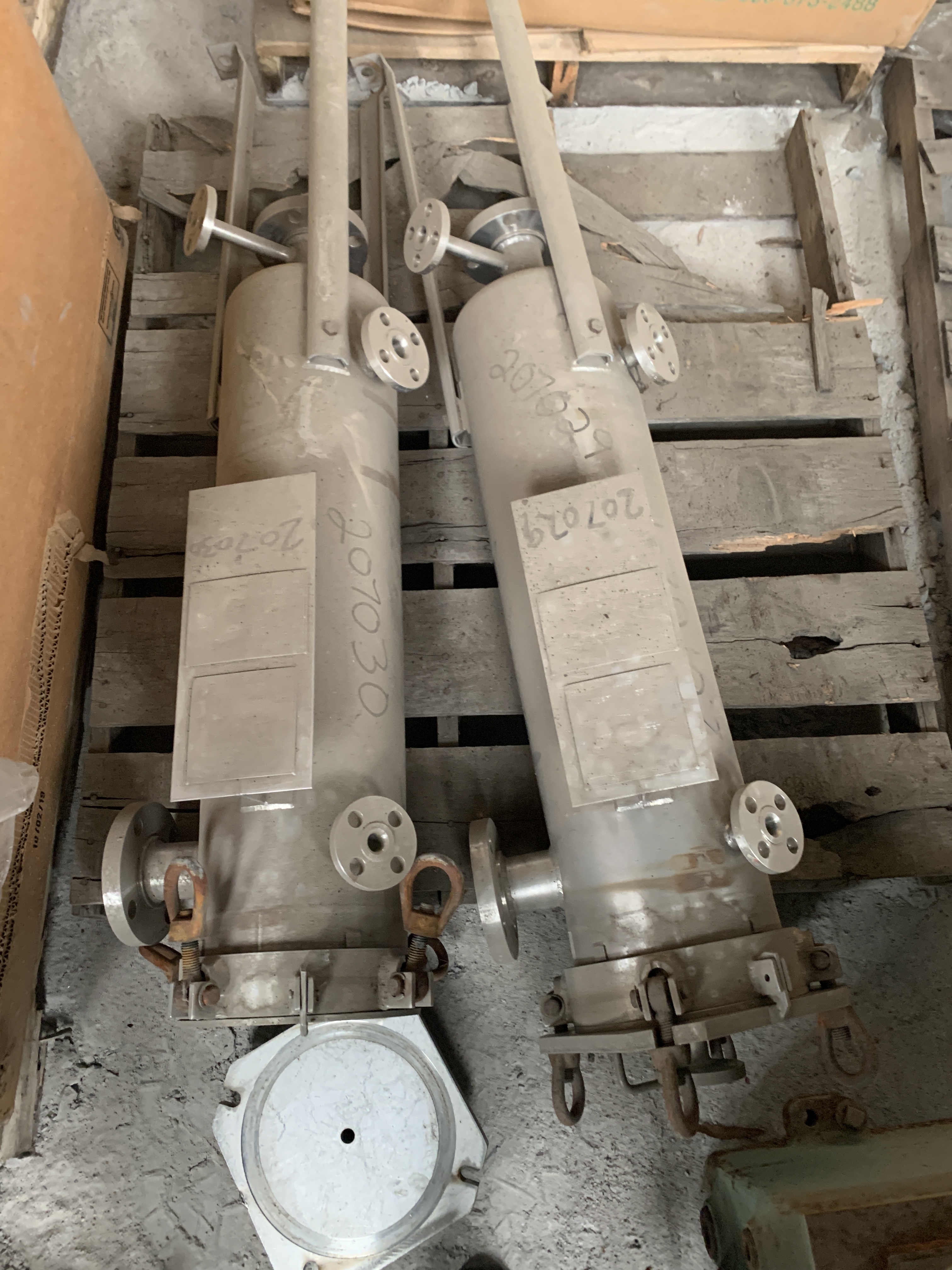

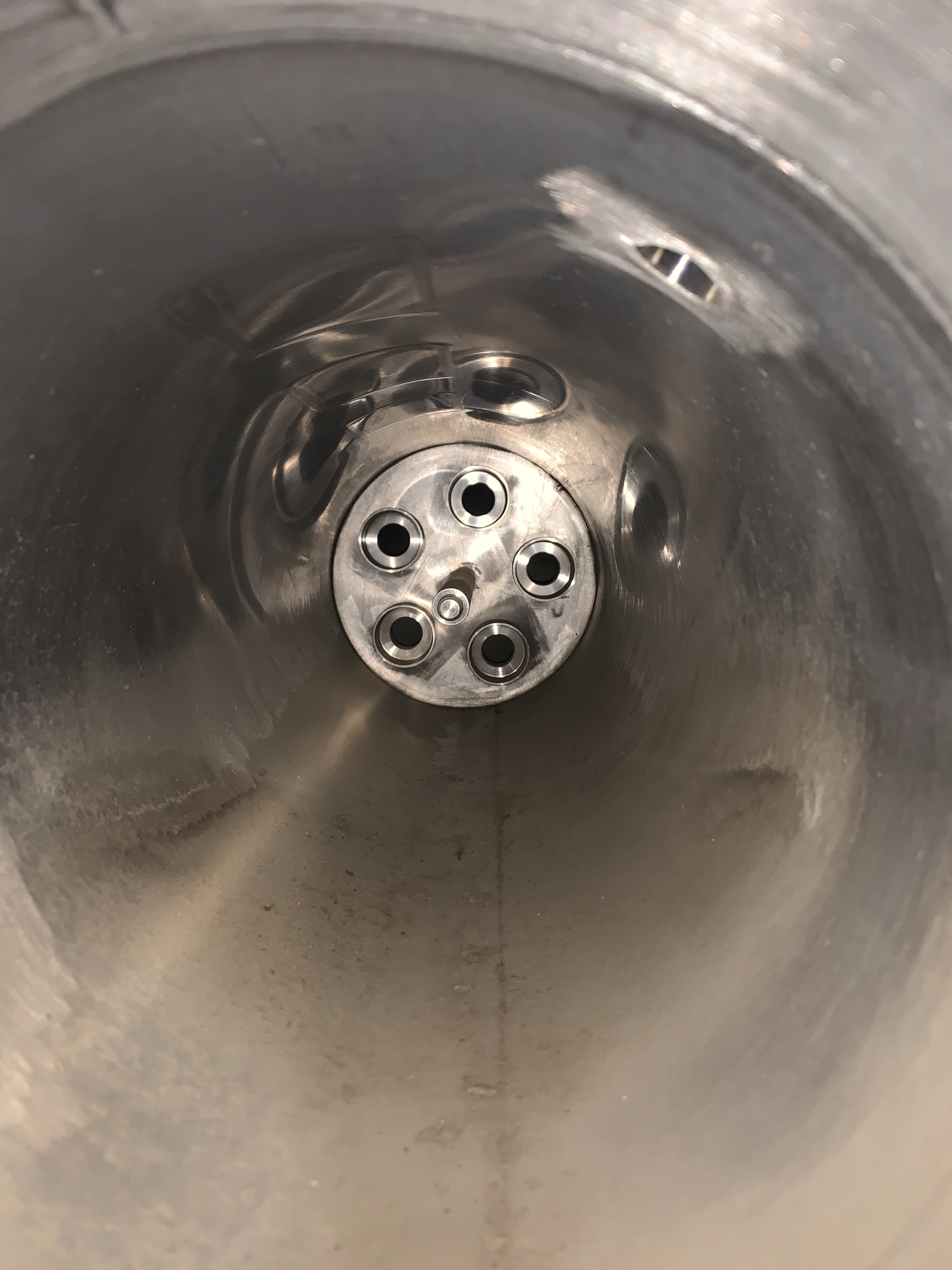

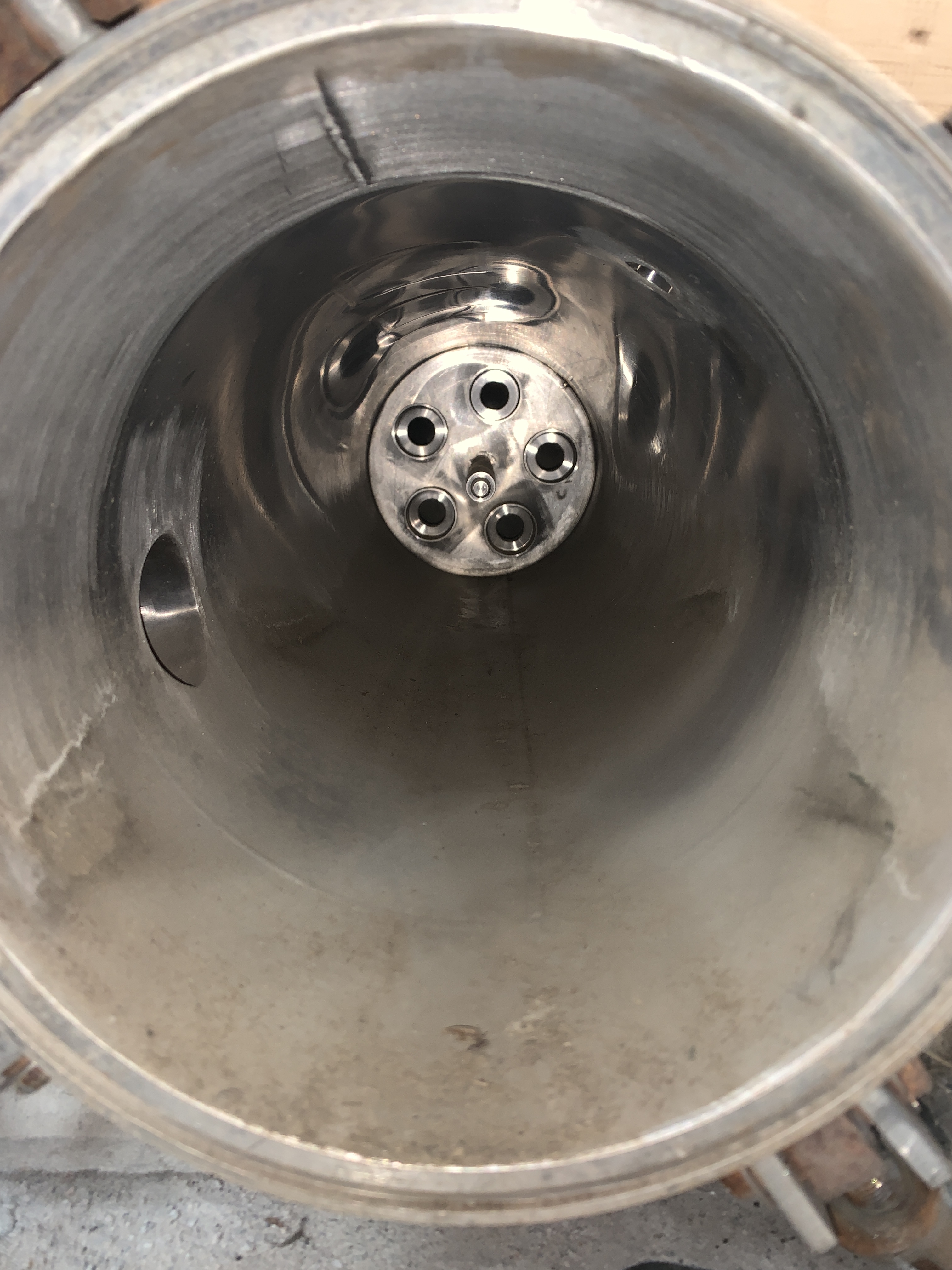

Hastelloy - C276 Cartridge And Candle Filter 0.93 m² (10 ft²) For Sale - IPP# 207029

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Pall

Condition: Used

Material: Hastelloy - C276

Filtration Area: 0.93 m² (10 ft²)

Pressure: 10.3 bar (150 psi)

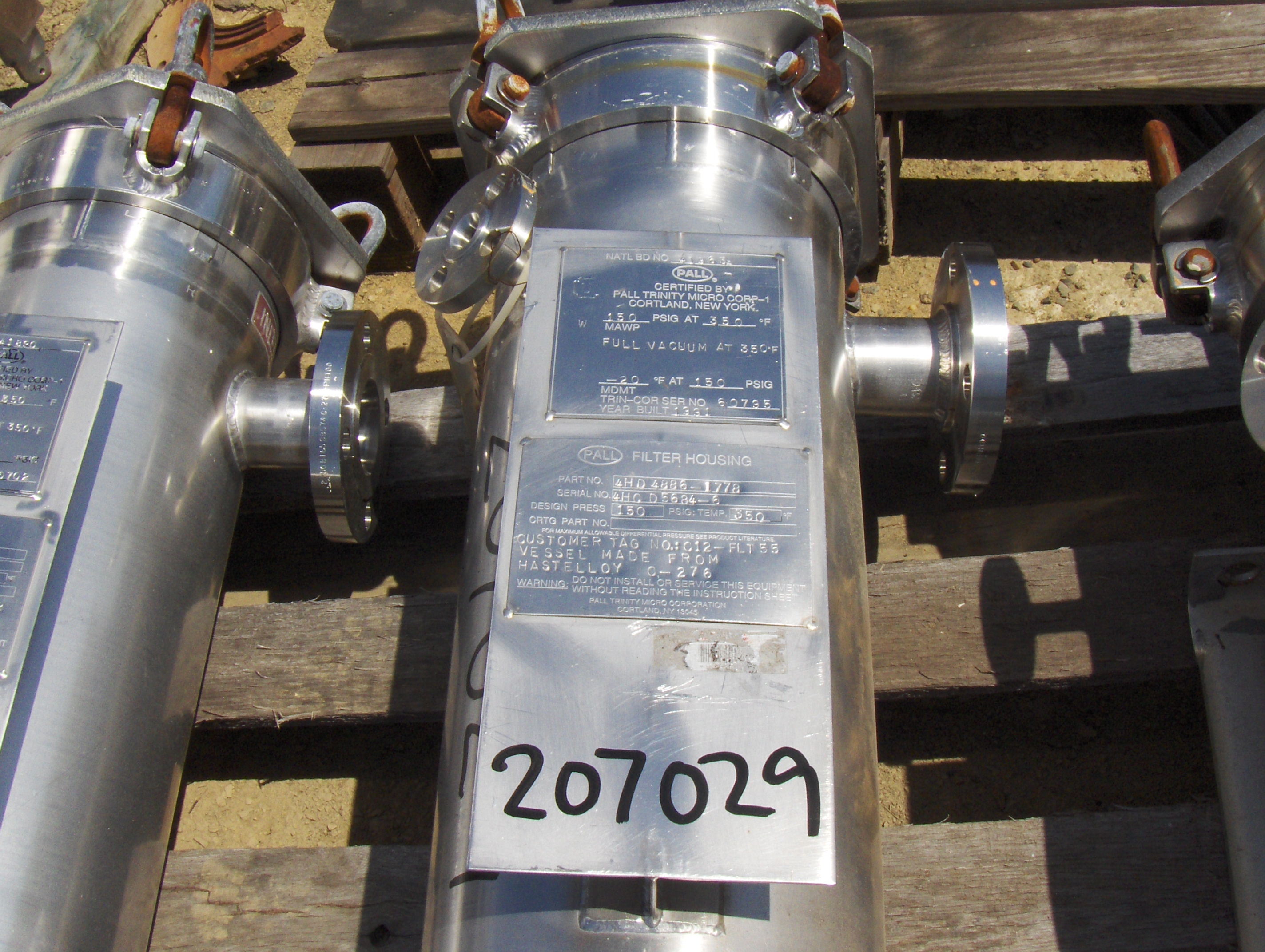

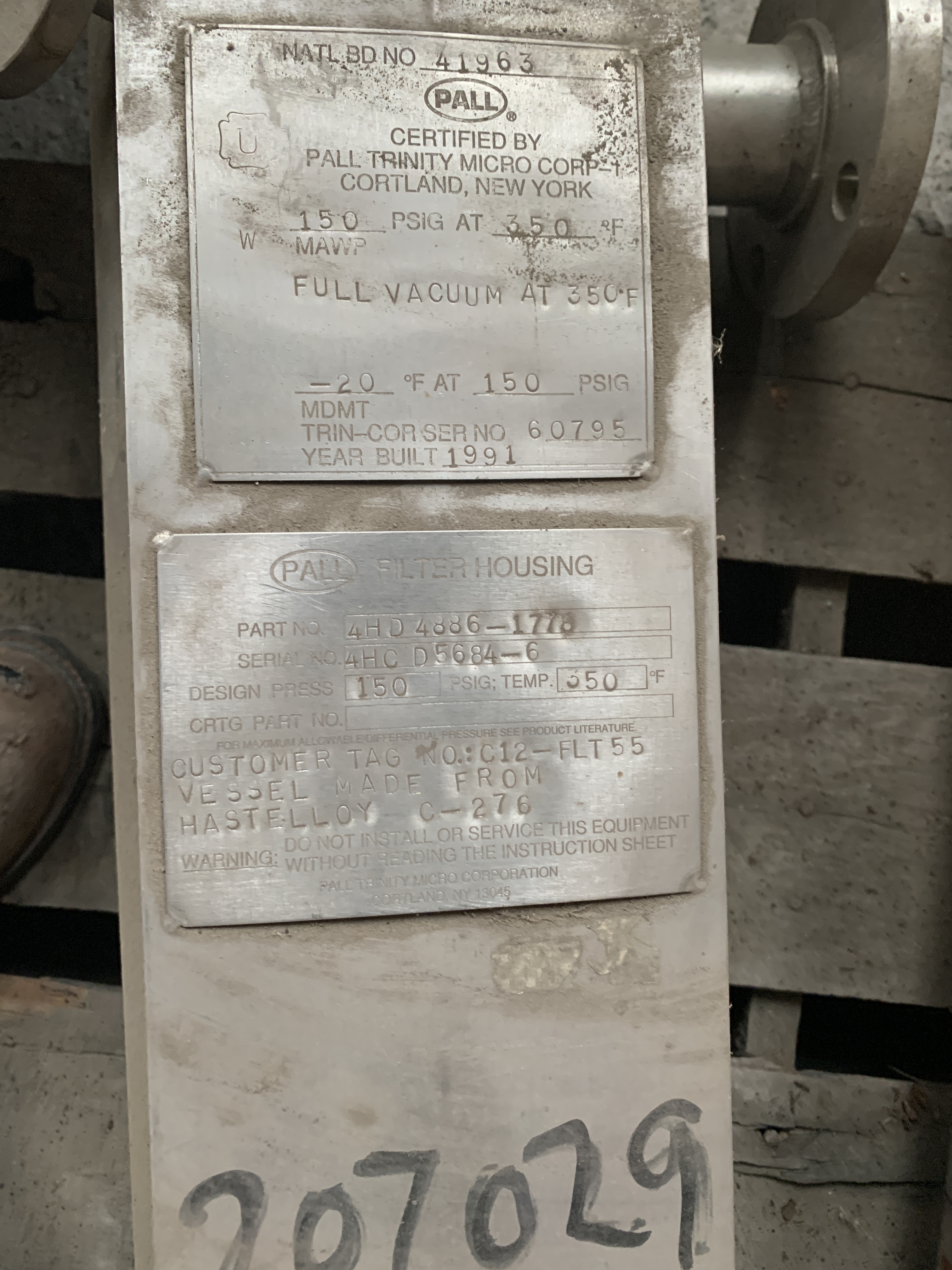

Trinity filter housing Trin-Cor serial #60702, Part # 4HD 4886-1778. Pressure drop 4 psi @ 500 GPM Inlet & outlet connections are 2.5 " weld neck flanges. Filter has four 1" weld neck flanges for draining and venting.

Temperature: 176.7 °C (350 °F).

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Pall

Condition: Used

Material: Stainless Steel 316

Diameter: 200 mm (7.9 in)

Orientation: Vertical

cartridge pressure filter

Pressure: 15 bar (217.6 psi). Temperature: 150 °C (302 °F). Cake Volume: 40 m3 (1,413 ft3).

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Rosedale

Model: 024302F2150 0276BTC

Condition: Used

Material: Hastelloy - C276

Filtration Area: 2.5 m² (26.4 ft²)

Diameter: 609.6 mm (24 in)

• Multi Basket Strainer/Bag filter with "Q" style enclosure.
• Quick access cover with counter weight.
• Individual basket surface area is 4.4 Sq.Ft., individual basket volume is 0.6 cu.ft.
• Filter bag basket PN # 0-915-B/PB C-276
• O ring material is Viton.

Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 204.4 °C (400 °F). Cake Volume: 0.1 m3 (3.6 ft3). Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 304. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 204.4 °C (400 °F).

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Rosedale

Model: 024302F2150 0276BTC

Condition: Used

Material: Hastelloy - C276

Filtration Area: 2.5 m² (26.4 ft²)

Diameter: 609.6 mm (24 in)

• Multi Basket Strainer/Bag filter with "Q" style enclosure.
• Quick access cover with counter weight.
• Individual basket surface area is 4.4 Sq.Ft., individual basket volume is 0.6 cu.ft.
• Filter bag basket PN # 0-915-B/PB C-276
• O ring material is Viton.

Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 204.4 °C (400 °F). Cake Volume: 0.1 m3 (3.6 ft3). Jacket: Yes. Jacket Type: Standard. Jacket MOC: Stainless Steel 304. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 204.4 °C (400 °F).
