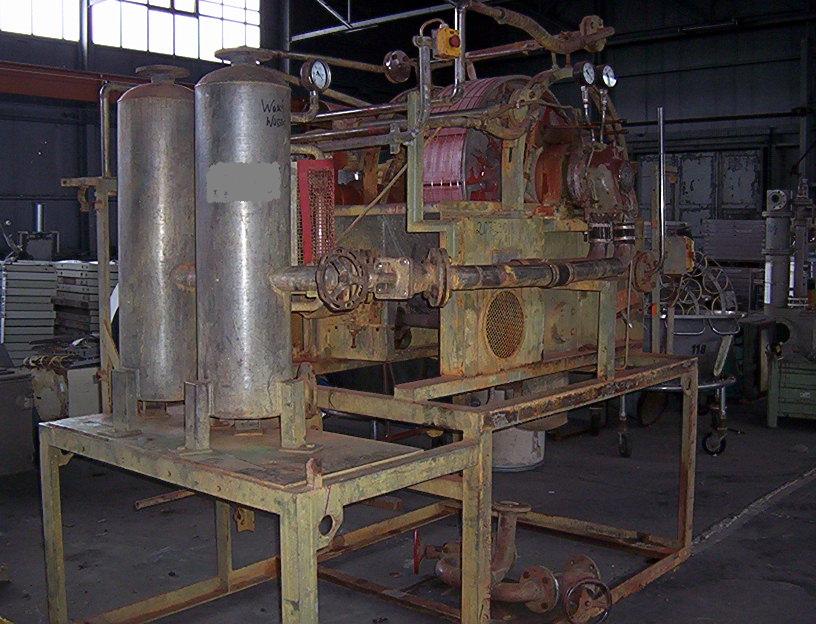

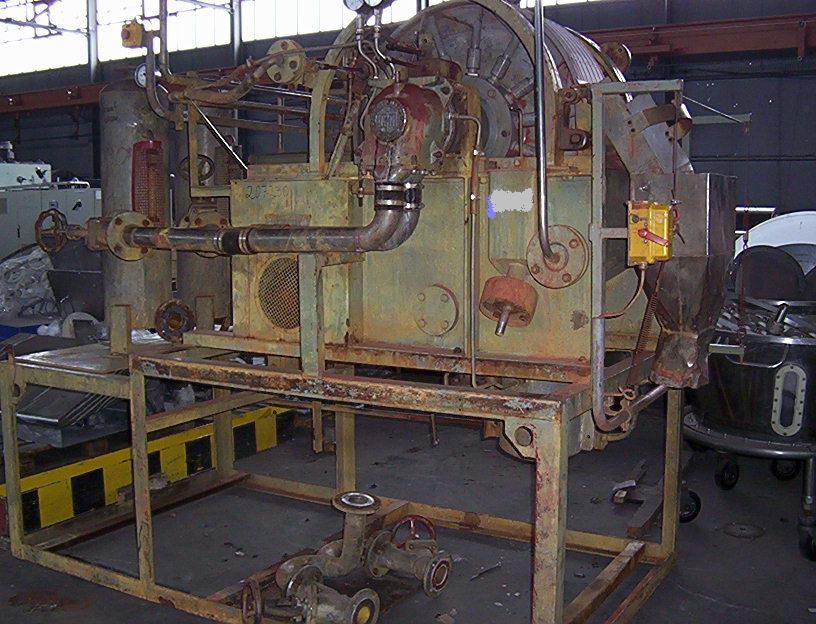

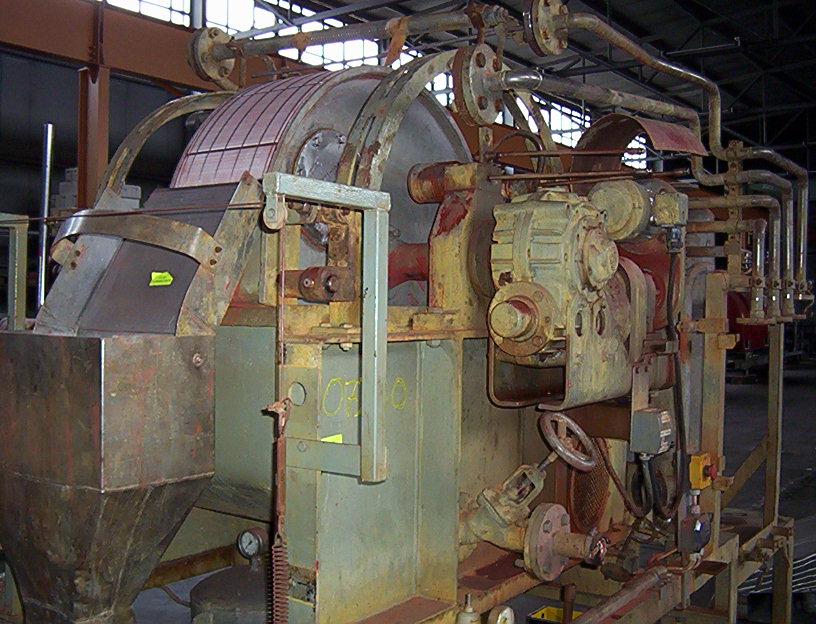

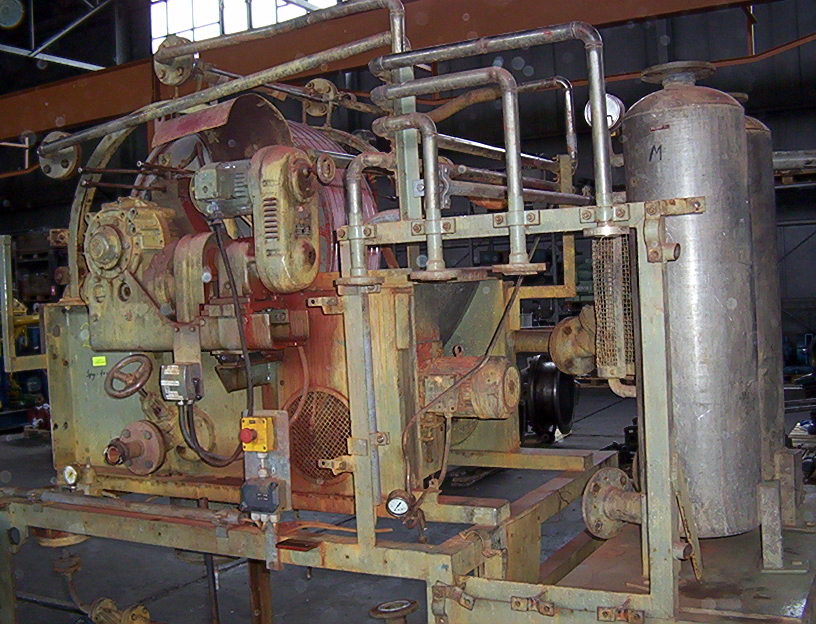

Stainless Steel 304 Rotary Vacuum Filter 0.72 m² (7.8 ft²) For Sale - IPP# 207112

Type: Filter

Subtype: Rotary Vacuum

Manufacturer: Krauss Maffei

Model: TSF 2.9 QM Stand B

Condition: Used

Material: Stainless Steel Other

Filtration Area: 2.9 m² (31.2 ft²)

Air Flow Rate: 10 m3/h (5.9 CFM)

normal working pressure 0.75 bar @ 20 degrees C Motor - 400/690 volt 1415/631 rpm 316 stainless steel agitator, spray nozzle, Roller discharge, with brushes, stainless steel hood

Diameter: 920 mm (36.2 in). Pressure: 1 bar (14.5 psi). Temperature: 60 °C (140 °F).

Type: Filter

Subtype: Rotary Vacuum

Manufacturer: Krauss Maffei

Model: TSF 2.9 QM Stand B

Condition: Used

Material: Stainless Steel Other

Filtration Area: 2.9 m² (31.2 ft²)

Air Flow Rate: 10 m3/h (5.9 CFM)

stainless steel rotary vacuum filter normal working pressure 0.75 bar @ 20 degrees C drum speed 0.153 rpm Motor - 400/690 Volt 1415/631 rpm 316 stainless steel agitator, spray nozzle, Roller discharge, with brushes, stainless steel hood

Diameter: 920 mm (36.2 in). Pressure: 1 bar (14.5 psi). Temperature: 60 °C (140 °F).

Type: Filter

Subtype: Rotary Vacuum

Manufacturer: Eimco Shriver

Condition: Used

Material: Stainless Steel 304

Filtration Area: 2.2 m² (24 ft²)

Diameter: 1,219 mm (48 in)

Right hand drive. Non-agit trough 304SS fume hood Drum driven by Reeves varidrive 95.3 to 15.9 rpm output Scraper discharge w/manual adjustments

Type: Filter

Subtype: Rotary Vacuum

Manufacturer: Komline Sanderson

Condition: Refurbished/Rebuilt

Material: Stainless Steel 304

Filtration Area: 0.87 m² (9.4 ft²)

Diameter: 914.4 mm (36 in)

precoat rotary vacuum filter with knife discharge currently set up with a new advancing knife discharge system (variable frequency inverter not included) Rocker agitator in trough Slurry capacity @ 37.5% submergence is 41 gallon Drum and agit driven by 1/4 HP Reeves varidrive, 3/60/230/460 volt, output rpm max 85.6, min 8.56 rpm Approx. weight of filter 2000 lbs
