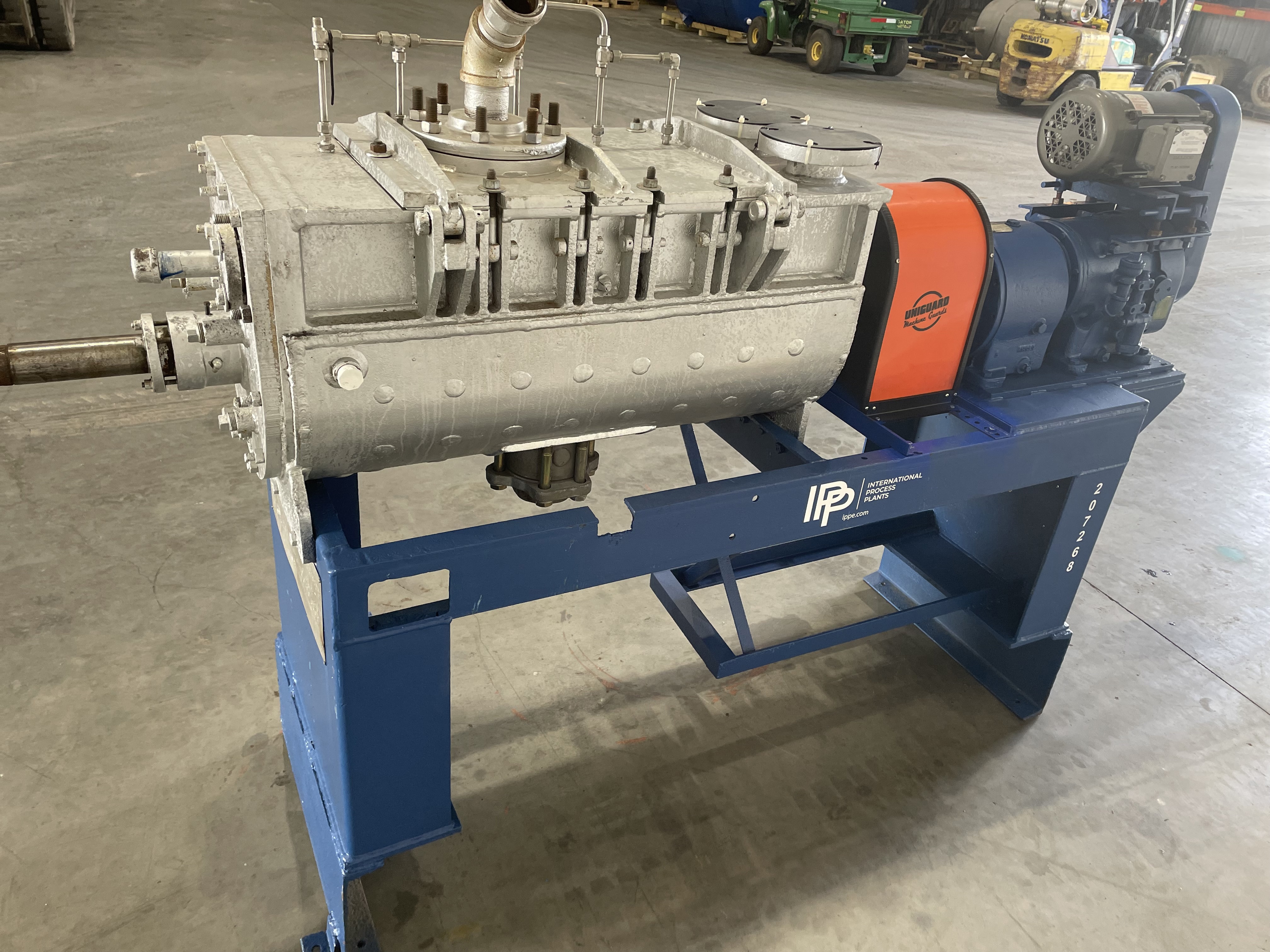

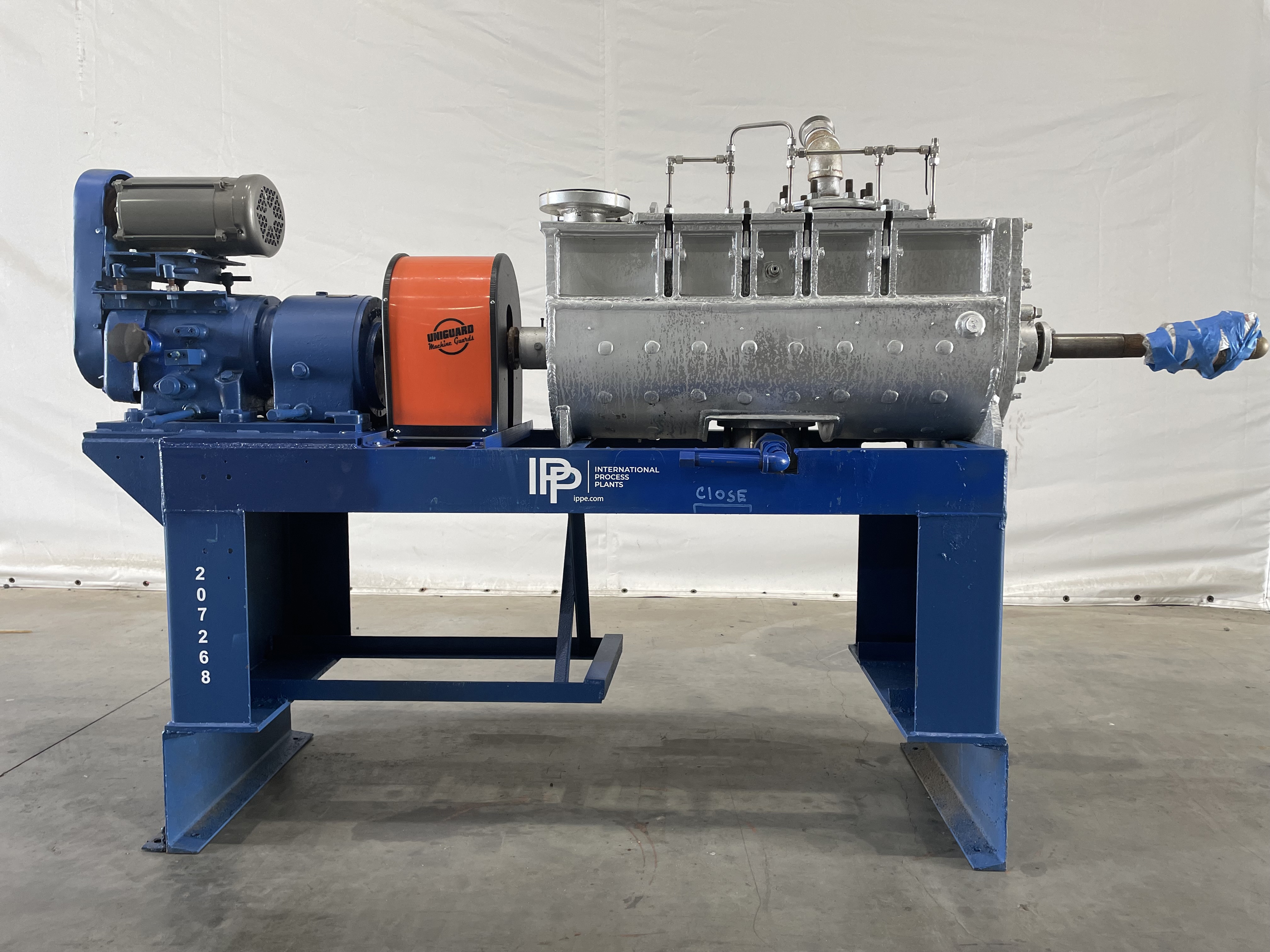

Stainless Steel 316 Gale Process Solutions 1P1203 Dryer-Porcupine - IPP# 207268

Type: Dryer-Porcupine

Subtype: Parts

Manufacturer: Gale Process Solutions

Model: 1P1810JTB

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Trough only
• Porcupine Processer Agitator 72.9 sq. ft. heating area Panel coils jacket to be applied and will add 36.6 sq. ft. of heater area
• Trough working volume is 14.9 cu. ft. per batch
• Agitator has pusher/scraper clips center discharge
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 457.2 mm (18 in). Length: 3,048 mm (120 in). Number of Shafts: 1. Has Jacket: Yes. Porcupine Surface Area: 6.8 m² (72.9 ft²). Total Heat Transfer Surface Area: 10.2 m² (109.5 ft²). Size: 3018.

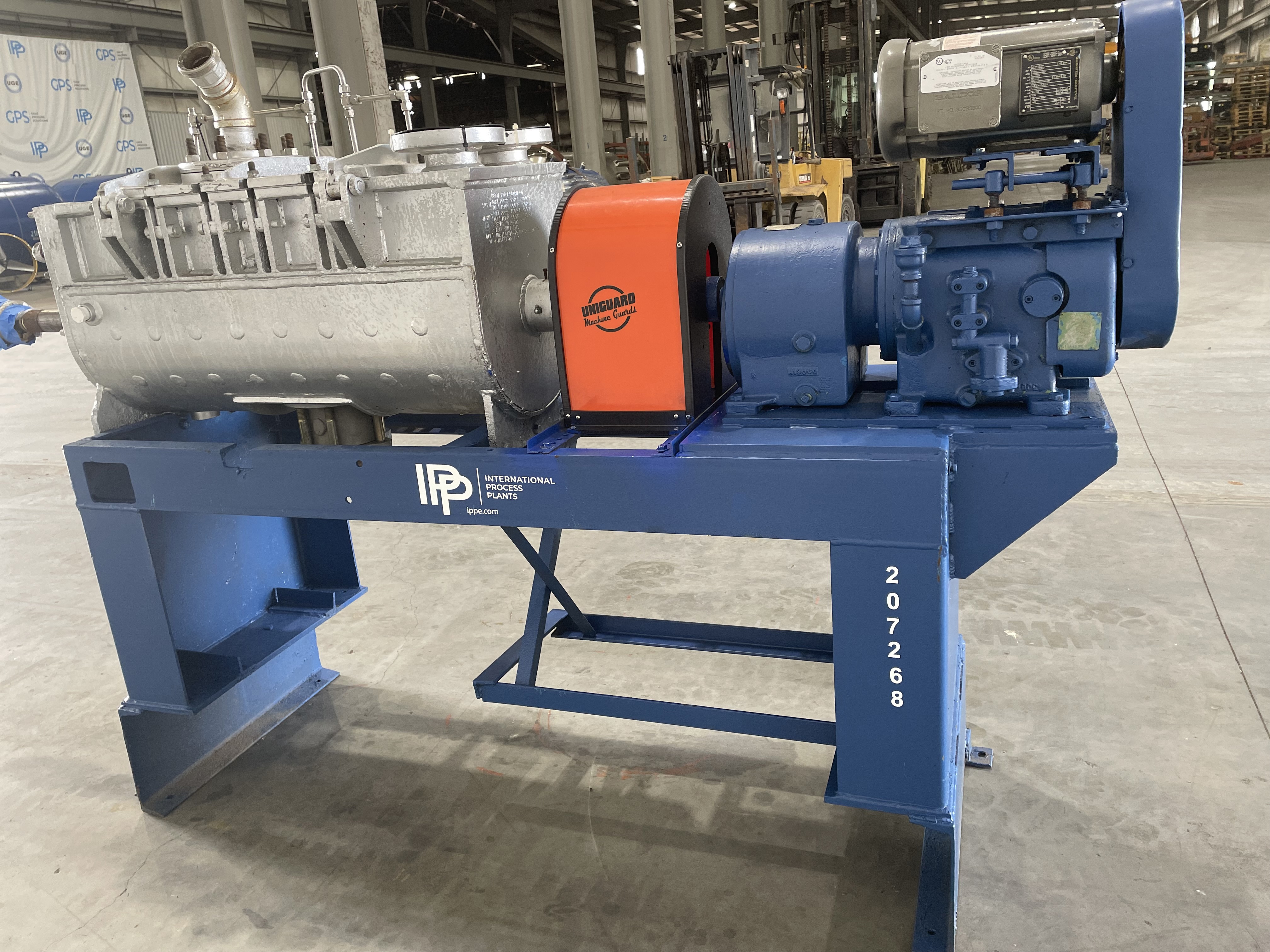

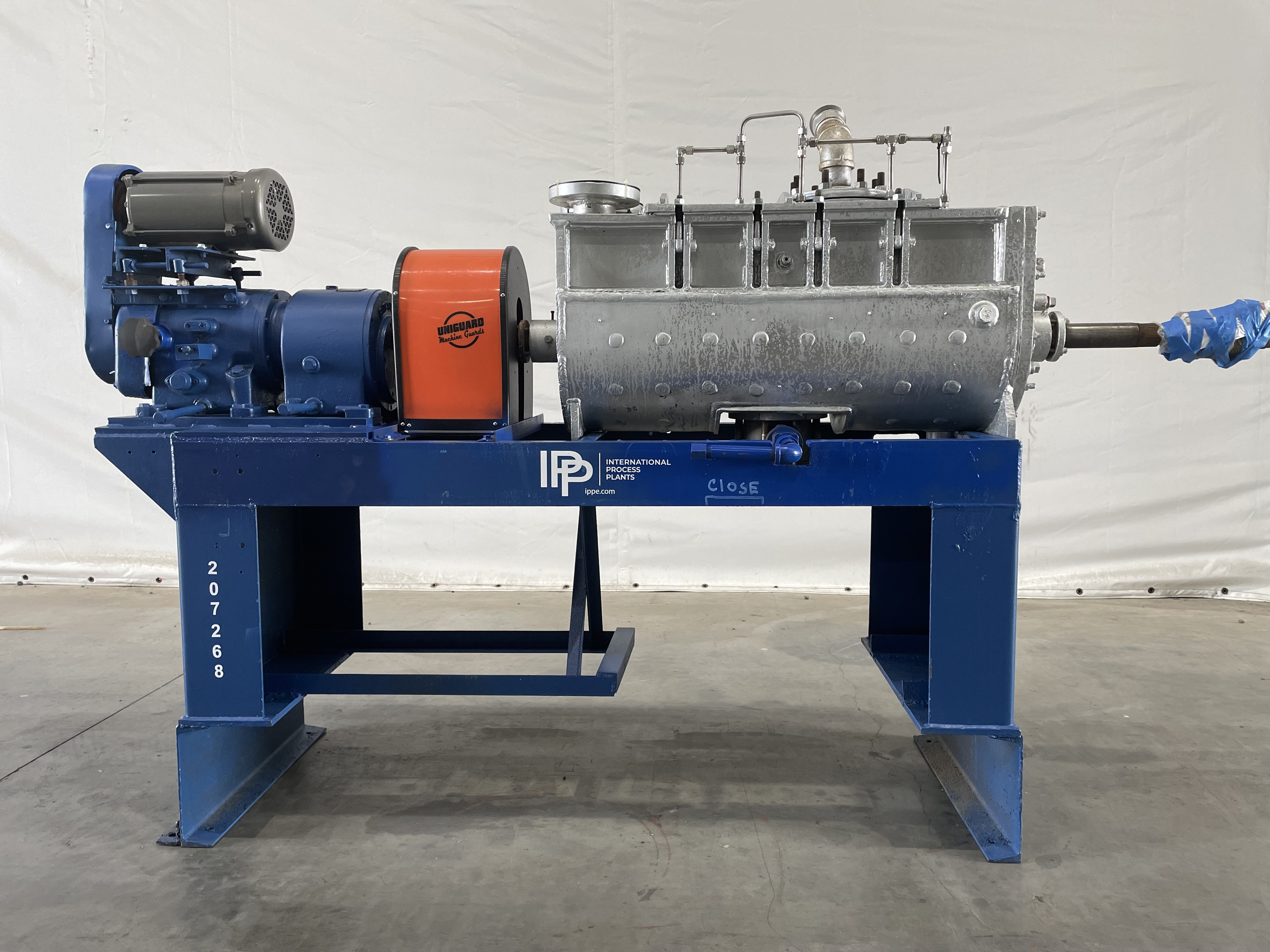

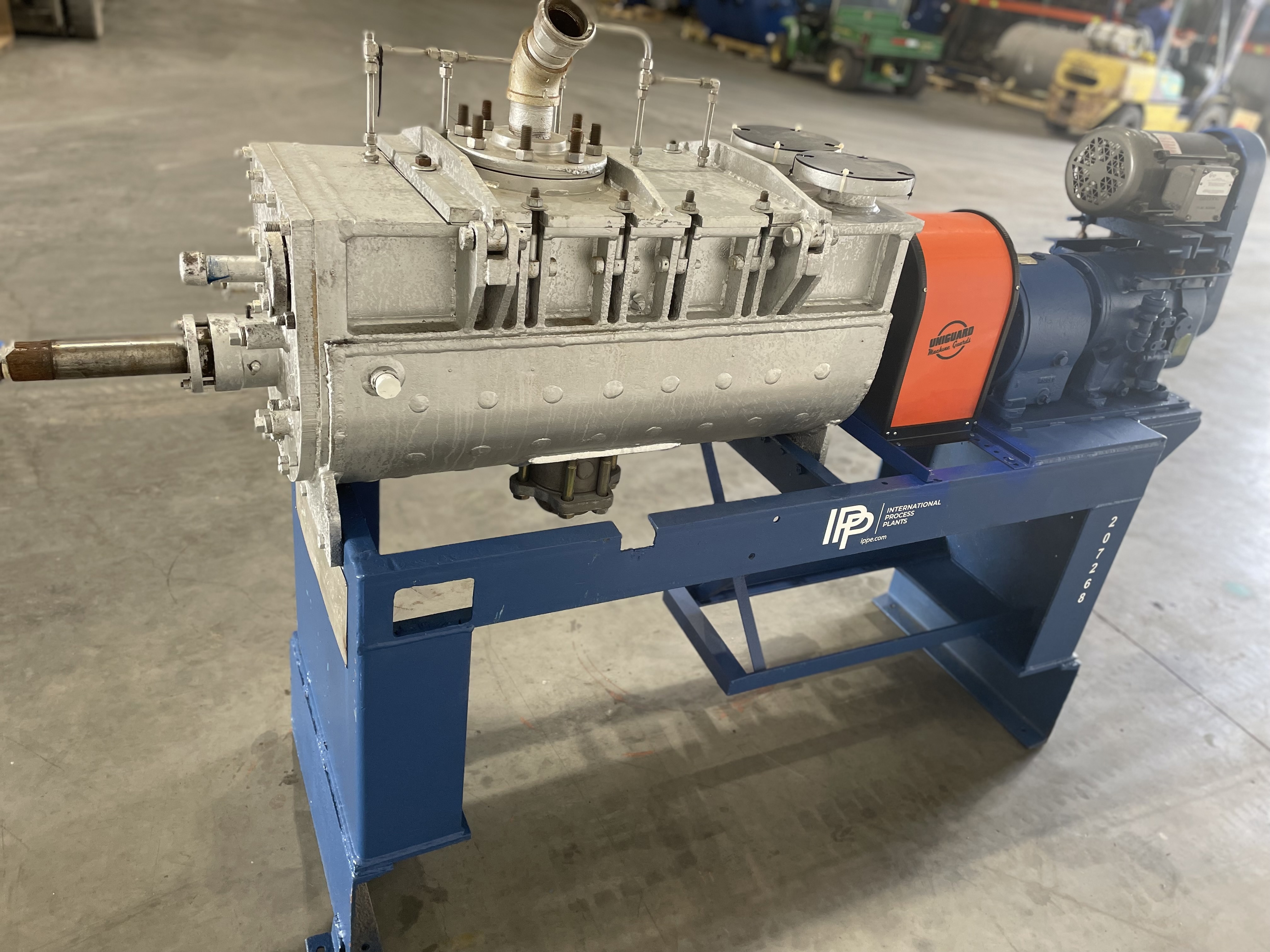

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Heating medium is hot oil or steam
• Working volume 2.10 cubic feet
• Agitator 15 square feet of heating area and 9 square feet on the jacket
• Full vaccum
• Vessel rated 50 psig and full vacuum, jacket and agitator rated 150 psig 600 degree F
• Working volume 2.10 cubic feet
• Agitator 15 square feet of heating area and 9 square feet on the jacket

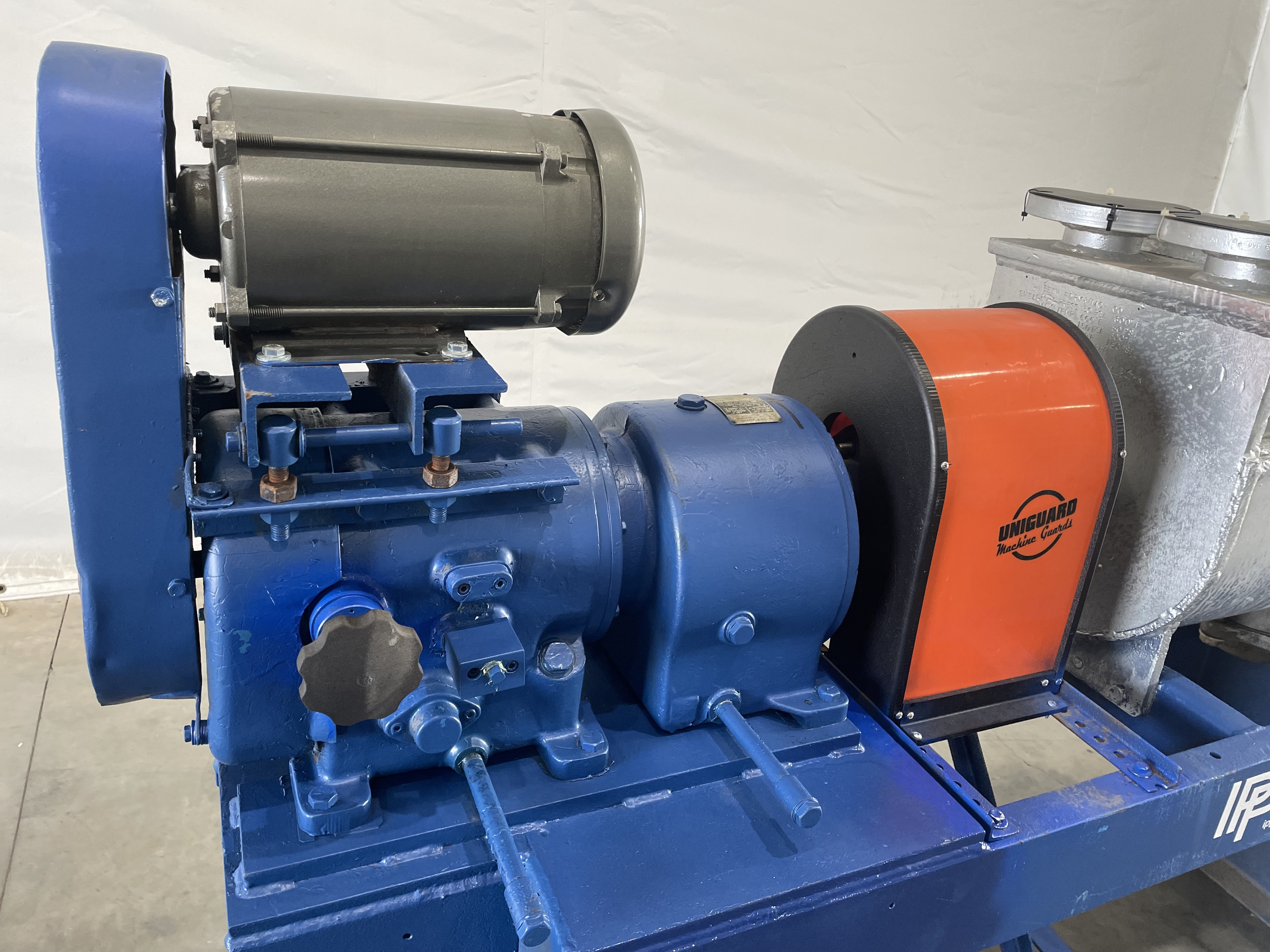

• 3/60/220/440 volt varidrive with UL label
• 5.4 to 54 rpm output
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 315.6 °C (600 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 315.6 °C (600 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Agitator 12" diameter, 3' long. (18% Cr, 11% nickel)
• hot oil or steam and full vacuum
• Working volume 1.89 cubic feet
• Agitator 12.4 square feet of heating area and jacket 7.3 square feet
• (requires motor and gear drive)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.86 m² (20 ft²).

Type: Dryer-Porcupine

Subtype: Parts

Manufacturer: Gale Process Solutions

Model: 5416

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Diameter: 1,372 mm (54 in)

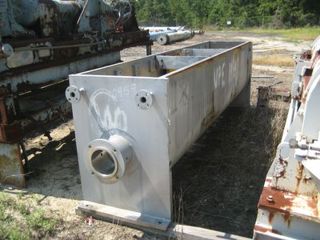

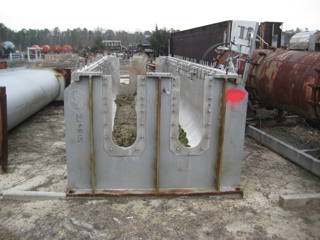

• Spare trough Size 54-16
• Shell rated for 5 psi at 325 degrees F Capacity of trough is 213 cu.ft
• Twin rotor chamber 36" deep x 191" long
• Designed to use two screws
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Length: 4,877 mm (192 in). Number of Shafts: 2. Porcupine Operating Pressure: 5.2 bar (75 psi). Porcupine Operating Temperature: 162.8 °C (325 °F). Jacket Operating Pressure: 5.2 bar (75 psi). Jacket Operating Temperature: 162.8 °C (325 °F). Total Heat Transfer Surface Area: 64.1 m² (690 ft²).
