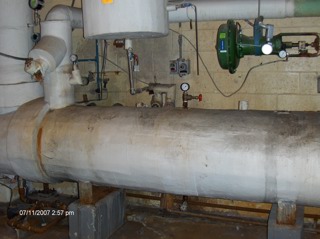

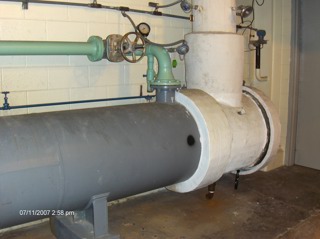

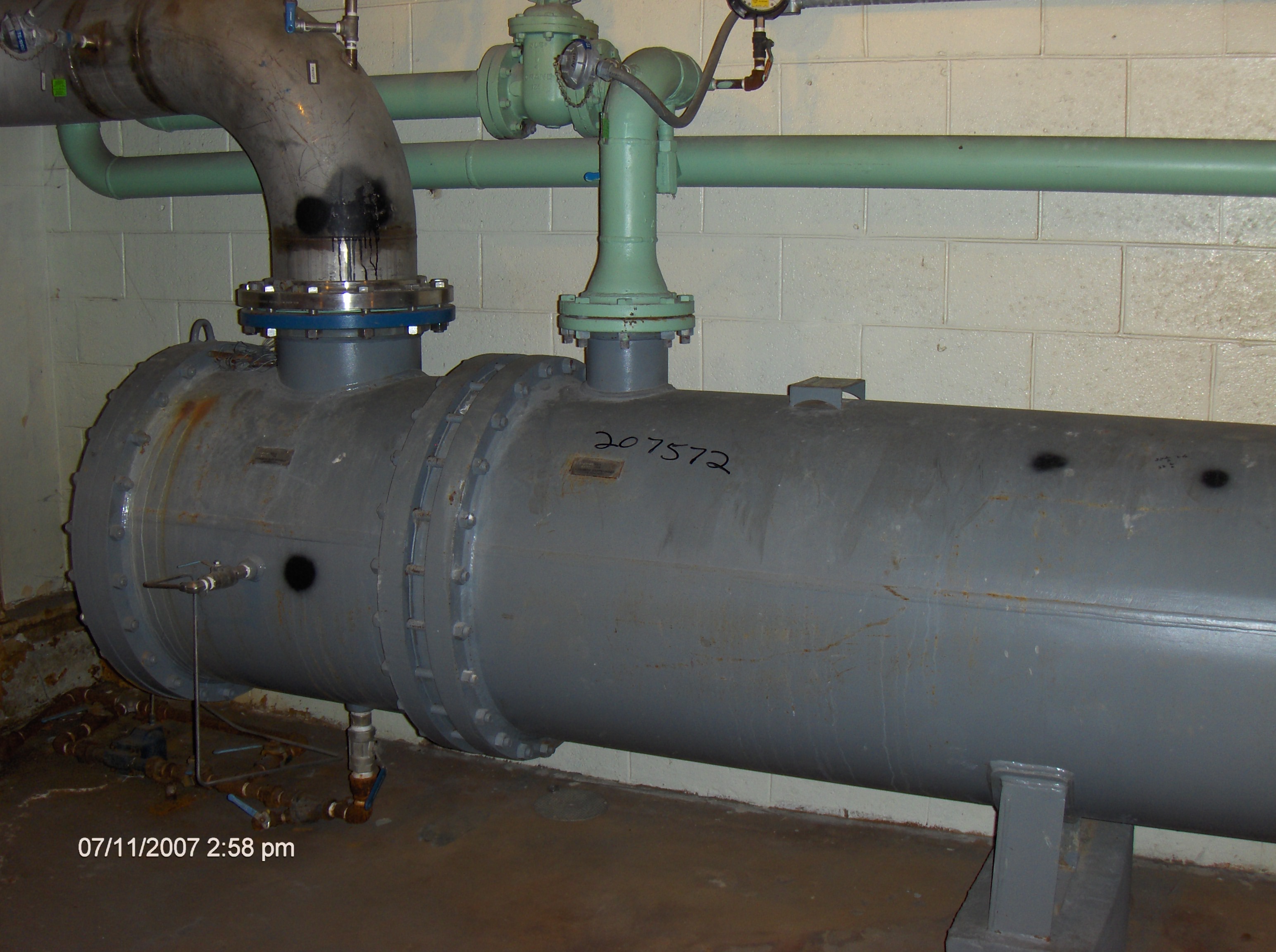

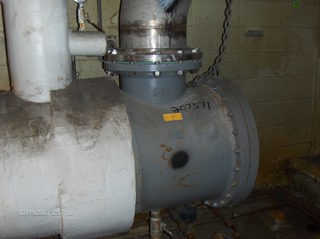

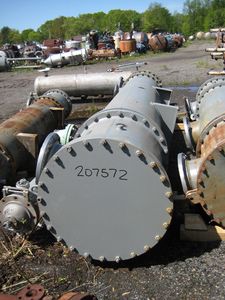

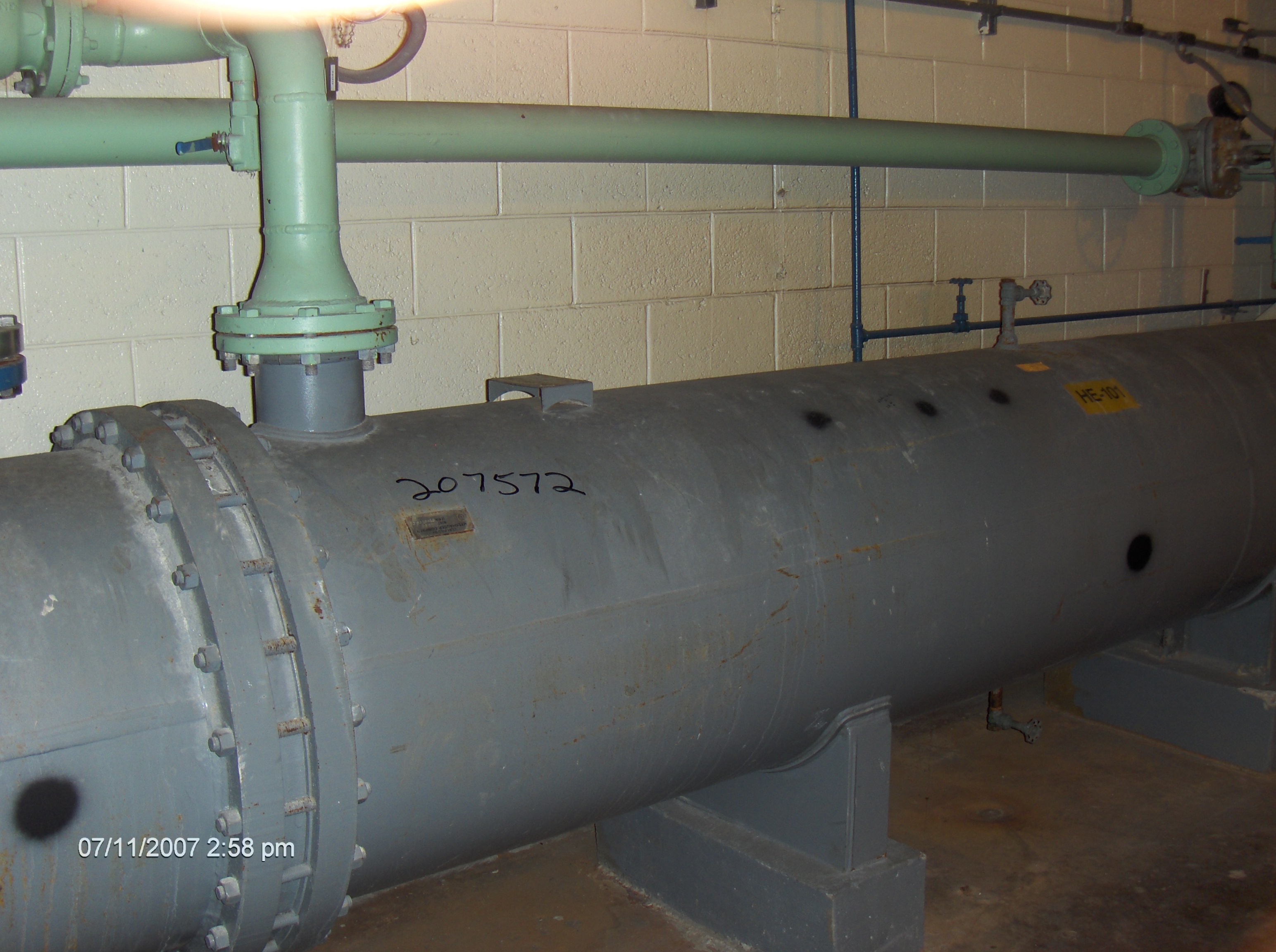

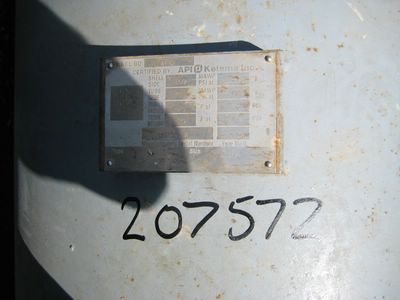

Copper/Brass API Ketema AEW Shell and Tube Heat Exchanger - IPP# 207572

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: API Ketema

Condition: Used

Material: Copper/Brass

Heat Transfer Surface Area: 124 m² (1,350 ft²)

Orientation: Horizontal

Size 25-C-72 with CS tubes sheet 1 1/2" thick (2) CS heads

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Copper/Brass. Shell Diameter: 610 mm (24 in). Head Material: Carbon Steel. Length: 4,250 mm (168 in). Tube Number: 486. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,250 mm (168 in). Tube Thickness: 1.02 mm (0.04 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: API Ketema

Condition: Used

Material: Copper/Brass

Heat Transfer Surface Area: 43.8 m² (471 ft²)

Orientation: Horizontal

Size 25-C-72 with CS tubes sheet 1 3/4" thick (2) CS dished heads

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 176.7 °C (350 °F). Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Copper/Brass. Tubesheet Material: Carbon Steel. Shell Diameter: 762 mm (30 in). Head Material: Carbon Steel. Length: 5,700 mm (224 in). Tube Number: 300. Tube Diameter: 25.4 mm (1 in). Tube Length: 1,850 mm (72 in). Tube Thickness: 1.02 mm (0.04 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Copper/Brass

Heat Transfer Surface Area: 14.1 m² (152 ft²)

Tube Diameter: 457.2 mm (18 in)

• Used Heat Exchanger bundle with 5/8" diameter tubes .
• Tubes are admiralty brass, tie rods are 304 SS.

Tube Length: 1,900 mm (74 in).
