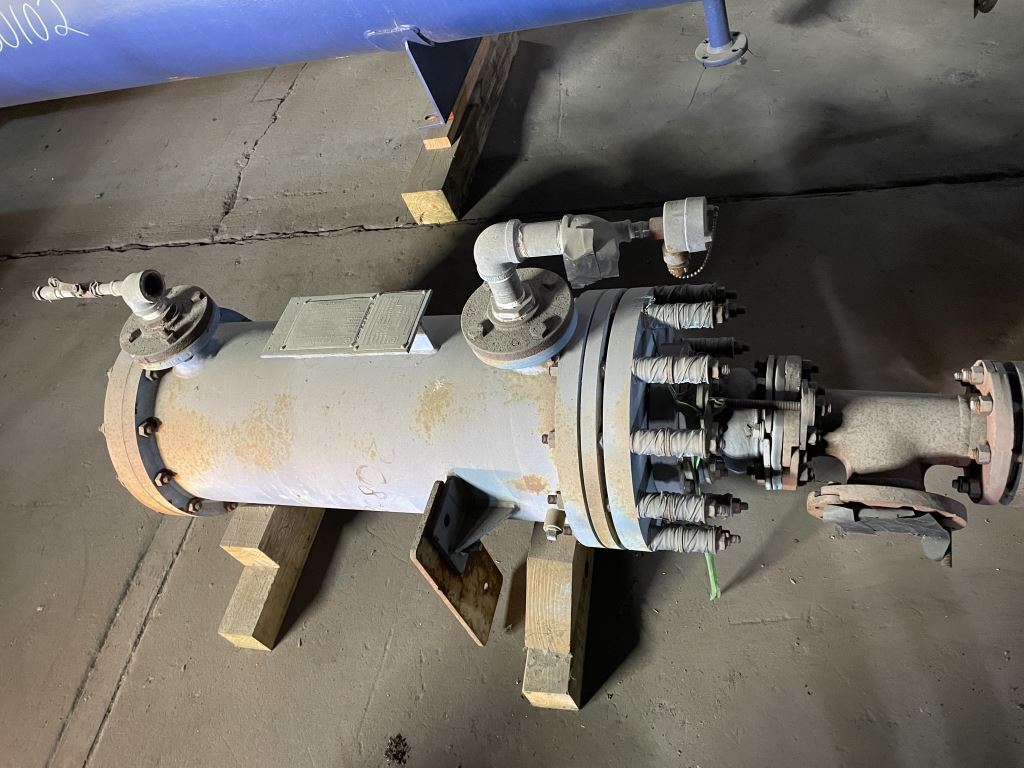

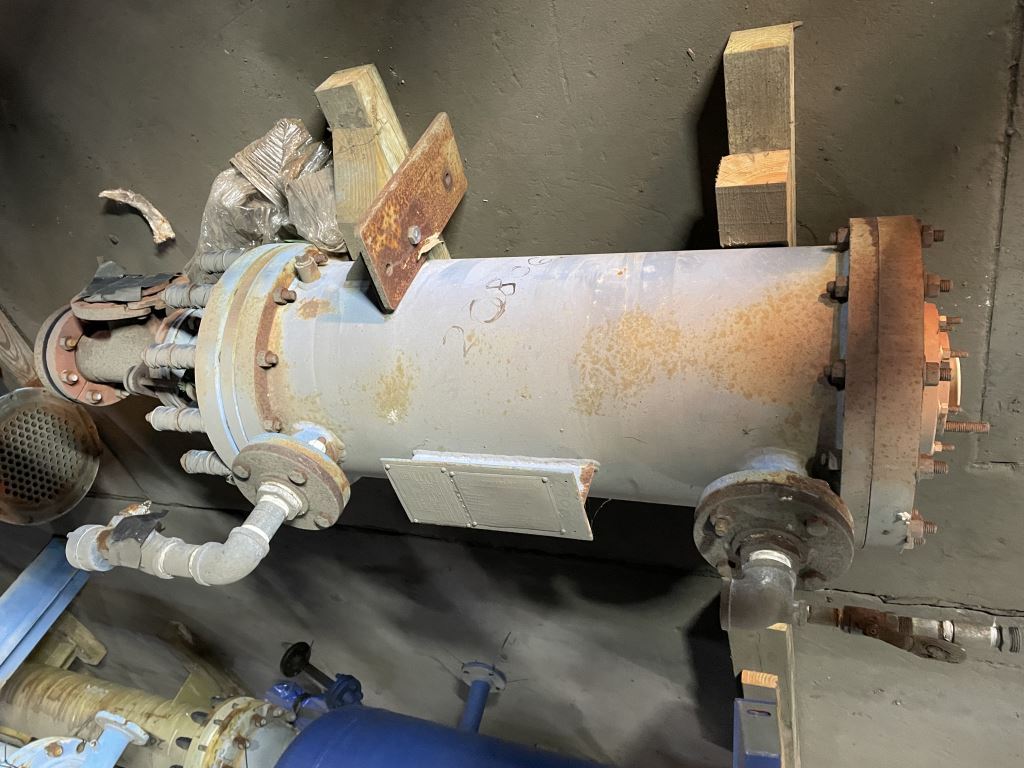

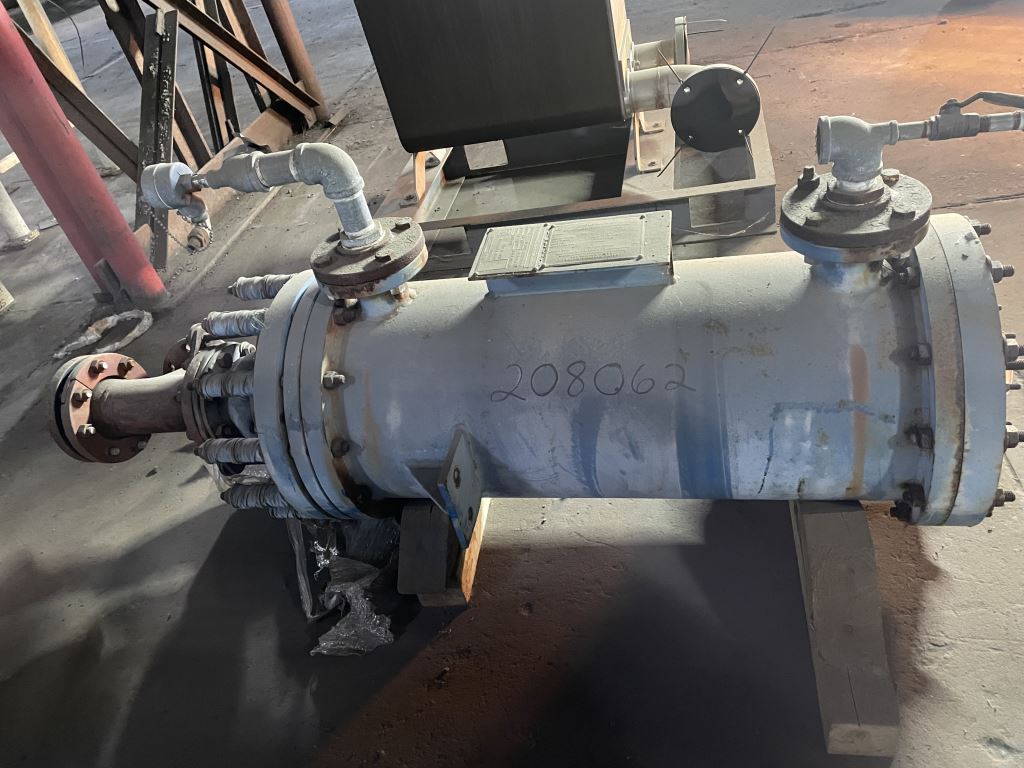

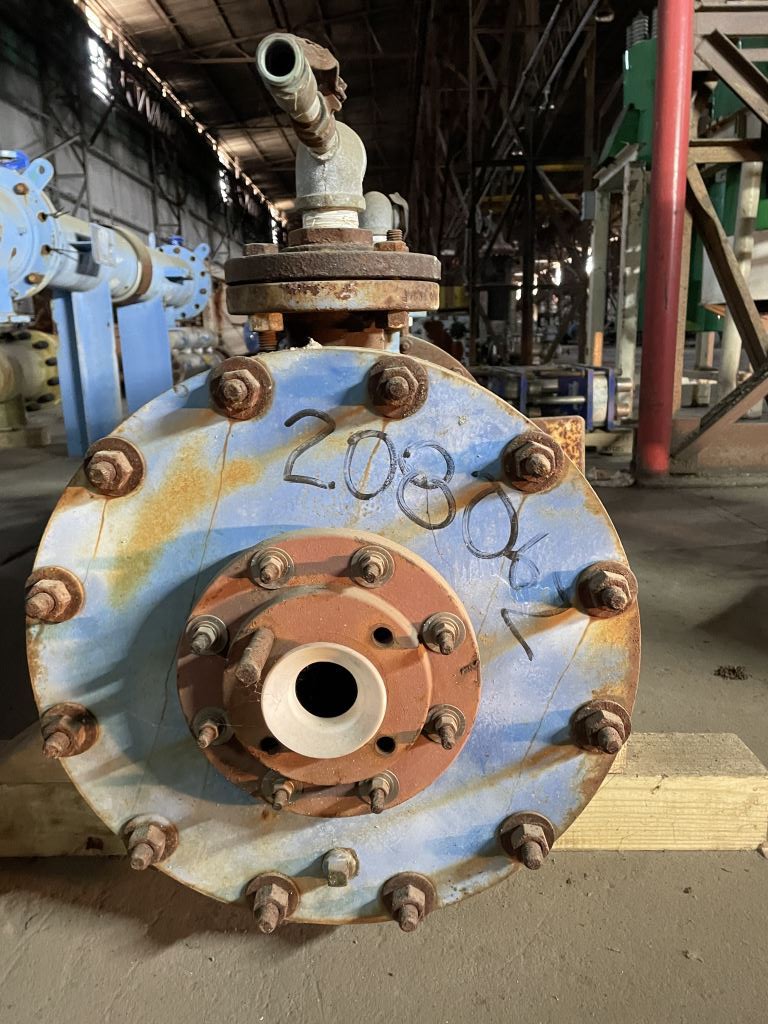

Graphite Block Heat Exchanger - IPP# 208062

Type: Heat Exchanger

Subtype: Block

Manufacturer: Polyblock

Model: PB24-4-TH-1-1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 22.3 m² (240 ft²)

Orientation: Vertical

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 193.3 °C (380 °F). Shell Material: Carbon Steel. Shell Diameter: 610 mm (24 in). Length: 1,450 mm (57 in). Process Pressure: 6.9 bar (100 psi). Process Temperature: 193.3 °C (380 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Rob Jenkins Systems

Model: GEB06/2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Shell Pressure: 5.2 bar (75 psi)

(1) block, single pass.

Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Vicarb

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Vertical

cylindrical design pressure process side 2.1 bar @ 15 to 120 deg C service 5.3 bar @ 155 deg C 7-pass on process side, 6-pass service side (2- pass per block, 3-blocks)

Shell Pressure: 4.6 bar (66.7 psi). Shell Temperature: 155 °C (311 °F). Shell Material: Carbon Steel. Shell Diameter: 470 mm (18.5 in). Length: 2,500 mm (98.3 in). Nozzle Schedule: openings: process 2-50mm, 2-25mm, service 2-100mm. Process Pressure: 2.1 bar (30.5 psi). Process Temperature: 120 °C (248 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Hykarb

Model: 500-CB-GT9

Condition: Refurbished/Rebuilt

Material: Graphite

Heat Transfer Surface Area: 21 m² (226 ft²)

Orientation: Vertical

Hykarb cylindrical block 8-module, 3-pass design design pressure process side 5 barg @ 100 degrees C, service side 5.2 barg @ 100 degrees C

Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 36 °C (96.8 °F). Shell Material: Carbon Steel. Shell Diameter: 609 mm (24 in). Head Material: Carbon Steel. Length: 4,600 mm (180.6 in). Nozzle Schedule: openings process side; 2-150mm, service side 2-100mm. Process Pressure: 4 bar (58 psi). Process Temperature: 61 °C (141.8 °F).
