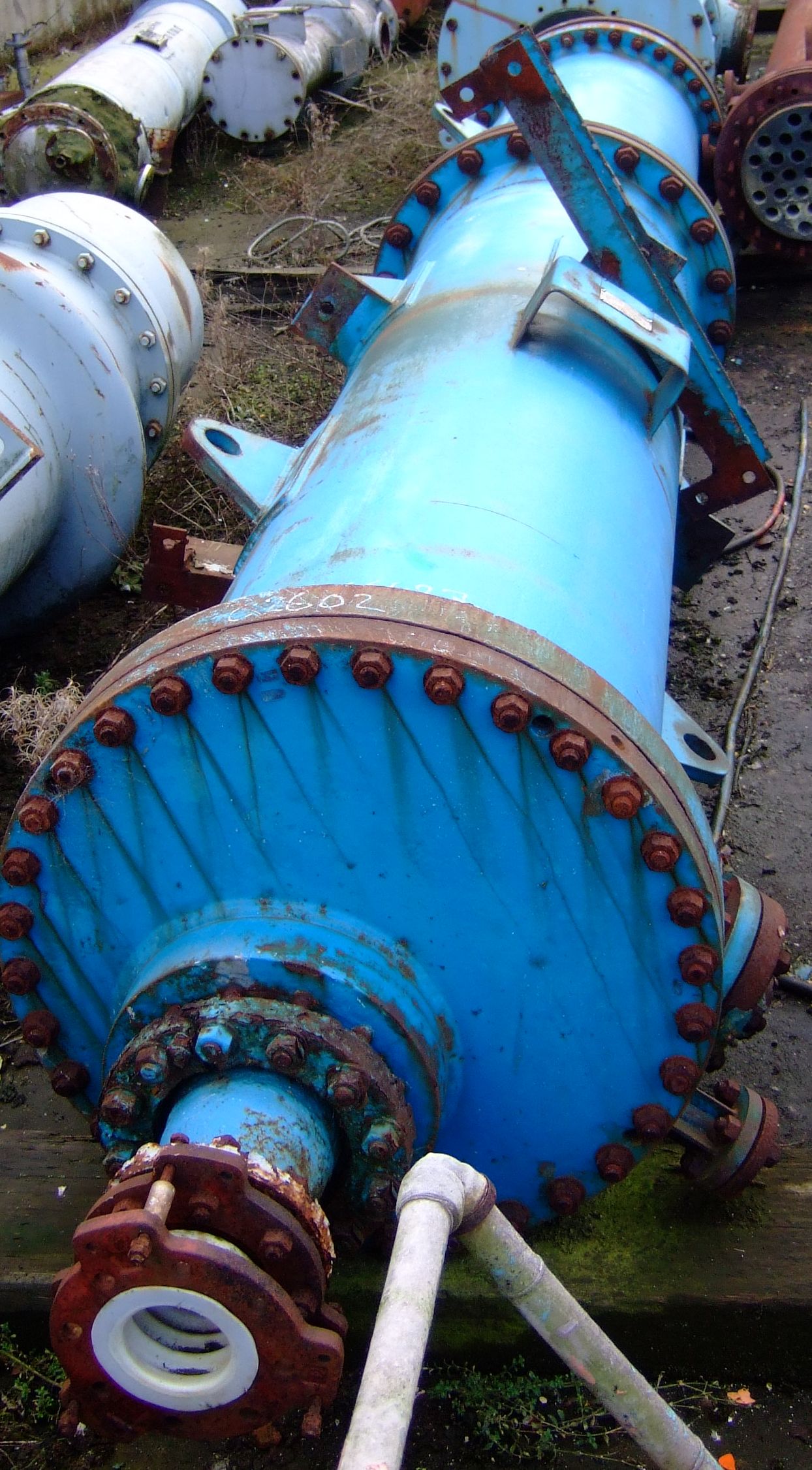

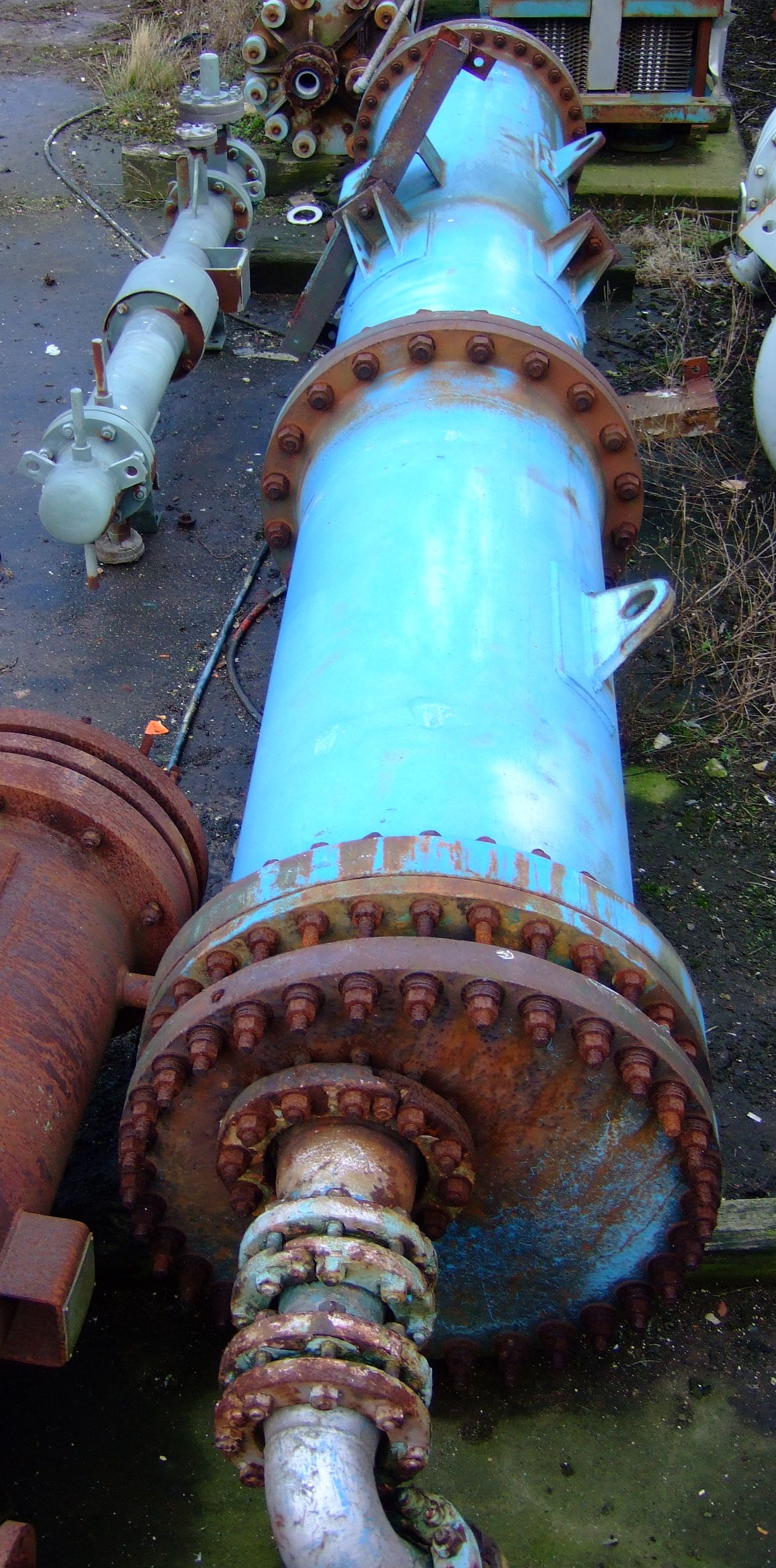

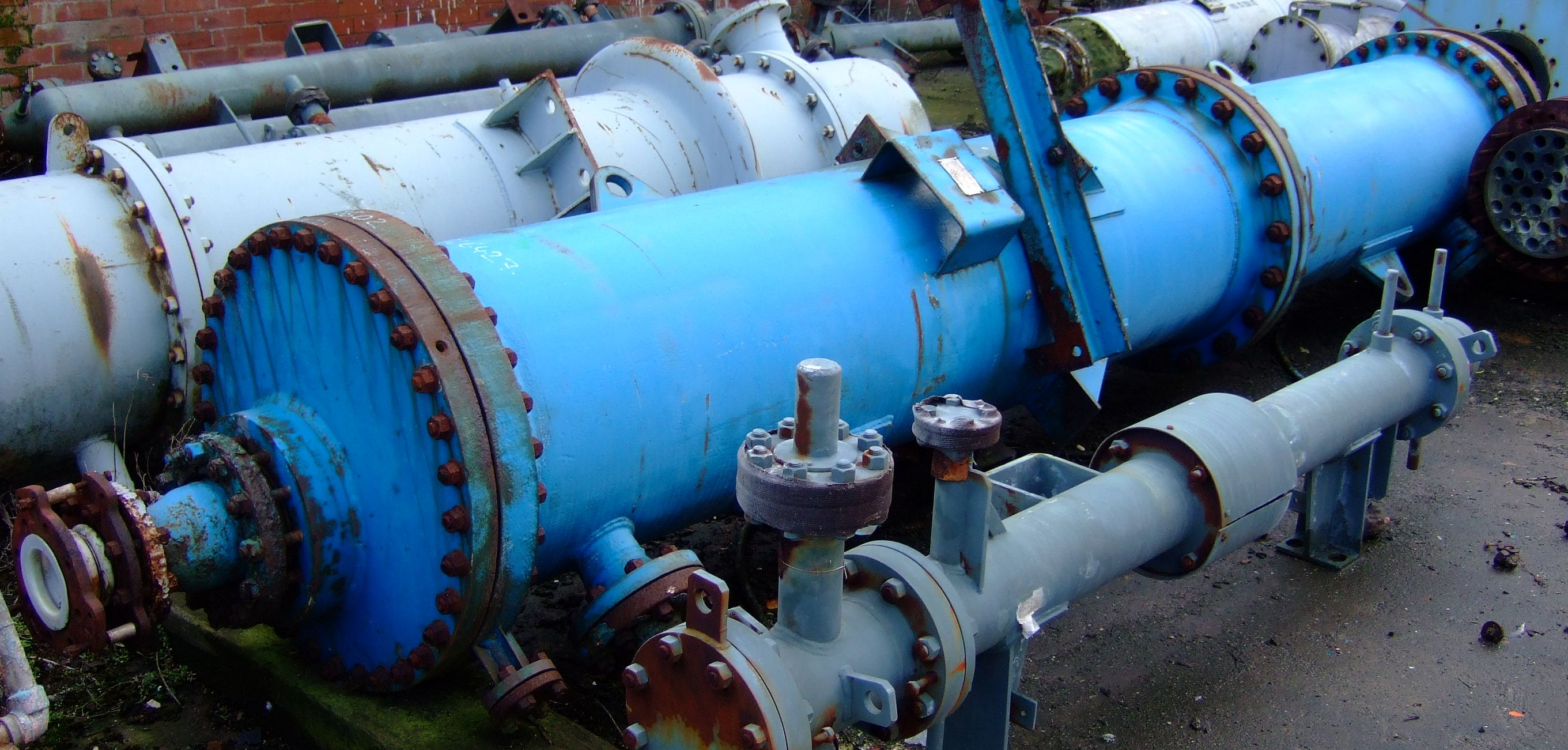

Graphite Block Heat Exchanger 21 m² (226 ft²) For Sale - IPP# 706427

Type: Heat Exchanger

Subtype: Block

Manufacturer: Hykarb

Model: CZ39

Condition: Refurbished/Rebuilt

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Orientation: Horizontal

asset #10005701 design code: ASME V111 DIV 1 PED CAT ; SEP liquid group 1

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Vacuum: Yes. Process Pressure: 6 bar (87 psi). Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Rob Jenkins Systems

Model: GEB06/2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Shell Pressure: 5.2 bar (75 psi)

(1) block, single pass.

Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Vicarb

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Vertical

cylindrical design pressure process side 2.1 bar @ 15 to 120 deg C service 5.3 bar @ 155 deg C 7-pass on process side, 6-pass service side (2- pass per block, 3-blocks)

Shell Pressure: 4.6 bar (66.7 psi). Shell Temperature: 155 °C (311 °F). Shell Material: Carbon Steel. Shell Diameter: 470 mm (18.5 in). Length: 2,496 mm (98.3 in). Nozzle Schedule: openings: process 2-50mm, 2-25mm, service 2-100mm. Process Pressure: 2.1 bar (30.5 psi). Process Temperature: 120 °C (248 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan

Model: BD20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.86 m² (20 ft²)

Shell Pressure: 5.2 bar (75.4 psi)

Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 200 °C (392 °F).
