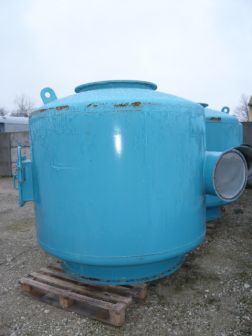

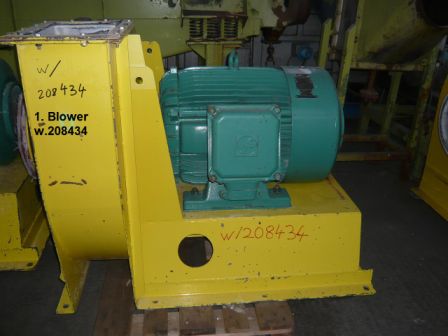

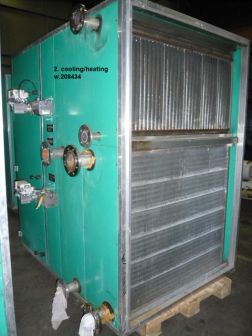

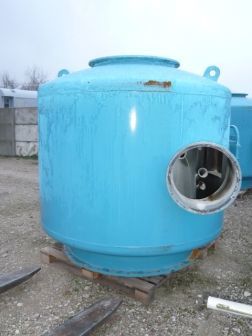

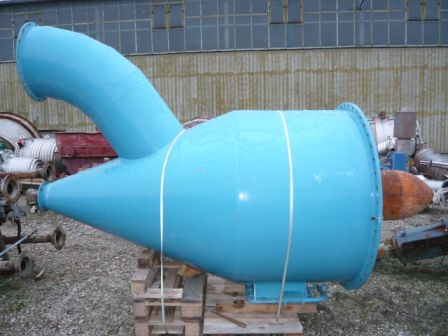

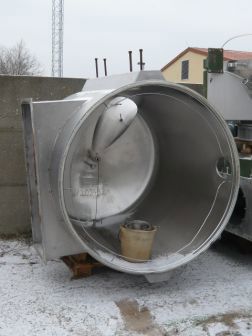

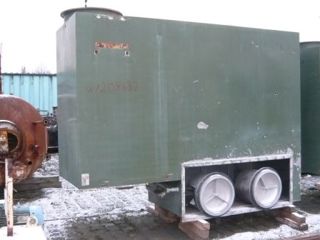

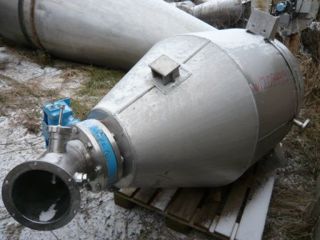

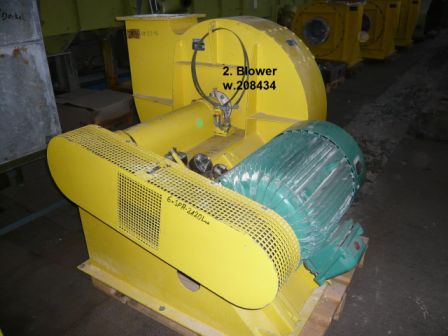

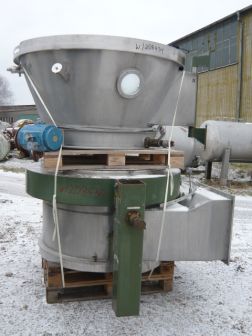

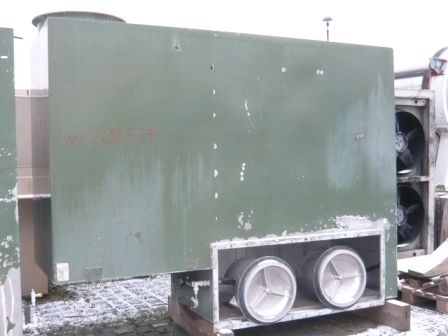

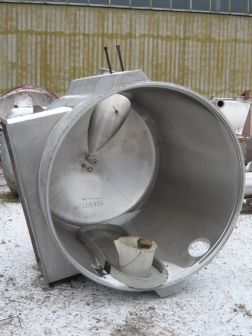

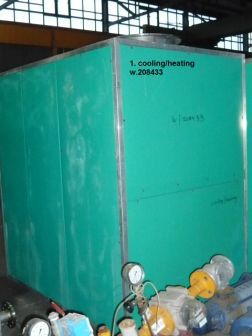

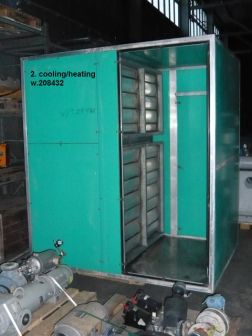

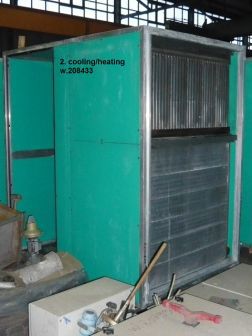

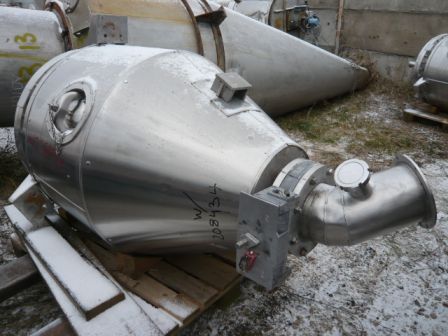

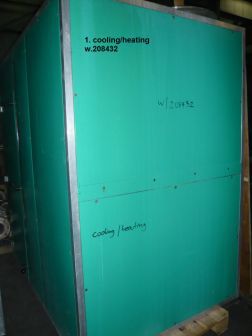

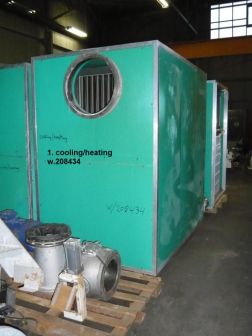

300 kg Glatt Fluid bed dryer special Vitamin-A-Pulver with cyclones heater and cooler and de-dusting system Filter housing is 1600 mm diamter, 2.5mm thick, with (59) bags, at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the hopper bottom with a 660 mm deep cone Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone With seperate heating cooling box,rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor dedusting system rated 15000 CuM/Hr.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,250 CFM)

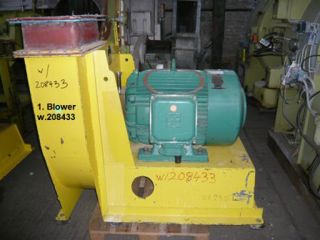

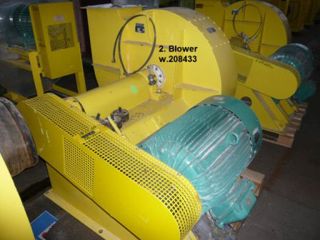

300 kg special Vitamin-A-Pulver with cyclones heater and cooler and de-dusting system Filter housing is 1600 mm diamter, 2.5mm thick with (59) bags at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the container bottom Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone with a 660 mm deep cone. With separate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor.
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,200 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,250 CFM)

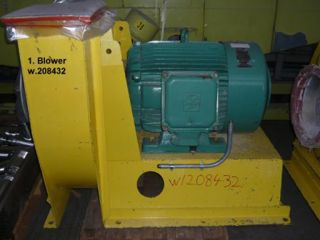

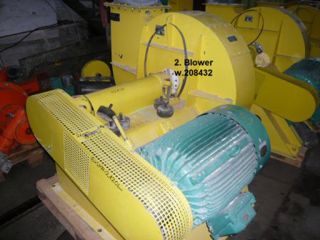

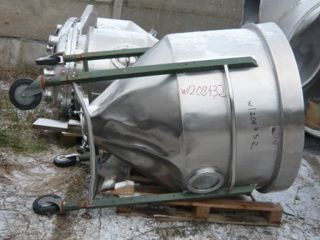

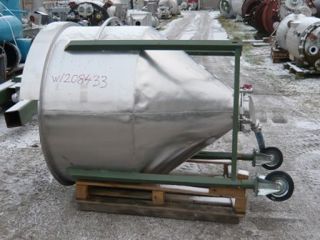

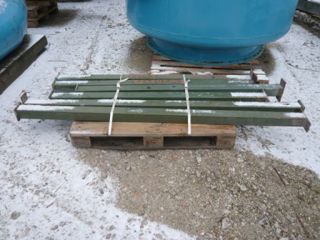

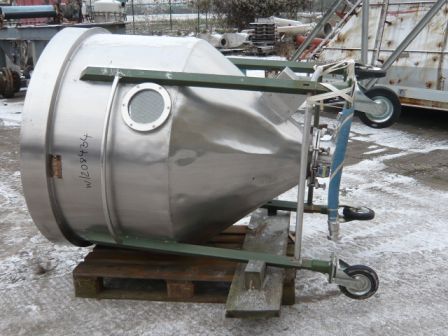

load weight 300 kg special Vitamin-A-Pulver, with cyclones heater and cooler and de-dusting system Filter housing is 1.6m diamter, 2.5mm thick, with (59) bags, at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the hopper bottom. Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone. Bottom hopper mounted on 4 legs with wheels. With seperate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,200 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WST120
Condition: Refurbished/Rebuilt
Material: Stainless Steel 304
Capacity: 420 L (111 gallons)
Air Flow Rate: 6,000 m3/h (3,500 CFM)
250 Kg Fluid Bed Dryer batch type Steam heater rated 140000 Kcal/hr steam Motor: 3 phase 220/380 volt With (2) product bins 1200mm upper diameter, 800mm lower diameter, sanitary polished Drying chamber 3.5m high (11'6") x 1.2m diameter (48") With a control panel indicating air temperature, timers, intervals, vibration indicator of dust collector
Pressure: 6 bar (87 psi). Bowl Diameter: 1,200 mm (47.2 in). Bowl Height: 3,500 mm (137.8 in). Product Density: 0.42 m3 (14.8 ft3). Operational Mode: Batch. Dust Collection: Yes.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WSG
Condition: Used
Material: Stainless Steel 304
Capacity: 45 L (11.9 gallons)
Air Flow Rate: 750 m3/h (441.4 CFM)
15 Kg bed dryer system Heating capacity 68000 BTU/hour Steam pressure 3 bar air (compressed) 6 bar with removable trolley Drying chamber in (3) sections: (1) 21 1/2" diameter x 12" straight side; (1) 21 1/2" diameter x 27 1/2" straight side; (1) 21 1/2" diameter x 27 1/2" straight side x 15 1/2" diameter (cone shaped). Hydraulic bin closure, (2) trolley for bin removal Unit with air filter, manufactured by HSE, Type 5.5KW-SCF, serial #2620 Motor: 3 phase (3) control panels, (1) built-on unit Top mounted fan driven by 4.5 KW, 3/50/440 volt, 2915 rpm non-flameproof motor.
Pressure: 3 bar (43.5 psi). Temperature: 70 °C (158 °F). Bowl Diameter: 393.7 mm (15.5 in). Bowl Height: 279.4 mm (11 in). Orientation: Vertical. Product Density: 0.04 m3 (1.41 ft3). Operational Mode: Batch.
