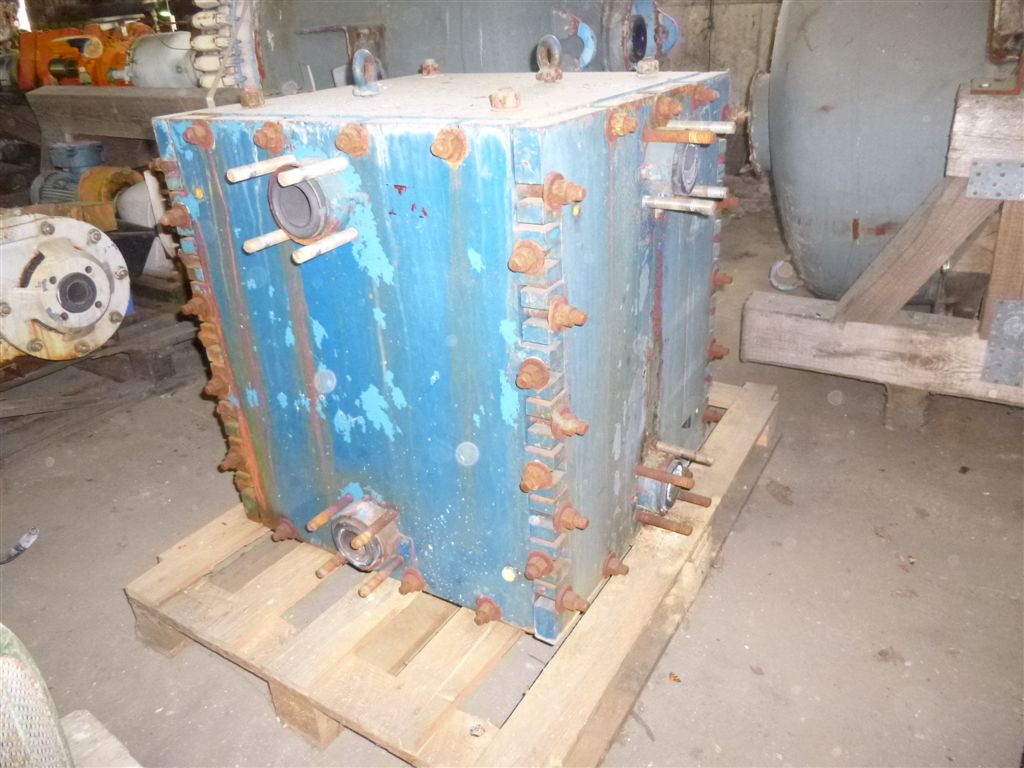

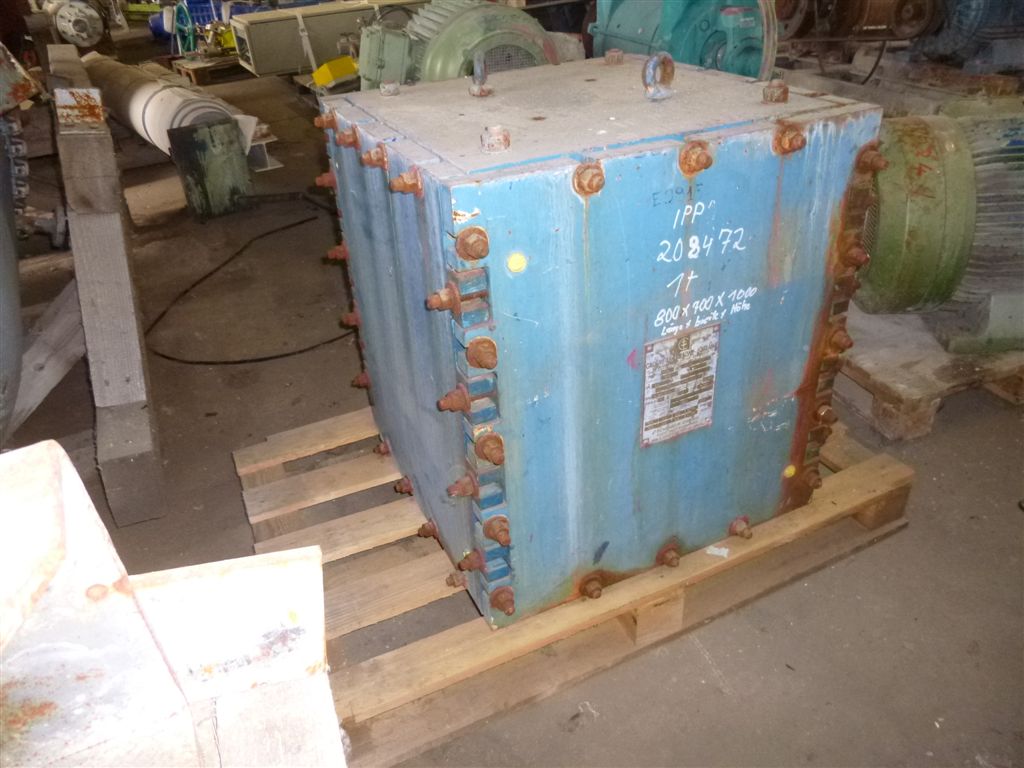

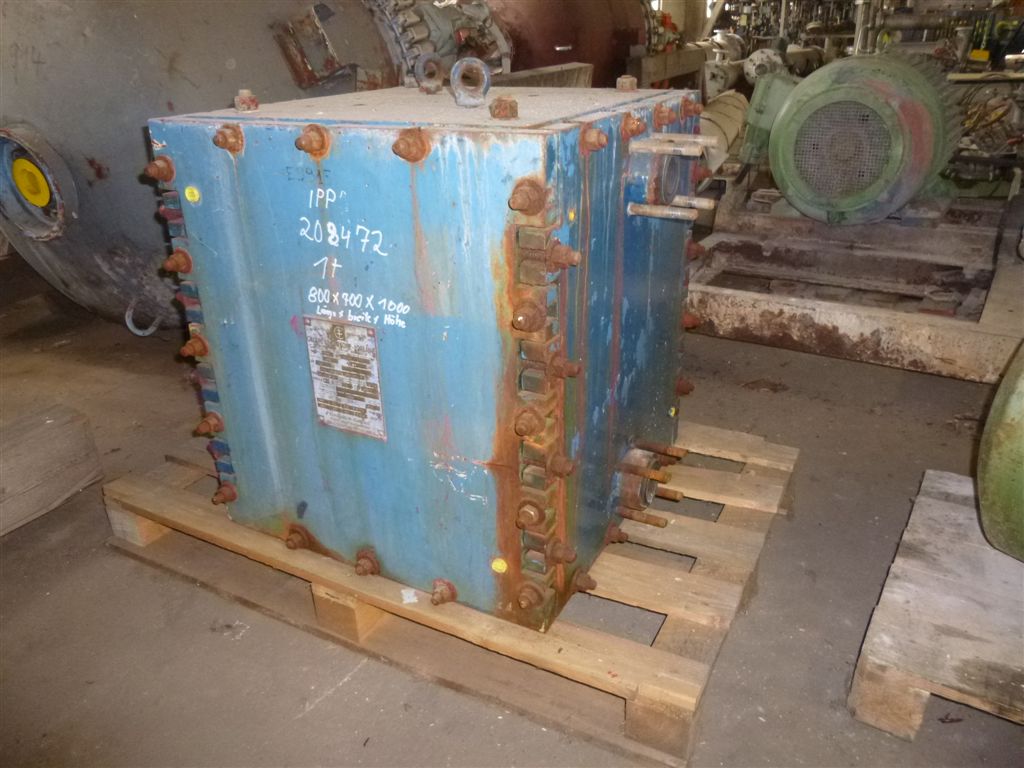

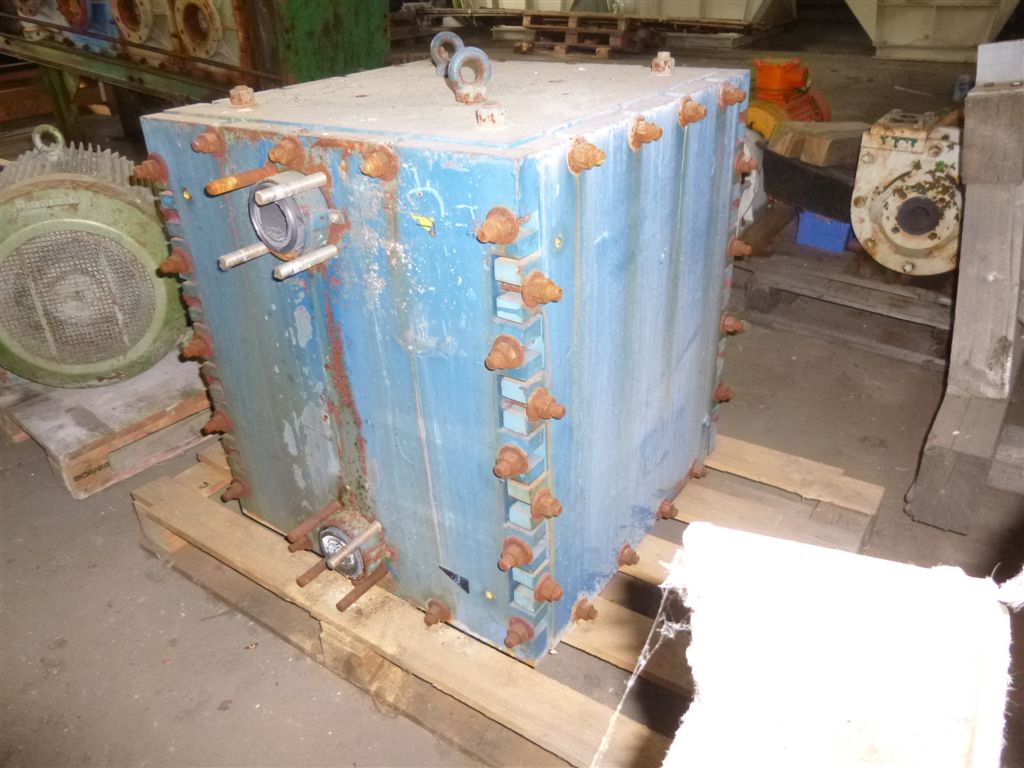

Graphite Block Heat Exchanger - IPP# 208472

Type: Heat Exchanger

Subtype: Block

Manufacturer: Le-Carbone Lorraine

Model: NC-210G

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.6 m² (17.2 ft²)

Orientation: Vertical

cyclindrical polybloc heat exchanger, Passes (process side): 5 Passes (service side): 6 Blocks: 4

Shell Pressure: 6 bar (87 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Process Pressure: 6 bar (87 psi). Process Temperature: 100 °C (212 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Le-Carbone Lorraine

Model: NC 3166

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Vertical

cyclindrical graphite type: BS Liquid capacity 151.6 liter 12 blocks, passes passes service side 3, process 1

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Length: 6,150 mm (242.1 in). Nozzle Schedule: openings: (1)=50mm inside diameter, (2)=80mm inside diameter, (2)=60mm inside diameter.. Process Pressure: 9 bar (130.5 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Rob Jenkins Systems

Model: GEB06/2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Shell Pressure: 5.2 bar (75 psi)

(1) block, single pass.

Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Vicarb

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Vertical

cylindrical design pressure process side 2.1 bar @ 15 to 120 deg C service 5.3 bar @ 155 deg C 7-pass on process side, 6-pass service side (2- pass per block, 3-blocks)

Shell Pressure: 4.6 bar (66.7 psi). Shell Temperature: 155 °C (311 °F). Shell Material: Carbon Steel. Shell Diameter: 470 mm (18.5 in). Length: 2,500 mm (98.3 in). Nozzle Schedule: openings: process 2-50mm, 2-25mm, service 2-100mm. Process Pressure: 2.1 bar (30.5 psi). Process Temperature: 120 °C (248 °F).
