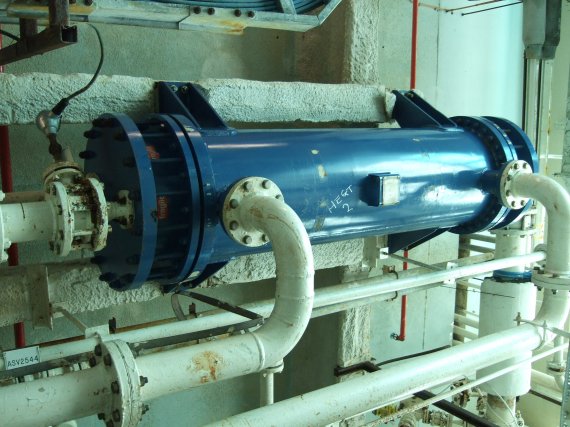

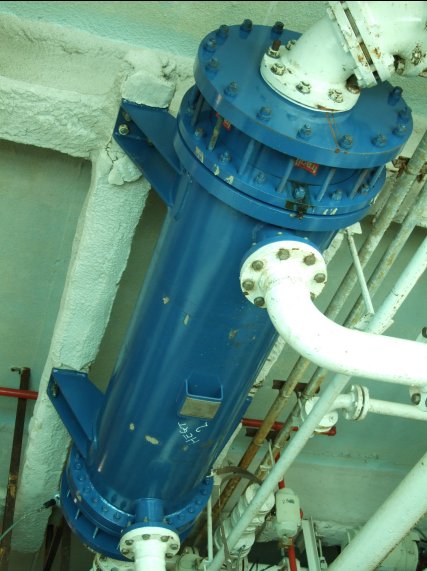

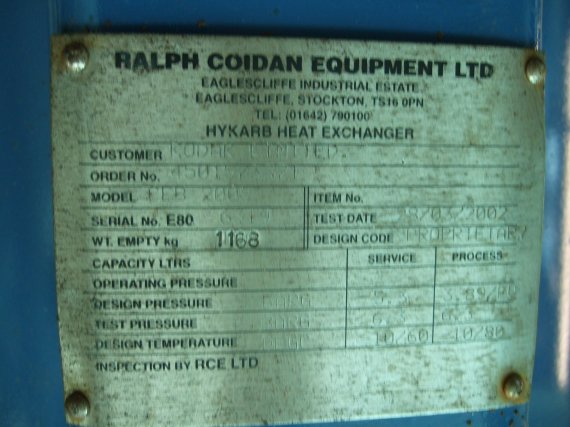

cylindrical Hykarb design pressure service side 5.3 barg @-1 0/+60 deg C, process side 3.89 barg + full vac @ -10/+80 deg C
Type: Heat Exchanger
Subtype: Block
Manufacturer: Ralph Coidan LTD.
Model: BD20
Condition: Used
Material: Graphite
Heat Transfer Surface Area: 1.86 m² (20 ft²)
Shell Pressure: 5.2 bar (75.4 psi)
Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 200 °C (392 °F).
Type: Heat Exchanger
Subtype: Block
Manufacturer: Ralph Coidan LTD.
Model: CYH-H55
Condition: Used
Material: Graphite
Heat Transfer Surface Area: 10 m² (107.6 ft²)
Orientation: Horizontal
Hykarb carbon cubic block cross flow heat Exchanger design pressure process side 7.8 barg @ 0/160 degrees C service side 15 barg @ 0/160 degrees C operating pressure process side 5.2 barg + full vacuum @ -0.185 degrees C service side 10 barg @ 2.417 degrees C 24 pass on process side, 10 pass on service side, unit made from (4) carbon HP2/20 block elements, 536mm block length
Shell Pressure: 10 bar (145 psi). Shell Temperature: 160 °C (320 °F). Nozzle Schedule: openings: process side 2- 50mm, service side 2-50mm. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 160 °C (320 °F).
Type: Heat Exchanger
Subtype: Block
Manufacturer: Ralph Coidan LTD.
Model: CBD-400/20
Condition: Used
Material: Graphite
Heat Transfer Surface Area: 5.2 m² (56 ft²)
Orientation: Horizontal
Shell Pressure: 3.5 bar (50.8 psi). Shell Temperature: 165 °C (329 °F). Head Material: Graphite. Process Pressure: 0.5 bar (7.3 psi). Pack Material: Graphite. Process Temperature: 165 °C (329 °F). Process Side Passes: 1.
Type: Heat Exchanger
Subtype: Block
Manufacturer: Ralph Coidan LTD.
Condition: Used
Material: Graphite
Nozzle Schedule: openings 2-150mm, 2-100mm
