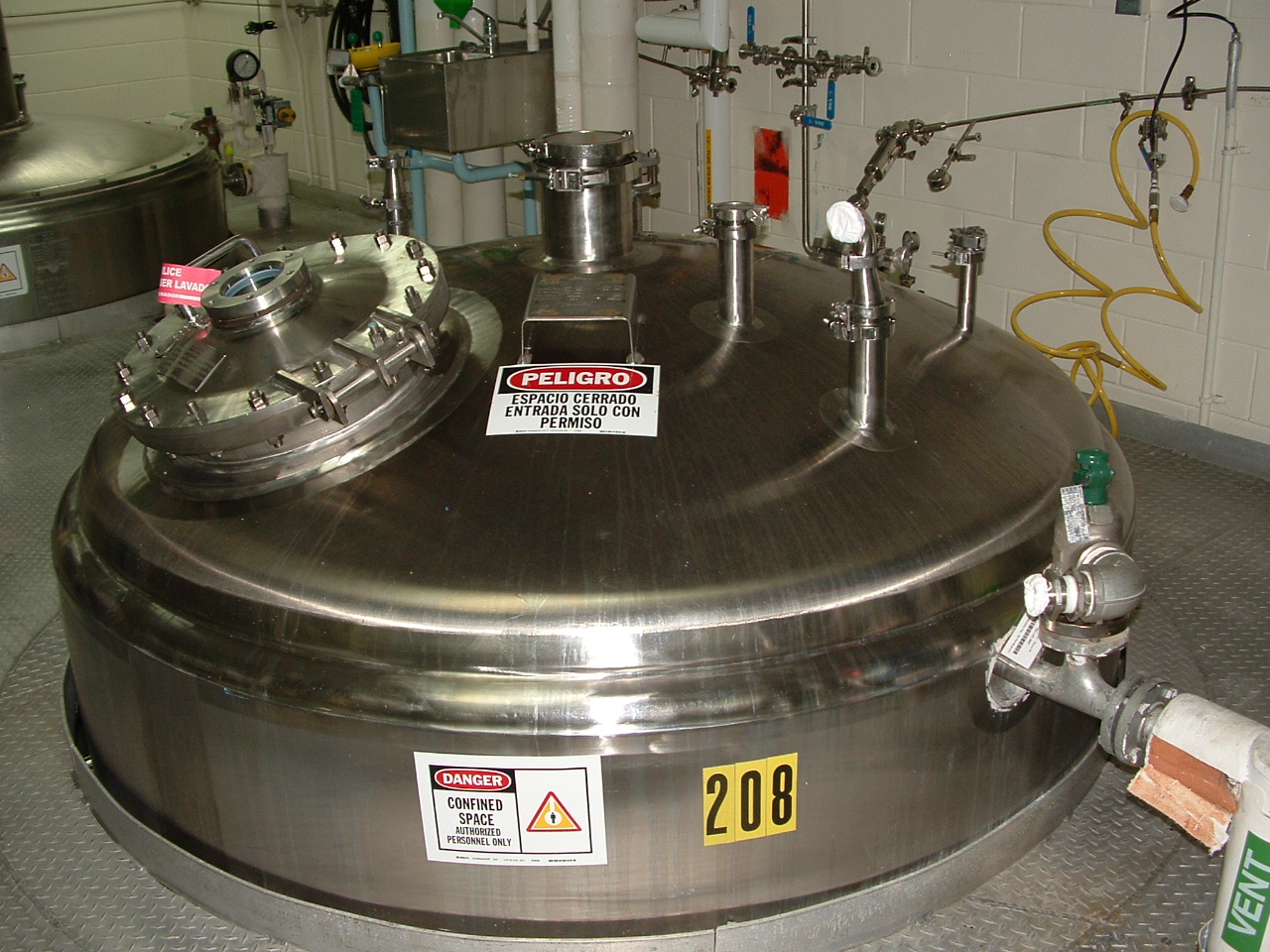

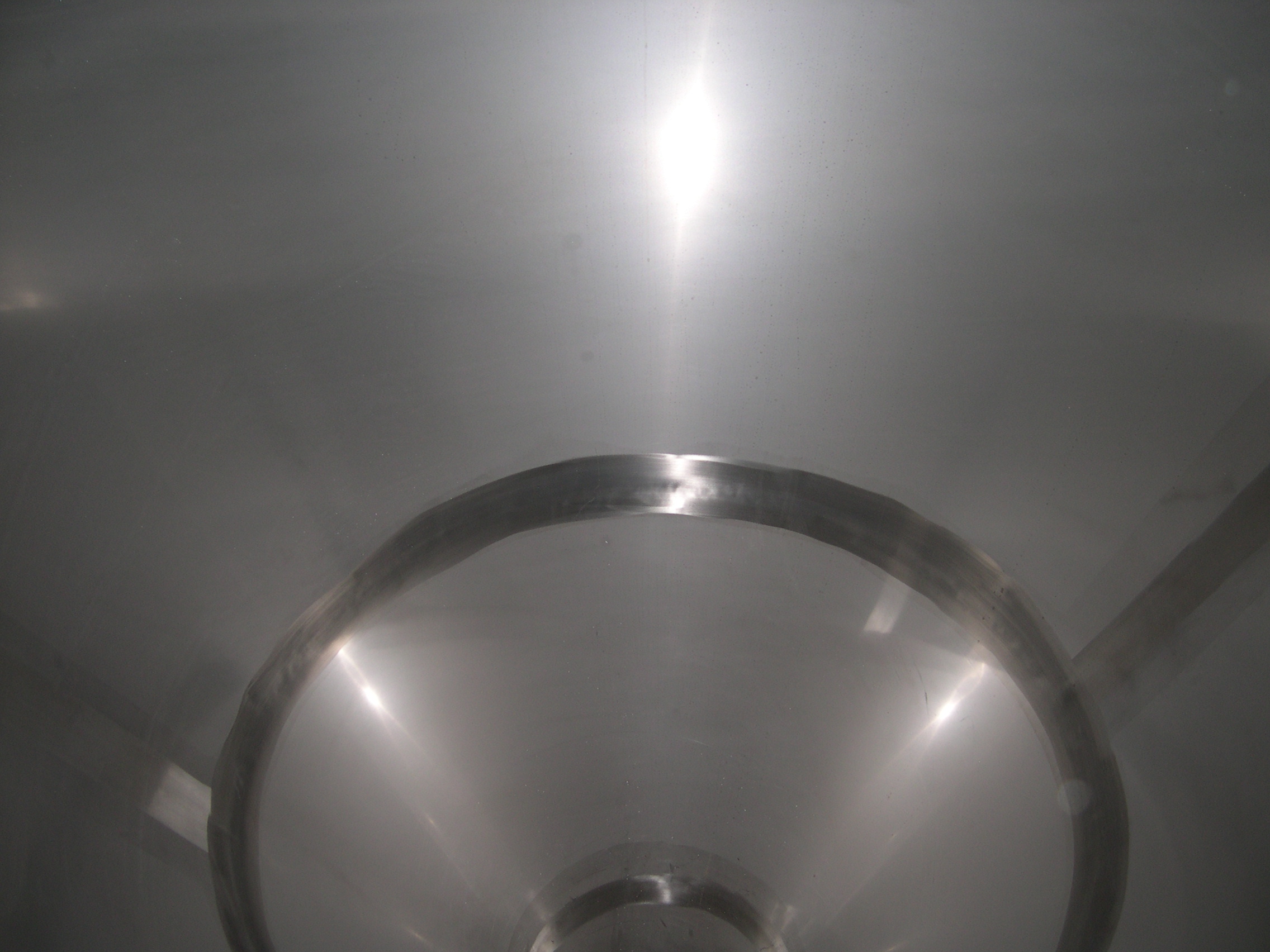

Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 210499

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 227 L (60 gallons)

Agitation: Yes

motor 3/50/400 volt

Diameter: 600 mm (23.6 in). Straight Side Length: 710 mm (28 in). Support Type: Lugs.

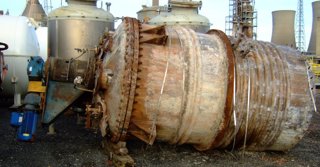

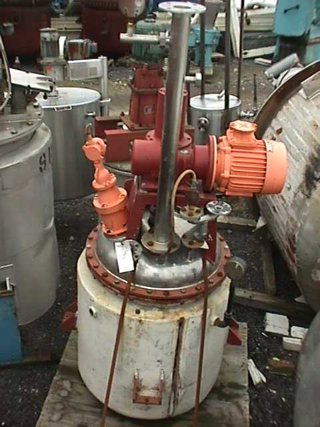

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Johnson's Ltd

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 908 L (239.9 gallons)

Internal Pressure: 2.8 bar (40 psi)

Flange mounted Arton PVW mixer Mechanical seal on shaft motor 3/50/400/440 volt

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 4.3 bar (63 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Diameter: 1,116 mm (43.9 in). Straight Side Length: 837 mm (33 in). Support Type: Lugs.

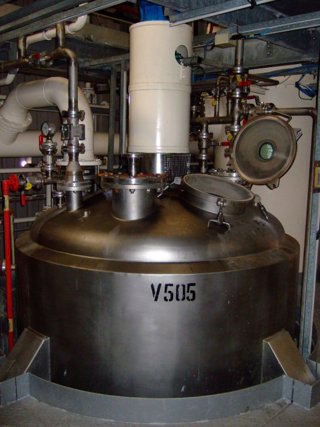

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 10,526 L (2,781 gallons)

Internal Pressure: 3.4 bar (50 psi)

Working capacity: 6000 liters (57% full) (2) 6 blade pitched paddles on shaft, Curtis mixer agitator drive, serial # LCM723, double mechanical seal with lubricator, (4) 316 stainless steel internal coils giving total heating surface area of 18.1 square meter, inner coil 50mm diameter x 7-vertical turns, heating surface 3.91 square meter, centre coil 50mm diameter x 7-vertical turns, heating/cooling surface 5.24 square meter, outer coil 50mm diameter x 7-vertical turns, heating surface 6.22 square meter, base coil 50mm diameter x 3-horizontal turns, heating surface 2.73 square meter. (3) 316 stainless steel internal baffles on sidewall, (1) 25mm diameter sparge pipe fitted on top nozzle. bottom outlet with hydraulic discharge valve, driven by compressed air, with air reciever, Design code BS1515 Pt.2.

Internal Temperature: 300 °C (572 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Stainless Steel 316. Agitation: Yes. Diameter: 1,943 mm (76.5 in). Straight Side Length: 2,980 mm (117.3 in).

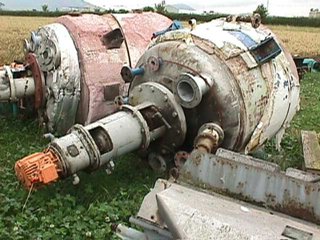

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 5,900 L (1,559 gallons)

Internal Pressure: 2 bar (29 psi)

internal pressure -1/2 bar @ 50/165 degrees C jacket -1/6 bar (150 liter)

• Gearbox: Lenze gearbox
• Insulation: Straight side and bottom dish are insulated and clad with stainless steel. (2) sets of 2-bladde paddles on shaft dry running mechanical seal straight side and bottom dish are insulated and cladd with stainless steel

Internal Full Vacuum: Yes. Internal Temperature: 165 °C (329 °F). Jacket Pressure: 6 bar (87 psi). Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 1,800 mm (70.9 in). Support Type: Lugs.
