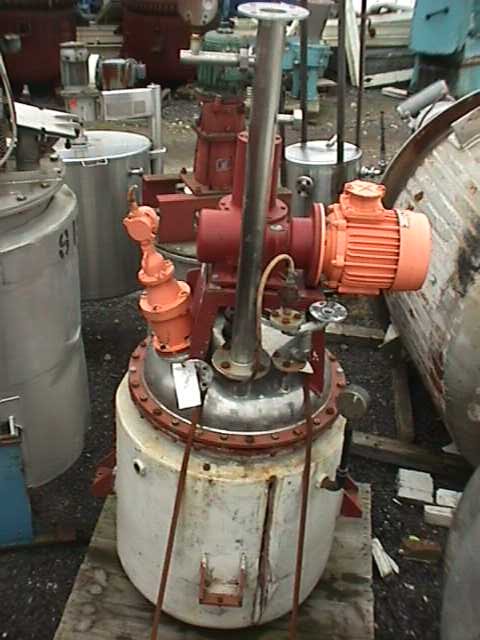

IPP# 704487 - Batch-Type Agitated Reactor 227 L (60 gallons) Stainless Steel 316 For Sale

  • IPP# 704487 - Batch-Type Agitated Reactor 227 L (60 gallons) Stainless Steel 316 For Sale IPP# 704487 - Batch-Type Agitated Reactor 227 L (60 gallons) Stainless Steel 316 For Sale
  • IPP# 704487 - Batch-Type Agitated Reactor 227 L (60 gallons) Stainless Steel 316 For Sale
Overview
Reactor
Batch-Type Agitated
Used
Stainless Steel 316
227 L (60 gallons)
Agitation System
Yes
Packing
direct coupled, flameproof motor via 32:1 ratio Croft gearbox, bridge mounted drive. Anchor type agitator.
1.49 kW (2 HP)
Dimensions
600 mm (23.6 in)
710 mm (28 in)
Heads
Dish
Dish
Inlets & Outlets
Openings: top 1-150mm with cover, 2-100mm sight glasses (1 with light), 1-65mm, 3-25mm; side 2-31mm, 1-25mm, 1-12mm; bottom 1-37mm, 1-31mm
Other Specifications
Lugs

motor 3/50/400 volt
