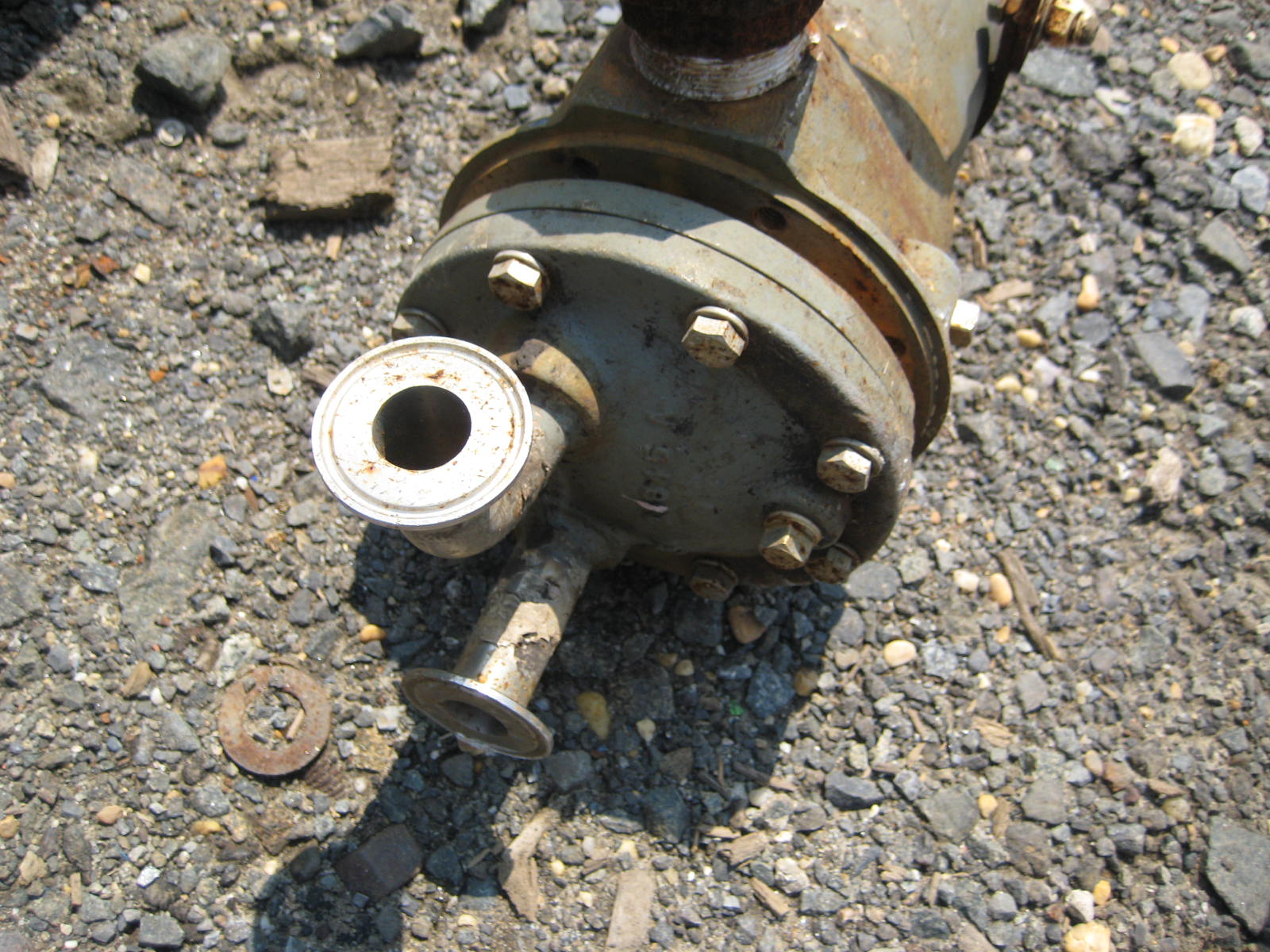

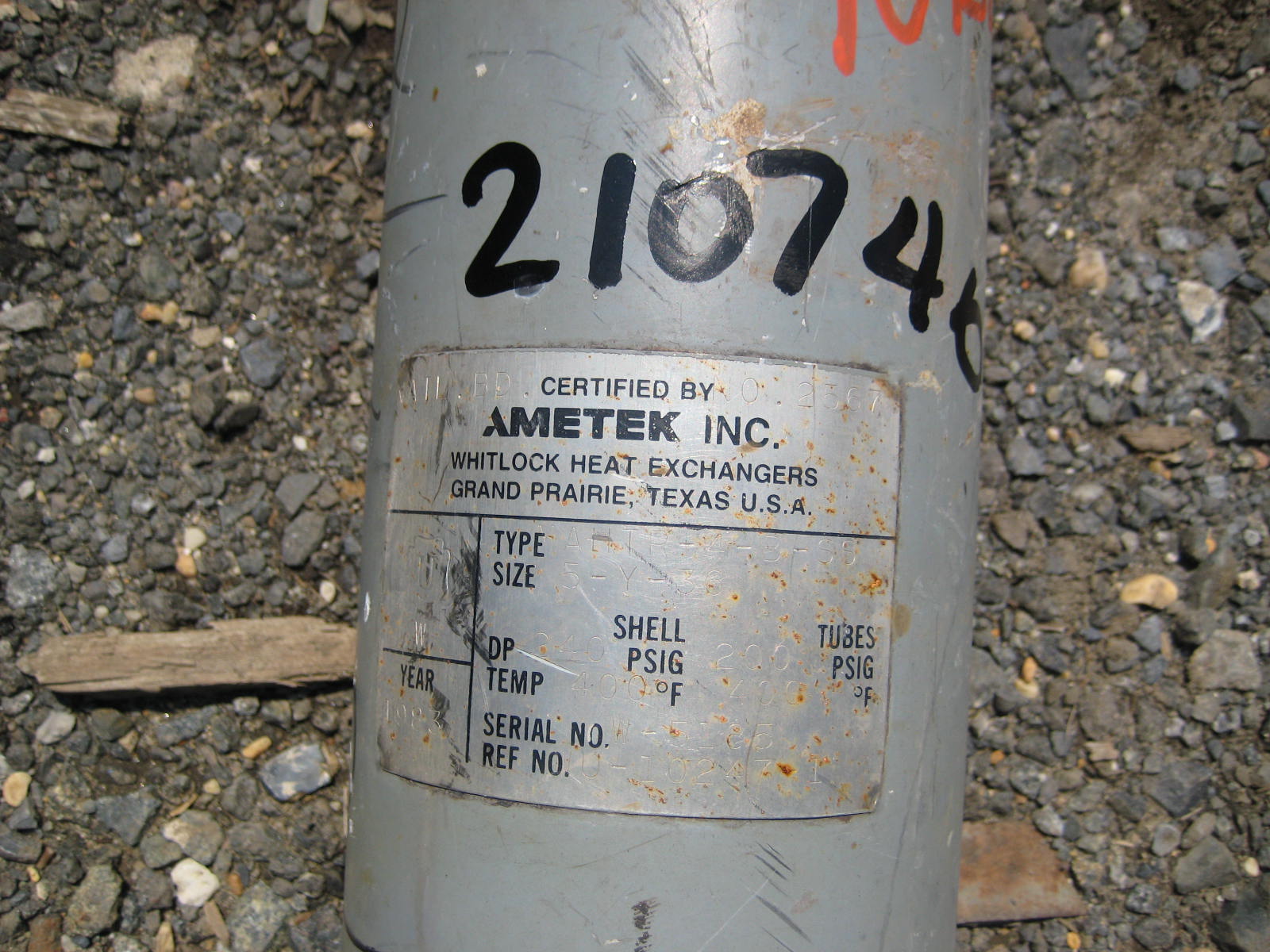

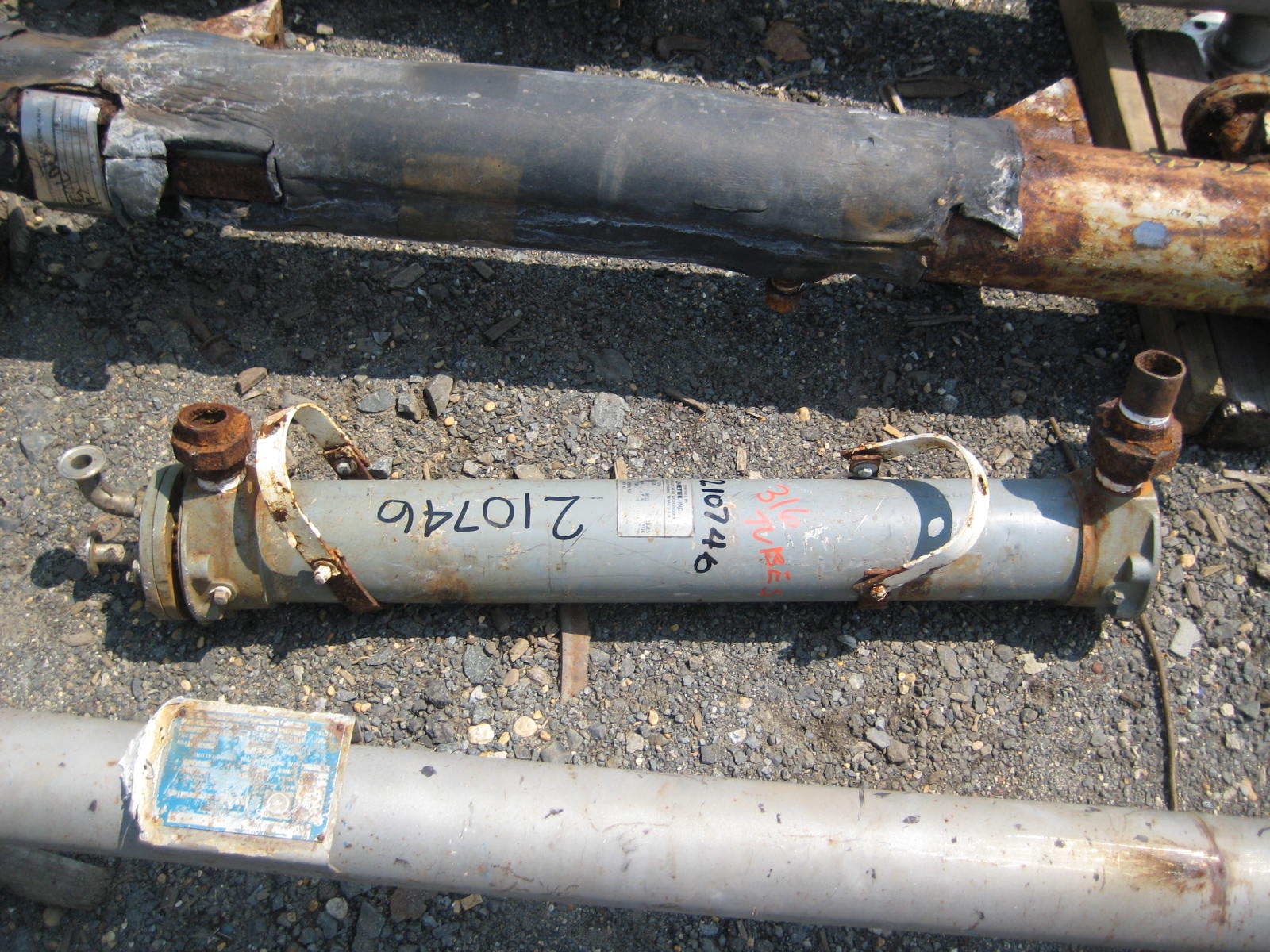

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Ametek
Model: BEM
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 3.3 m² (35 ft²)
Orientation: Horizontal
TEMA Type BEM
Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 107.2 °C (225 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -3.9 °C (25 °F). Tube Material: Stainless Steel 316. Head Material: Stainless Steel 316. Length: 1,850 mm (72 in). Tube Type: Straight Tube. Tube Number: 36.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Bramah Process Plant Ltd
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 25.8 m² (277.7 ft²)
Orientation: Horizontal
Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads
Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,050 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,050 mm (238.6 in).
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Stainless Steel Fabrications LTD
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 10 m² (107.6 ft²)
Orientation: Horizontal
Expansion bellow: Yes (2) c/steel channel heads
Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 140 °C (284 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 2,950 mm (116.1 in). Tube-side Passes: 4. Tube Number: 54. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: Head openings: - Tubeside: 2-50mm, 4-6mm - Shell: 1-150mm, 1-75mm, 1-50mm, 1-6mm.
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Stainless Steel Fabrications LTD
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 24 m² (258.3 ft²)
Orientation: Horizontal
Additional features: expansion bellow, (2) carbon steel channel heads,
Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 75 °C (167 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 560 mm (22 in). Head Material: Carbon Steel. Length: 3,050 mm (120.1 in). Tube-side Passes: 4. Tube Number: 122. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm.
