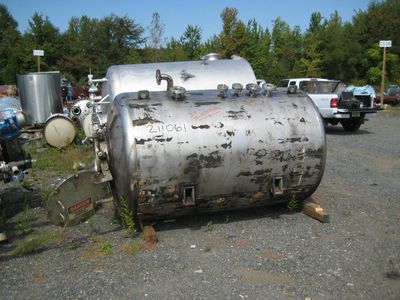

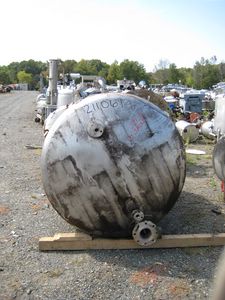

Stainless Steel 316 Tank - IPP# 211061

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 757 L (200 gallons)

Orientation: Vertical

Jacket has two zones, bottom and side, all lines in and out are 2" threaded. Jackets has 1.5" drains. Center bottom outlet is 1" weld neck flange

Diameter: 914 mm (36 in). Straight-side Length: 965 mm (38 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 176.7 °C (350 °F). Jacket Type: Dimple. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 176.7 °C (350 °F). Vacuum: Yes. Support: Lugs.

Type: Tank

Manufacturer: Northland Stainless

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 1,500 L (400 gallons)

Orientation: Horizontal

• Vessel has an internal overflow weir at one third of the tank.
• With stainless steel temperature insulating jacket.

Diameter: 1,200 mm (48 in). Straight-side Length: 1,200 mm (48 in). Internal Pressure: 5.2 bar (75 psi). Internal Temperature: 204.4 °C (400 °F). Vacuum: Yes.

Type: Tank

Manufacturer: Process Systems ltd

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 570 L (150.6 gallons)

Orientation: Horizontal

• pressure tank
• working pressure 3.4 barg + FV

Diameter: 600 mm (23.6 in). Straight-side Length: 1,850 mm (72.2 in). Internal Pressure: 5.2 bar (75.4 psi). Internal Temperature: 150 °C (302 °F). Vacuum: Yes.

Type: Tank

Manufacturer: JENS OLSEN

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 1,800 L (471.5 gallons)

Orientation: Vertical

Diameter: 990 mm (39 in). Straight-side Length: 2,000 mm (78.7 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 134 °C (273.2 °F). Vacuum: Yes. Support: Lugs.
