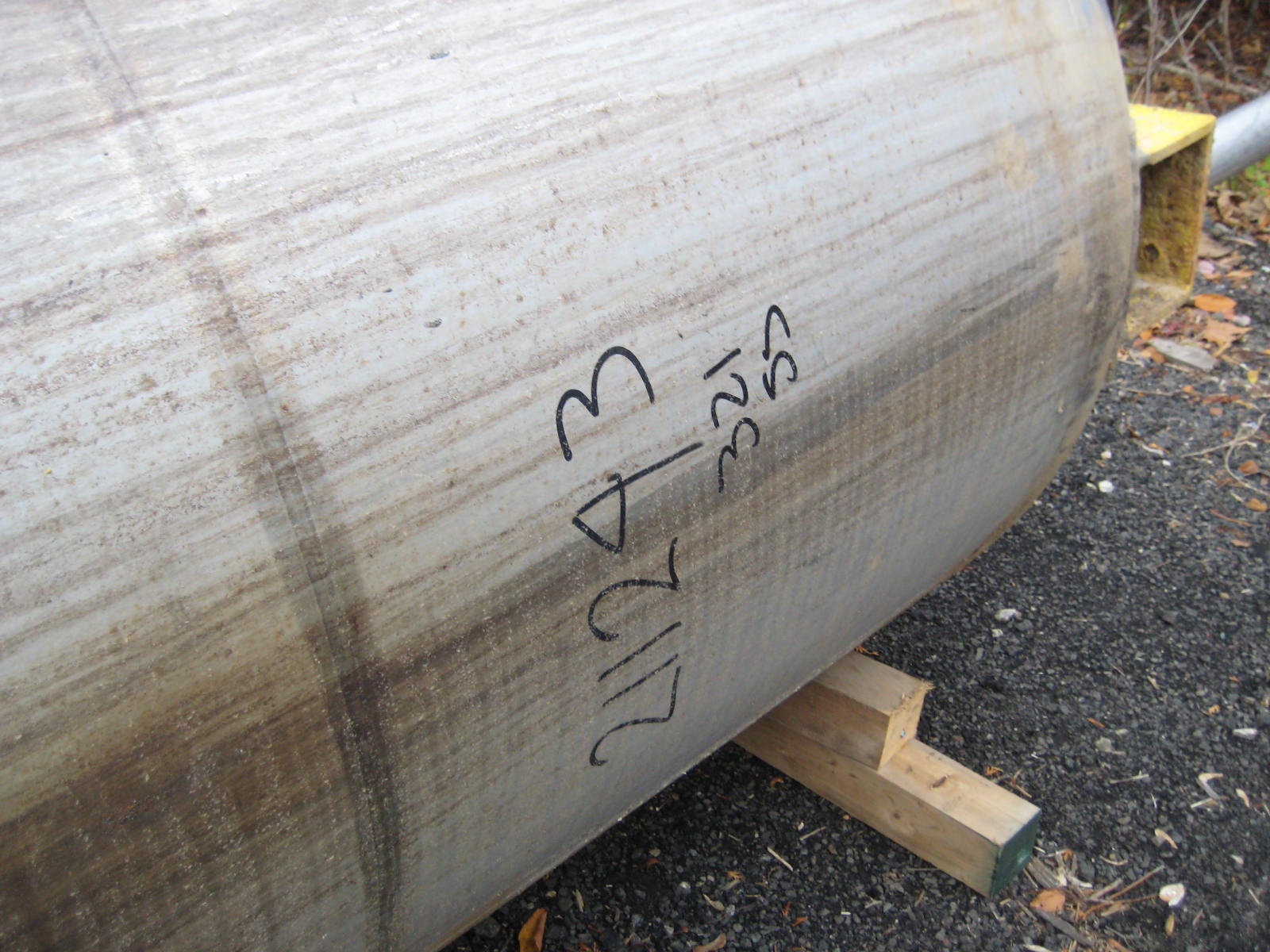

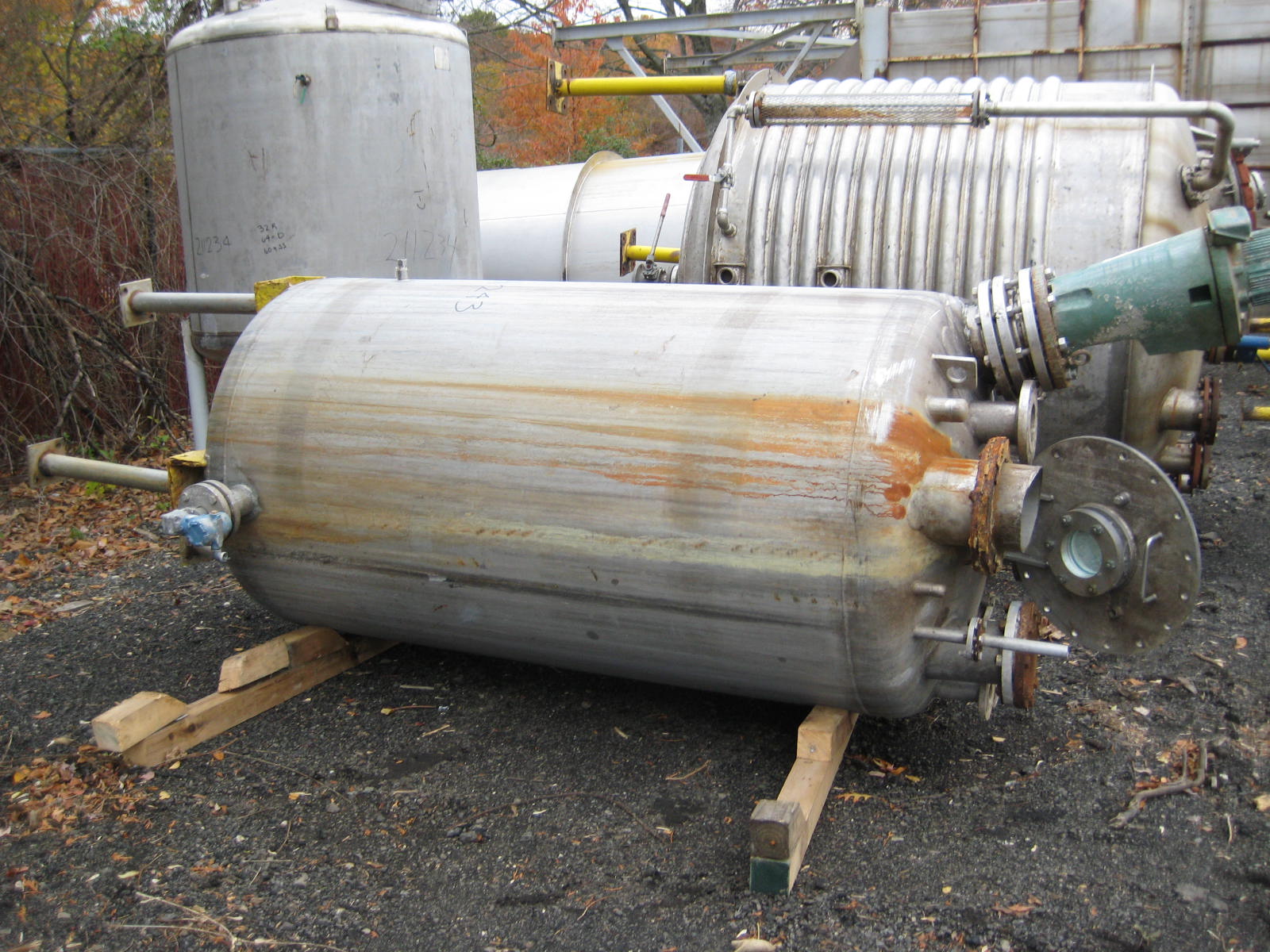

Stainless Steel 304 Tank - IPP# 211243

Type: Tank

Manufacturer: Combustion Engineering Inc.

Condition: Unused

Material: Stainless Steel 304

Clad: Yes

Capacity (Design): 63,600 L (16,800 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with internal 304 stainless steel cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 10,050 mm (396 in). Internal Pressure: 48.3 bar (700 psi). Internal Temperature: 93.3 °C (200 °F). Support: Skirt.

Type: Tank

Manufacturer: Webber

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 189.3 L (50 gallons)

Orientation: Vertical

Diameter: 508 mm (20 in). Straight-side Length: 1,050 mm (42 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 20 °C (68 °F). Support: Legs.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 115 L (30.4 gallons)

Orientation: Vertical

• Portable vertical tank
• Discharge mechanism: Motorized screw conveyor
• Bolted flat top, coned flat bottom

Diameter: 860 mm (33.9 in). Straight-side Length: 420 mm (16.5 in). Does it have Agitation ?: Yes.

Type: Tank

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 12,100 L (3,200 gallons)

Orientation: Vertical

Diameter: 2,300 mm (90.6 in). Straight-side Length: 3,000 mm (118.1 in). Support: Base Mounted.
