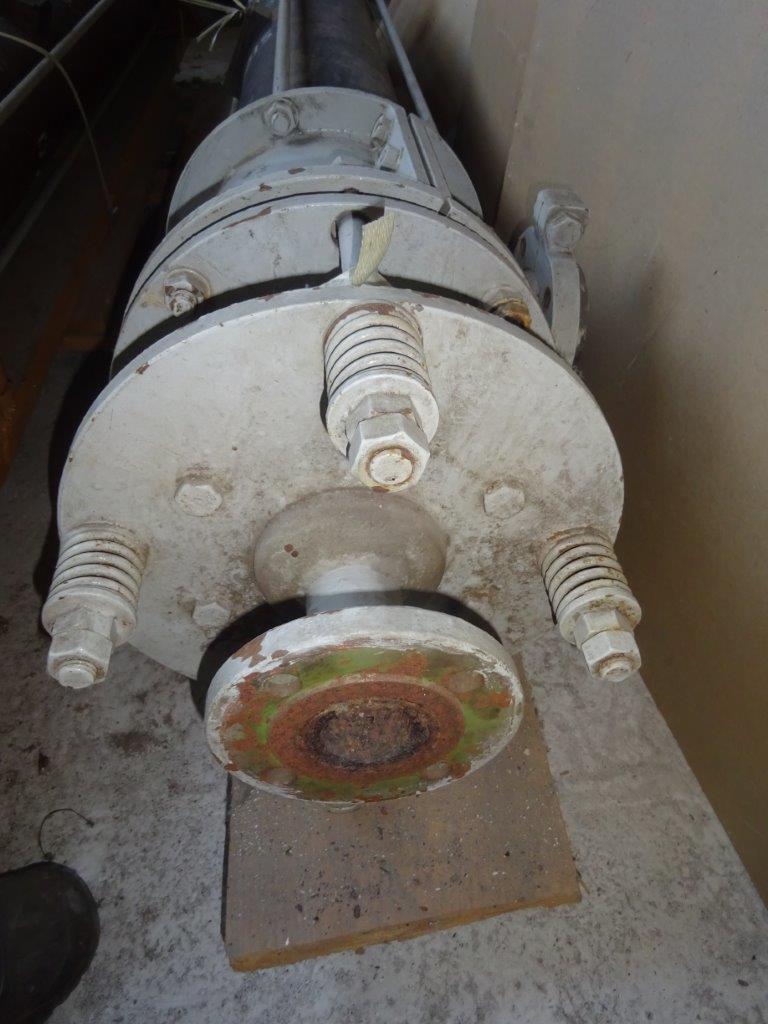

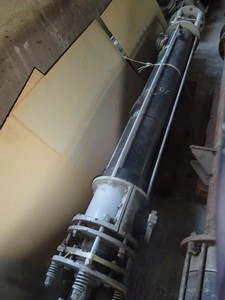

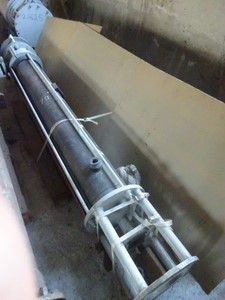

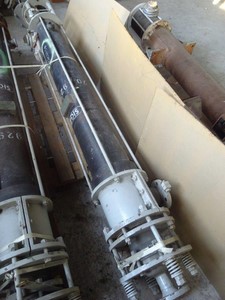

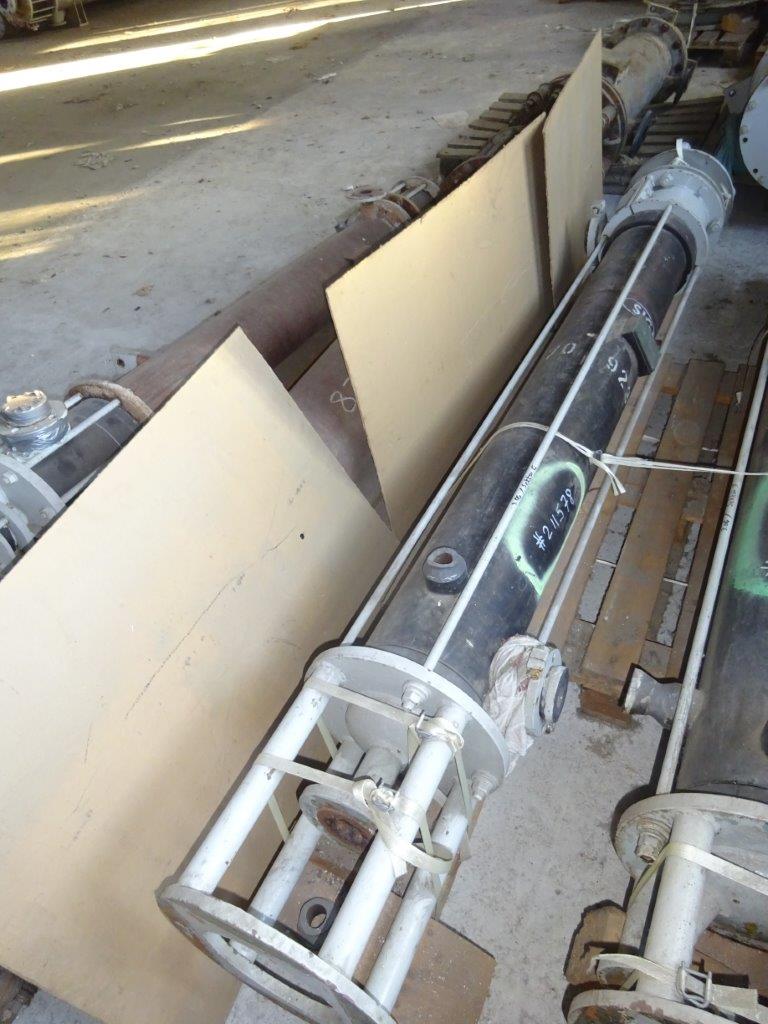

Block Heat Exchanger 1.2 m² (12.9 ft²) Graphite For Sale - IPP# 211578

Type: Heat Exchanger

Subtype: Block

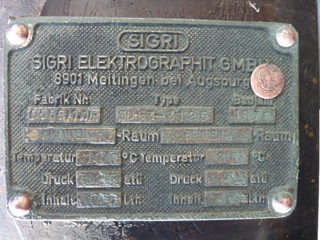

Manufacturer: Sigri

Model: SD 63-3125

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.6 m² (81.8 ft²)

Orientation: Vertical

Cylindrical block Heat Exchanger

Shell Pressure: 2 bar (29 psi). Shell Temperature: 100 °C (212 °F). Nozzle Schedule: openings: heat: 2-50mm, shell: 1-50mm, 1-30mm, 1-125mm. Process Pressure: 2 bar (29 psi). Process Temperature: 100 °C (212 °F).

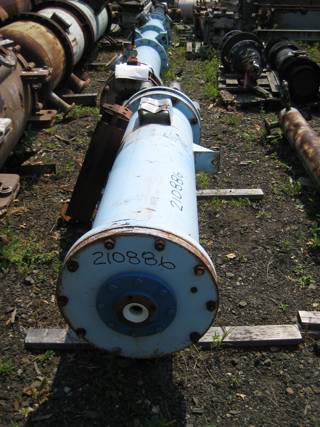

Type: Heat Exchanger

Subtype: Block

Manufacturer: Sigri

Model: DK72 308 6.1.1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 7.4 m² (80 ft²)

Shell Pressure: 6.9 bar (100 psi)

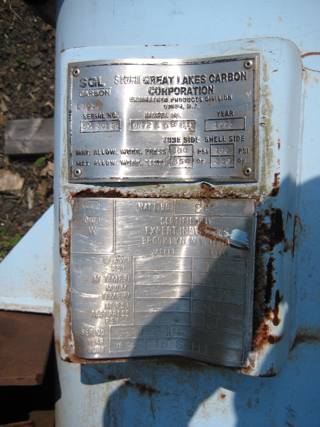

Great Lakes Carbon Corp. Inlet is 8" reduced to 6", outlet is 2" Diameter is 18" x 68" long with an overall length of 90"

Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Length: 1,750 mm (68 in). Nozzle Schedule: Inlet is 8" reduced to 6", outlet is 2". Shell side nozzles are 6".. Process Pressure: 6.9 bar (100 psi). Process Temperature: 176.7 °C (350 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Rob Jenkins Systems

Model: GEB06/2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Shell Pressure: 5.2 bar (75 psi)

(1) block, single pass.

Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).

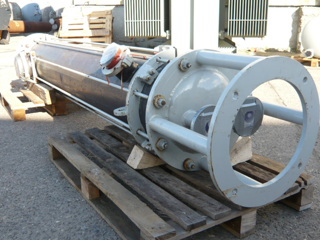

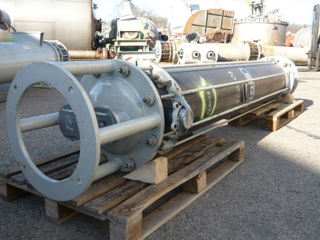

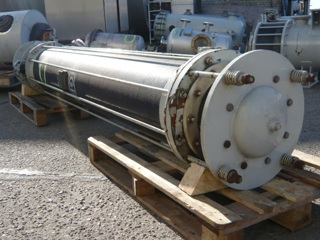

Type: Heat Exchanger

Subtype: Block

Manufacturer: Vicarb

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Orientation: Vertical

cylindrical design pressure process side 2.1 bar @ 15 to 120 deg C service 5.3 bar @ 155 deg C 7-pass on process side, 6-pass service side (2- pass per block, 3-blocks)

Shell Pressure: 4.6 bar (66.7 psi). Shell Temperature: 155 °C (311 °F). Shell Material: Carbon Steel. Shell Diameter: 470 mm (18.5 in). Length: 2,500 mm (98.3 in). Nozzle Schedule: openings: process 2-50mm, 2-25mm, service 2-100mm. Process Pressure: 2.1 bar (30.5 psi). Process Temperature: 120 °C (248 °F).
