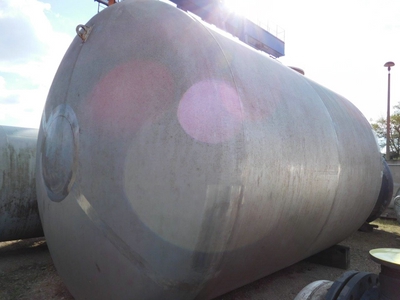

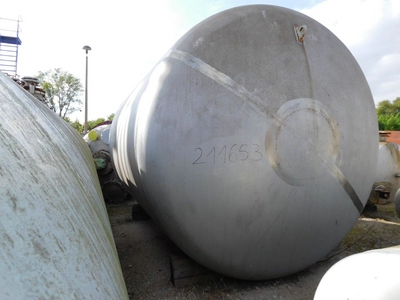

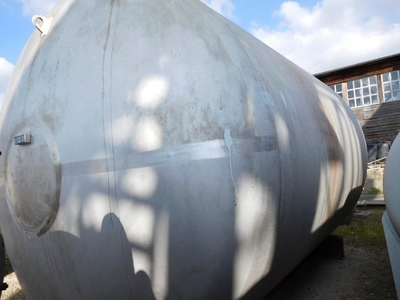

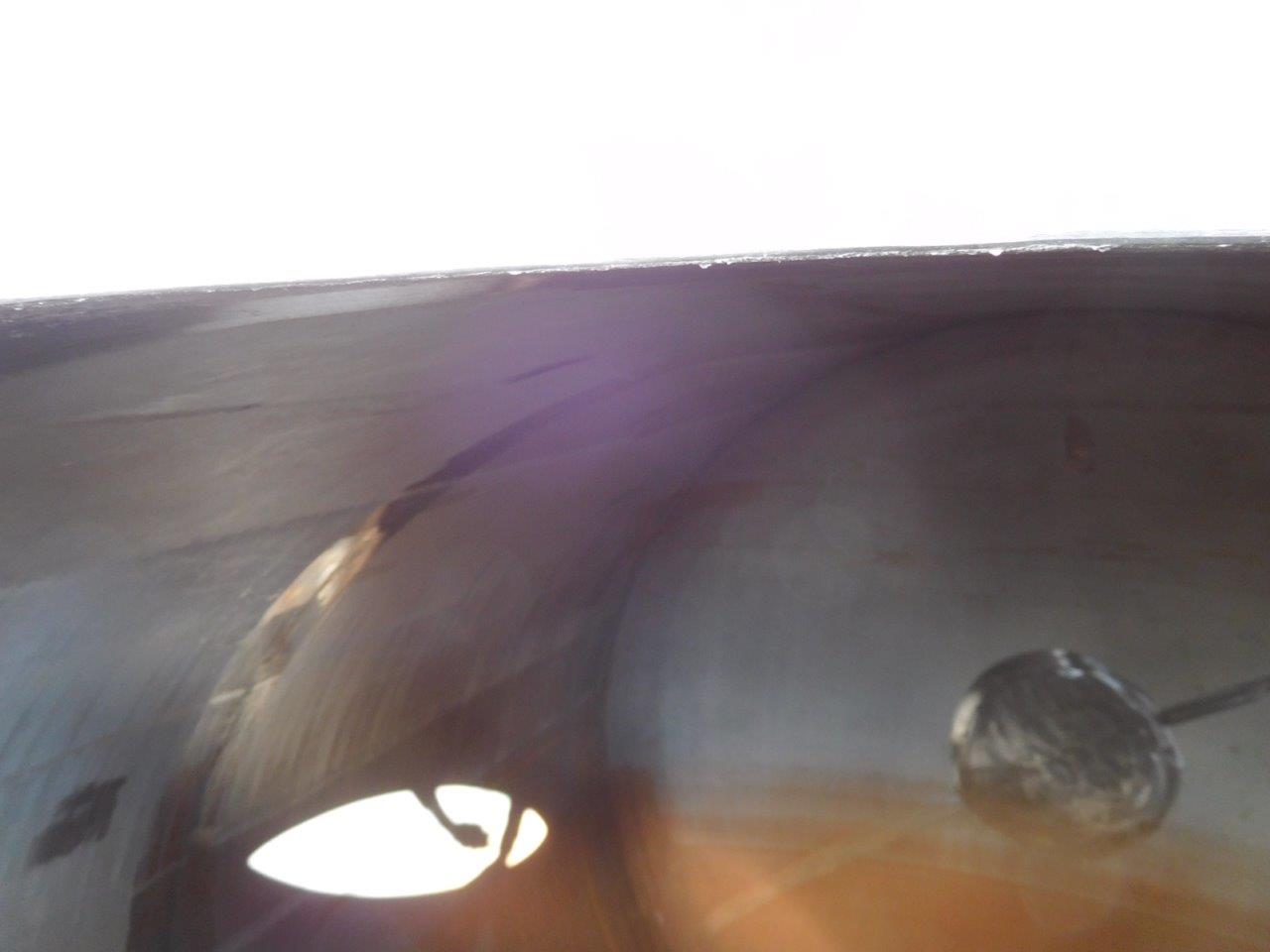

Stainless Steel 316 Koehler-Bosshardt Tank - IPP# 211653

Type: Tank

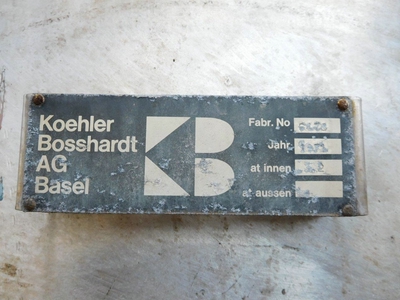

Manufacturer: Koehler-Bosshardt

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 40,000 L (10,550 gallons)

Orientation: Horizontal

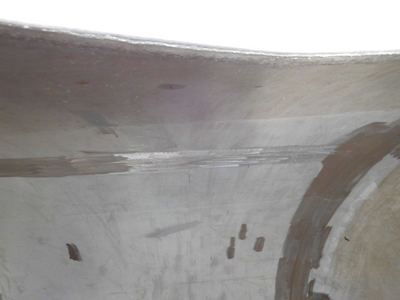

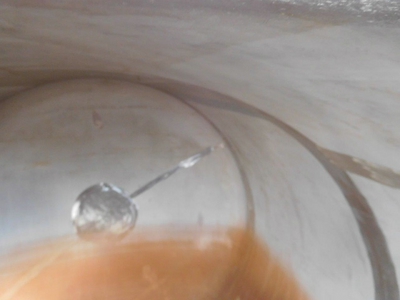

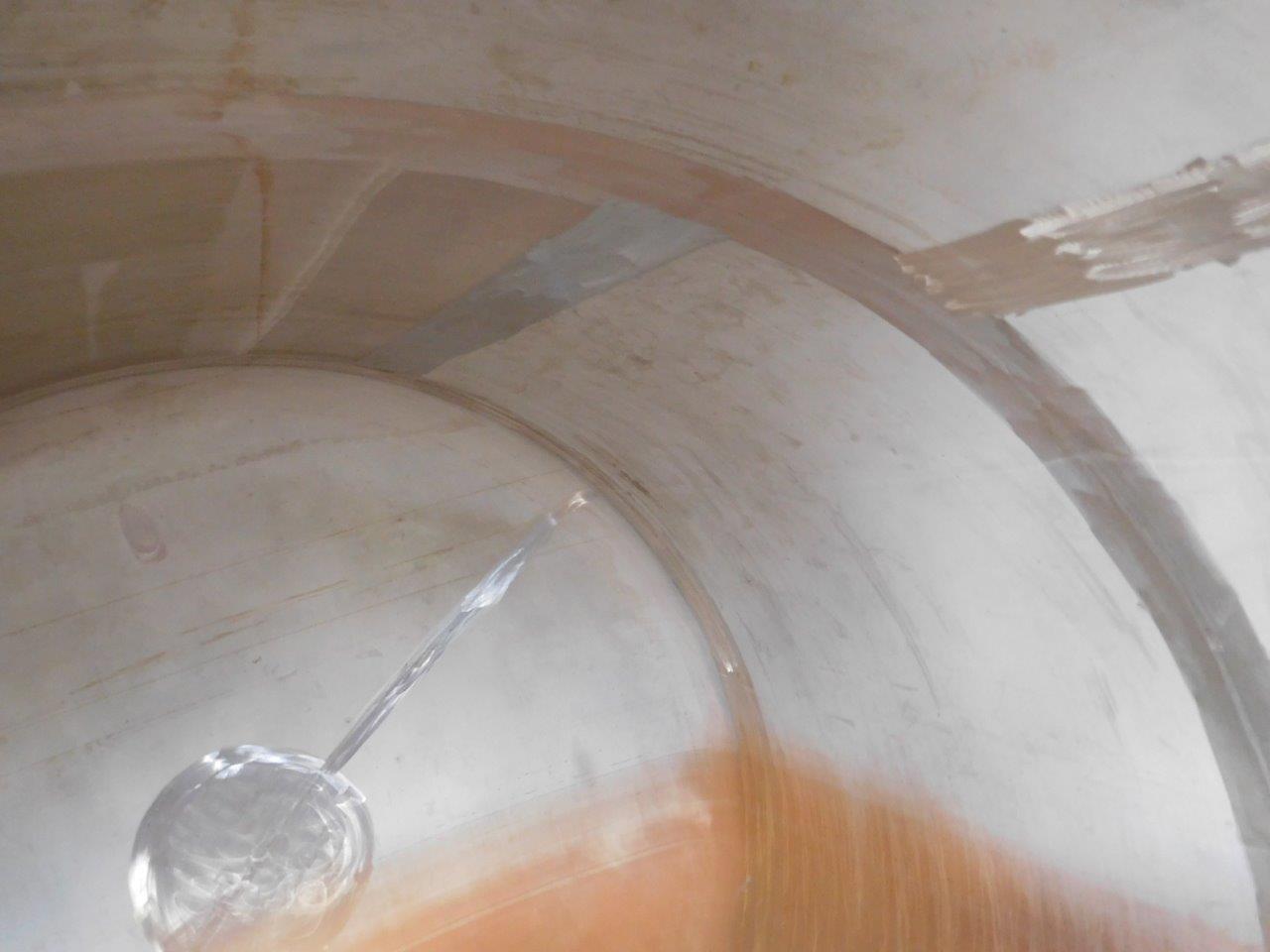

• Storage tank with partial heating jacket on bottom half of tank

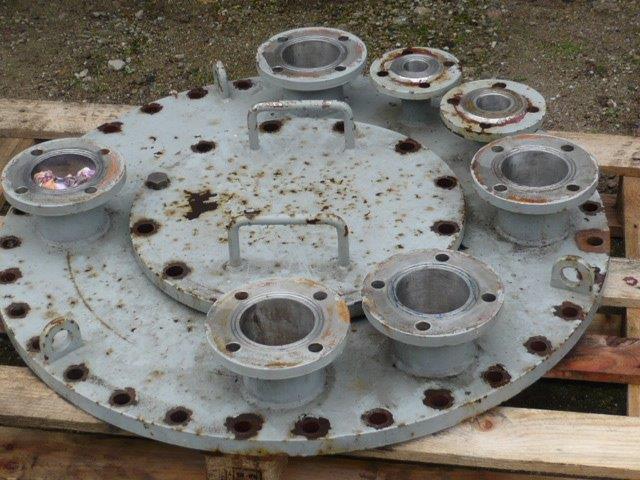

• Heads are 10mm thick
• Overall Length 5230 mm

Diameter: 3,400 mm (133.9 in). Straight-side Length: 3,800 mm (150.1 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 50 °C (122 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).
