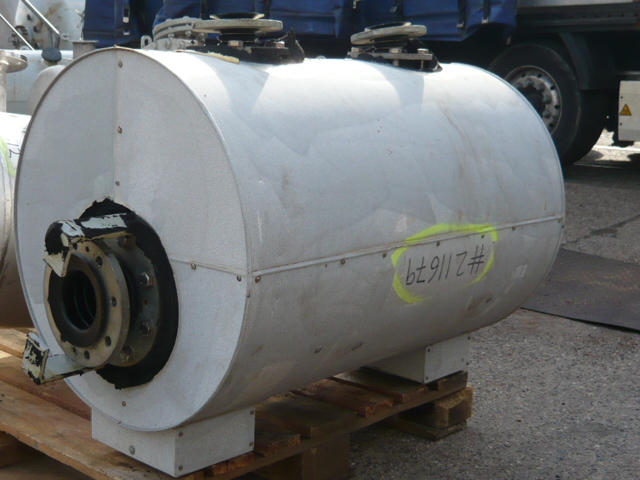

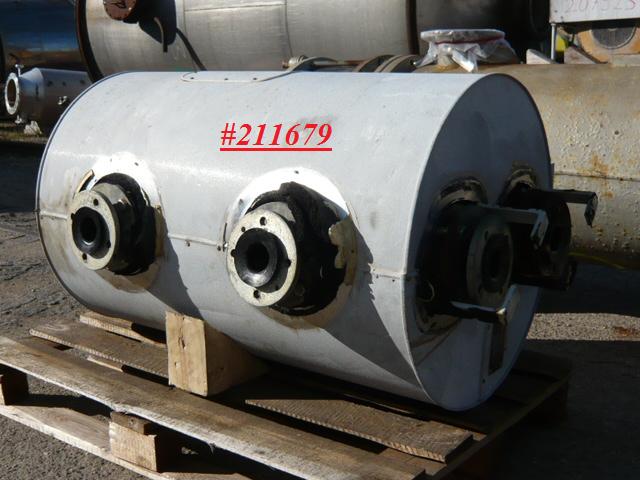

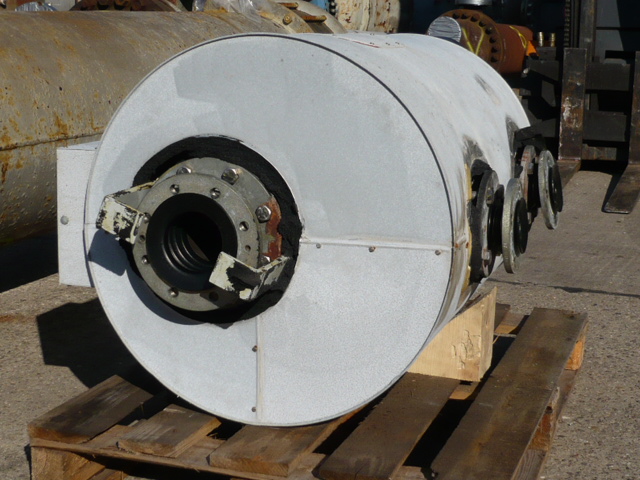

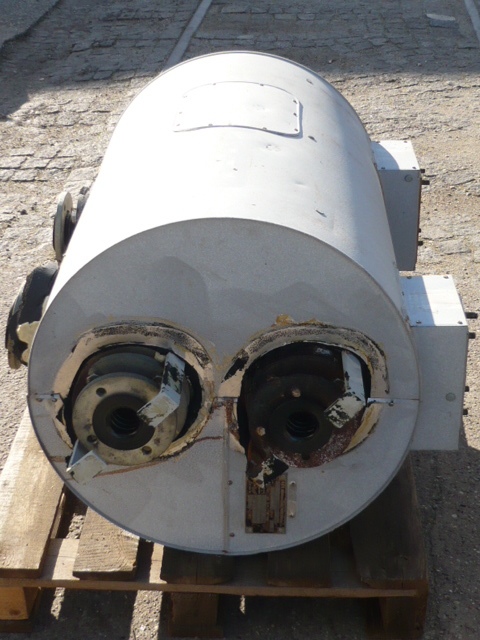

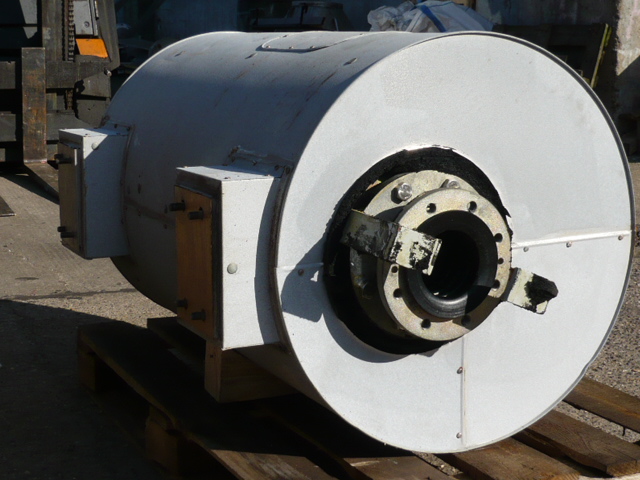

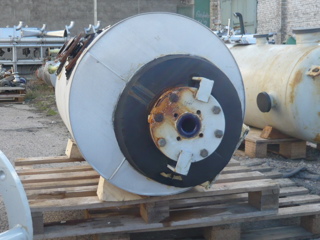

Graphite GAB Neuman GAB Neuman Block Heat Exchanger - IPP# 211679

Type: Heat Exchanger

Subtype: Block

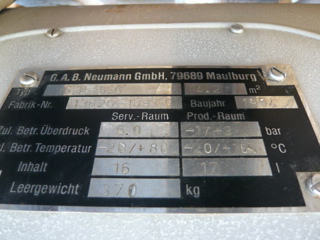

Manufacturer: GAB Neuman

Model: H-B-5.6

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 4.2 m² (45.2 ft²)

Orientation: Horizontal

• Heat exchanger type: Neuman horizontal graphite spiral block
• Weight: 370 KG Product Side -1/3 bar@ -20 to +165 degrees C 17 liters

Shell Pressure: 6 bar (87 psi). Shell Temperature: 80 °C (176 °F). Vacuum: Yes. Nozzle Schedule: - Openings: - Process side: (1) 50mm, (1) 150mm - Service side: (2) 50mm.

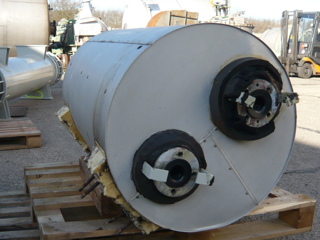

Type: Heat Exchanger

Subtype: Block

Manufacturer: GAB Neuman

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Shell Pressure: 3 bar (43.5 psi)

Blt to TUV standard. Design pressure: service side 3 bar and full vac; product side 3 bar and full vac @ -10/+165 deg C.

Vacuum: Yes. Process Pressure: 3 bar (43.5 psi). Process Temperature: 165 °C (329 °F).

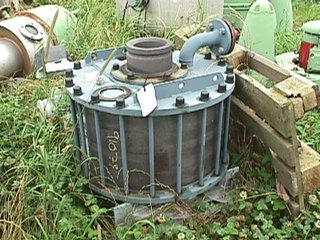

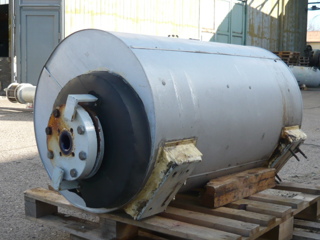

Type: Heat Exchanger

Subtype: Block

Manufacturer: GAB Neuman

Model: N-A-3.6

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.6 m² (38.8 ft²)

Orientation: Vertical

cylindrical Blt to TUV standards Design pressure: service side 3 bar and full vac product side 3 bar and full vac @ -10/+165 deg C.

Shell Pressure: 3 bar (43.5 psi). Vacuum: Yes.

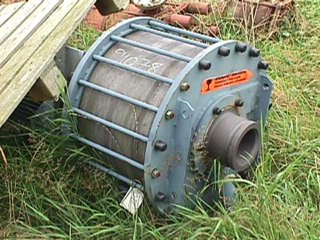

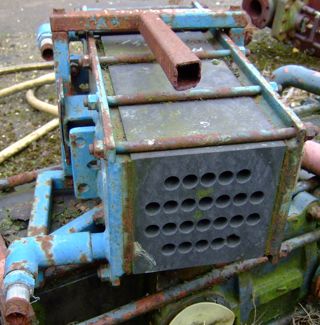

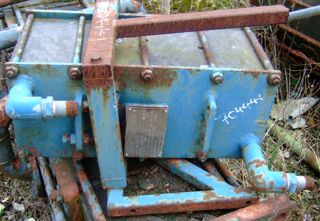

Type: Heat Exchanger

Subtype: Block

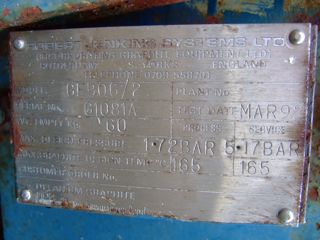

Manufacturer: Rob Jenkins Systems

Model: GEB06/2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Shell Pressure: 5.2 bar (75 psi)

(1) block, single pass.

Shell Temperature: 165 °C (329 °F). Length: 508 mm (20 in). Nozzle Schedule: Openings: 2-25mm. Process Pressure: 1.72 bar (24.9 psi). Process Temperature: 165 °C (329 °F).
