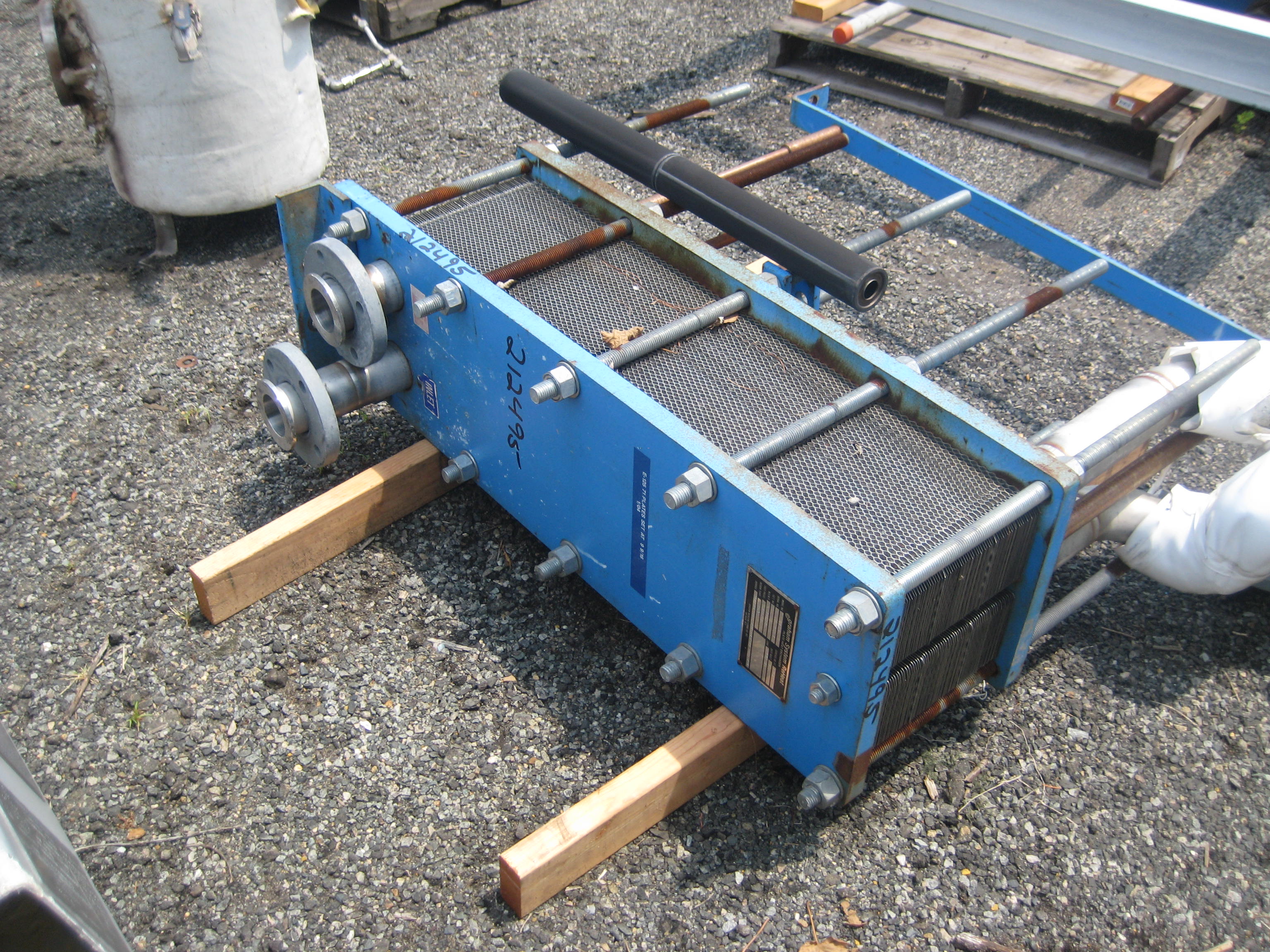

Plate and Frame Heat Exchanger 12.4 m² (134 ft²) Stainless Steel 316 For Sale - IPP# 212495

Type: Heat Exchanger

Subtype: Plate and Frame

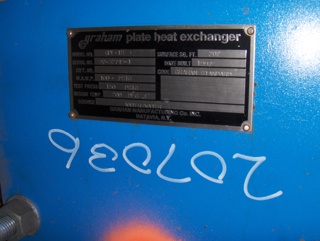

Manufacturer: Graham

Model: UF-60

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 84.5 m² (910 ft²)

Nozzle Schedule: Pass arrangement H.S.-1, C.S.-1Inlets and outlets are 8". Drain is 6".

pack with CS shell

Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 93.3 °C (200 °F). Housing Material: Carbon Steel. Number of Plates: 153.

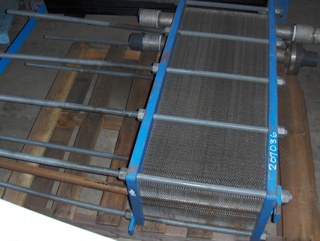

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Graham

Model: UF-60

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 84.5 m² (910 ft²)

Nozzle Schedule: Cold side inlet/outlet are 8", hot side inlet & outlet are 8". Six inch drain valve.

Pass Arrangement: H.S.-1, C.S.-1

Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 93.3 °C (200 °F). Housing Material: Carbon Steel. Number of Plates: 153.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Swep

Model: G65

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 15 m² (161.5 ft²)

Cold-side Pressure: 1 bar (14.5 psi)

Volume: 13 liters on both sides carbon steel pressure plates.

Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 1 bar (14.5 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 40.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: APV Baker

Model: 3HH-208/171

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 0.8 m² (8.6 ft²)

Nozzle Schedule: Openings: tube side 2-2"; shell 2-3"

Unit w/cylindrical shell (23) 316SS plates (cylindrical, vert) inside shell

Cold-side Pressure: 16 bar (232.1 psi). Cold-side Temperature: 150 °C (302 °F). Hot-side Pressure: 16 bar (232.1 psi). Hot-side Temperature: 150 °C (302 °F). Number of Plates: 23.
