pack with CS shell

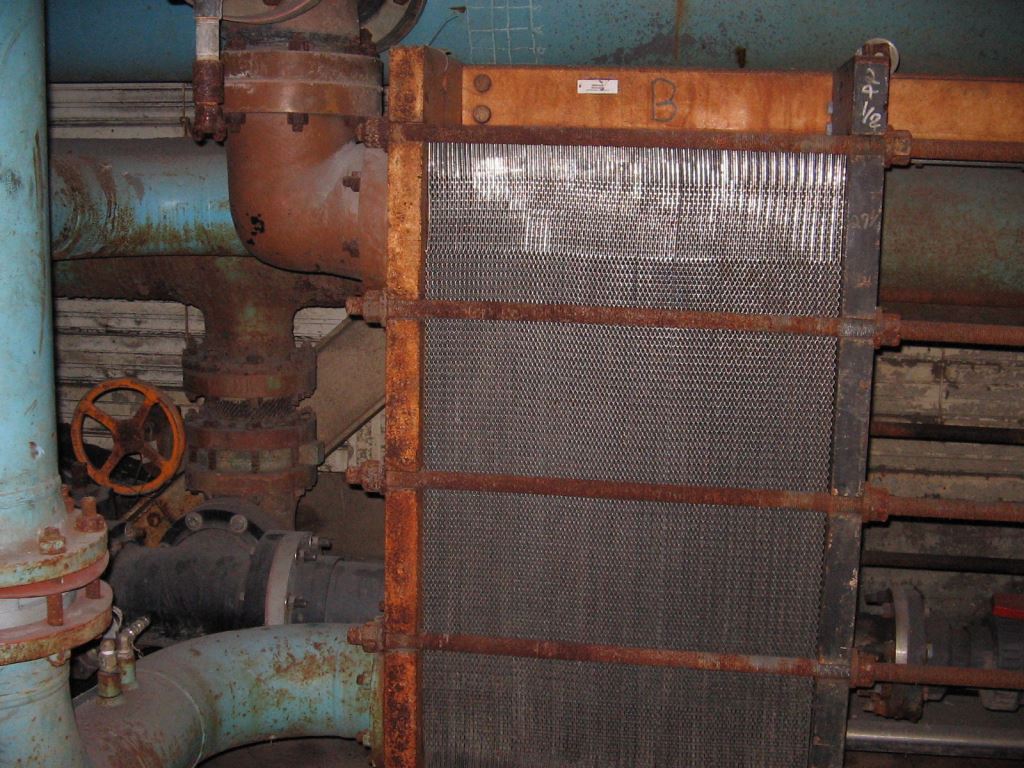

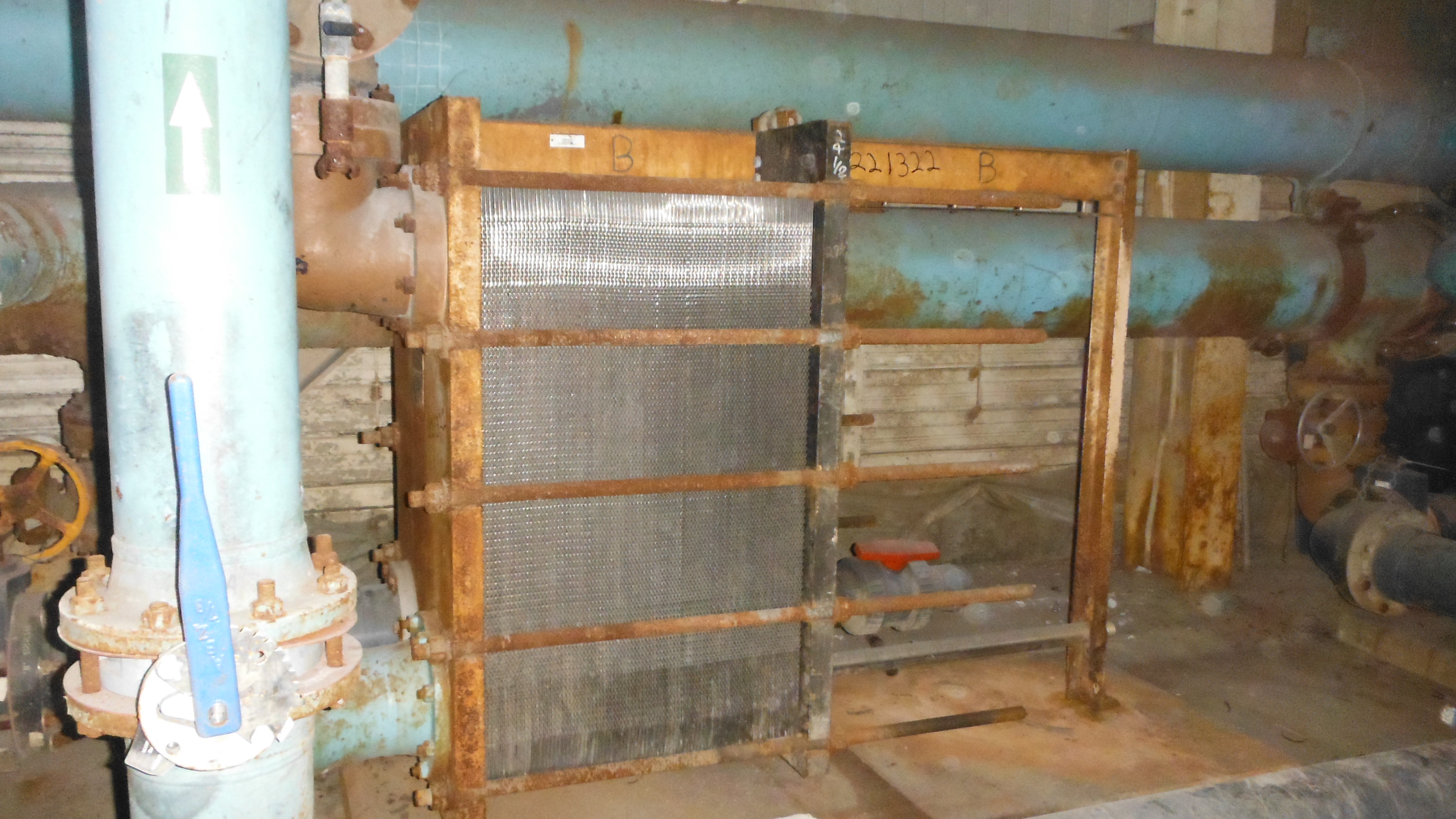

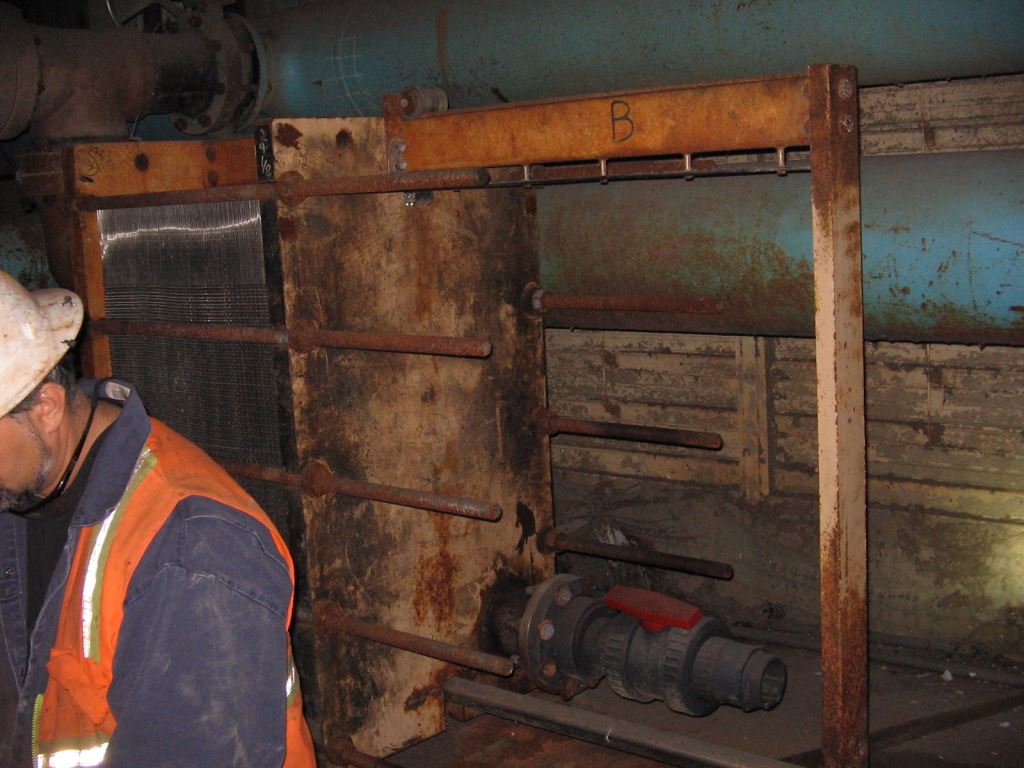

Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Graham
Model: UF-60
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 84.5 m² (910 ft²)
Nozzle Schedule: Cold side inlet/outlet are 8", hot side inlet & outlet are 8". Six inch drain valve.
Pass Arrangement: H.S.-1, C.S.-1

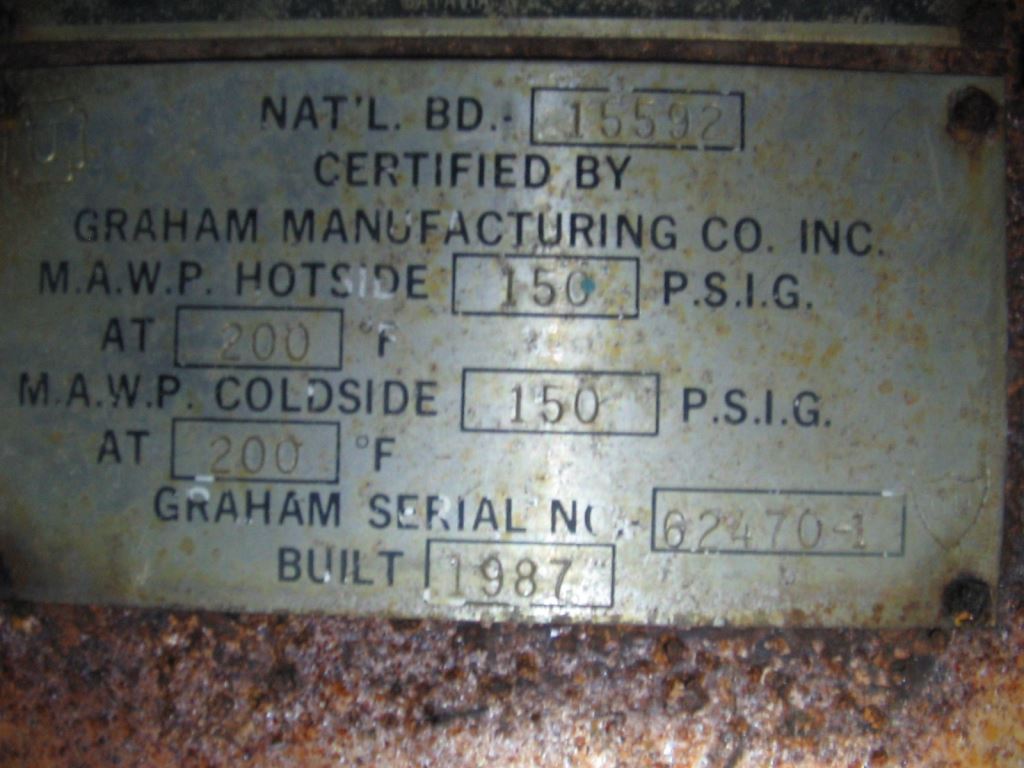

Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 93.3 °C (200 °F). Housing Material: Carbon Steel. Number of Plates: 153.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Graham
Model: GLP-18
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 19.2 m² (207 ft²)
Nozzle Schedule: - Inlet and outlet (cold side): Two, 3" flanges - Inlet and outlet (hot side): Two, # " flanges (size not specified)
Hot-side Pressure: 6.9 bar (100 psi). Hot-side Temperature: 93.3 °C (200 °F).
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Graham
Model: UFX-18
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 12.4 m² (134 ft²)
Nozzle Schedule: - Inlet/outlet size: 2.5" flanged
Tested to 150 psi Inlets and outlets are 2.5" flanged.
Cold-side Pressure: 6.9 bar (100 psi). Cold-side Temperature: 160 °C (320 °F). Hot-side Pressure: 6.9 bar (100 psi). Hot-side Temperature: 160 °C (320 °F).
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Kyffhausehutte (Germany)
Model: PAH500/213
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 134.6 m² (1,450 ft²)
Number of Plates: 272
