Wet Gas Compressor Radial Split case two stage compressor motor through a Lufin gear reducer

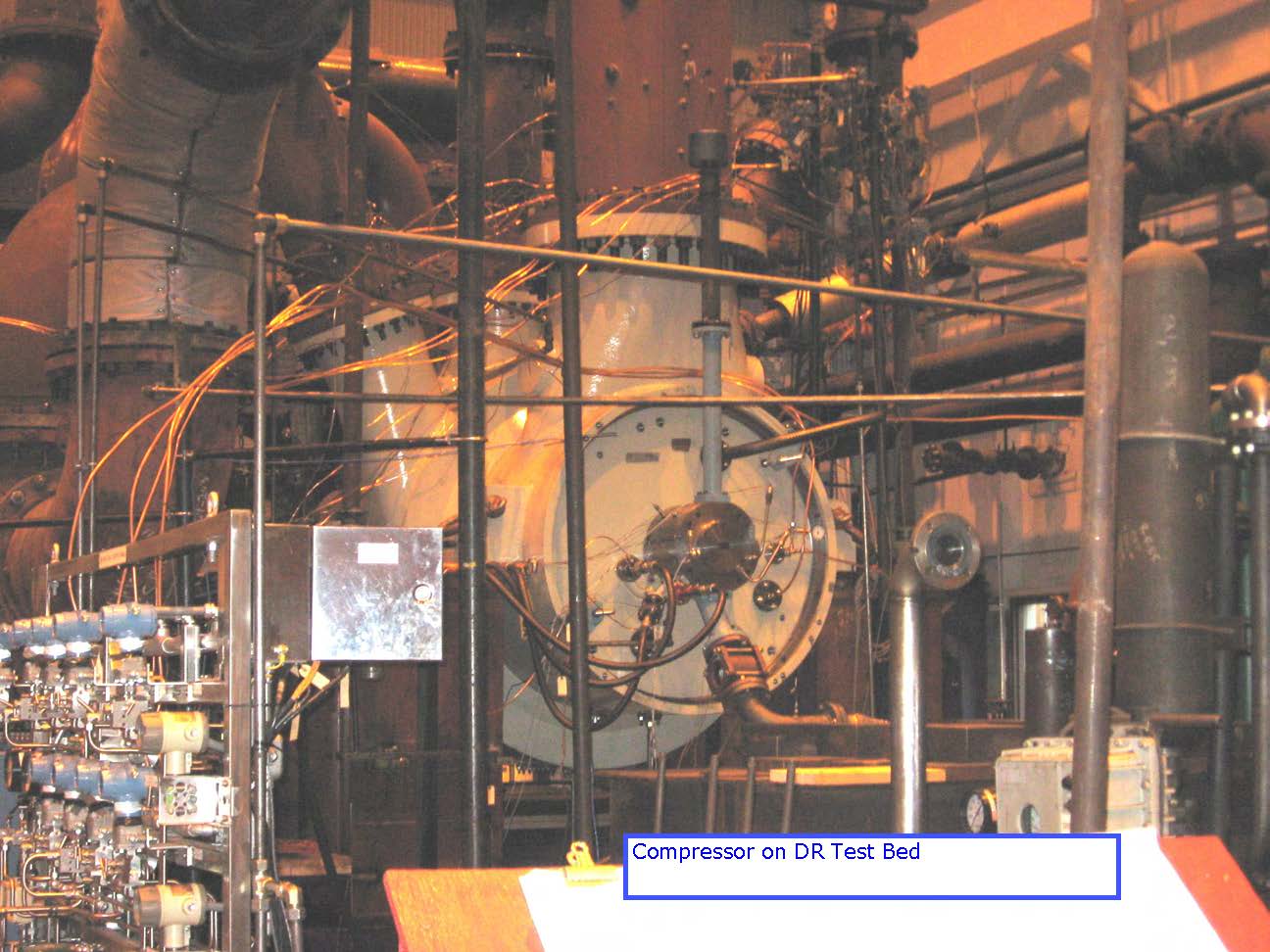

The Datum compressor is an 18 frame size(inside case diameter) with a radial split case, six impellers and a back to back rotor design. The machine features a lube skid that supports the compressor, motor and gear, a gas skid for the double Dry Gas seals, and instrumentation for vibration and temperature detection.
MMSCFD Dry: 49.73; Lbs/Hr Wet: 224,820;
Inlet PSIA: 20.9; Inlet Temp: 106 Degree F; Inlet ACFM Wet: 24,183
Designed for Outdoor Use, Under roof.
All Electricals are Class 1, Group CD, Division 2.
Speeds: Maximum Continuous 5,653 RPM,
Trip Speed 5,719,
CCW rotation from drive end. With one piece shaft.

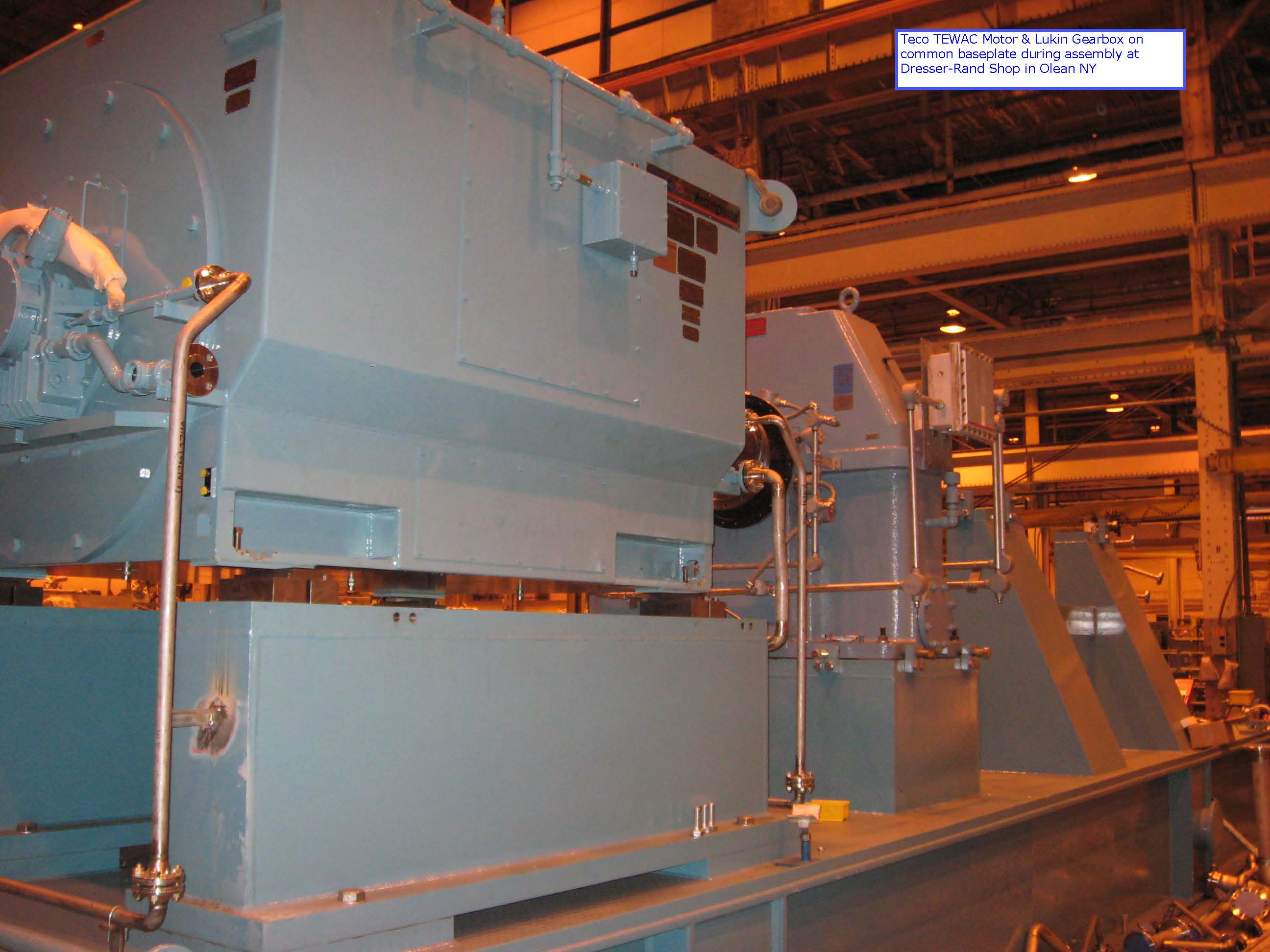

Motor, Gear reducer, and Compressor skid mounted.
Lufkin Gear reducer, 3.178:1 ratio, rated 10,300 HP.

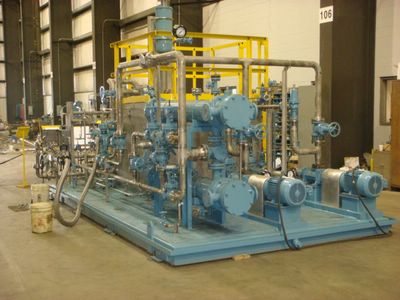

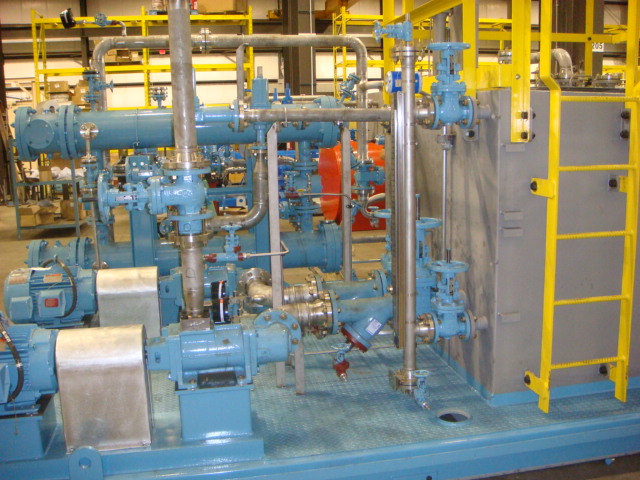

The Oil control system is by Cobey, and skid mounted.

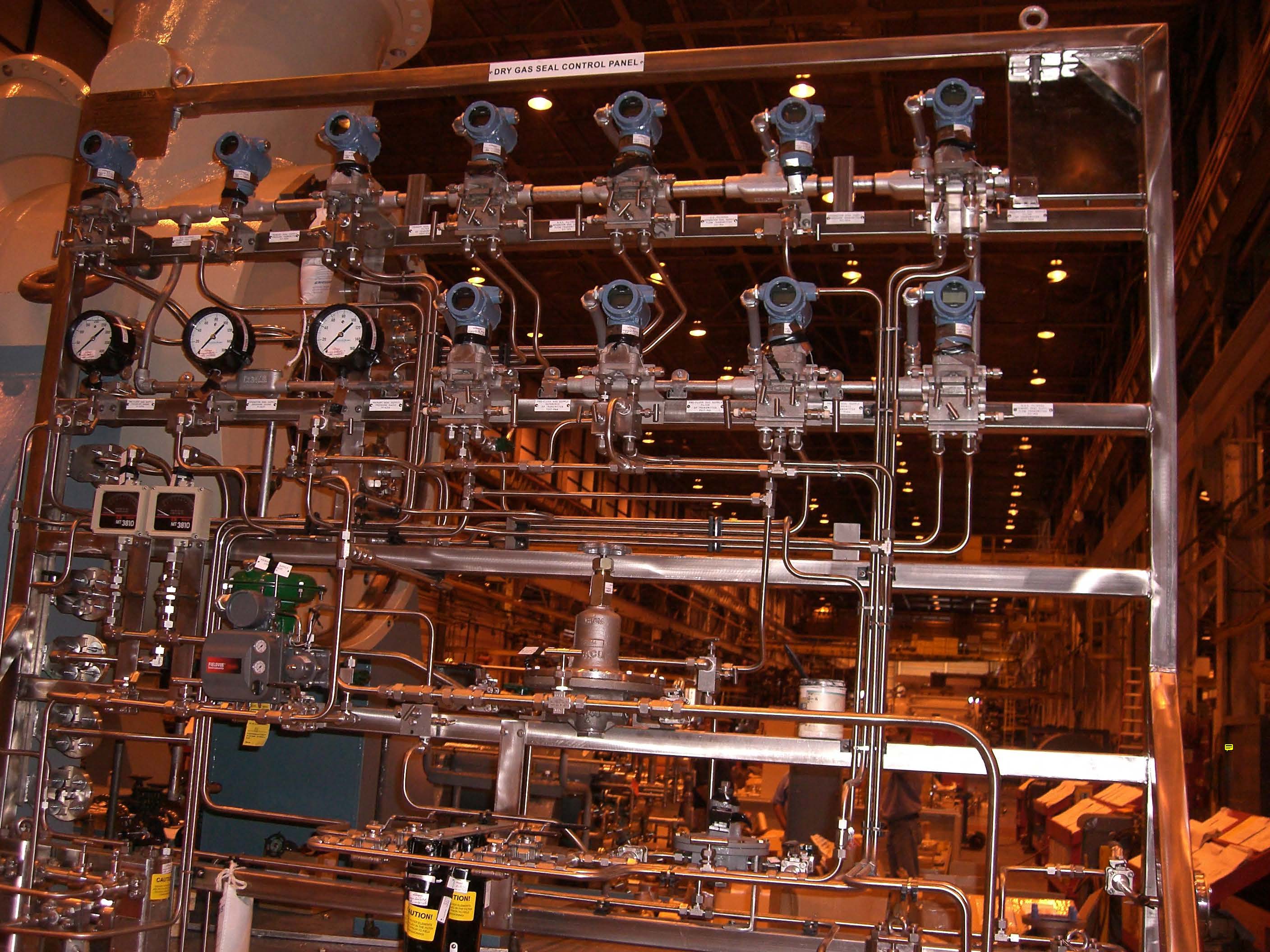

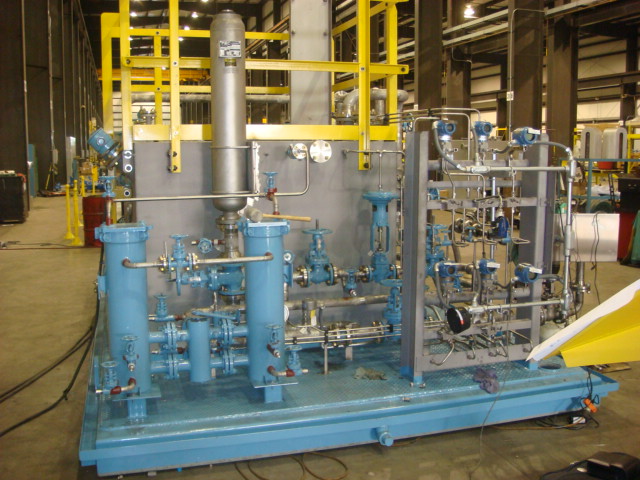

The Seal gas system and skid are by Flowserve.
Type: Compressor
Subtype: Centrifugal
Manufacturer: Dresser Rand
Model: 2BC-8
Condition: Used
Material: Carbon Steel
Compressor Type: Centrifugal
Inlet Pressure: 24.7 bar (358 psi)

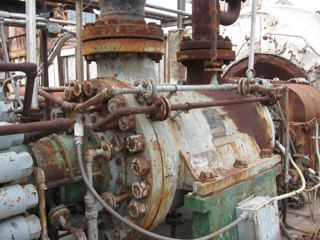

Centrifugal compressor with eight impellers Inlet pressure 358 psia, inlet temperature 50 degrees F. This compressor has an average compressibility factor of 1.013 Cooling water temperature is 85 degrees F, and after intercooling is 100 degrees the first critical speed is 5,400 rpm. The compressor rpm is 10,440, with a bhp of 8228 Up connected intake and discharge flanges, the suction is 10" and the discharge is 8" . The case design pressure is 1000 psi for the inlet and discharge. This compressor has a common lube system with other pieces in the train and two ring oil seals. Originally driven by a steam turbine (not included).
Discharge Pressure: 63 bar (914.4 psi). Flow Rate: 5,994 m3/h (3,528 CFM). Inlet Diameter: 254 mm (10 in). Speed (RPM): 11,000.
