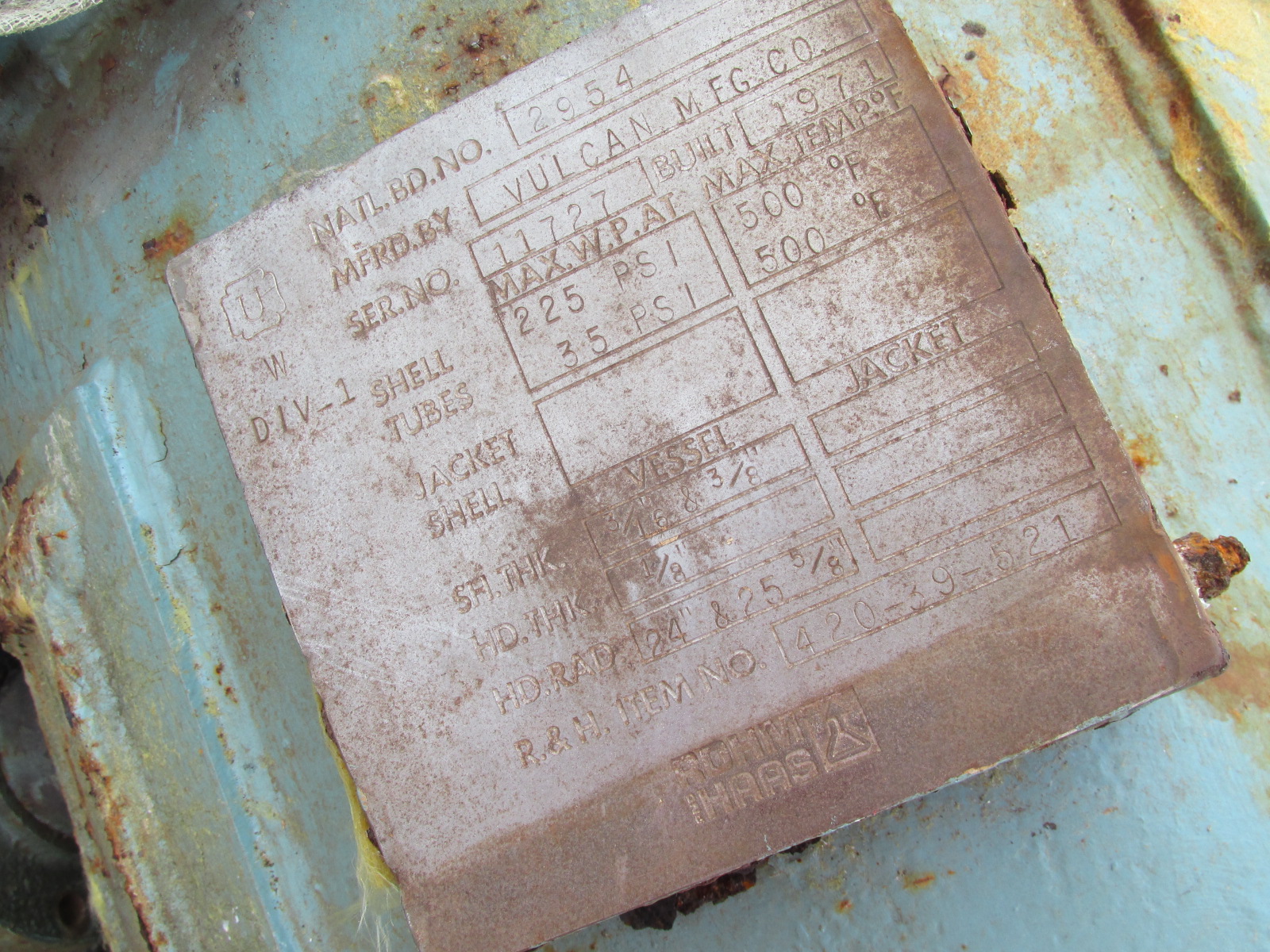

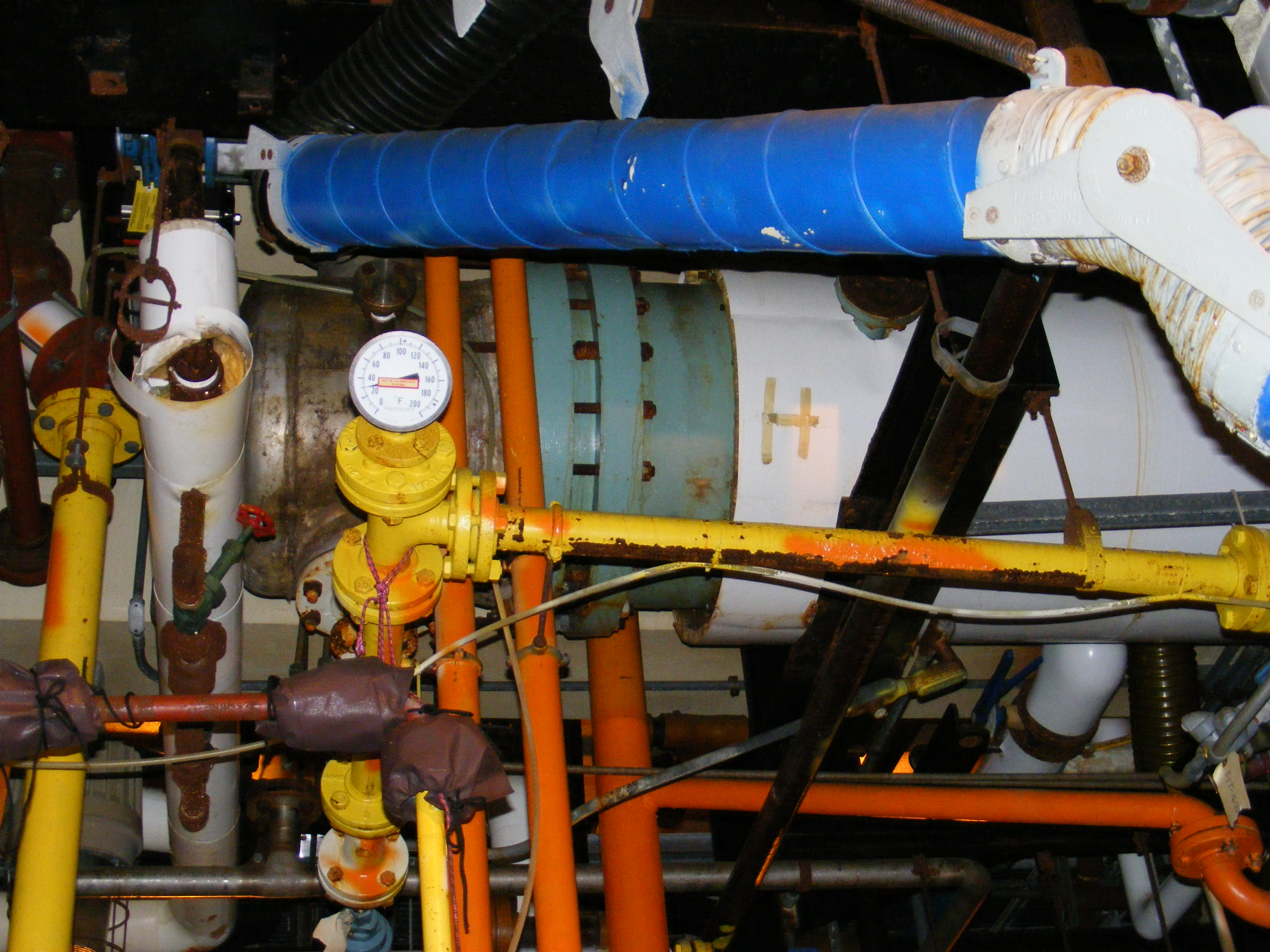

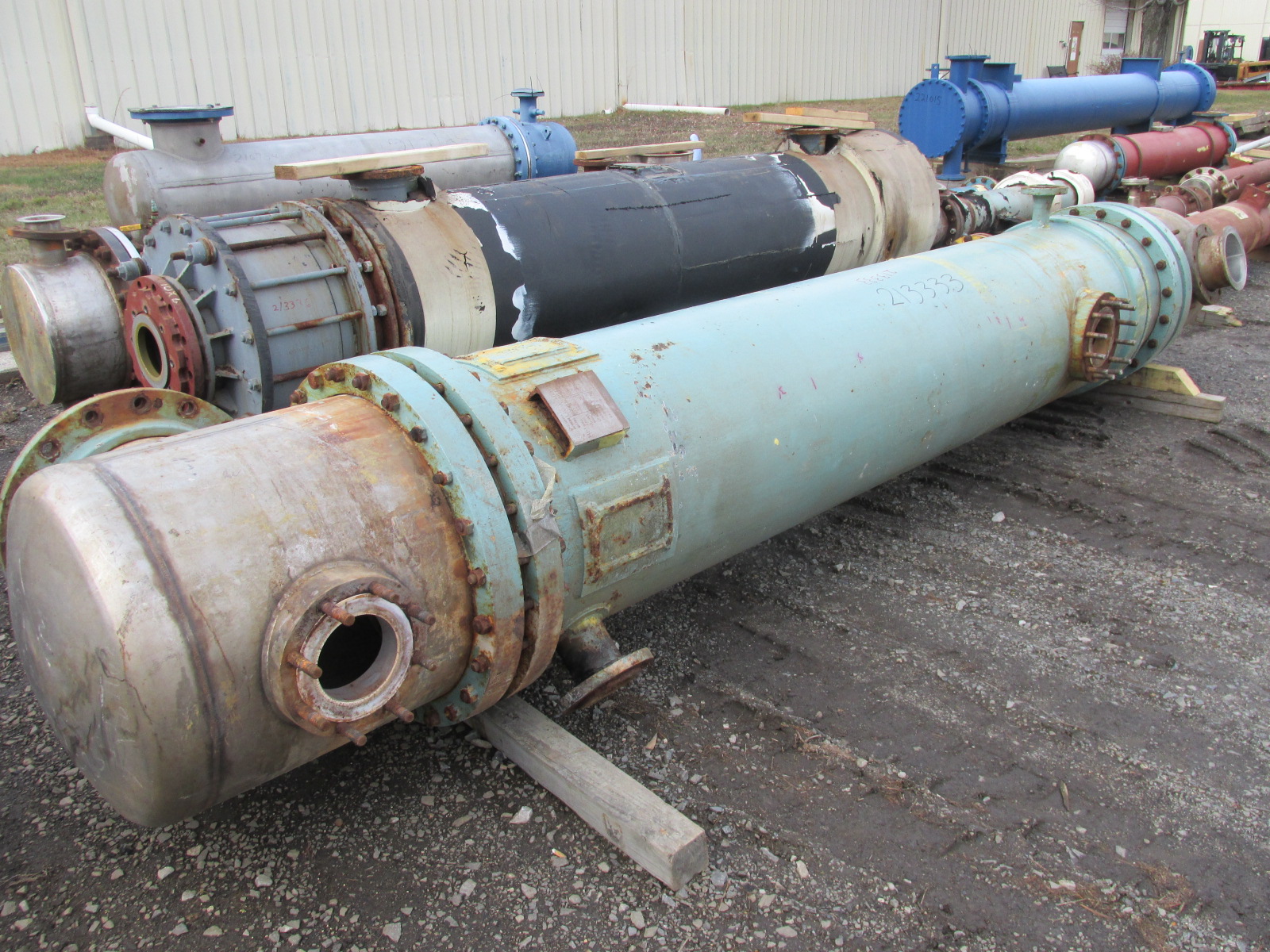

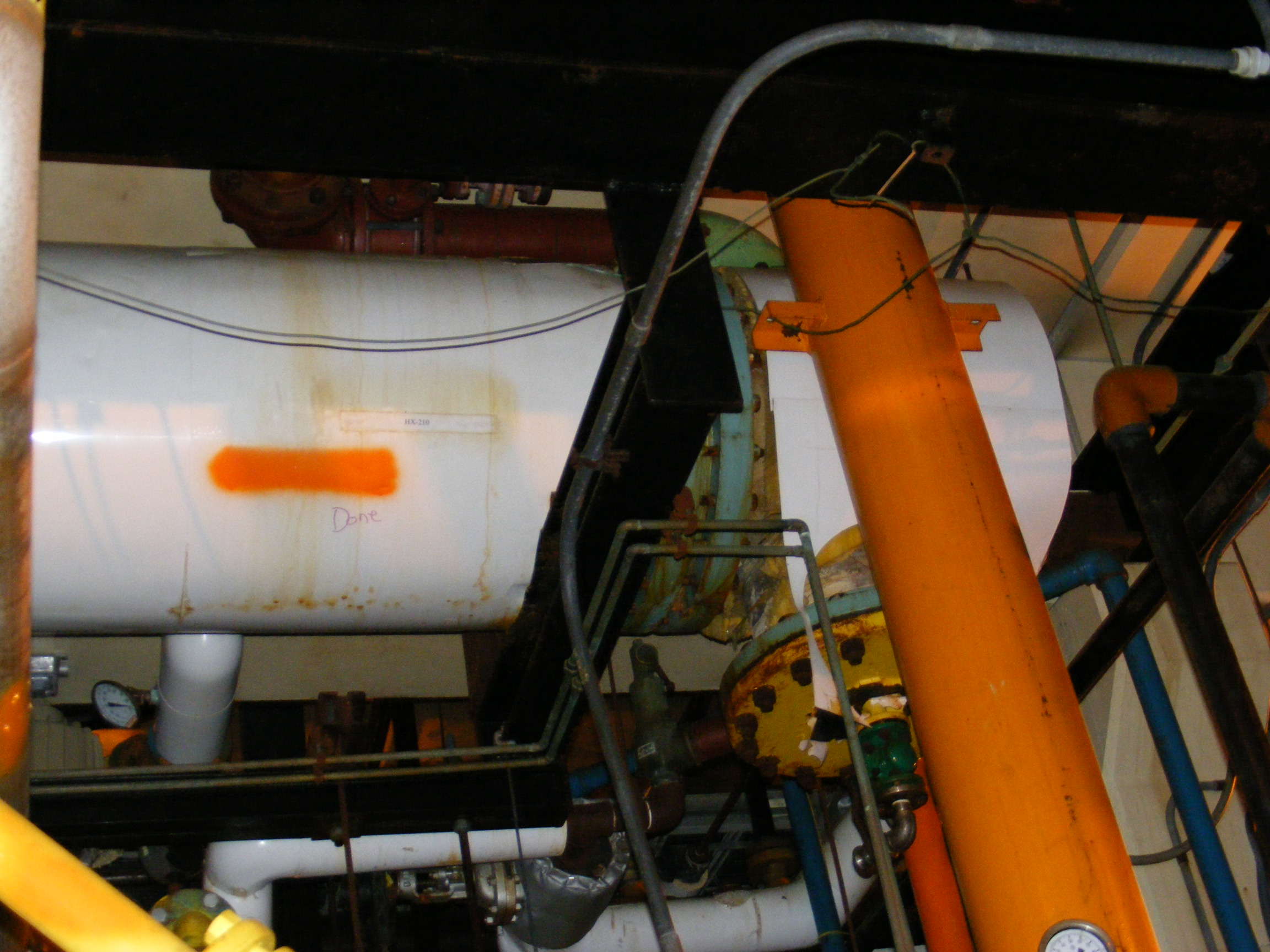

Hastelloy - C276 Vulcan Manufacturing Company Shell and Tube Heat Exchanger - IPP# 213333

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning & Lewis

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 32.5 m² (350 ft²)

Orientation: Horizontal

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design

Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Head Material: Stainless Steel 316L. Length: 4,150 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Model: 20-42 BEM

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 19.6 m² (211 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - C276. Length: 1,000 mm (40.3 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,000 mm (40 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 6", two 3", Two 1", one 0.75".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Model: BEM

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 28.5 m² (307 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy SB-575. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy SB-575. Length: 1,450 mm (58 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,450 mm (58 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (1x) 10" inlet, (1x) 3" outlet, (1x) 4" outlet, (2x) 4" inlet/outlet (2x) 1" vent/drain.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 35 m² (377 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 610 mm (24 in). Head Material: Hastelloy - C276. Length: 559 mm (22 in). Shell-side Passes: 4. Tube-side Passes: 4. Tube Type: Straight Tube. Tube Number: 481. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 559 mm (22 in). Tube Thickness: 457.2 mm (18 in). Nozzle Schedule: (2) 4" inlet/outlet, (2) 1" vent/drain, (1) 1/2" drain, (1) 10" inlet. (1) 3" outlet. (1) 4" outlet.
