Stainless Steel 316 Spiral Heat Exchanger - IPP# 214014

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Amer Heat Reclaiming

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Nozzle Schedule: 1" inlets and outlets

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: American Heat Reclaiming

Model: 1H

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.39 m² (15 ft²)

Shell Material: Stainless Steel 316

inner pass is .25" x 6", 14'5" long; cold side outer pass is .25" x 6", 15'4" long.

Head Material: Stainless Steel 316. Nozzle Schedule: 1" inlets and outlets.. Spiral Material: Stainless Steel 316.

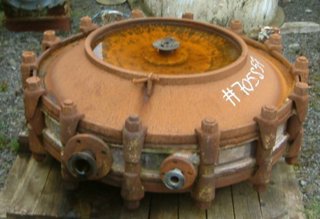

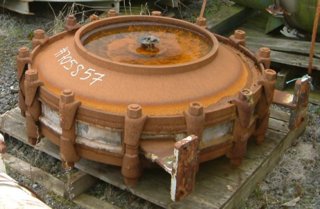

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: 1-V

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 99 m² (1,066 ft²)

Shell Pressure: 5.17 bar (75 psi)

type SHE
spacing channel A = 8, B = 9, volume: channel A = 450 ltr, B= 500 ltr

Shell Material: Carbon Steel. Shell Diameter: 1,380 mm (54.3 in). Length: 750 mm (29.5 in). Nozzle Schedule: openings: top: 1-80mm, side: 2-80mm, bottom: 1-80mm,. Cold-side Pressure: 5.17 bar (75 psi). Cold-side Temperature: 250 °C (482 °F). Hot-side Pressure: 5.17 bar (75 psi). Hot-side Temperature: 250 °C (482 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Rosenblad

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 8 m² (86.1 ft²)

Shell Pressure: 6.37 bar (92.4 psi)

vertical spiral heat exchanger
side A with pressure rating 6.5 kg/cm2, side B 5 kg/cm2

Head Material: Carbon Steel. Length: 100 mm (3.94 in). Nozzle Schedule: openings: 3-50mm, 1-25mm, . Cold-side Pressure: 4.9 bar (71.1 psi). Hot-side Pressure: 0.439 bar (6.37 psi).
