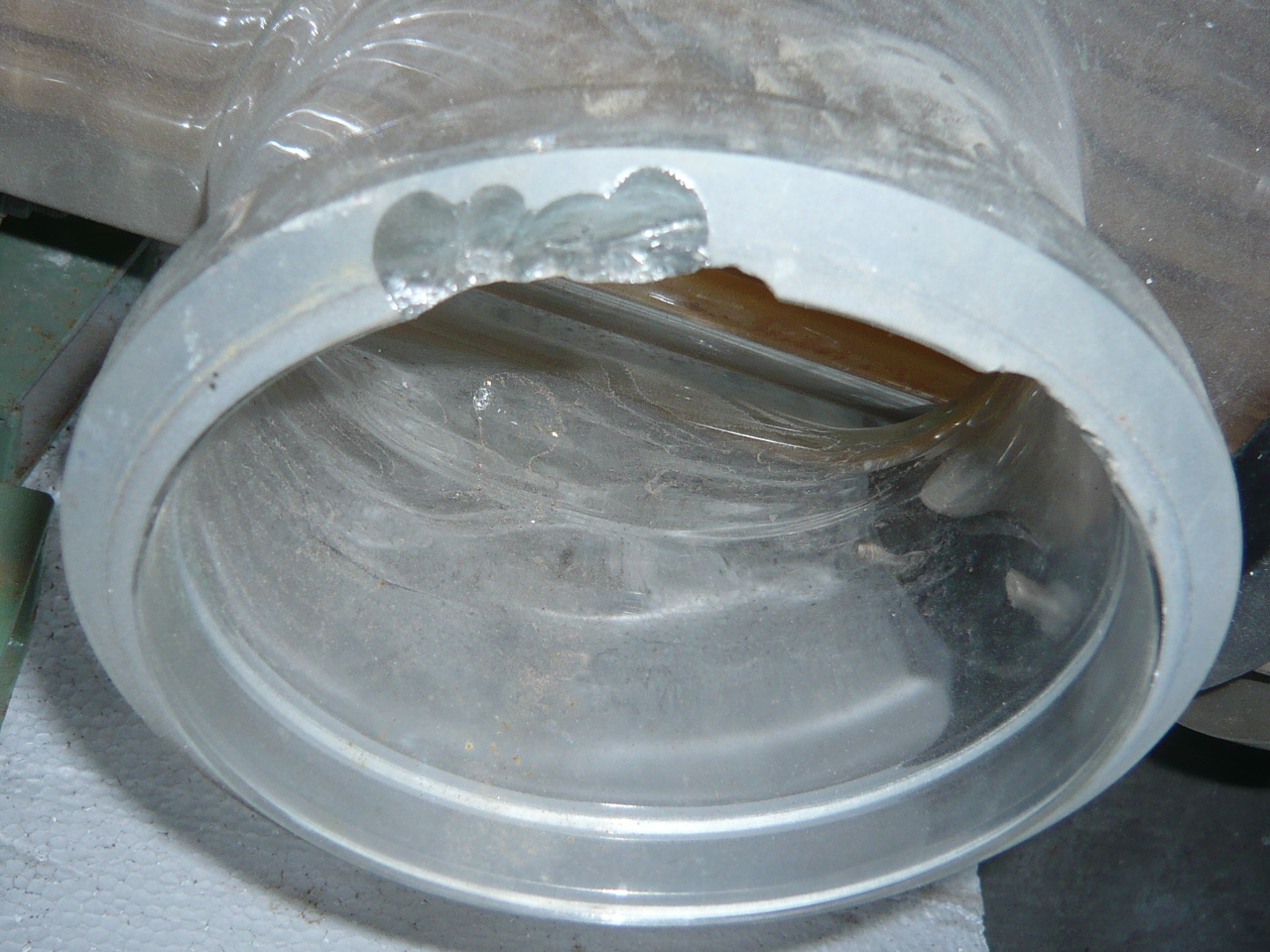

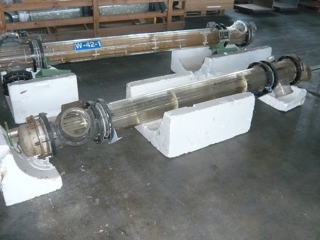

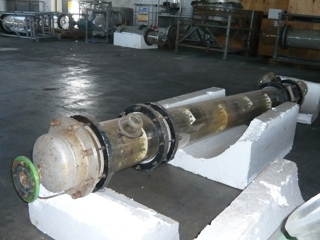

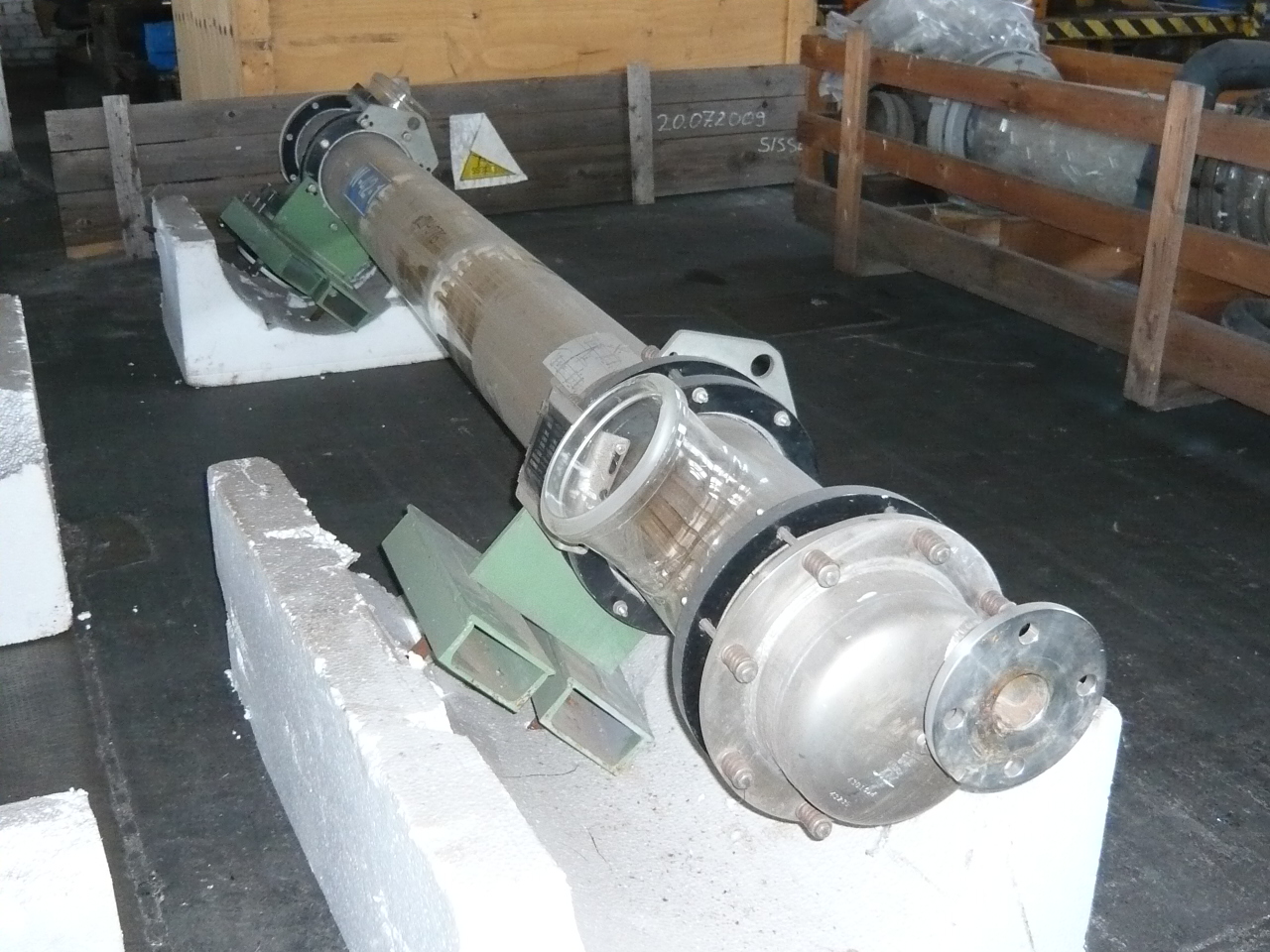

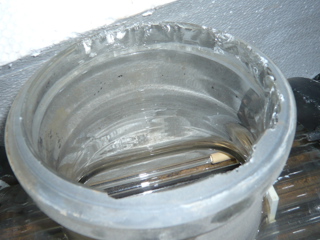

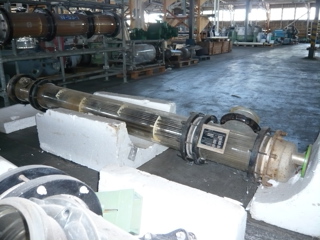

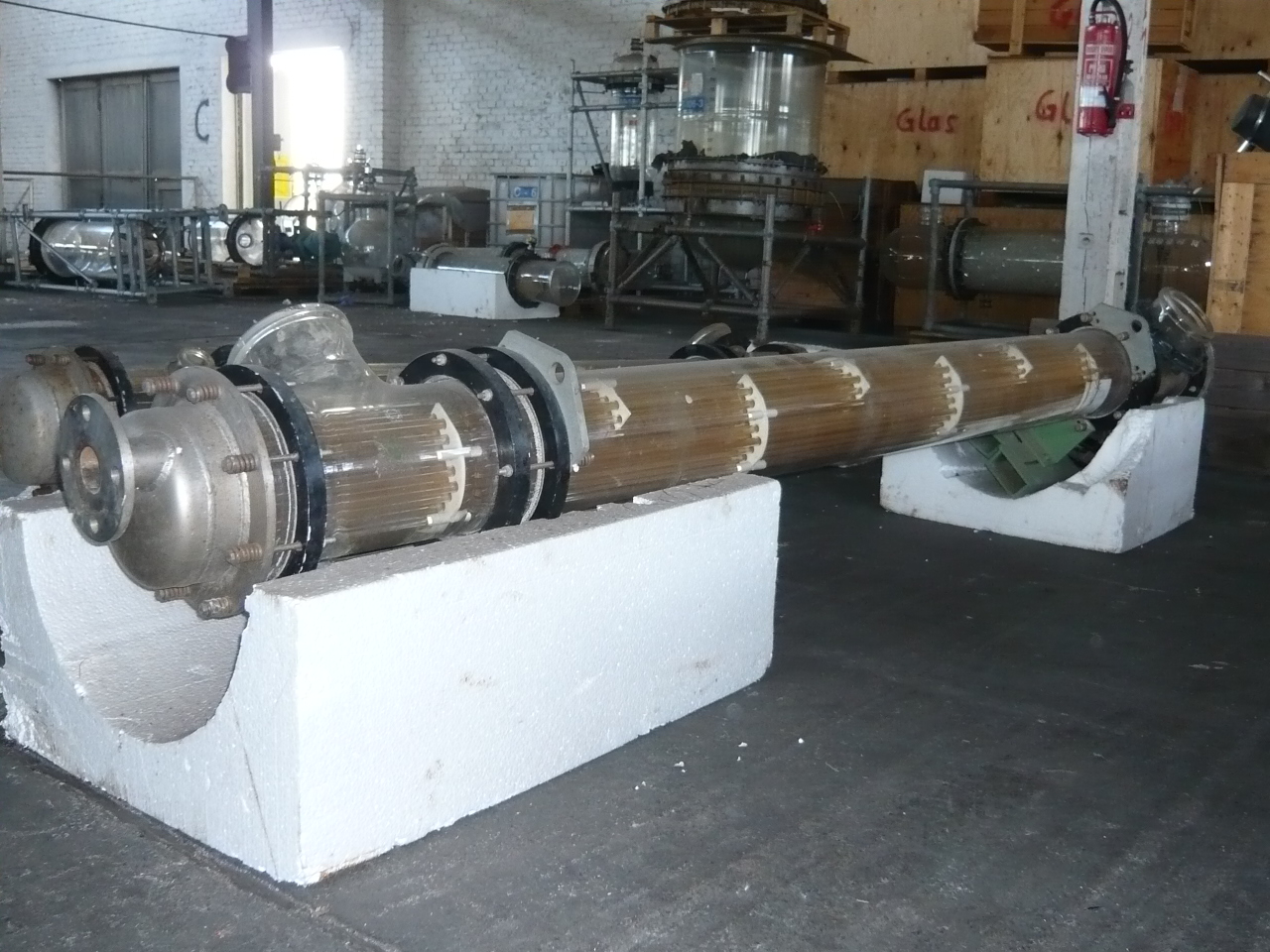

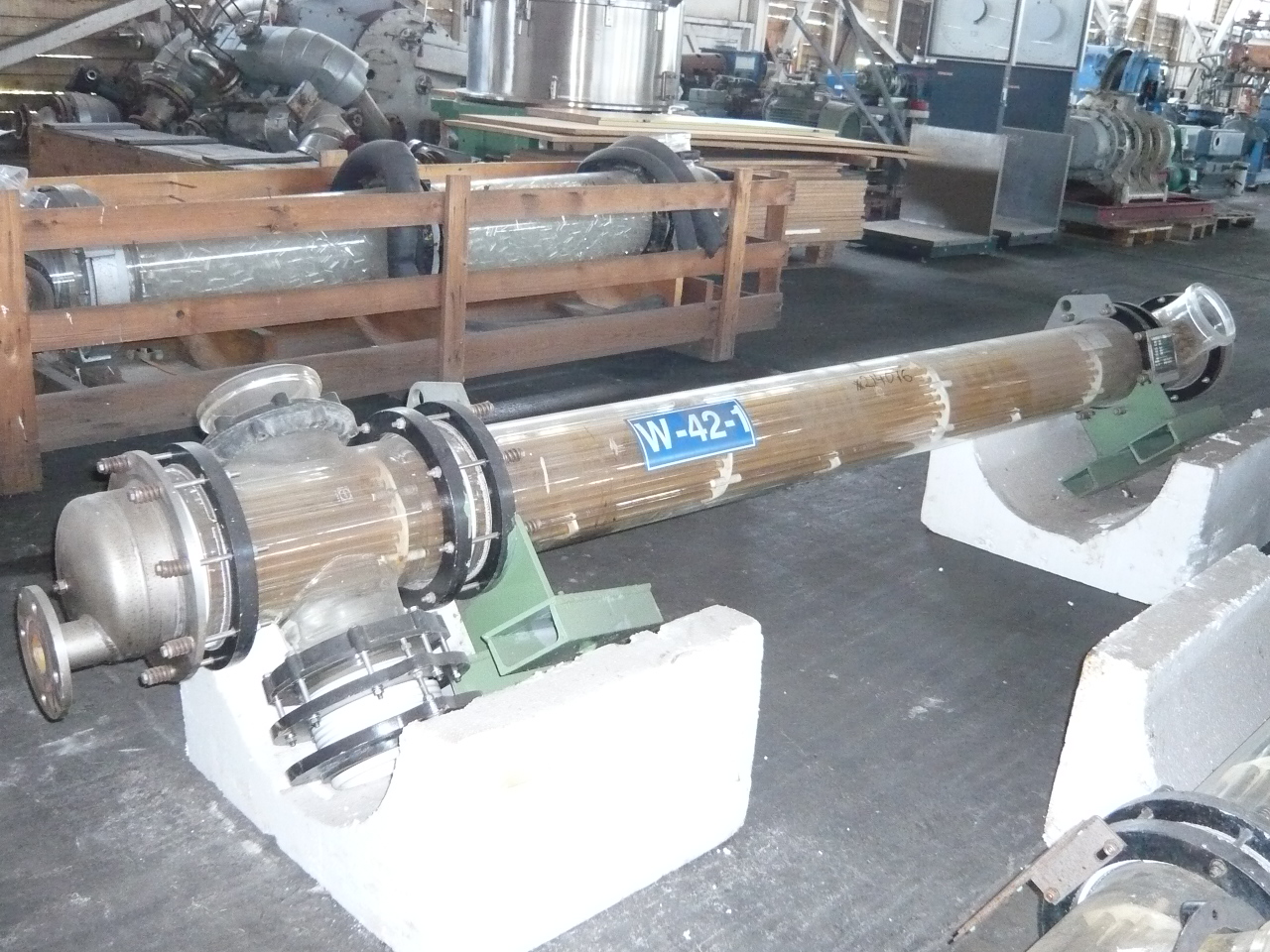

Glasslined Shell and Tube Heat Exchanger - IPP# 214066

Type: Heat Exchanger

Subtype: Shell and Tube

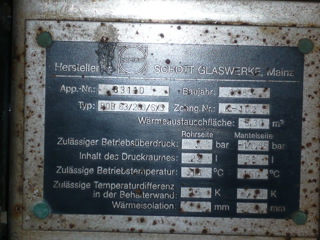

Manufacturer: Schott (Duran)

Model: ROB 63/300/S/3

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 6.3 m² (67.8 ft²)

Shell Pressure: 0.85 bar (12.3 psi)

pressure product side: 3 bar @ 15 degress C, total volume 22 liter service side: -1/+0,85 bar @ 150 degress C, total volume 58 liter Material HEADS s/steel 1.4301

Shell Temperature: 150 °C (302 °F). Shell Material: Glasslined. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 15 °C (59 °F). Tube Material: Glasslined. Vacuum: Yes. Head Material: Stainless Steel 304.

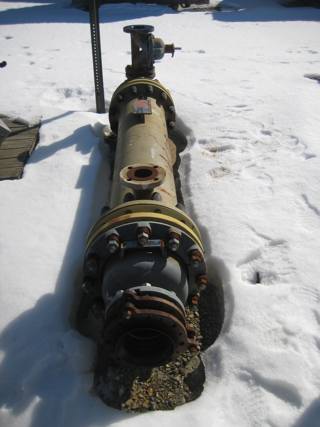

Type: Heat Exchanger

Subtype: Shell and Tube

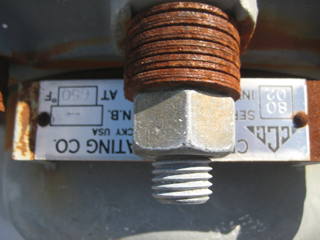

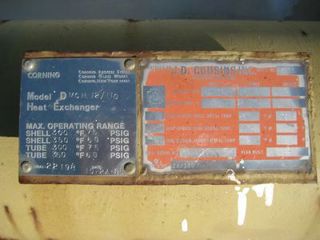

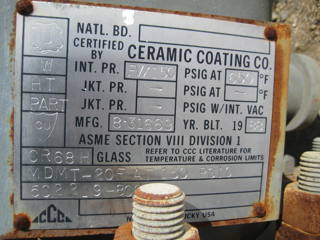

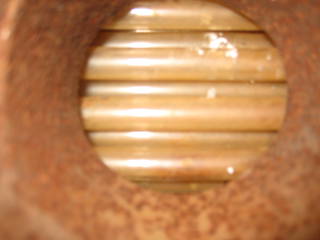

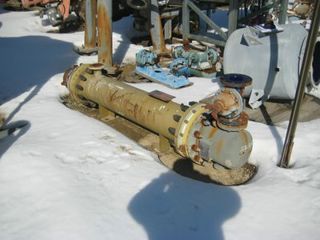

Manufacturer: J.D. Cousins, Inc.

Model: DMCH 12/110

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 9.3 m² (100 ft²)

Shell Pressure: 5.2 bar (75 psi)

Head coating: Ceramic coating glass lined Shell: 60 PSI @ 350 degrees F Tube: 60 PSI @ 350 degrees F

Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 5.2 bar (75 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Glasslined. Shell Diameter: 304.8 mm (12 in). Head Material: Glasslined. Tube Diameter: 12.7 mm (0.5 in). Tube Length: 1,850 mm (72 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

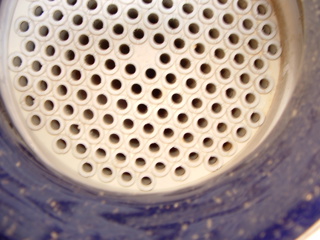

design pressure tube side -1/10 bar @ -10/200 degrees C, shell side -1/10 bar @ -10/200 degrees C, CE0035, 2 x clamped sections, tube material is silicon carbide (SiC)

Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tubesheet Material: PTFE Lined. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Glasslined. Length: 4,750 mm (187.6 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 151. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150; shell side: (1) DN100, (2) DN200, (1) DN300;. Capacity: 180 L (47.6 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 20 m² (215.3 ft²)

Orientation: Vertical

design pressure tube side -1/10 bar @ -10/200 degrees C, shell side -1/10 bar @ -10/200 degrees C, tube material is silicon carbide (SiC)

Shell Pressure: 10 bar (145 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Glasslined. Tube Pressure: 10 bar (145 psi). Tube Temperature: 200 °C (392 °F). Tubesheet Material: PTFE Lined. Vacuum: Yes. Shell Diameter: 300 mm (11.8 in). Head Material: Glasslined. Length: 4,800 mm (189 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 121. Tube Diameter: 14 mm (0.55 in). Tube Length: 4,000 mm (157.5 in). Tube Thickness: 1.5 mm (0.06 in). Nozzle Schedule: Tube side: (2) DN150; shell side: (2) DN150;. Capacity: 180 L (47.6 gallons). Heat Exchanger Tube Capacity: 66 L (17.4 gallons).
