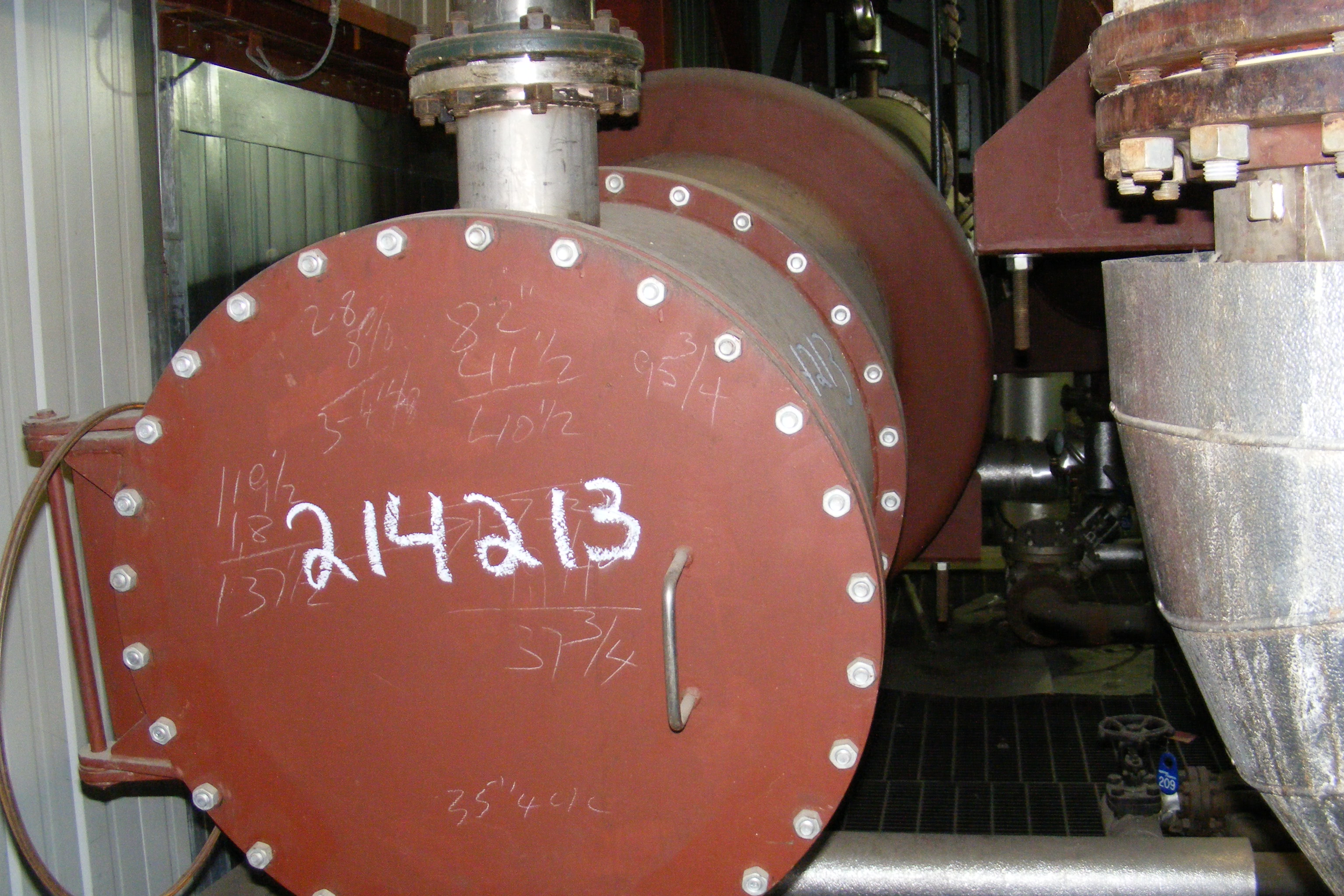

Stainless Steel 316 All-Weld Shell and Tube Heat Exchanger - IPP# 214213

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: All-Weld

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 195.5 m² (2,100 ft²)

Orientation: Horizontal

CRN #: K5721.5 OIN #: 5.882.517 CS 3/16" thick baffles with expansion joint. Shell has (20) CS 3/16" thick baffles.
(2) 316LSS channel heads 3/16" thick with flat end covers mounted on davits.

Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 65.6 °C (150 °F). Shell Material: Carbon Steel. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Shell Diameter: 711 mm (28 in). Head Material: Stainless Steel 316. Length: 7,300 mm (288 in). Tube Number: 462. Tube Diameter: 25.4 mm (1 in). Tube Length: 6,100 mm (240 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Openings: Shell side - (2) 4"; One Head - (1) 16"; other head (2)6".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Bramah Process Plant Ltd

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.8 m² (277.7 ft²)

Orientation: Horizontal

Tube side: 10.55 kg/cm2 @ 299 deg C Shell side: 10.55 kg/cm2 @ 399 deg C (2) c/steel flat heads

Shell Pressure: 10.3 bar (150.1 psi). Shell Temperature: 399 °C (750 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150.1 psi). Tube Temperature: 299 °C (570 °F). Tube Material: Stainless Steel 316. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 6,050 mm (238.6 in). Tube-side Passes: 4. Tube Number: 72. Tube Diameter: 19 mm (0.75 in). Tube Length: 6,050 mm (238.6 in).

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

Expansion bellow: Yes (2) c/steel channel heads

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 140 °C (284 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 50 °C (122 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 350 mm (13.8 in). Head Material: Carbon Steel. Length: 2,950 mm (116.1 in). Tube-side Passes: 4. Tube Number: 54. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Nozzle Schedule: Head openings: - Tubeside: 2-50mm, 4-6mm - Shell: 1-150mm, 1-75mm, 1-50mm, 1-6mm.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Stainless Steel Fabrications LTD

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 24 m² (258.3 ft²)

Orientation: Horizontal

Additional features: expansion bellow, (2) carbon steel channel heads,

Shell Pressure: 1.01 bar (14.7 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel 316. Tube Pressure: 4.1 bar (60 psi). Tube Temperature: 75 °C (167 °F). Tube Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 560 mm (22 in). Head Material: Carbon Steel. Length: 3,050 mm (120.1 in). Tube-side Passes: 4. Tube Number: 122. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings tubeside - 2-75mm, 4-6mm, shell - 2-300mm, 1-75mm, 1-20mm.
