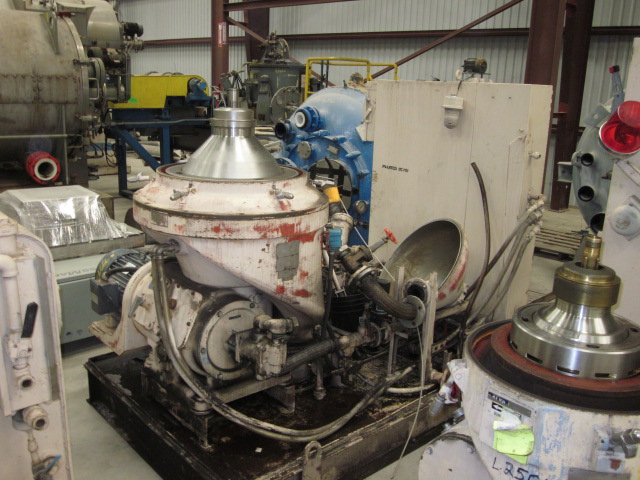

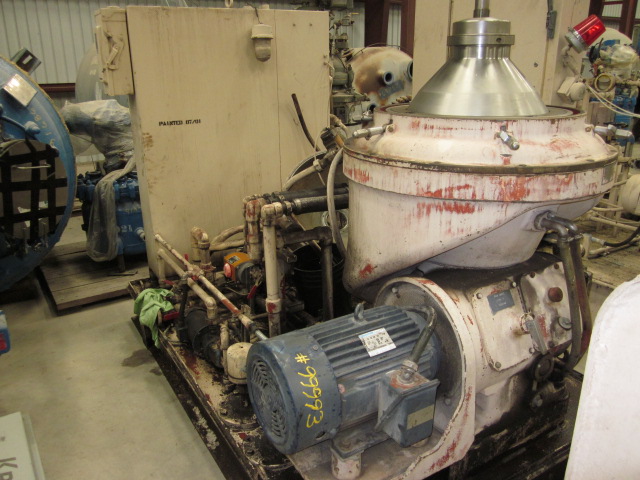

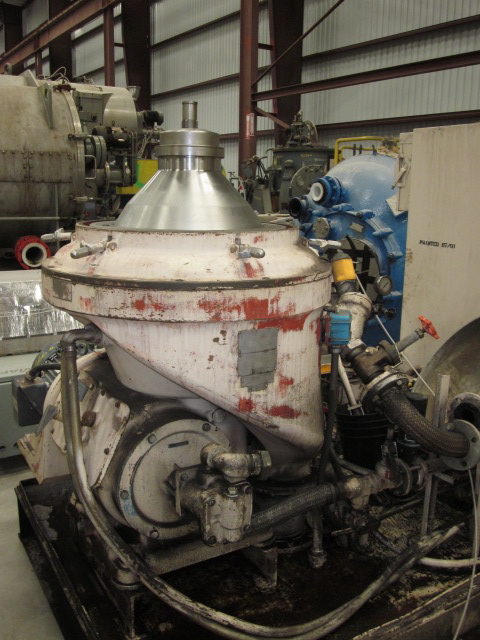

Stainless Steel Other Alfa Laval WHPX513-TGD-29-60 Centrifuge-Disc Bowl - IPP# 214884

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: WHPX405-TGD-24-60

Condition: Used

Material: Stainless Steel Other

Motor Horsepower: 3.73 kW (5 HP)

Controls: Yes

3-phase separator design
with fixed paring disc on both liquid phases
Bronze top disc, pump chamber and locking ring
Timer initiated
partial discharge (dosing ring) of solids
purifier disc stack
5 HP flange mount motor

Number of Phases: 3.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: BRPX 309SGV-35EF

Condition: Used

Material: Stainless Steel Other

Motor Horsepower: 10 kW (13.4 HP)

Clean In Place: Yes

clarifing centrifuge with open feed inlet
fixed paring disc on light phase
motor direct coupled to centrifuge on same base
intermitten variable timed ejection of solids
Gas tight design
Spark proof

RPM Maximum: 1,500.

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: BRPX 309-34-S

Condition: Used

Material: Stainless Steel Other

Motor Horsepower: 15 kW (20.1 HP)

329 stainless steel bowl
And 316 stainless steel Clarifier centrifuge
with intermittent solids discharge

Type: Centrifuge-Disc Bowl

Manufacturer: Alfa Laval

Model: VNPX-710-SFD-34GL

Condition: Used

Material: Stainless Steel Other

Motor Horsepower: 30 kW (40.2 HP)

Bowl Diameter: 438 mm (17.2 in)

manufacturers #881150-02-S-03-SK-02-0259
feed density 1110 kg/cm3
sediment density 1251 kg/cm3
control fluid density 1000 kg/cm3
process temperature 0-100 deg C
438mm diameter bowl
Swep 316 s/steel (1.4401) plate heat exchanger, type GC1210,
serial #AU021271,
pressure both sides 10 bar @ 150 deg C
Separator: (1) s/steel separator tank, (1) 0.7 m3/hr Alfa Laval SRU1-005-HD-3A,
steel gear pump,
serial #582924,
0.58 sqm Swep 316 s/steel (1.4401) plate heat exchanger, type GC1210, serial AU021271
pressure both sides 10 bar @ 150 deg C, (1) 1 m3/hr Sterling Berkefeld water softening system, (1) control panel,

Inlet Diameter: 51 mm (2.01 in). Controls: Yes. RPM Maximum: 7,432.
