Stainless Steel Austenitic Clad Luwa SMS Wiped/Thin Film Evaporator - IPP# 215302

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Model: L-425

Condition: Used

Material: Stainless Steel Austenitic

Total Heat Transfer Surface Area: 3.2 m² (34.4 ft²)

Orientation: Vertical

wiped film evaporator Shell 22" dia x 87" long Expansion joint on shell. Jkt rated 25 ATM @ 230 deg C Jkt 25 ATV @ 250 deg C. 3" btm discharge.

Diameter: 558.8 mm (22 in). Height: 2,210 mm (87 in). Temperature: 230 °C (446 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Evaporation Rate: 204.1 kg/h (450 lb/h)

Total Heat Transfer Surface Area: 8.4 m² (90.5 ft²)

wiped film evaporator/crystalliser 6650 ltr, jacket 6 bar @ 100 deg C, 1890 ltr, 1.4571 s/steel wetted parts, 323.9mm ID x 8450mm long x 7mm thick chamber c/steel jacket 368mm diameter x 8410mm long x 4mm thick with continuous internal flow spiral 200mm pitch, jacket with bellows, 1.4571 s/steel 88.9mm OD X 7.1mm thick internal scapper rotor, (64) 546mm long, scrapper made from 25mm wide x 7mm thick 'Hartgewebe F24', packed gland on shaft, rotor with teflon bushes, shaft driven by 17.5 kw, 3/50/415 volt, 1420 rpm motor via gearbox, shaft speed 55 rpm, insulated

Orientation: Horizontal. Diameter: 392 mm (15.4 in). Height: 8,450 mm (332.7 in). Pressure: 6 bar (87 psi). Temperature: 100 °C (212 °F).

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel Austenitic

Evaporation Rate: 204.1 kg/h (450 lb/h)

Total Heat Transfer Surface Area: 8.4 m² (90.5 ft²)

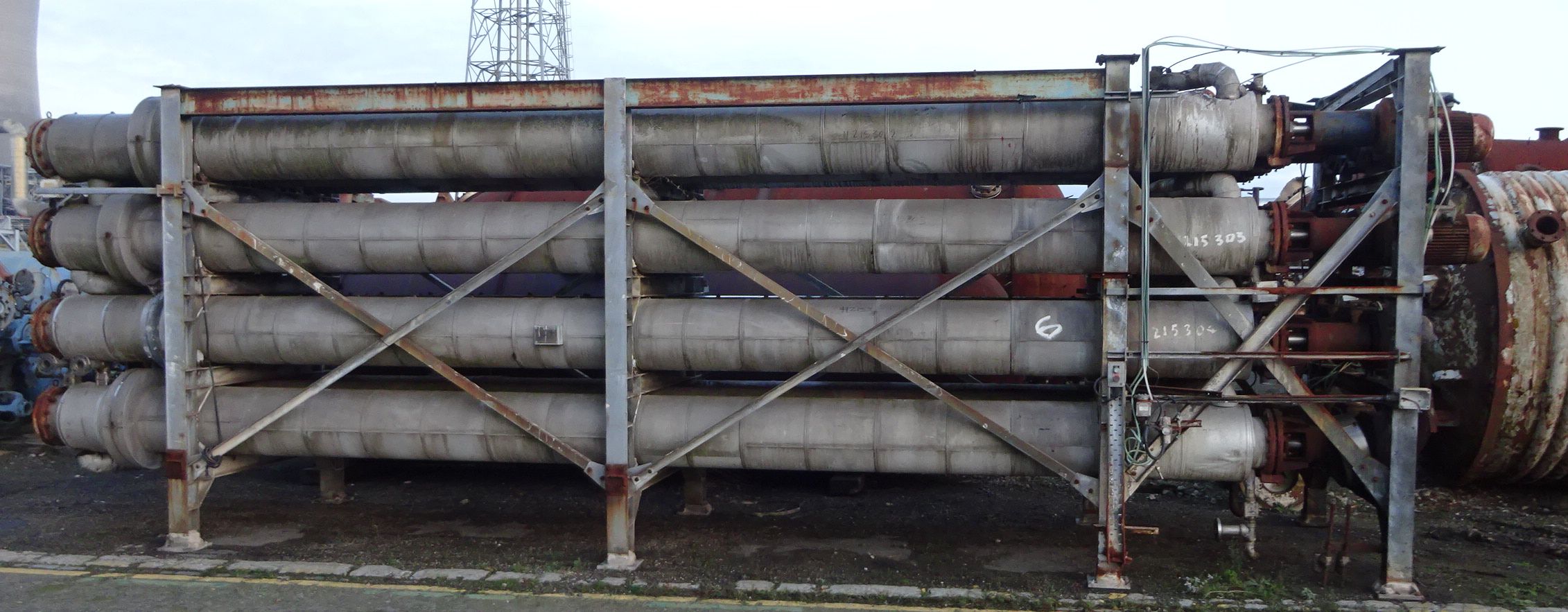

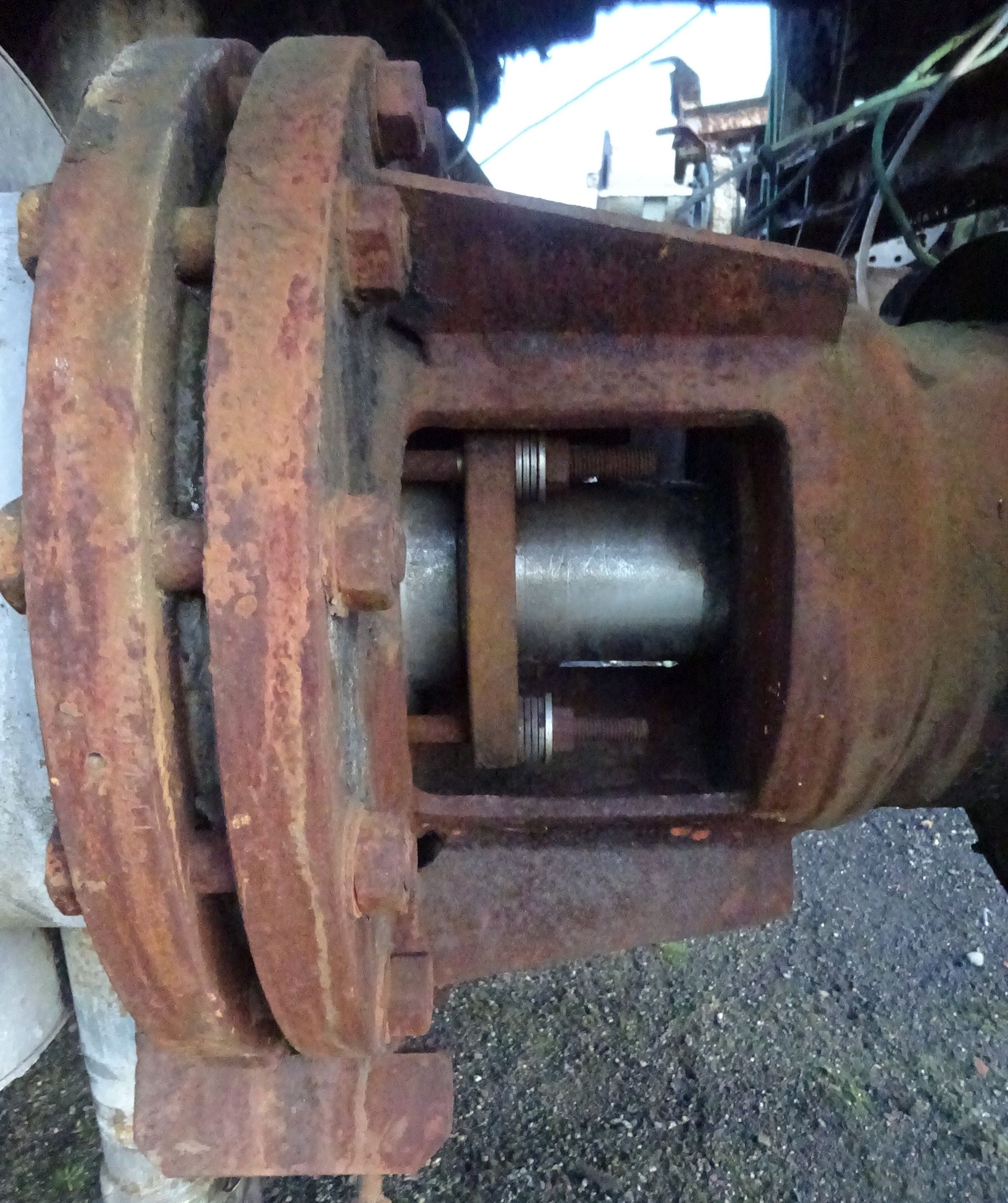

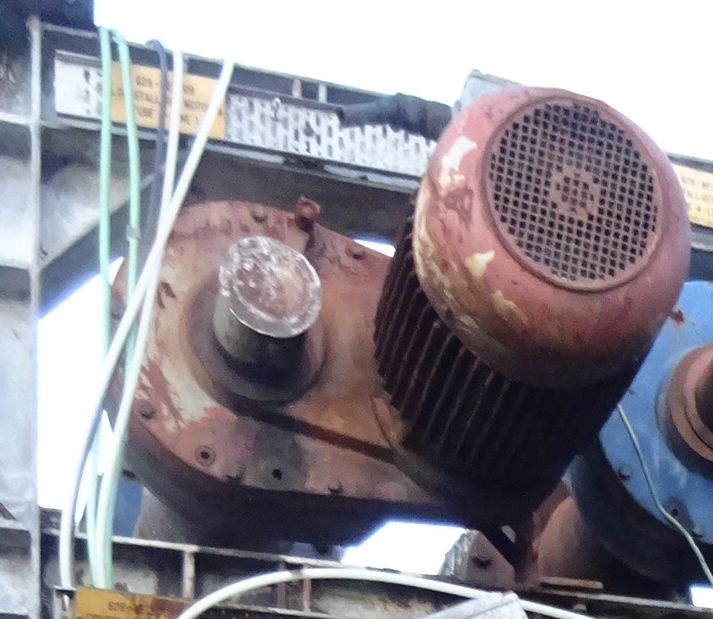

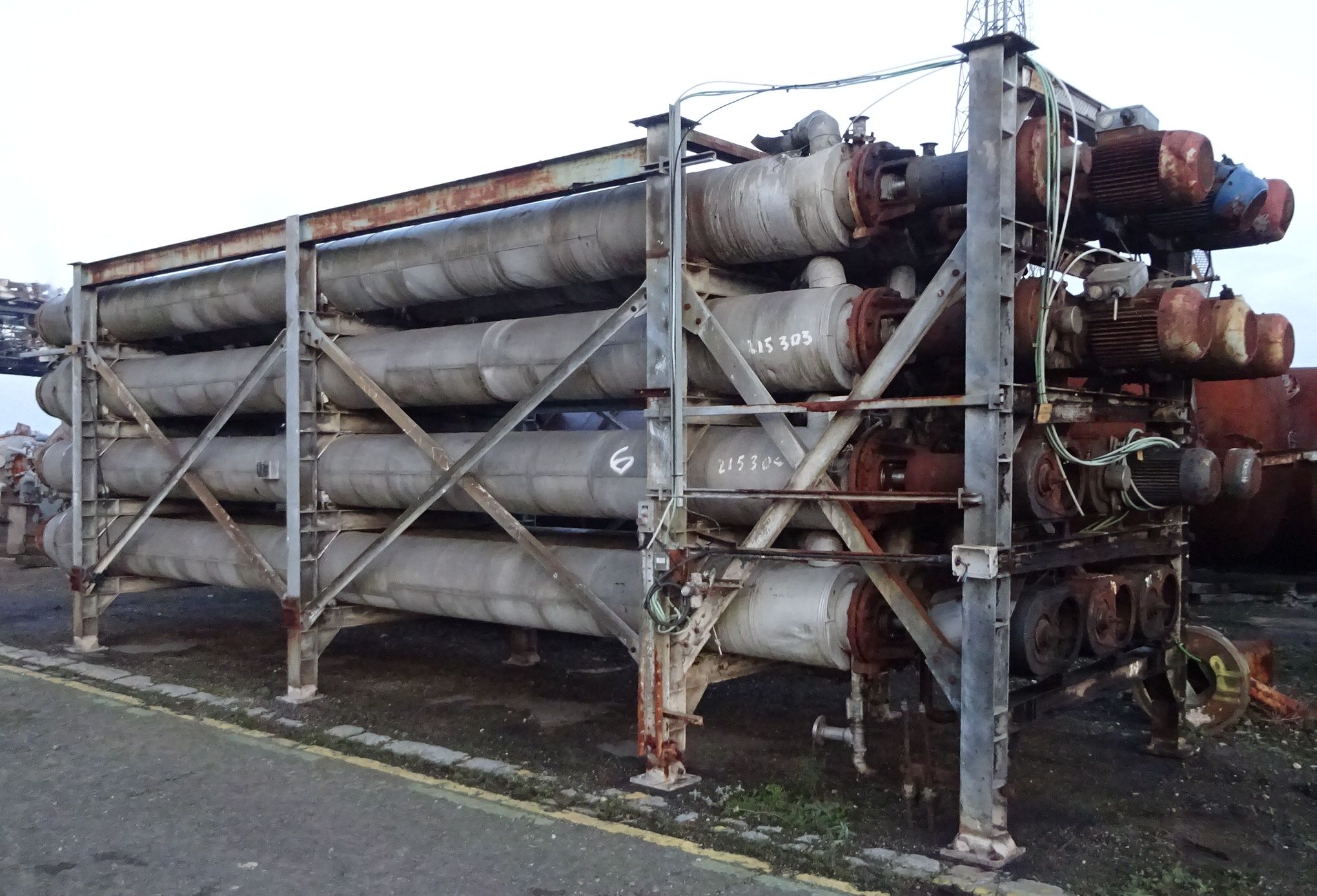

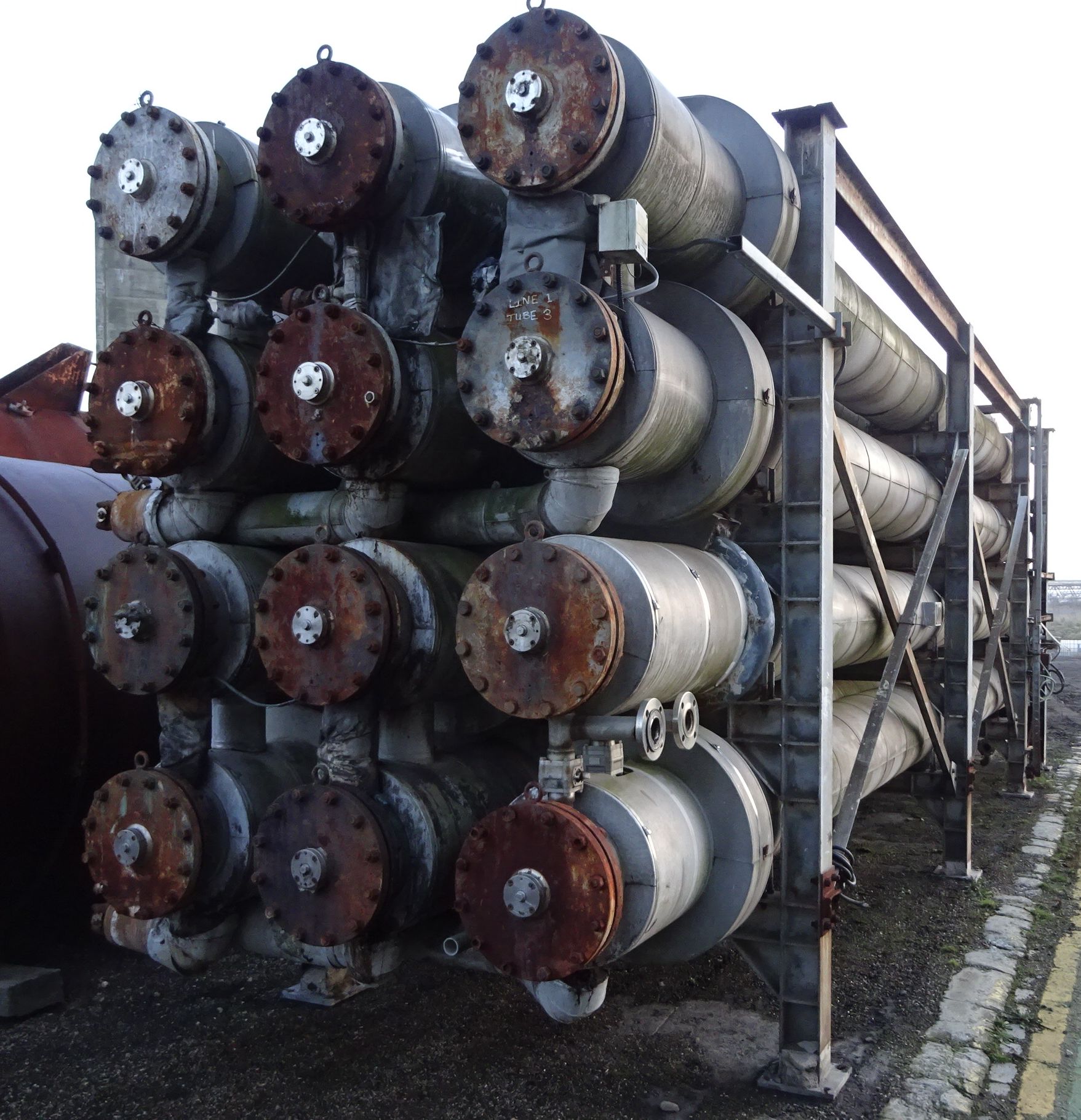

wiped film evaporator/crystalliser 316Ti (1.4571) stainless steel wetted parts, 323.9mm ID x 8450mm long x 7mm thick shell carbon steel jacket 368mm diameter x 8410mm long x 4mm thick with continuous internal flow spiral 200mm pitch, jacket with expansion bellows, 316Ti (1.4571) stainless steel 88.9mm OD internal scraper rotor, rotor shaft is in 2 pieces which join togeter via a key way, each shaft is fitted with welded lugs to carry scrapers attached to stainless steel springs, the scrappers are made from 25mm x 7mm 'Hartgewebe F24' 546mm long and are arranged with 4 scrapers at 90 degrees and 8 on each shaft, giving a total of 32 per shaft, packed gland on shaft, rotor with teflon bushes, shaft driven by a 2-speed motor, 5.5 kw, 3/50/380/400/415 volt, 950 rpm or 6.1 kw, 3/60/460/440, 1150 rpm via Fenner gearbox

Orientation: Horizontal. Diameter: 323 mm (12.7 in). Height: 8,450 mm (332.7 in). Pressure: 6 bar (87 psi). Temperature: 100 °C (212 °F).

Type: Evaporator

Subtype: Wiped/Thin Film

Manufacturer: Luwa SMS

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Evaporation Rate: 204.1 kg/h (450 lb/h)

Total Heat Transfer Surface Area: 8.4 m² (90.5 ft²)

wiped film evaporator/crystalliser jacket 6 bar @ 100 degrees C (130 liter), 316Ti (1.4571) stainless steel wetted parts, 323.9mm ID x 8450mm long x 7mm thick shell carbon steel jacket 368mm diameter x 8410mm long x 4mm thick with continuous internal flow spiral 200mm pitch, jacket with expansion bellows, 316Ti (1.4571) stainless steel 88.9mm OD internal scraper rotor, rotor shaft is in 2 pieces which join togeter via a key way, each shaft is fitted with welded lugs to carry scrapers attached to stainless steel springs, the scrappers are made from 25mm x 7mm 'Hartgewebe F24' 546mm long and are arranged with 4 scrapers at 90 degrees and 8 on each shaft, giving a total of 32 per shaft, packed gland on shaft, rotor with teflon bushes, shaft driven by 17.5 kw, 3/50/415 volt, 1420 rpm motor via gearbox, shaft speed 55 rpm

Orientation: Horizontal. Diameter: 323 mm (12.7 in). Height: 8,450 mm (332.7 in). Pressure: 6 bar (87 psi). Temperature: 100 °C (212 °F).
