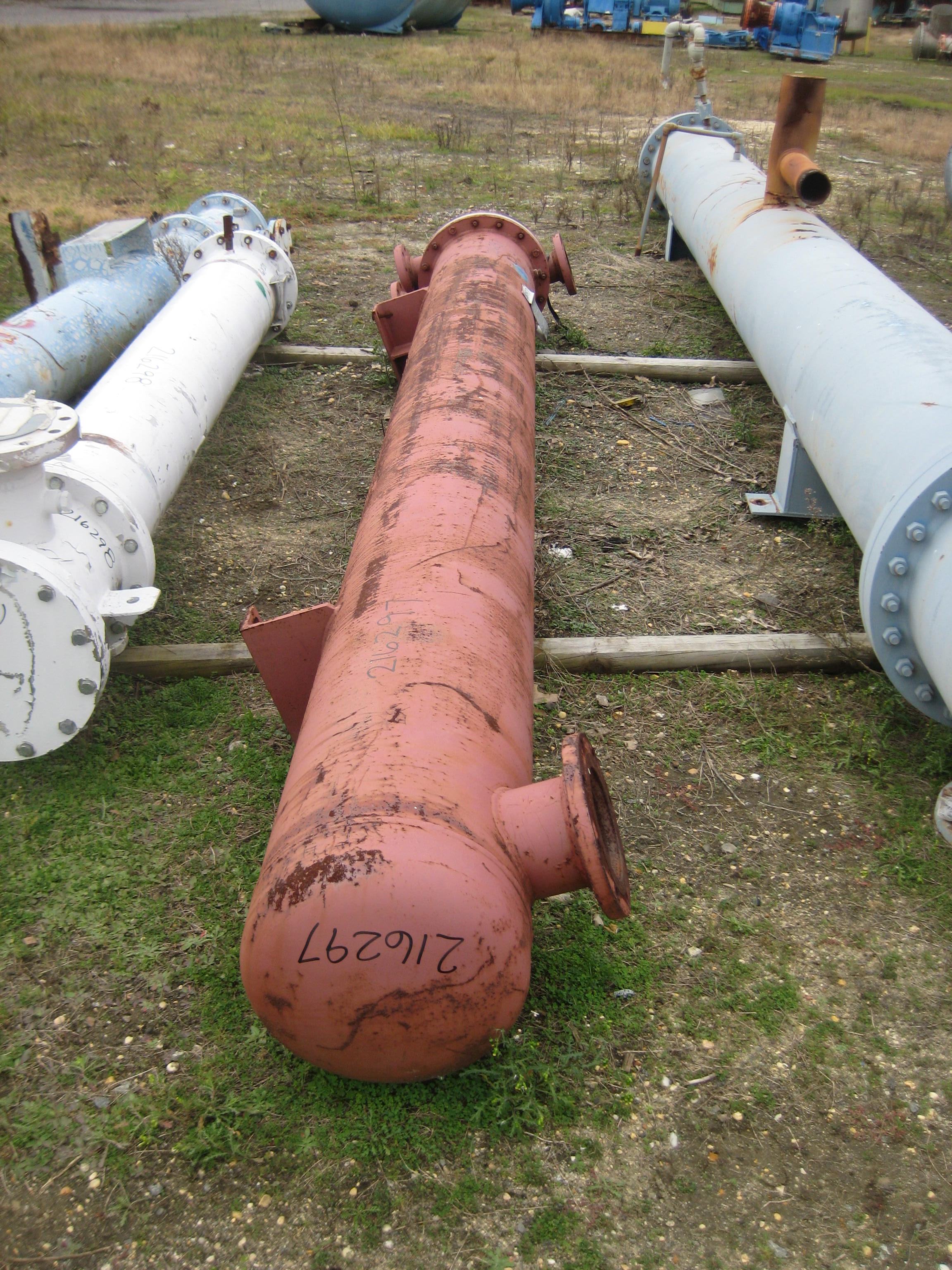

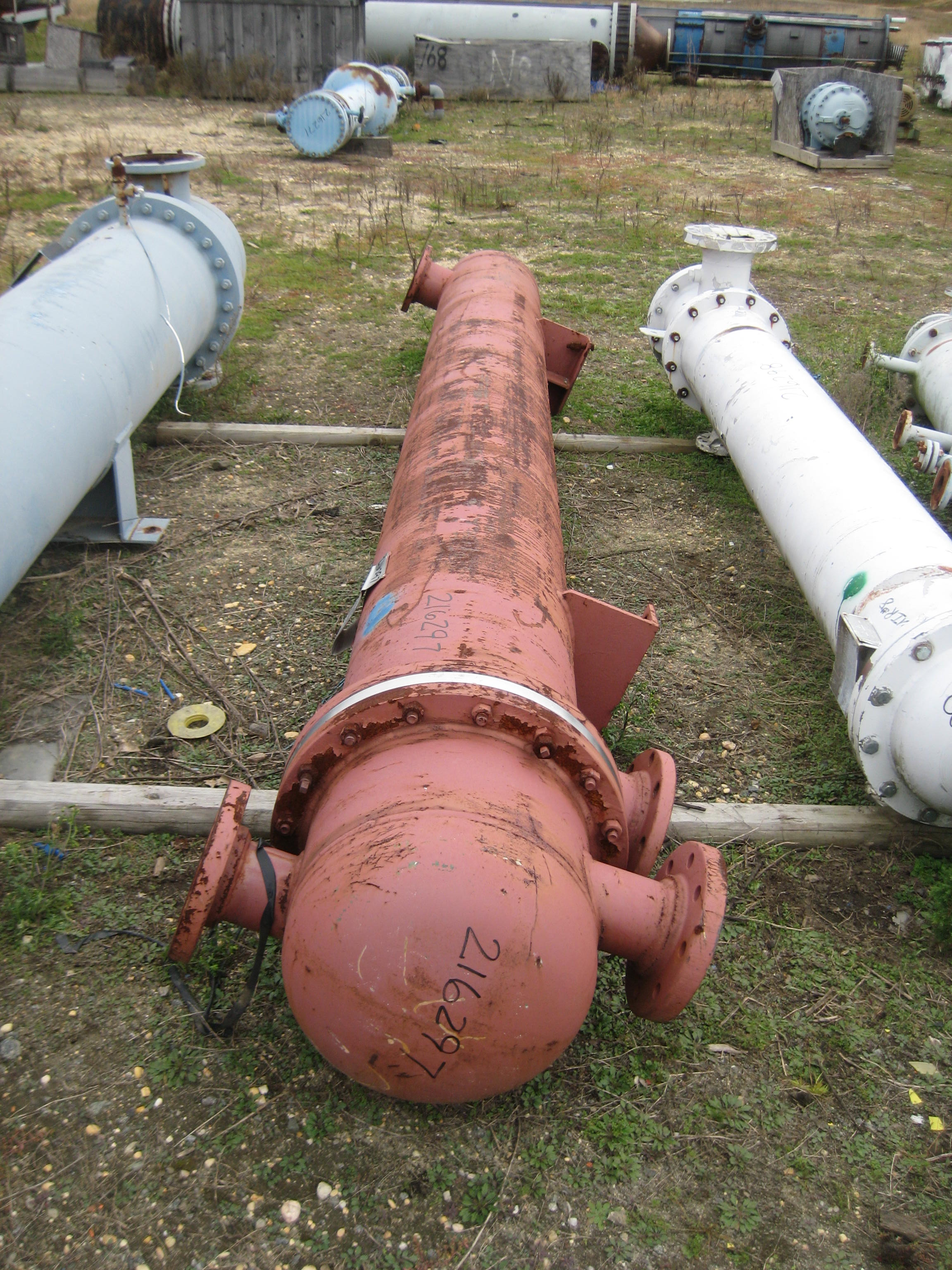

Hastelloy - C276 Rubicon WC16BUG-144H Shell and Tube Heat Exchanger - IPP# 216297

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Rubicon

Model: W86 BUG - 84HDTS

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 2.3 m² (25 ft²)

Orientation: Horizontal

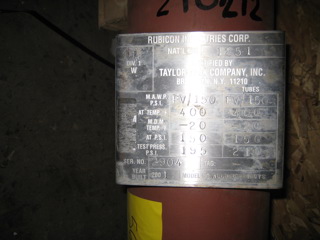

• Certification: Certified by Taylor Tank Co.

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 165.1 mm (6.5 in). Head Material: Stainless Steel 316. Length: 2,400 mm (95 in). Tube Type: U-Tube. Tube Number: 9. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,200 mm (86 in). Tube Thickness: 1.02 mm (0.04 in). Nozzle Schedule: - Openings: Head - (2) 1"; Shell - (2) 2" and 2 0.75" drain/vents.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Rubicon

Condition: Used

Material: Carbon Steel

Heat Transfer Surface Area: 22.7 m² (244 ft²)

Orientation: Horizontal

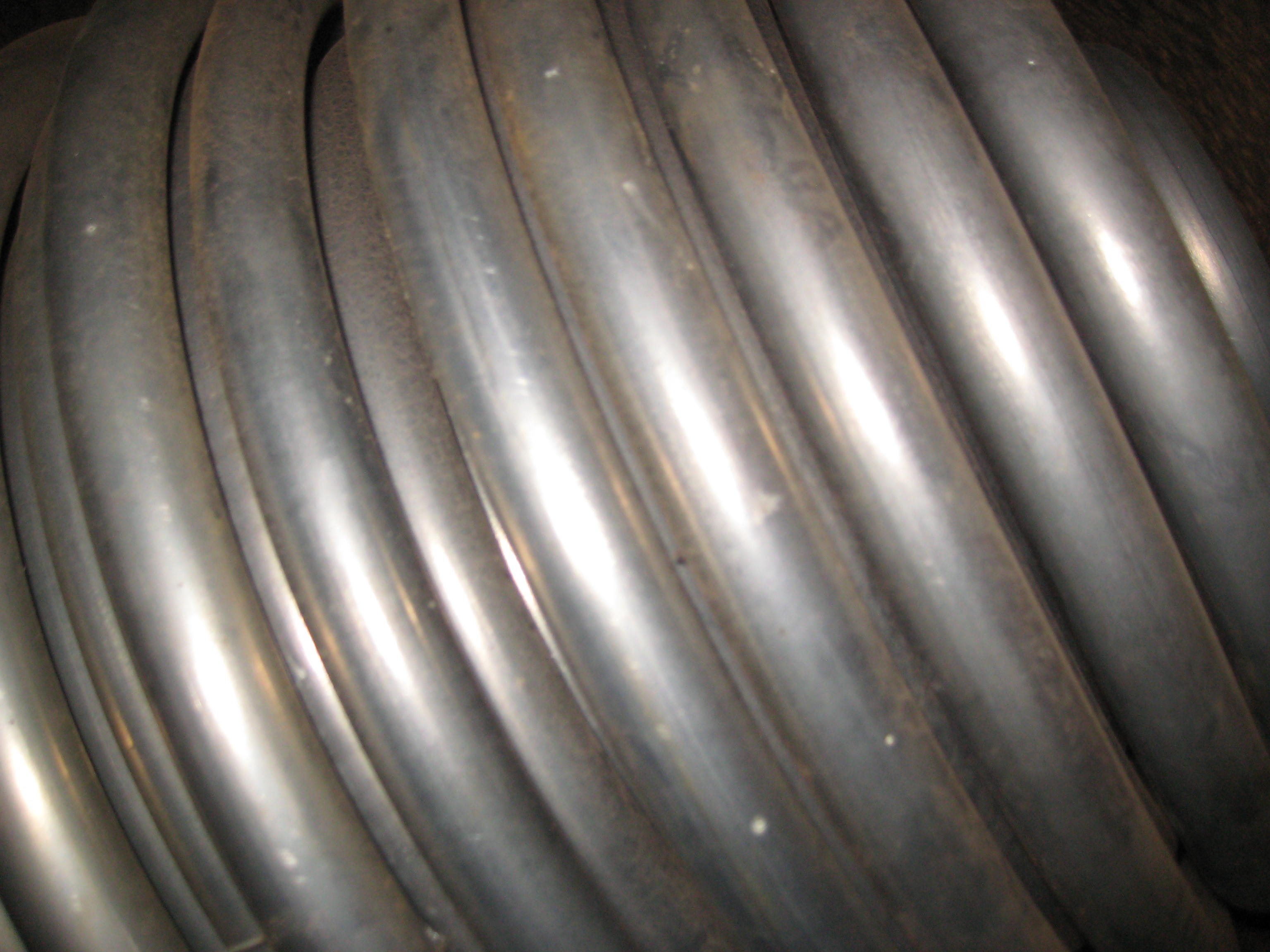

Shell rated 75 psi @ 400 deg. F, tubes rated 150 psi @ -65 deg. F Tube length: 18' around the bend

Shell Pressure: 5.2 bar (75 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: -53.9 °C (-65 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 304.8 mm (12 in). Head Material: Carbon Steel. Length: 3,650 mm (144 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: U-Tube. Tube Number: 69. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 406.4 mm (16 in). Nozzle Schedule: openings: Tube side - 2-6", Shell side 1-6", 1-4"..

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Manning & Lewis

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 32.5 m² (350 ft²)

Orientation: Horizontal

• Duty: 2,900,000 BTU/hr
• Tema Registration Number: 11-00-99763 2 pass design

Shell Pressure: 48.3 bar (700 psi). Shell Temperature: 315.6 °C (600 °F). Shell Material: Stainless Steel 316. Tube Pressure: 48.3 bar (700 psi). Tube Temperature: 315.6 °C (600 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Head Material: Stainless Steel 316L. Length: 4,150 mm (163 in). Tube Type: Straight Tube. Tube Number: 155. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 3,350 mm (132 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Shell Side Inlet: 4' - Shell Side Outlet: 8' - Tube Side Inlet: 8' - Tube Side Outlet: 8'.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Atlas Industrial

Model: 20-42 BEM

Condition: Used

Material: Hastelloy - C276

Heat Transfer Surface Area: 19.6 m² (211 ft²)

Orientation: Vertical

Shell Pressure: 10.3 bar (150 psi). Shell Temperature: 204.4 °C (400 °F). Shell Material: Carbon Steel. Tube Pressure: 10.3 bar (150 psi). Tube Temperature: 204.4 °C (400 °F). Tube Material: Hastelloy - C276. Tubesheet Material: Hastelloy - C276. Vacuum: Yes. Shell Diameter: 508 mm (20 in). Head Material: Hastelloy - C276. Length: 1,000 mm (40.3 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 324. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,000 mm (40 in). Tube Thickness: 1.24 mm (0.05 in). Nozzle Schedule: Two 6", two 3", Two 1", one 0.75".
