Stainless Steel Austenitic Buss AG Batch-Type Agitated Reactor - IPP# 217609

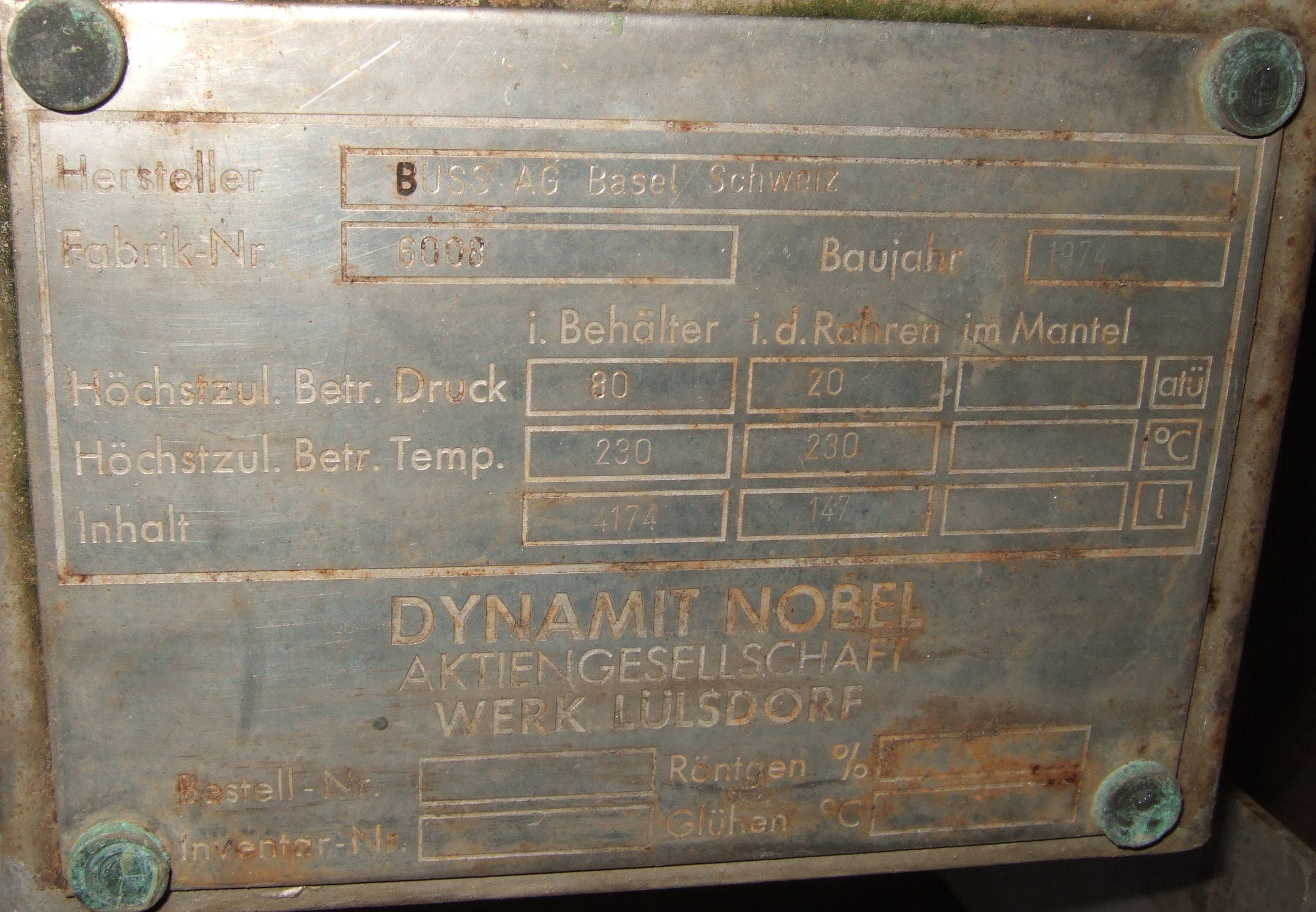

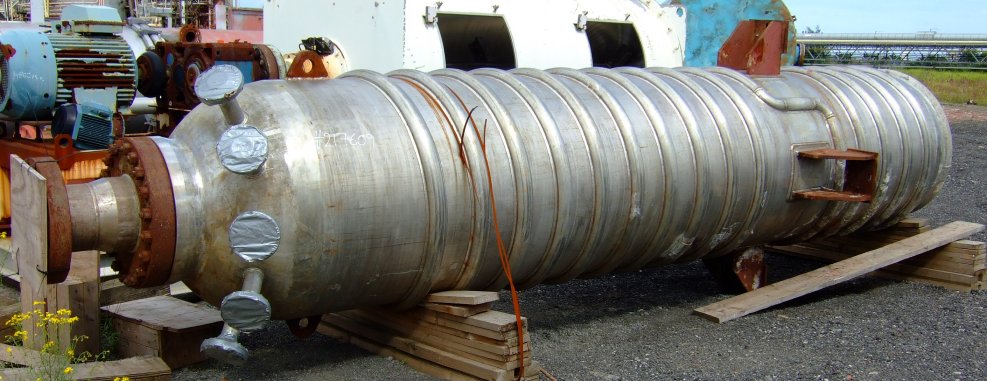

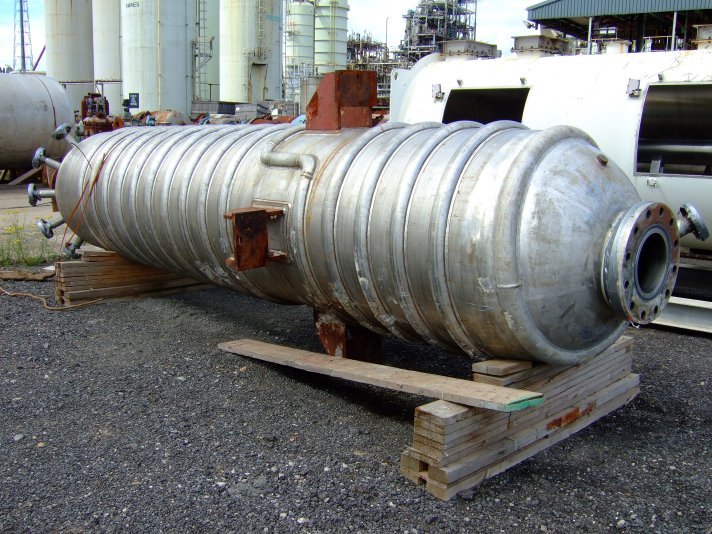

internal pressure 80 bar @ 230 deg C (4174ltr), jacket 20 bar @ 230 deg C (147ltr), 40mm thick straight side, 28mm thick top and bottom

(1) 167ltr 316L s/steel (1.4571) reactor, manufactured by Weigand & Wisser, fabrik #65, internal pressure 6 bar @ 120 deg C, jacket 8 bar @ 120 deg C, bolt dished top, weld dished bottom, 500mm diameter x 570mm straight side, 304 s/steel (1.4301) half pipe coil jacket, Ekato type PM-242 agitator drive, driven by 0.55 kw, 1390 rpm motor, openings top: 1-100mm, 1-80mm, 3-25mm, straight side: 1-25mm, 1-25mm (jacket), bottom: 1-25mm, 1-25mm (jacket), mounted on (2) lugs.

(1) 8.7 sqm c/steel tube, and shell vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #67, pressure tube side 20 bar @ 300 deg C (62ltr), shell 20 bar @ 300 deg C (125ltr), (31) 30mm diameter x 2.5mm x 4m long c/steel tubes, shell 273mm diameter x 4245mm overall length, expansion bellows, (no heads), openings shell side 1-80mm, 1-50mm, mounted on (2) lugs.

(1) 60 sqm 316L s/steel tube, shell and head vertical heat exchanger, manufactured by Huls, fabrik #1201, pressure tube side: 83 bar @ 230 deg C (365ltr), shell 20 bar @ 230 deg C (538ltr), (139) 25mm diameter x 2.5mm x 6642mm long 316L s/steel tubes, 316L s/steel shell 457mm diameter x 7430mm overall length, expansion bellows, (2) 316L s/steel coned heads, (15) internal 316L s/steel baffle plates, openings tubeside: top head with 1-250mm, bottom head with 1-200mm, shell: 2-200mm, mounted on (2) lugs.

(1) 117 sqm c/steel tube shell and head vertical heat exchanger, manufactured by Weigand & Wisser, fabrik #68, pressure tube side 4 bar @ 100 deg C (570ltr), shell 20 bar @ 300 deg C (750ltr), (196) 25mm diameter x 2.5mm x 7.5m long tubes, shell 500mm diameter x 8235mm overall length, expansion bellows, (1) bonnet head, (1) dished head, openings tubeside bonnet head with 2-200mm, dished head with no openings, shell 1-200mm, 1-150m, mounted on lugs.

(1) 495ltr 316L s/steel (1.4571) vertical pressurel tank, manufactured by Metatec Gmbh, fabrik #8828/2, pressure -1/8 bar @ 100/20 deg C, weld dished top and bottom, 700mm diameter x 1124mm straight side, mounted on legs.

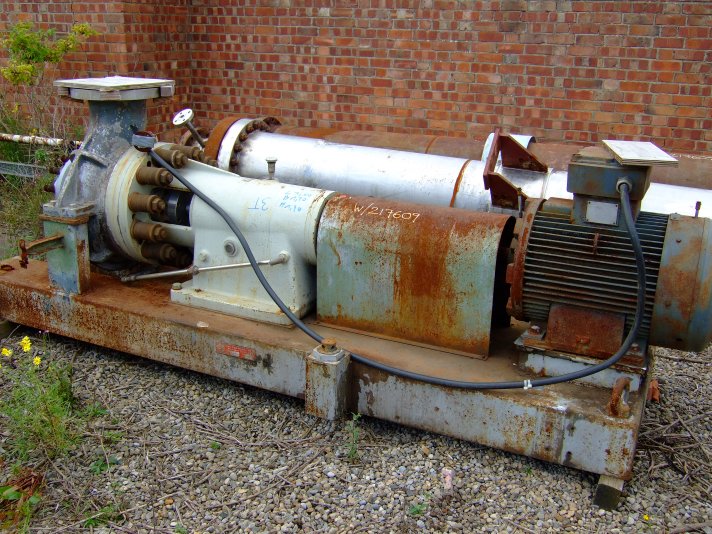

(1) 351 m3/hr @ 30 m hd 316L s/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/1146/9, type BM340/200/1, mechanical seal, driven by 55 kw, 3/50/500 volt, 1475 rpm Exd3nG4 motor, mounted on baseplate.

(1) 199.8 m3/hr @ 28 m hd c/steel centrifugal pump, manufactured by Bieri Pumpenbau AG, fabrik #73/121000002, type BM340/150/1, mechanical seal, driven by 37 kw, 3/50/500 volt, 1465 rpm Exd 3nG4 motor, mounted on baseplate.

(1) centrifugal pump, (1) Lewa diaphragm pump,(1) 1500ltr c/steel horizontal pressure tank, manufactured by Weigand & Wisser, fabrik #69, pressure 20 bar @ 300 deg C, 1m diameter x 1480mm straight side, weld dished ends, openings top: 1-500mm manway, 1-50mm, 2-25mm, 1-end with 2-25mm, 1-end with no openings, bottom: 1-250mm, 1-200mm, mounted on (4) lugs with legs.All parts TUV certified
