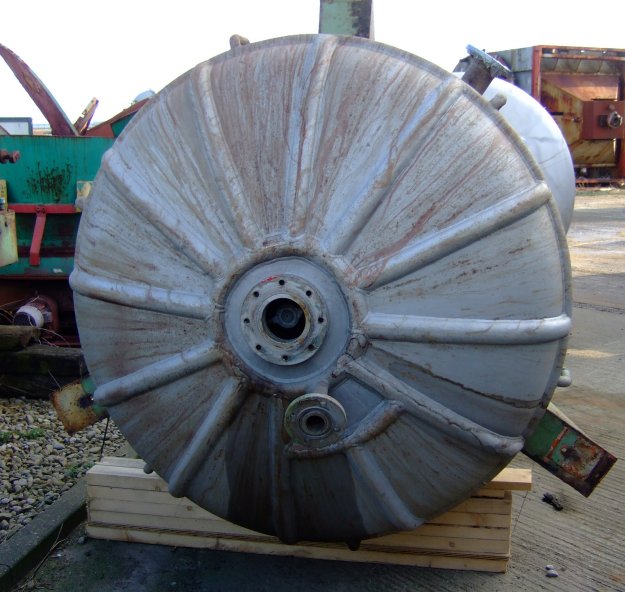

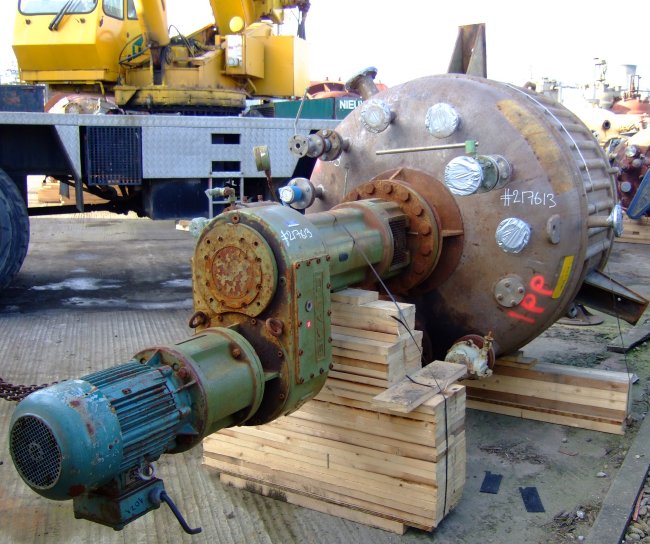

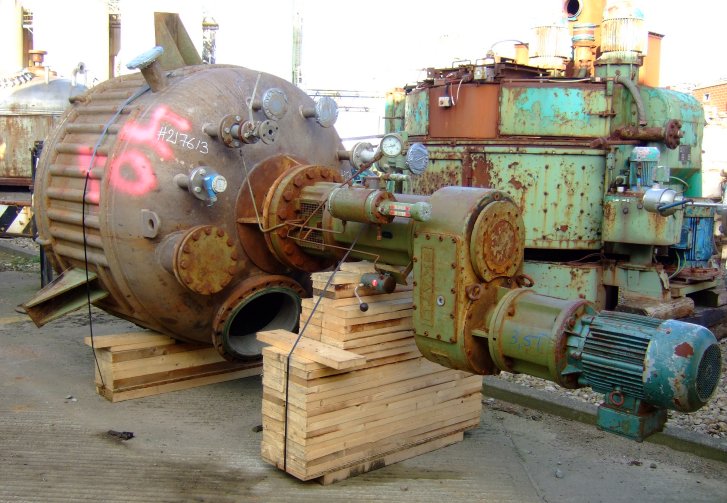

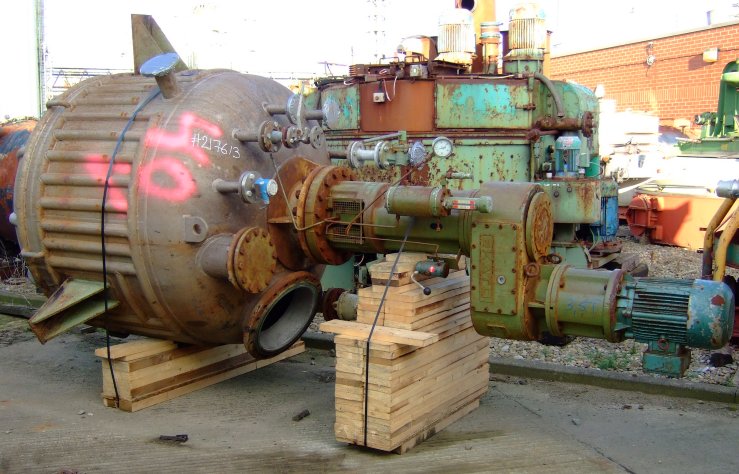

Stainless Steel Austenitic Dynamite Nobel Batch-Type Agitated Reactor - IPP# 217613

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 6,900 L (1,800 gallons)

Internal Pressure: 6 bar (87 psi)

• 6000 liter working volume

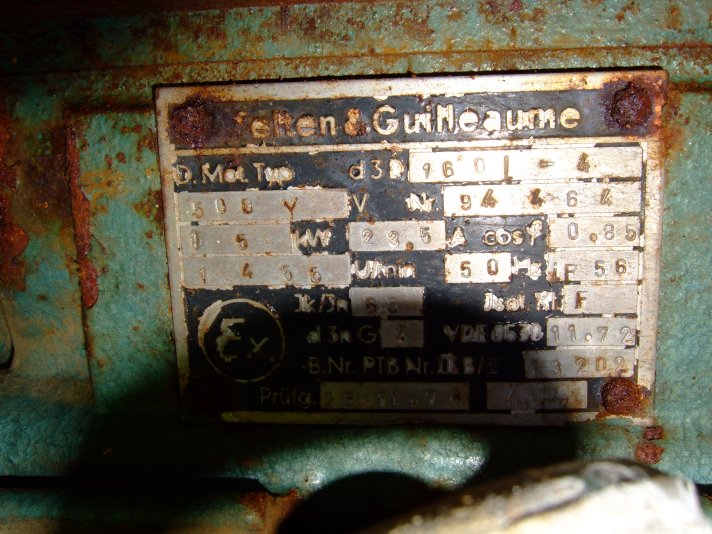

• EExde IIB T4 motor
• mechanical seal with lubricator
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8.5 bar (123.3 psi). Jacket Temperature: 300 °C (572 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 2,200 mm (85.8 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Dynamite Nobel

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 3,100 L (819 gallons)

Internal Pressure: 8 bar (116 psi)

• design pressure internal 8 bar + Vacuum @ 200 degrees C,
• jacket 8 bar @ 250 degrees C (300ltr),
• mechanical seal with lubricator,
• top and bottom dish 16mm thick, straight side 14mm thick,
• jacket straight side 16mm thick, bottom dish 12mm thick,
• TUV certified

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 8 bar (116 psi). Jacket Temperature: 250 °C (482 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 930 mm (36.6 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gerhard & Rauh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 2,900 L (766 gallons)

Internal Pressure: 6 bar (87 psi)

316 Ti ss internal pressure 6 bar @160 degrees C jacket 6 bar @ 160 degrees C (total volume 59 liter)

Internal Temperature: 160 °C (320 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 160 °C (320 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,500 mm (59.1 in). Straight Side Length: 1,200 mm (48 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Kosik Gmbh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 7,000 L (1,850 gallons)

Internal Pressure: 1.5 bar (21.8 psi)

with external carbon steel half pipe coil, internal pressure rated 1.5 bar @ 100 degrees C ( volume 7000 liter) , external coil pressure rated 6 bar @ 150 degrees C (volume 100 liter Motor type ENGV-132MB-42M, serial number 1814781, 3~/50Hz/380V/2,905rpm, EExeIIT3,

Internal Temperature: 100 °C (212 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,800 mm (70.9 in). Straight Side Length: 3,500 mm (137.8 in). Support Type: Lugs.
