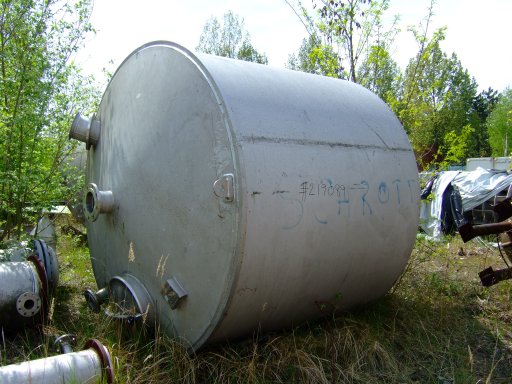

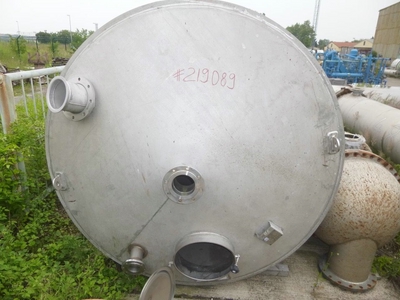

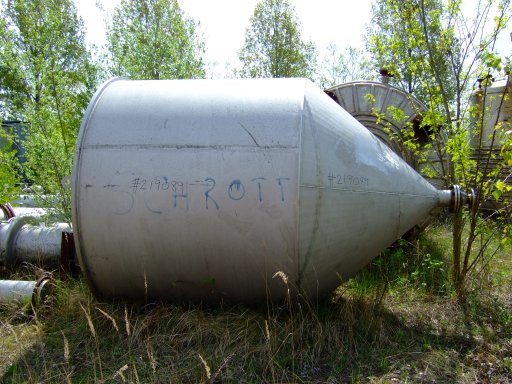

Stainless Steel Austenitic Michael Glatt Gmbh Tank - IPP# 219089

Type: Tank

Manufacturer: Paul Schwingel GmbH

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 810 L (214 gallons)

Orientation: Vertical

• Pressure tank with half pipe coil

Diameter: 900 mm (35.4 in). Straight-side Length: 999 mm (39.3 in). Internal Pressure: 6.2 bar (89.9 psi). Internal Temperature: 250 °C (482 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 250 °C (482 °F). Vacuum: Yes. Support: Other.

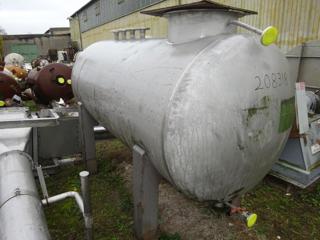

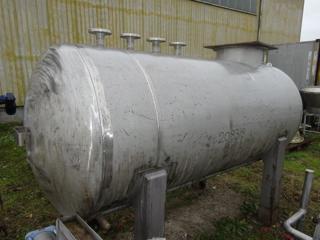

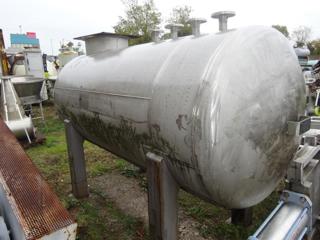

Type: Tank

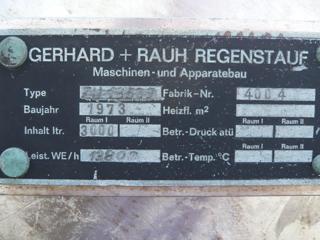

Manufacturer: Gerharb & Rauh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 3,000 L (793 gallons)

Orientation: Horizontal

• heating coil under the vessel
• 50mm bottom outlet with 15mm off shoot

Diameter: 1,150 mm (44.9 in). Straight-side Length: 2,400 mm (94.5 in). Support: Legs.

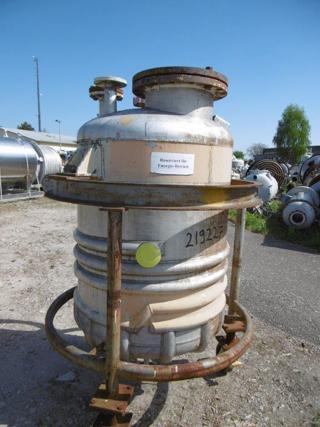

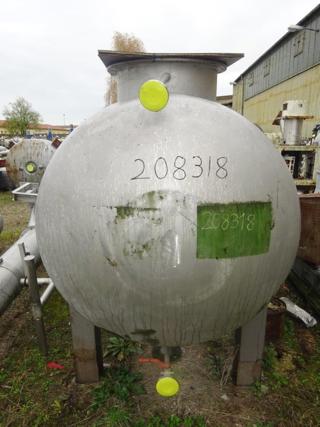

Type: Tank

Manufacturer: Fritz Rauscher

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 1,500 L (396.3 gallons)

Orientation: Vertical

• pressure Tank
• internal pressure -1/+2.5 bar @ 100 Degrees C,

Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,900 mm (74 in). Internal Pressure: 2.5 bar (36.3 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Fritz Rauscher

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 1,500 L (396.3 gallons)

Orientation: Vertical

• 316L s/steel (1.4571) pressure tank
• internal pressure -1/+2.5 bar @ 100 Degrees C

Diameter: 1,100 mm (43.3 in). Straight-side Length: 1,900 mm (74 in). Internal Pressure: 2.5 bar (36.3 psi). Internal Temperature: 100 °C (212 °F). Vacuum: Yes. Support: Legs.
