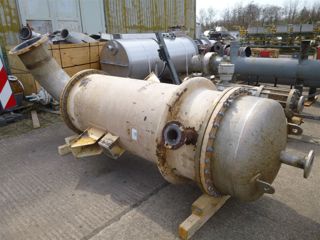

IPP# 220585 - Rising/Falling Film Evaporator Stainless Steel Austenitic For Sale

Type: Evaporator

Subtype: Rising/Falling Film

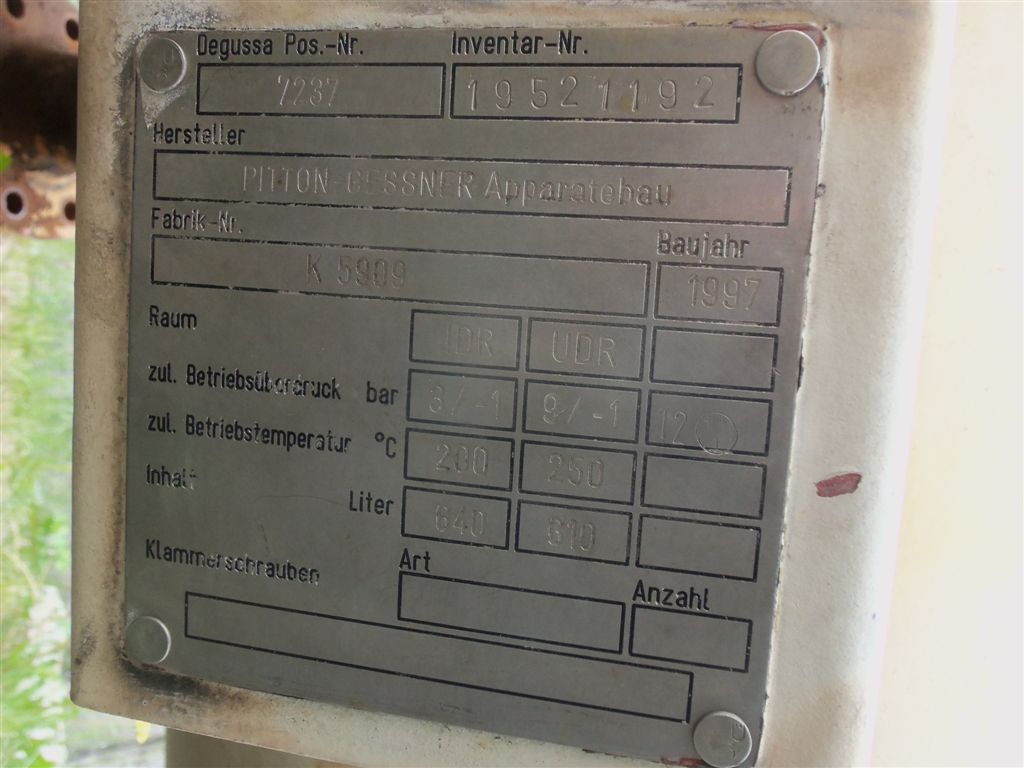

Manufacturer: Pitton-Gessner/Germany

Condition: Used

Material: Stainless Steel 321

Total Heat Transfer Surface Area: 40 m² (431 ft²)

Pressure: 3 bar (43.5 psi)

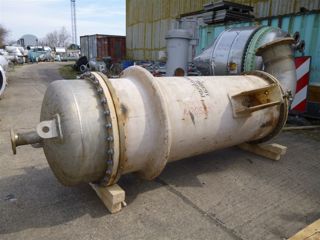

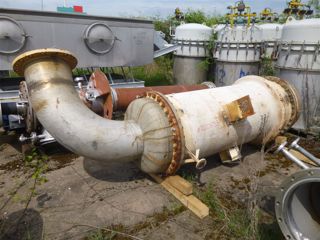

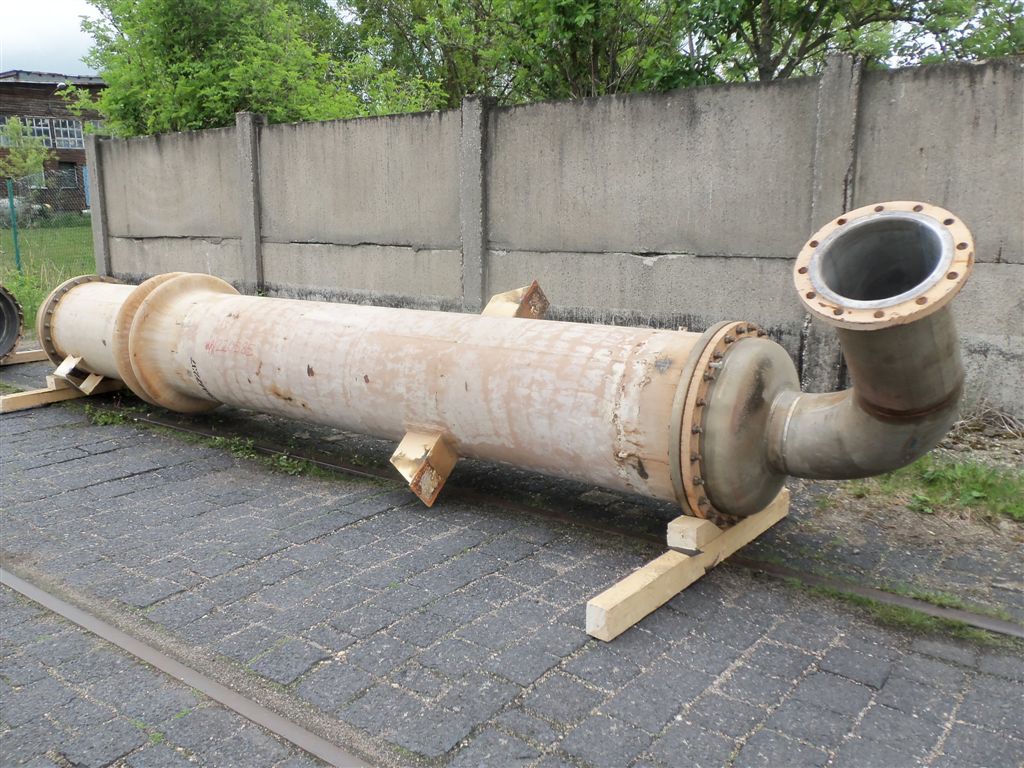

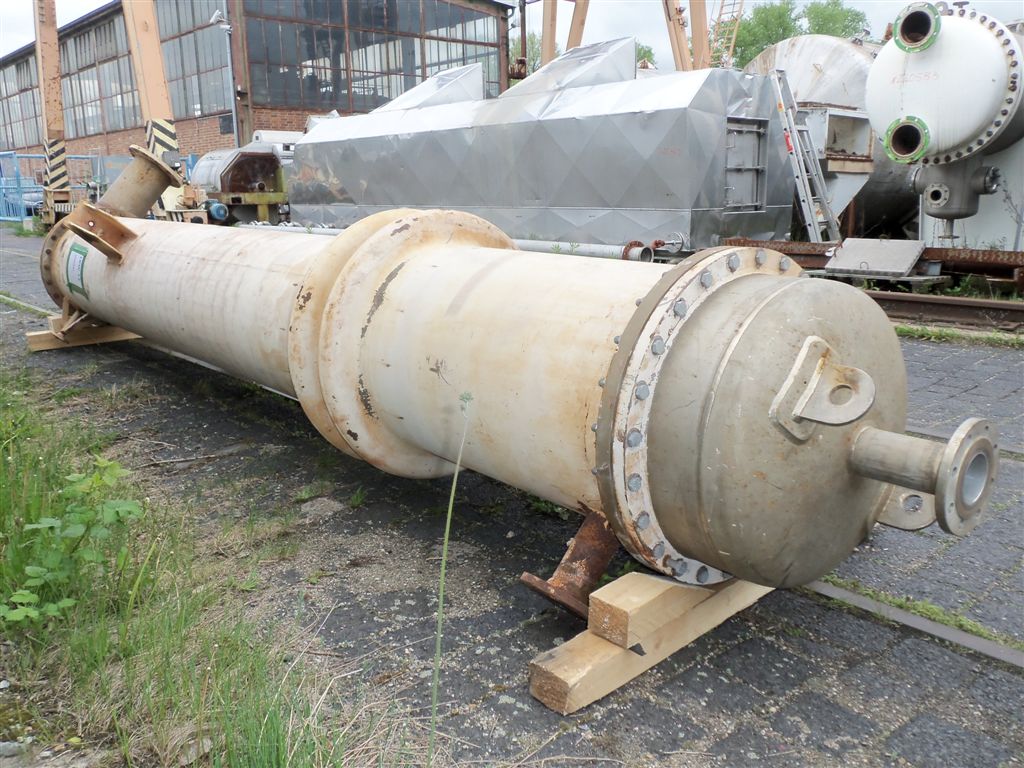

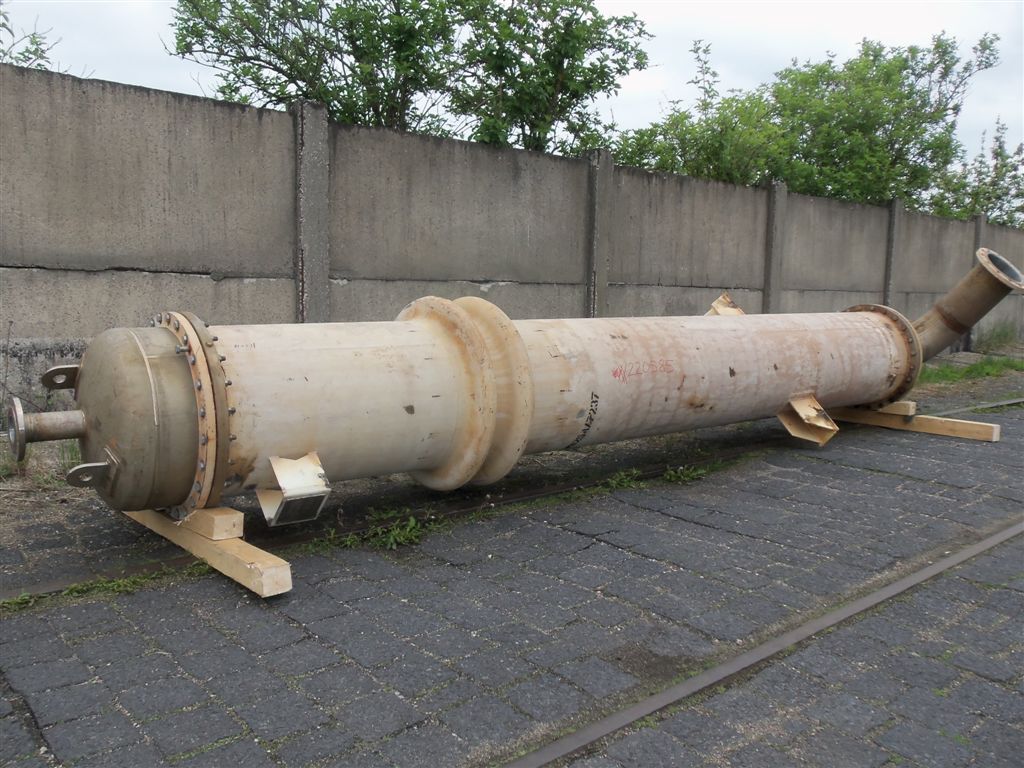

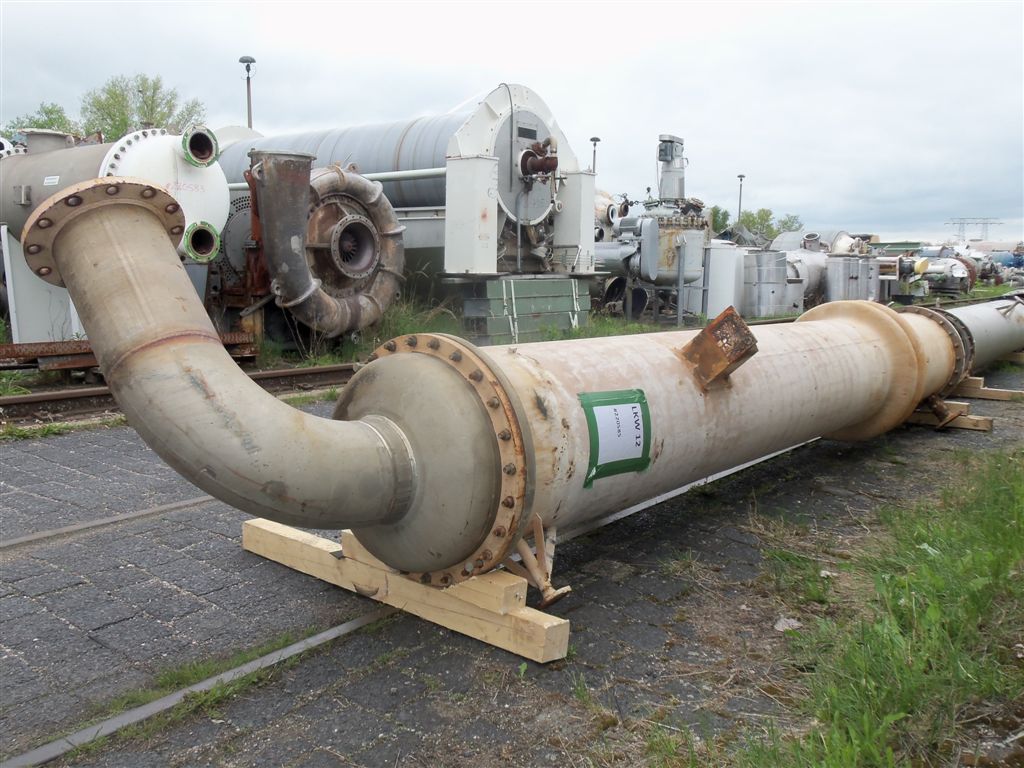

1.4541/1.0425 SS falling film evaporator
215 l in the tubes, -1/9bar@250 ° C, 500 l in the shell

Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Rising/Falling Film

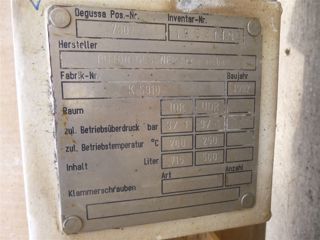

Manufacturer: Pitton-Gessner/Germany

Condition: Used

Material: Stainless Steel 321

Total Heat Transfer Surface Area: 40 m² (431 ft²)

Pressure: 3 bar (43.5 psi)

1.4541/1.0425 SS falling film evaporator,
715 l in the tubes
500 l in the shell

Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Rising/Falling Film

Manufacturer: Kleiser Gmbh

Condition: Used

Material: Stainless Steel Austenitic

Evaporation Rate: 6,700 kg/h (14,771 lb/h)

Orientation: Vertical

single effect vertical falling film evaporator
jacket -1/6 bar @ 200 degrees C (1100 liter), 6.7 m3/hour evaporation rate
Fabrik #3981
single pass tubeside, 316Ti (1.4571) stainless steel tubesheets, 800mm diameter 316Ti stainless steel shell with expansion joint, 7m overall length, (2) 316Ti stainless steel (1.4571) dished heads
evaporator with (1) 316Ti stainless steel (1.4571) expansion boiler, 1227 liter, 800mm diameter x 2250mm, pressure and vacuum resistant, manual valves and control valves

Pressure: 6 bar (87 psi). Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Evaporator

Subtype: Rising/Falling Film

Manufacturer: Wiegand/Becker

Condition: Used

Material: Stainless Steel Austenitic

Clad: Yes

Evaporation Rate: 100 kg/h (220 lb/h)

Total Heat Transfer Surface Area: 3.77 m² (40.6 ft²)

single effect falling film evaporator system, product feed approximately 300 kg/hr @ 20 degrees C, product output approximately 200 kg/hr @ 50 degrees C, system includes:
shell -1/3.2 bar @ 150 degrees C (66 liter),
220mm diameter 316 stainless steel (1.4571) shell, with expansion bellows, insulated and clad,
(1) 300 liter 316 stainless steel (1.4571) vertical jacketed separator vessel, manufactured by Wiegand/Becker, pressure internal -1/3.2 bar @ 150 degrees C, jacket: -1/3.2 bar @ 150 degrees C, 508mm diameter x 1500mm straight side
insulated and clad,
(1) 316 stainless steel (1.4571) tube, shell and head vertical preheater/condenser,
manufactured by Wiegand/Becker, serial #3681,
pressure tubeside -1/3.2 bar @ 150 degrees C (46 liter), shell -1/3.2 bar @ 150 degrees C, (5.6 liter), 140mm diameter x 4m long 316 stainless steel shell, (2) 316 stainless steel (1.4571) bolt dished heads, mounted on lugs, insulated and clad,
(1) 316 stainless steel(1.4571) tube, shell and head vertical condenser, manufactured by Wiegand/Becker,
serial #3682, pressure tubeside -1/3.2 bar @ 150 degrees C (61 liter), shell -1/3.2 bar @ 150 degrees C (25 liter), 168mm diameter x 3944mm long 316 stainless steel shell. (2) 316 stainless steel (1.4571) flat heads, Mounted on lugs, insulated and clad,
(3) 316 stainless steel(1.4571) centrifugal circulation pumps, manufactured by Fristam/Stamp, (1) pump is a type FP712/120KF and (2) are type FP712/130KF, 1.1 kW/2900 rpm, openings DN40/PN16 inflow and (1) DN40/PN16 outlet
driven by 1.1 kW, 220-380V/50 Hz/ 2840 rpm, ex proof (T3) motor, mounted on baseplate;
Other ancillaries include, carbon steel framework, control panel, miscellaneous stainless steel pipework,

Pressure: 3.2 bar (46.4 psi). Temperature: 150 °C (302 °F). Vacuum: Yes.
