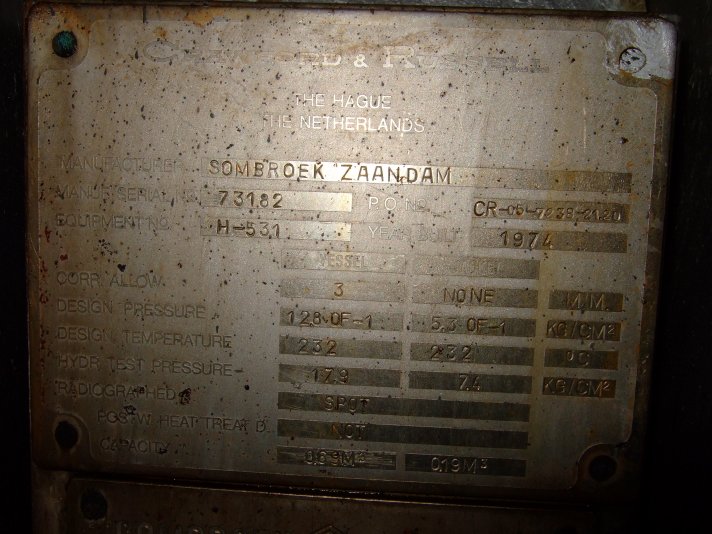

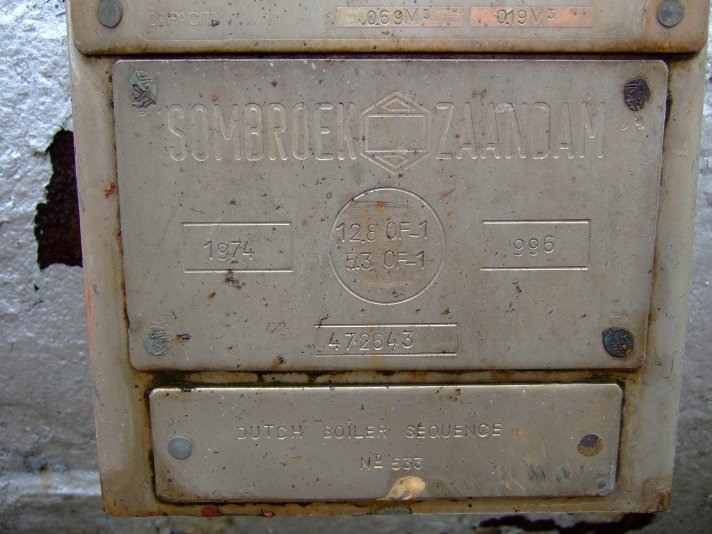

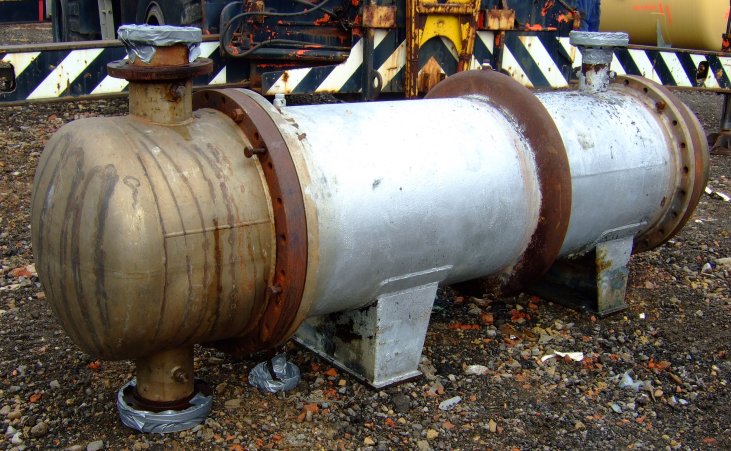

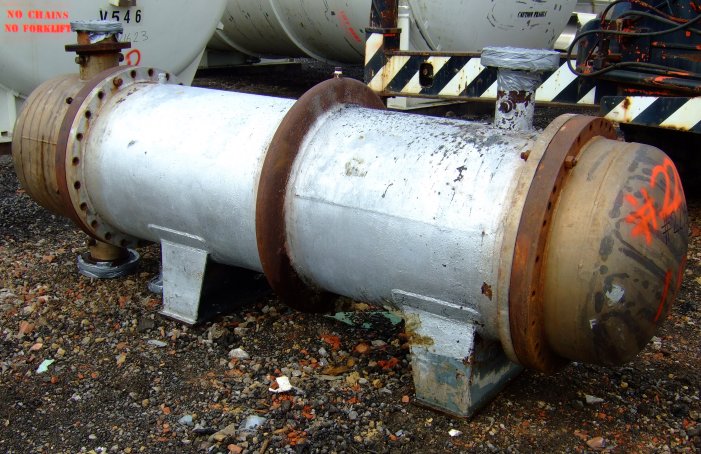

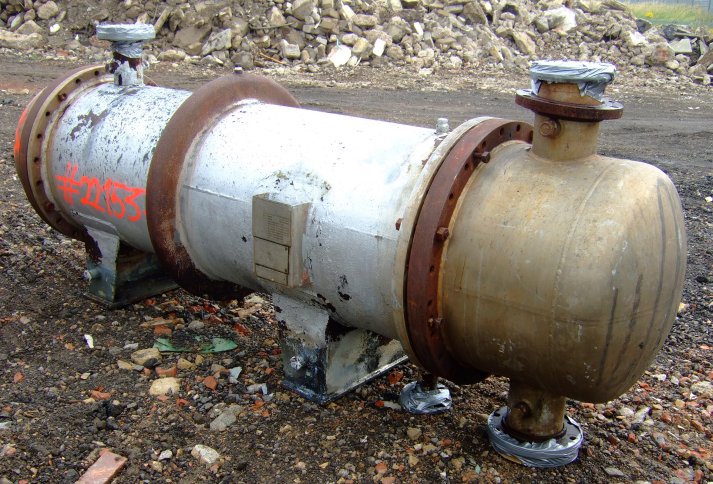

Stainless Steel 304 Sombroek Shell and Tube Heat Exchanger - IPP# 221537

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 11.4 m² (122.7 ft²)

Orientation: Horizontal

Expansion bellows: Yes (2) 304 s/steel bonnet heads

Shell Pressure: 20 bar (290.1 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Carbon Steel. Tube Pressure: 5 bar (72.5 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 323 mm (12.7 in). Head Material: Stainless Steel 304. Length: 2,900 mm (114.2 in). Tube Number: 48. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 2,050 mm (81.5 in). Nozzle Schedule: Tube side openings: (1) head with 2-3", (1) head with none - Shell side openings: 1-2", 1-1 1/2".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 14.5 m² (156 ft²)

Orientation: Horizontal

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 150 °C (302 °F). Shell Material: Carbon Steel. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 150 °C (302 °F). Tube Material: Titanium. Vacuum: Yes. Shell Diameter: 273 mm (10.7 in). Head Material: Titanium. Length: 5,300 mm (208.7 in). Tube Type: U-Tube. Tube Number: 31. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 4,700 mm (185.4 in). Nozzle Schedule: - Openings: - Tubeside: 2-1 1/2" - Shell side: 2-2".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sombroek

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 39 m² (419.8 ft²)

Orientation: Horizontal

(2) 316 s/steel bonnet heads Expansion bellows: Yes

Shell Pressure: 10.5 bar (152.3 psi). Shell Temperature: 288 °C (550 °F). Shell Material: Carbon Steel. Tube Pressure: 5.3 bar (76.9 psi). Tube Temperature: 288 °C (550 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 500 mm (19.7 in). Head Material: Stainless Steel 316. Length: 4,300 mm (169.3 in). Shell-side Passes: 1. Tube-side Passes: 2. Tube Number: 190. Tube Diameter: 19 mm (0.75 in). Tube Length: 3,650 mm (144.1 in). Tube Thickness: 1.65 mm (0.06 in). Nozzle Schedule: Tube openings: - 1 head with 2-4" - 1 head with none - Shell openings: - 2-3" - 1-1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Kimura Kakoki

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 149.9 m² (1,600 ft²)

Shell Pressure: 5 bar (72 psi)

(2) 304LSS cone heads

Shell Temperature: -5 °C (23 °F). Shell Material: Carbon Steel. Tube Pressure: 10 bar (145 psi). Tube Temperature: -8.9 °C (16 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Shell Diameter: 1,200 mm (48 in). Head Material: Stainless Steel 304. Length: 2,000 mm (78 in). Tube Number: 806. Tube Diameter: 31.8 mm (1.25 in). Tube Length: 2,000 mm (78 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: - Openings: tube side 2-8"; shell side 2-4", 1-1", 1-1 1/2"..
