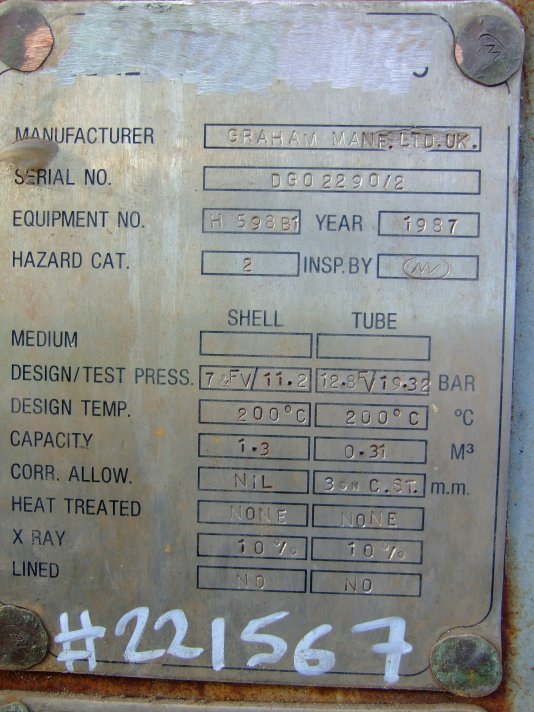

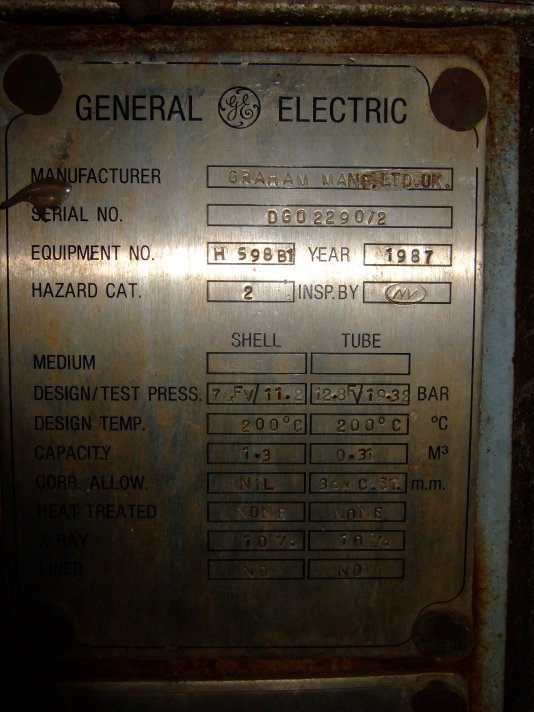

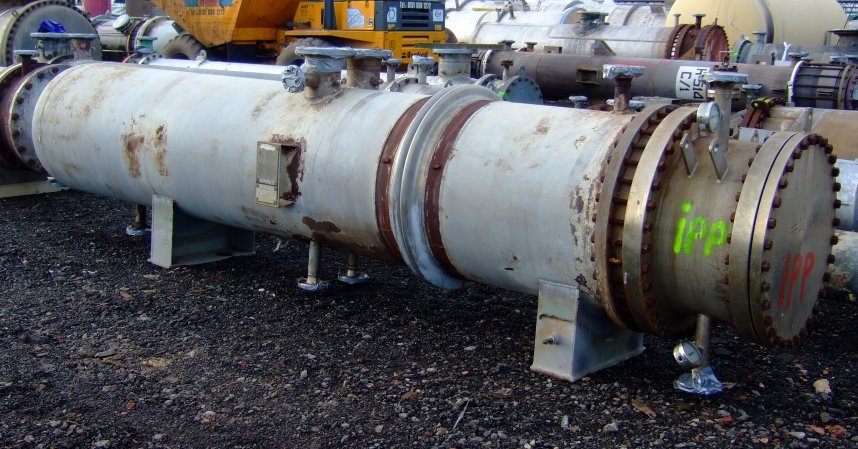

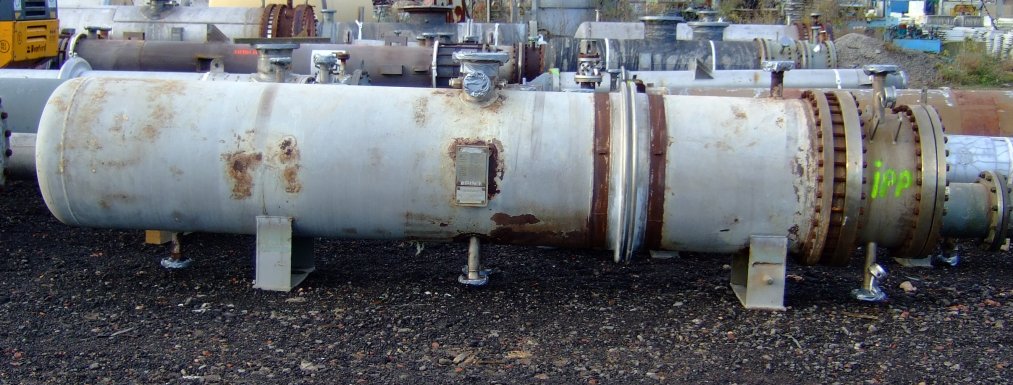

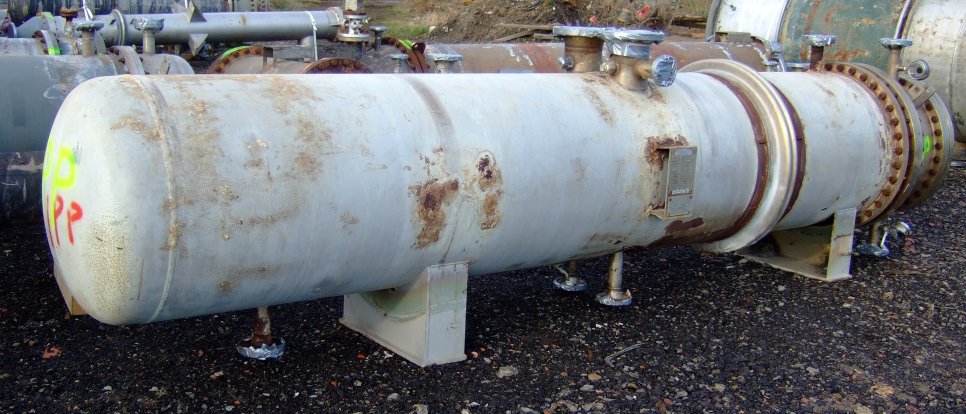

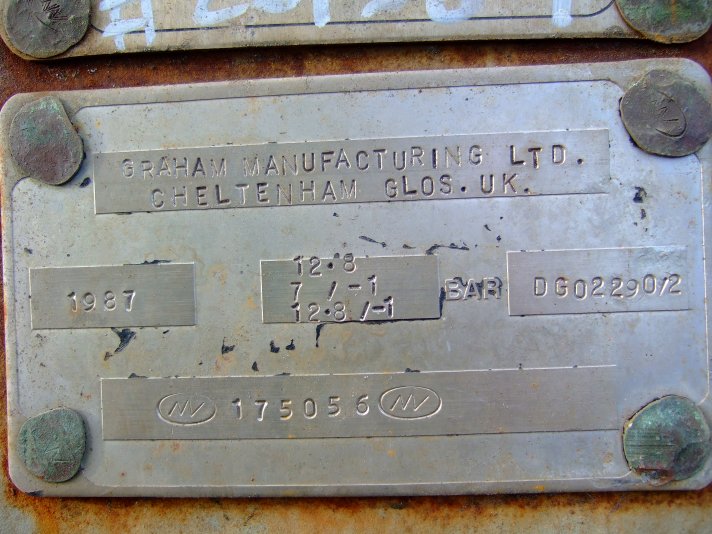

Stainless Steel 316 Graham Manf ltd AXU-644-3698 Shell and Tube Heat Exchanger - IPP# 221567

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Manufacturing Co.

Model: AXU-644-3698

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 42.8 m² (460.7 ft²)

Orientation: Horizontal

Expansion bellow (1) 316L s/steel channel head

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 200 °C (392 °F). Shell Material: Carbon Steel. Tube Pressure: 12.8 bar (185.6 psi). Tube Temperature: 200 °C (392 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 927 mm (36.5 in). Head Material: Stainless Steel 316. Length: 4,600 mm (182.1 in). Shell-side Passes: 1. Tube-side Passes: 8. Tube Type: U-Tube. Tube Number: 196. Tube Diameter: 19.3 mm (0.76 in). Tube Length: 3,650 mm (144 in). Nozzle Schedule: - Openings: - Tubeside: 2-2" - Shell side: 2-6", 2-2".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Manufacturing Co.

Model: A-X-U-660-2743

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 22.5 m² (242.2 ft²)

Orientation: Horizontal

(1) c/steel flat channel head

Shell Pressure: 1.1 bar (16 psi). Shell Temperature: 210 °C (410 °F). Shell Material: Stainless Steel 316. Tube Pressure: 8.7 bar (126.2 psi). Tube Temperature: 180 °C (356 °F). Tube Material: Stainless Steel 316. Tubesheet Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 660 mm (26 in). Head Material: Carbon Steel. Length: 3,550 mm (140 in). Shell-side Passes: 1. Tube-side Passes: 6. Tube Type: U-Tube. Tube Number: 140. Tube Diameter: 19.5 mm (0.77 in). Tube Length: 2,950 mm (117.1 in). Nozzle Schedule: - Openings: tubeside - 2-2", shellside - 1-18", 1-6", 1-3".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Manufacturing Co.

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 68.3 m² (735 ft²)

Orientation: Horizontal

Flash condenser

• Duty: 2,957,440 BTU/hr
• Shell wall thickness: 0.5"
• Spare Unused Chanel Head with Tube Bundle available for additional cost, See IPP 216127 for more info with on bolted channel head, and one welded dished head.

Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 273.9 °C (525 °F). Shell Material: Stainless Steel 304. Tube Pressure: 3.4 bar (50 psi). Tube Temperature: 273.9 °C (525 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,950 mm (76 in). Head Material: Stainless Steel 304. Length: 3,650 mm (144 in). Tube Type: U-Tube. Tube Number: 156. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Nozzle schedule: One vapor in 66", One Vapor out 16", One condensate out 4", two vents 2", two water (inlet & Outlet) 4", Two 3/4 nozzles one vent & a drain.

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Graham Manufacturing Co.

Model: AE-M-40-144

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 93.4 m² (1,000 ft²)

Orientation: Horizontal

design pressure tube side 7 bar @ -15/+235 deg C, shell side -1/5.3 bar @ -15/+135 deg C, (2) c/steel dished head

Shell Pressure: 5.3 bar (76.9 psi). Shell Temperature: 135 °C (275 °F). Shell Material: Stainless Steel 304. Tube Pressure: 7 bar (101.5 psi). Tube Temperature: 235 °C (455 °F). Tube Material: Stainless Steel 304. Tubesheet Material: Stainless Steel 304. Vacuum: Yes. Shell Diameter: 1,000 mm (40 in). Head Material: Carbon Steel. Length: 4,750 mm (187.1 in). Shell-side Passes: 1. Tube-side Passes: 6. Nozzle Schedule: - Tube side openings: (1) head with 2-3", (1) head with 1-1" - Shell side openings: 1-10", 1-6", 2-3", 1-1 1/2".
