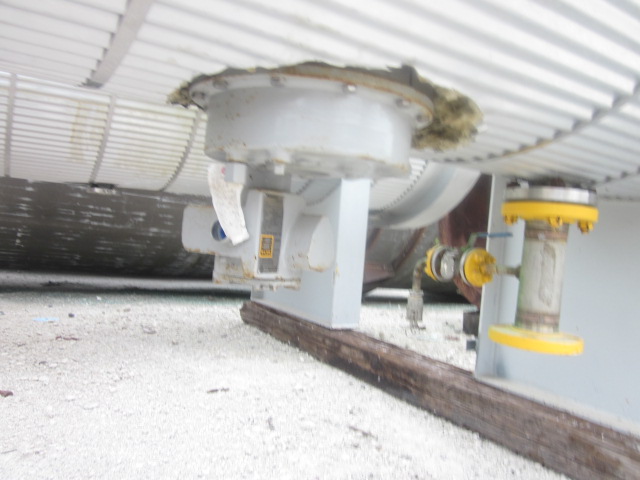

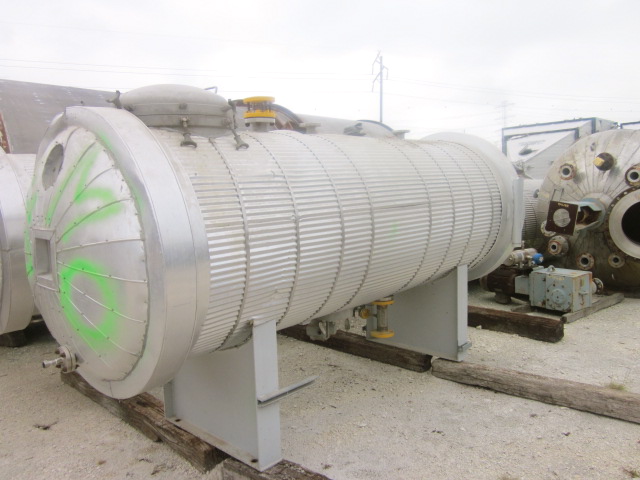

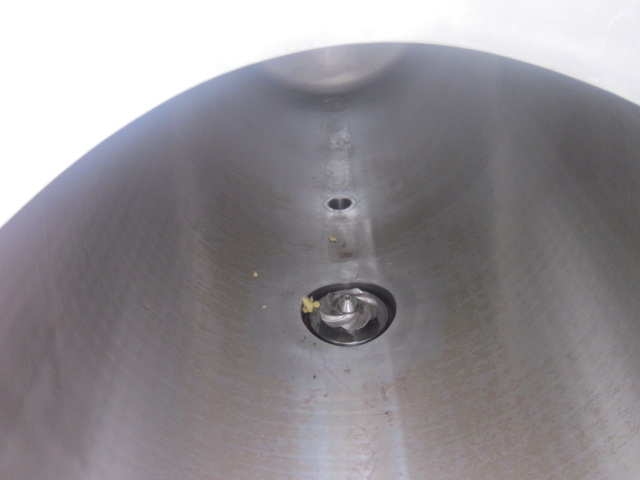

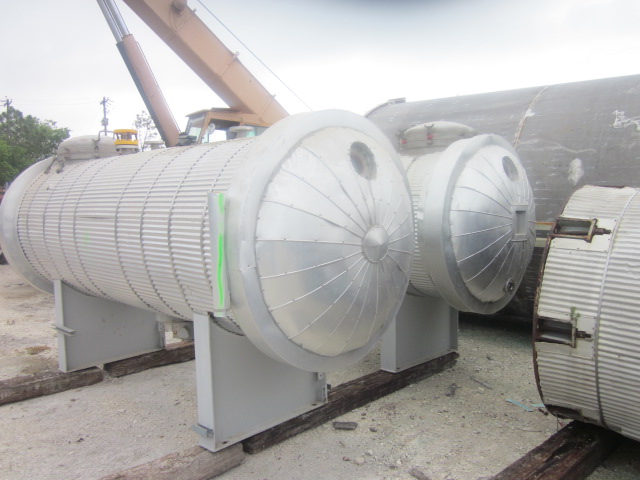

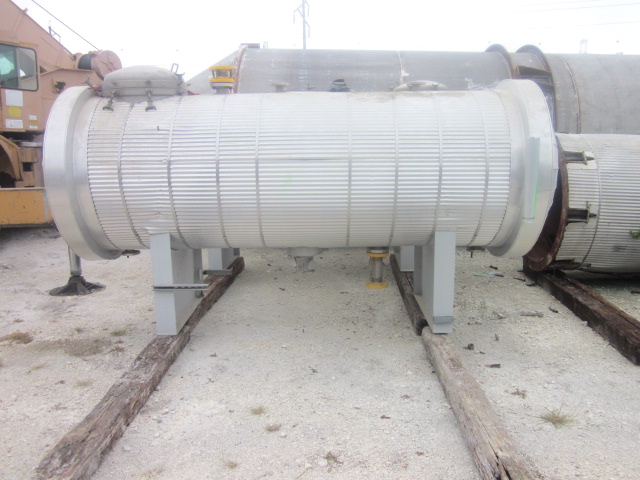

Stainless Steel 304L Walker Stainless T-702 Tank - IPP# 222045

Type: Tank

Manufacturer: Walker Stainless

Model: T-703

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 4,150 L (1,100 gallons)

Orientation: Horizontal

Sanitary tank

Diameter: 1,200 mm (48 in). Straight-side Length: 3,600 mm (141 in). Internal Pressure: 2.1 bar (30 psi). Internal Temperature: 132.2 °C (270 °F). Vacuum: Yes. Sanitary Contruction: Yes. Support: Saddle.

Type: Tank

Manufacturer: Walker Stainless

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 4,900 L (1,300 gallons)

Orientation: Horizontal

Diameter: 1,850 mm (72 in). Straight-side Length: 3,050 mm (120 in). Internal Pressure: 4.1 bar (60 psi). Internal Temperature: 232.2 °C (450 °F). Jacket Type: Dimple. Jacket Material: Stainless Steel 304. Jacket Pressure: 13.8 bar (200 psi). Jacket Temperature: 232.2 °C (450 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Walker Stainless

Model: PZ

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 2,250 L (600 gallons)

Orientation: Vertical

• Jacket: Coil jacket wrapped in sanitary shroud.
• Vessel rated for atmospheric at 250 degrees F, (no pressure)
• Heating Zones: Two
• Test ran the drive system

Diameter: 1,250 mm (50 in). Straight-side Length: 1,350 mm (54 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 121.1 °C (250 °F). Jacket Type: External Pipe Coil. Jacket Material: Stainless Steel 304. Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 121.1 °C (250 °F). Baffle Type: Wide I Baffle. Sanitary Contruction: Yes. Support: Legs.

Type: Tank

Manufacturer: Walker Stainless

Model: G-095 A W

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 568 L (150 gallons)

Orientation: Vertical

• Vessel in two halves -- bolted around transverse plane.
• 3 Lifting lugs on top head.

Diameter: 762 mm (30 in). Straight-side Length: 1,200 mm (48 in). Internal Pressure: 8.6 bar (125 psi). Internal Temperature: 162.8 °C (325 °F). Vacuum: Yes. Support: Lugs.
