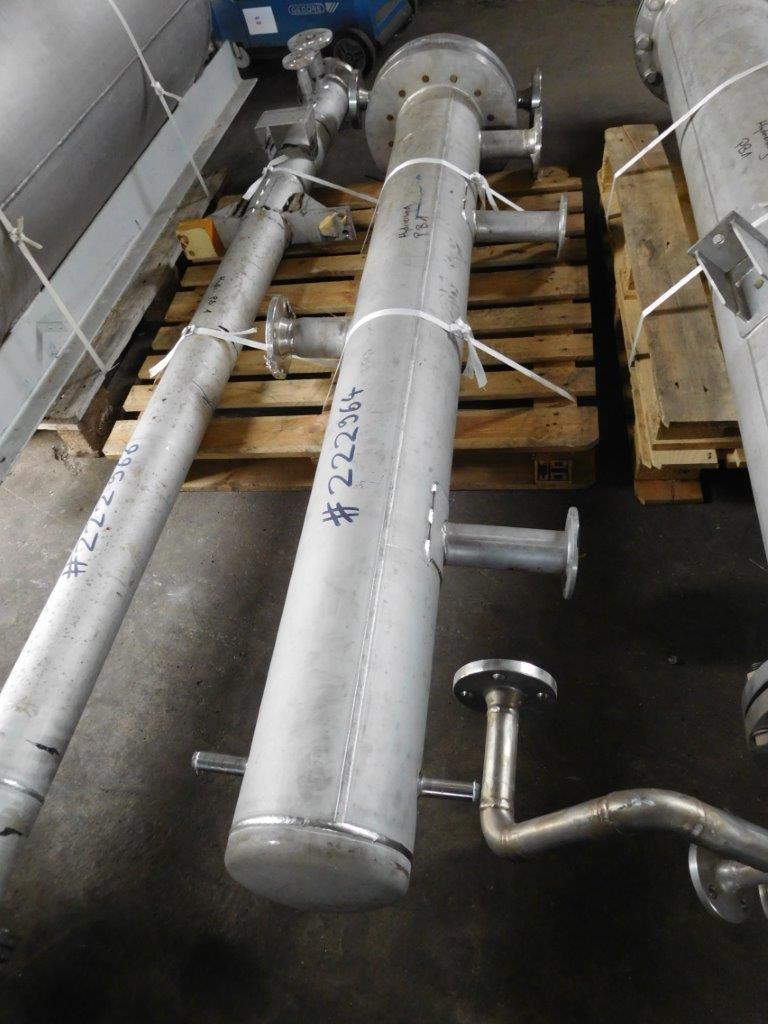

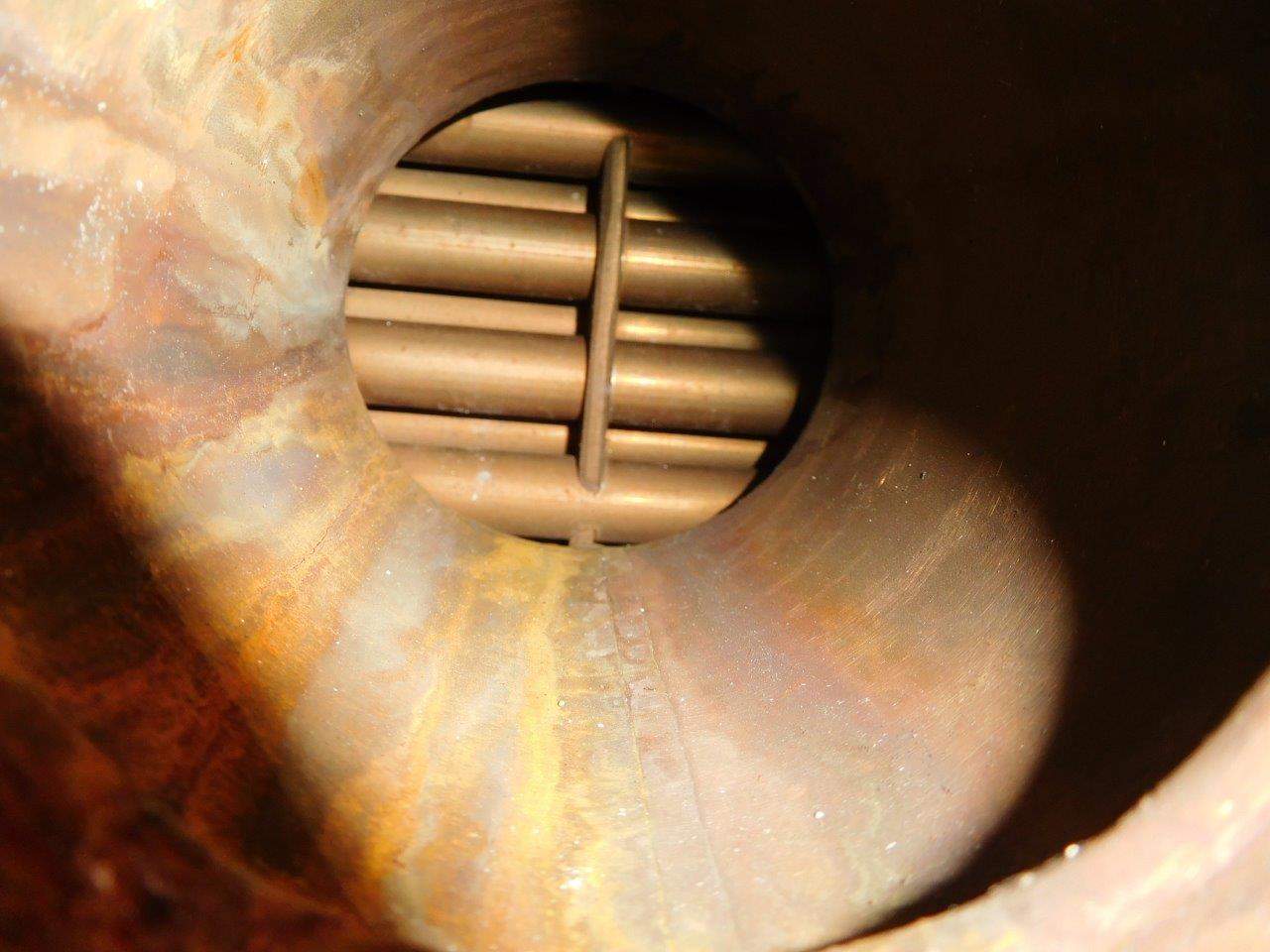

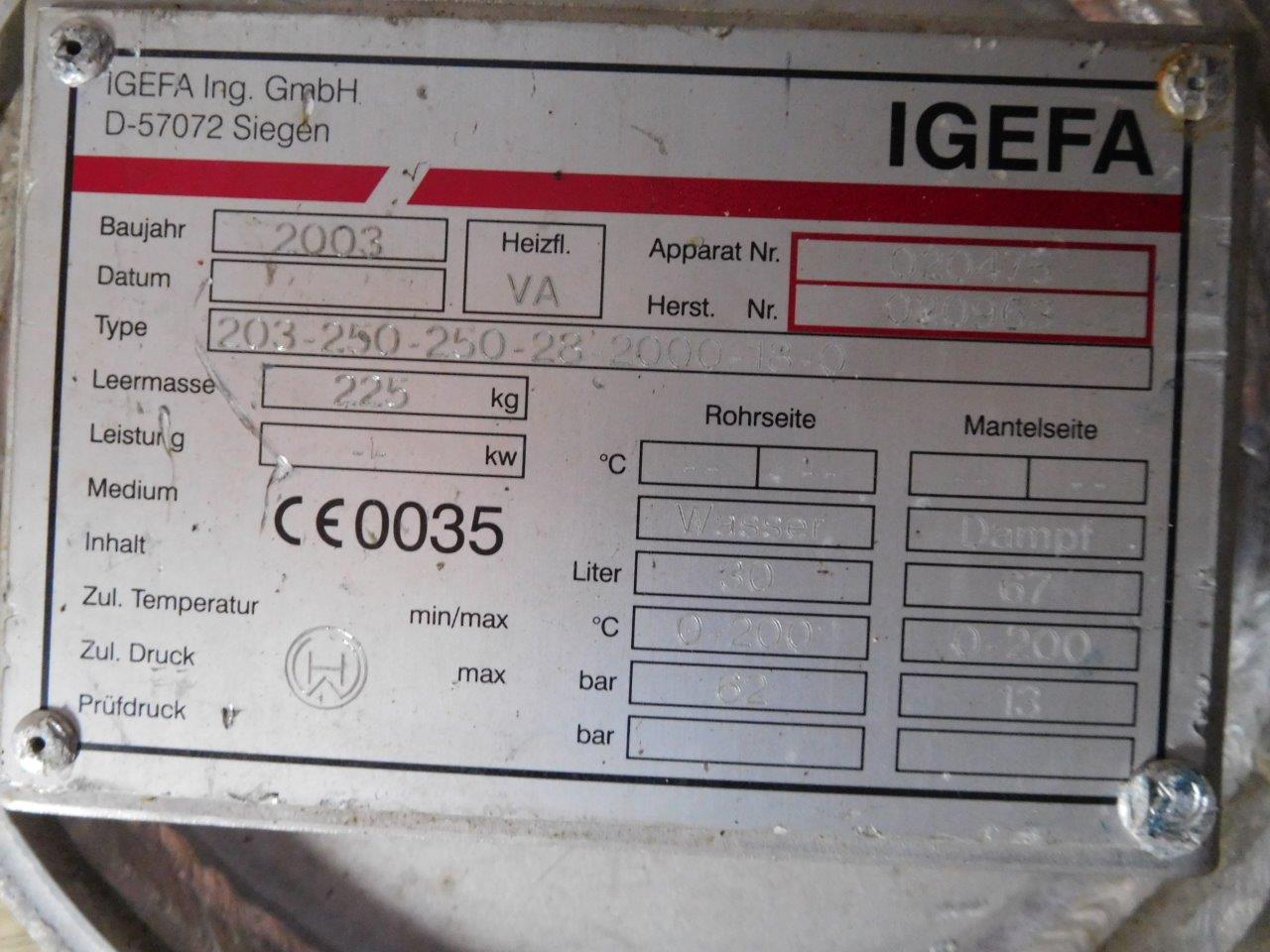

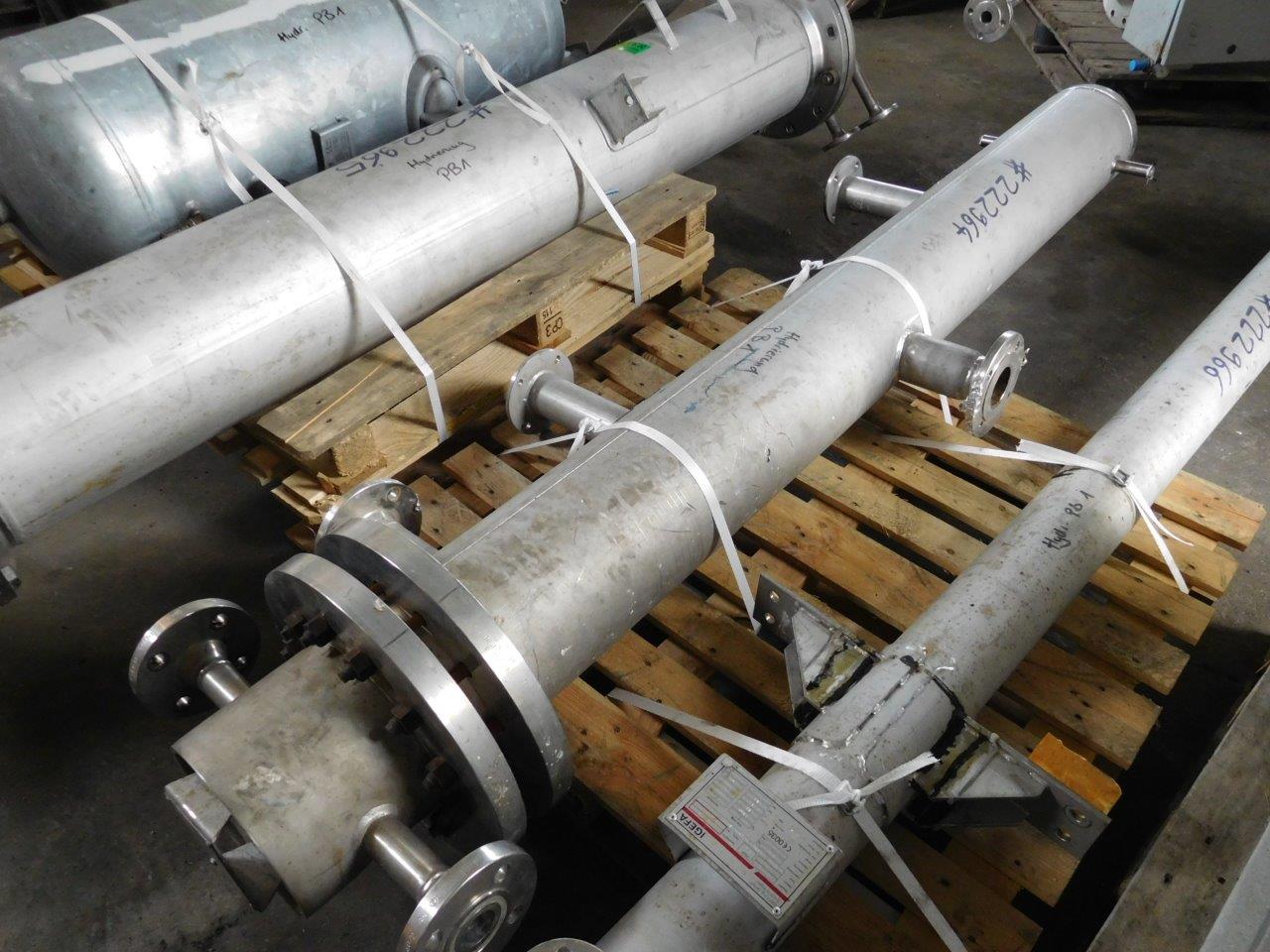

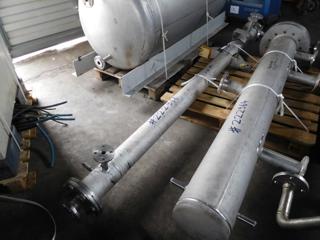

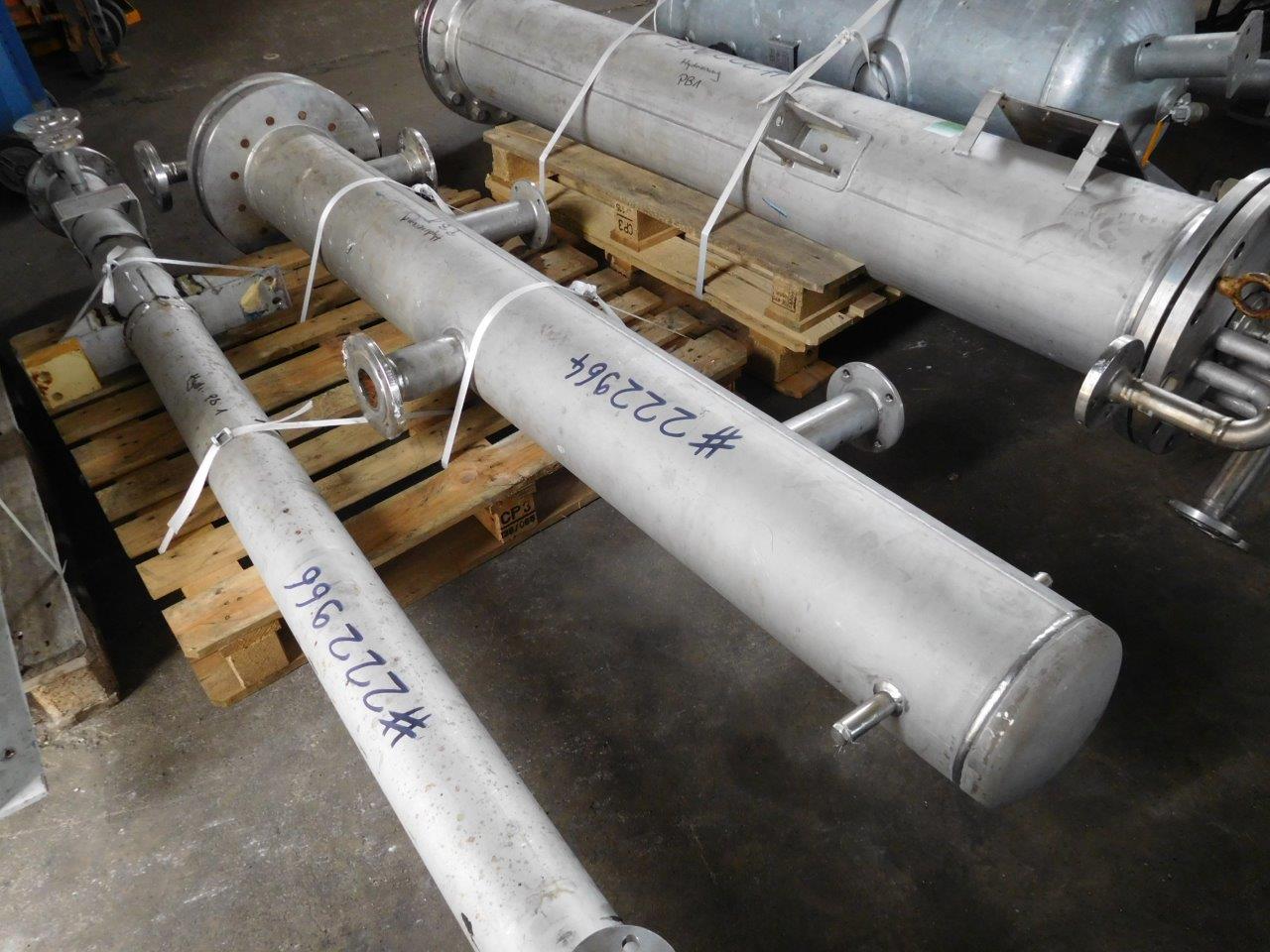

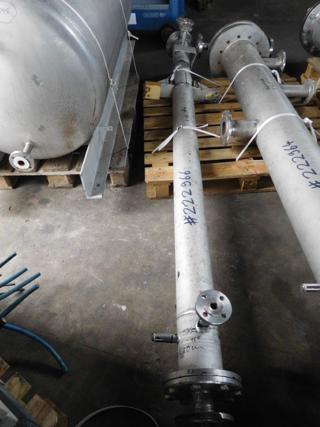

Type: Heat Exchanger
Subtype: Shell and Tube

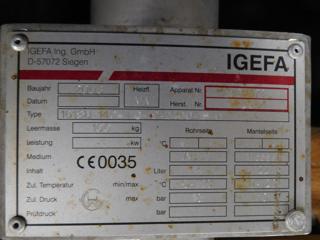

Manufacturer: IGEFA Siegen/Germany
Model: 161SU-140-140-19-2400-18-0
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 2.5 m² (26.9 ft²)
Orientation: Horizontal
pressure tube side: 10bar @ 0/120 degrees C (volume 14 liter), pressure shell side: 10bar @ 0/120 degrees C (volume 22 liter), bolt flat heads, CE stamped,
Shell Pressure: 10 bar (145 psi). Shell Temperature: 120 °C (248 °F). Shell Material: Stainless Steel Other. Tube Pressure: 10 bar (145 psi). Tube Temperature: 120 °C (248 °F). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Head Material: Stainless Steel Other. Length: 2,750 mm (109.1 in). Nozzle Schedule: openings head: (1) 50mm, openings side wall ( shell ): (2) 20mm, (1) 40mm, .
Type: Heat Exchanger
Subtype: Shell and Tube

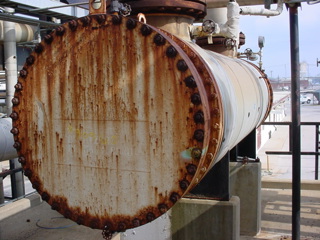

Manufacturer: Hughes & Anderson
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 195.6 m² (2,100 ft²)
Orientation: Horizontal
Shell Pressure: 1.03 bar (15 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Stainless Steel Other. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 93.3 °C (200 °F). Tube Material: Stainless Steel Other. Head Material: Carbon Steel. Length: 3,950 mm (156 in). Shell-side Passes: 1. Tube-side Passes: 10. Tube Number: 1,100. Tube Diameter: 19.1 mm (0.75 in). Tube Thickness: 1.52 mm (0.06 in). Nozzle Schedule: - Tube nozzles: Two 6" - Shell nozzles: One 16" and one 20".

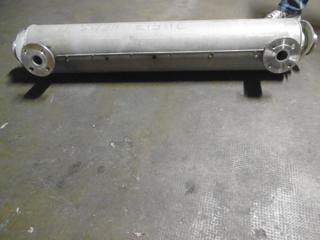

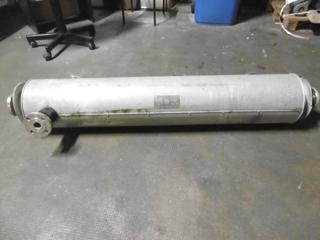

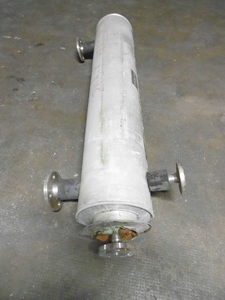

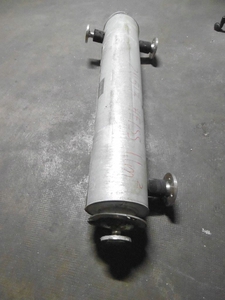

Type: Heat Exchanger
Subtype: Shell and Tube
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 1.1 m² (11.8 ft²)
Orientation: Horizontal
Shell Material: Carbon Steel. Tube Material: Stainless Steel Other. Head Material: Stainless Steel Other. Nozzle Schedule: - Openings: - Shell side: (2) DN 50 and (1) DN 25 - Tube side: (2) DN 25.

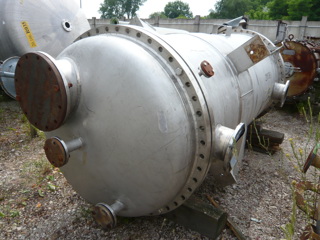

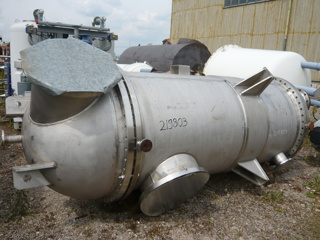

Type: Heat Exchanger
Subtype: Shell and Tube

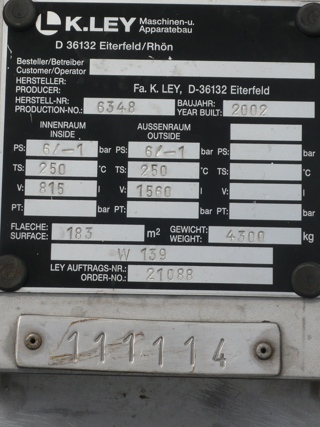

Manufacturer: K. LEY Germany
Condition: Used
Material: Stainless Steel Other
Heat Transfer Surface Area: 183 m² (1,950 ft²)
Orientation: Vertical
(1) Duplex stainless steel (1.4462) hemispherical head, (1) duplex stainless steel (1.4462) dished head pressure tube side: -1/6 bar @ 250 deg C (815 liter), shell side: -1/6 bar @ 250deg C (1560 liter)
Shell Pressure: 6 bar (87 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Head Material: Stainless Steel Other. Tube Number: 940. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings: shell: 1-600mm, 2-200mm, 1-150mm, 2-20mm, 2-15mm, top head (hemespherical head ): 1-500mm, 1-50mm, bottom head (dished head): 1-300mm, 2-50mm.
