1.1 m² (11.8 ft²) Stainless Steel Other Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 1.1 m² (11.8 ft²)

Orientation: Horizontal

Shell Material: Carbon Steel. Tube Material: Stainless Steel Other. Head Material: Stainless Steel Other. Nozzle Schedule: - Openings: - Shell side: (2) DN 50 and (1) DN 25 - Tube side: (2) DN 25.

183 m² (1,950 ft²) Stainless Steel Other Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: K. LEY Germany

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 183 m² (1,950 ft²)

Orientation: Vertical

(1) Duplex stainless steel (1.4462) hemispherical head, (1) duplex stainless steel (1.4462) dished head pressure tube side: -1/6 bar @ 250 deg C (815 liter), shell side: -1/6 bar @ 250deg C (1560 liter)

Shell Pressure: 6 bar (87 psi). Shell Temperature: 250 °C (482 °F). Shell Material: Stainless Steel Austenitic. Tube Pressure: 6 bar (87 psi). Tube Temperature: 250 °C (482 °F). Tube Material: Stainless Steel Other. Vacuum: Yes. Shell Diameter: 1,200 mm (47.2 in). Head Material: Stainless Steel Other. Tube Number: 940. Tube Diameter: 25 mm (0.98 in). Tube Length: 2,500 mm (98.4 in). Tube Thickness: 2 mm (0.08 in). Nozzle Schedule: openings: shell: 1-600mm, 2-200mm, 1-150mm, 2-20mm, 2-15mm, top head (hemespherical head ): 1-500mm, 1-50mm, bottom head (dished head): 1-300mm, 2-50mm.

1.3 m² (14 ft²) Stainless Steel Other Shell and Tube Heat Exchanger

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Chematec AG

Condition: Used

Material: Stainless Steel Other

Heat Transfer Surface Area: 1.3 m² (14 ft²)

Orientation: Vertical

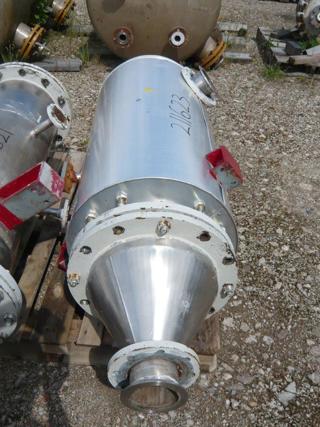

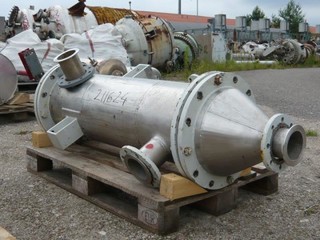

contact condenser. SS shell 362 mm diameter x 1145mm flange to flange x 1610mm over all length. Bolted dished top, bolted cone bottom.

Shell Pressure: 4.8 bar (69.6 psi). Shell Material: Stainless Steel Other. Tube Pressure: 8 bar (116 psi). Tube Material: Stainless Steel Other. Tubesheet Material: Stainless Steel Other. Shell Diameter: 362 mm (14.3 in). Head Material: Stainless Steel Other. Length: 1,600 mm (63.4 in). Tube Number: 1. Tube Diameter: 58 mm (2.3 in). Tube Length: 330 mm (13 in). Nozzle Schedule: - Openings: - Service side: (2) 25 mm for cooling fluid - Process side: (1) 100 mm vacuum/non condensable gas outlet, (1) 100 mm vapor inlet - Bottom head: (1) 100 mm condensate outlet.
