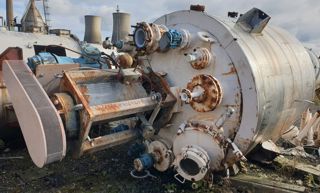

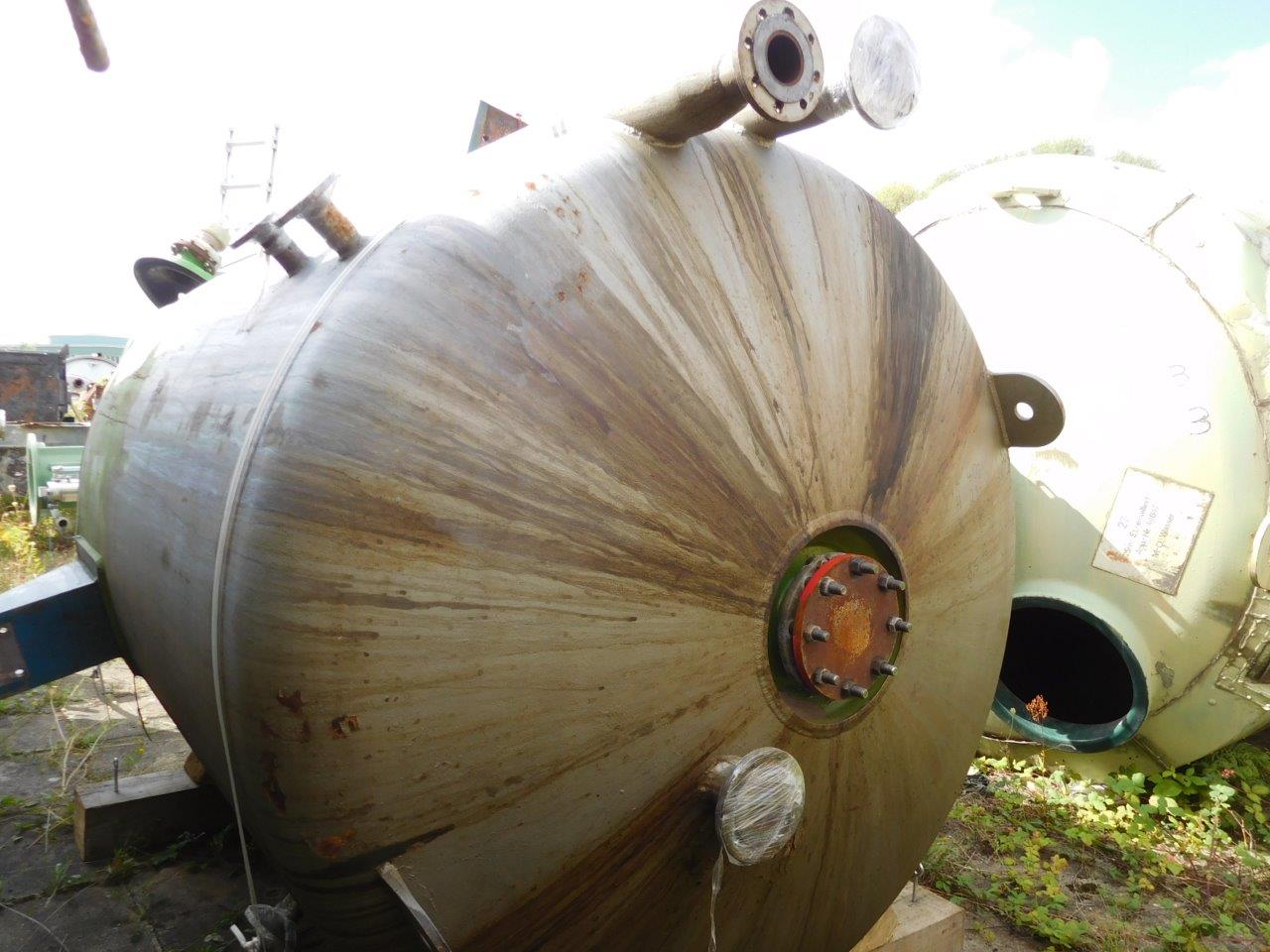

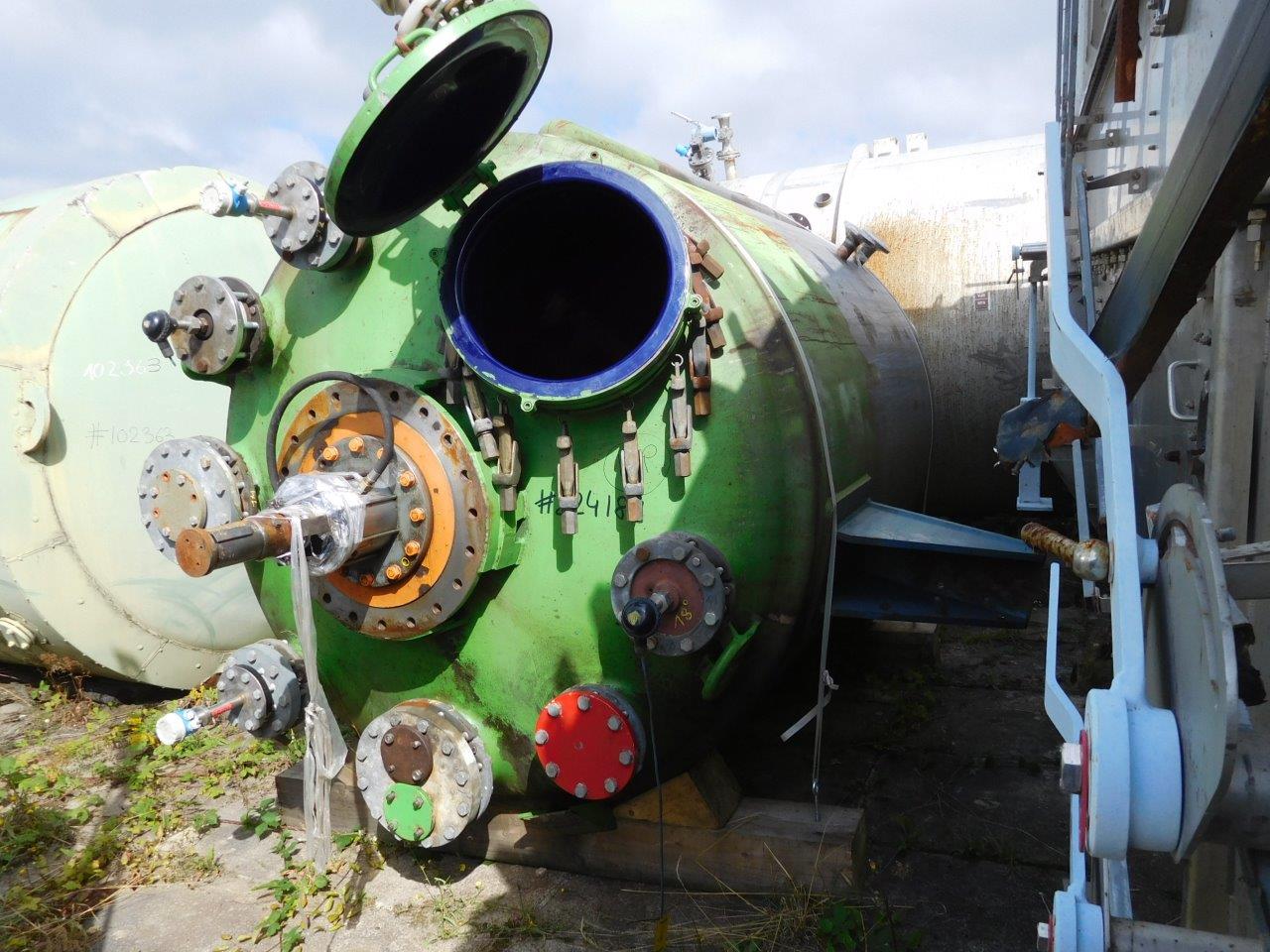

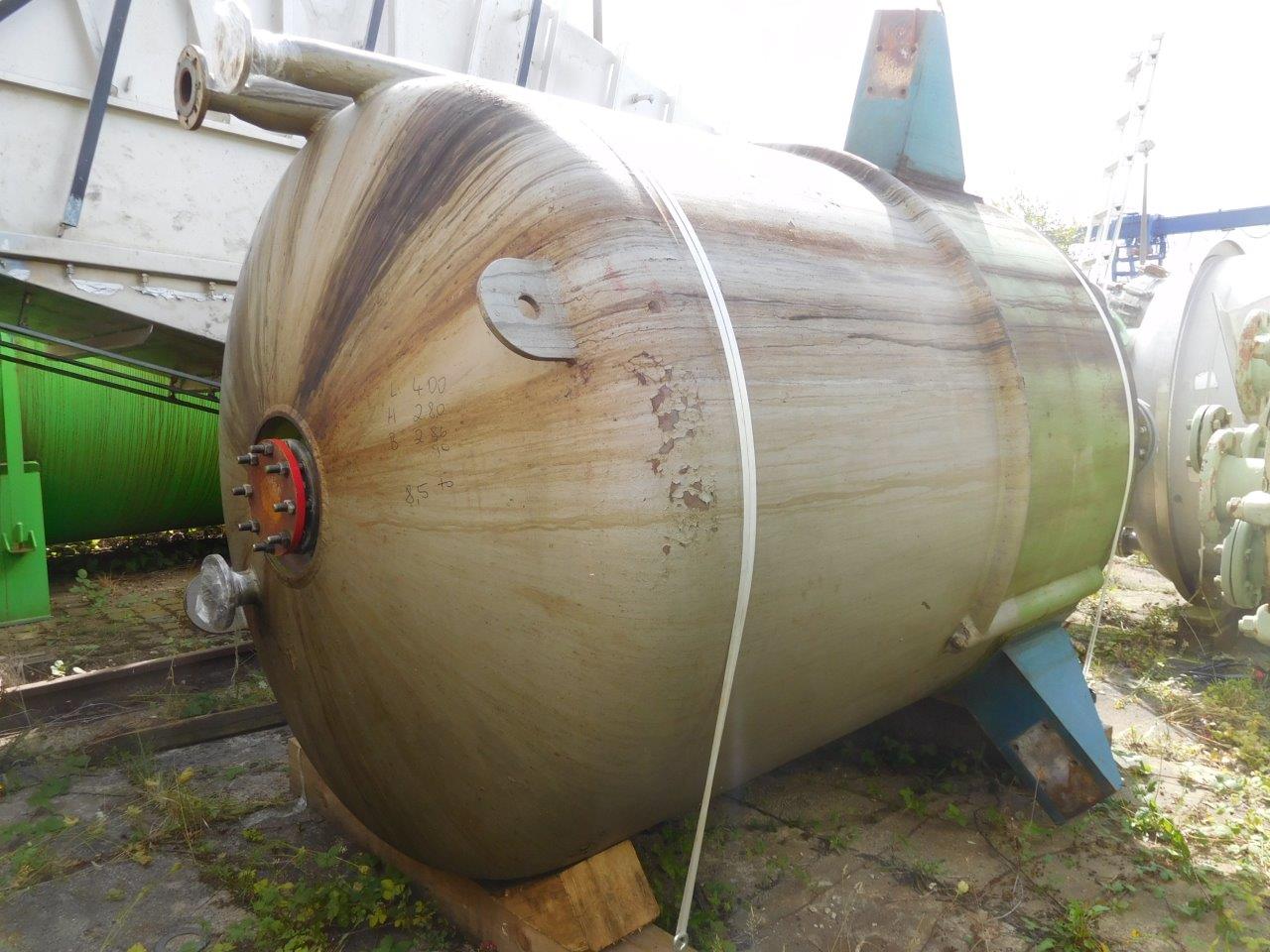

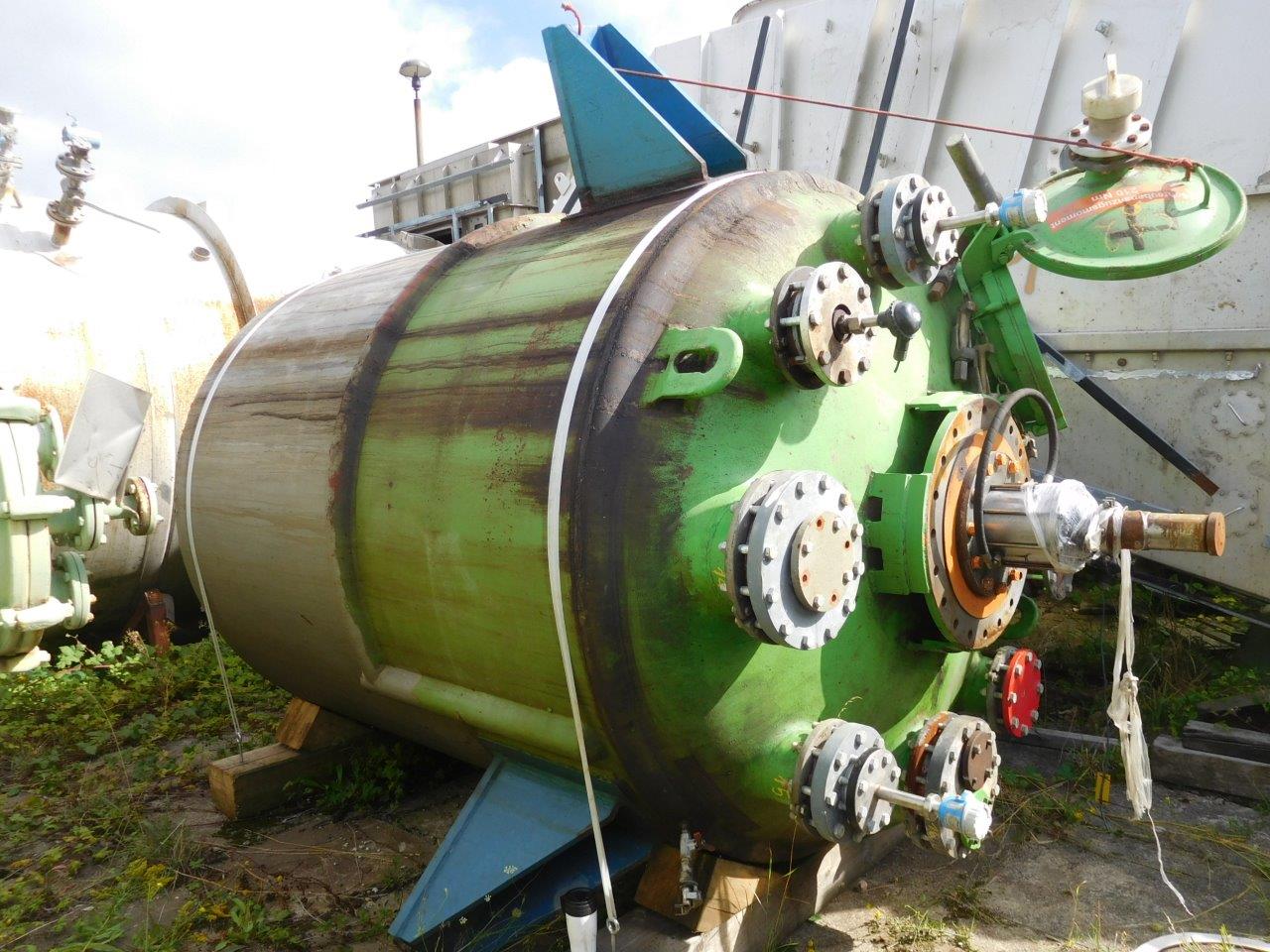

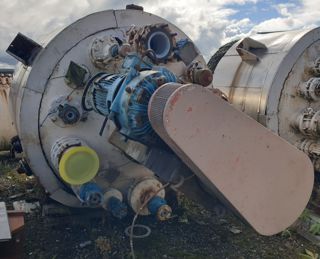

Glasslined Pfaudler BE Batch-Type Agitated Reactor - IPP# 224189

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 5,861 L (1,548 gallons)

Internal Pressure: 6.6 bar (95.7 psi)

BE-5000 job #700037 design pressure internal and jacket -1/+6.6 bar @ -29/+200 degrees C

• Jacket capacity: 617 liter

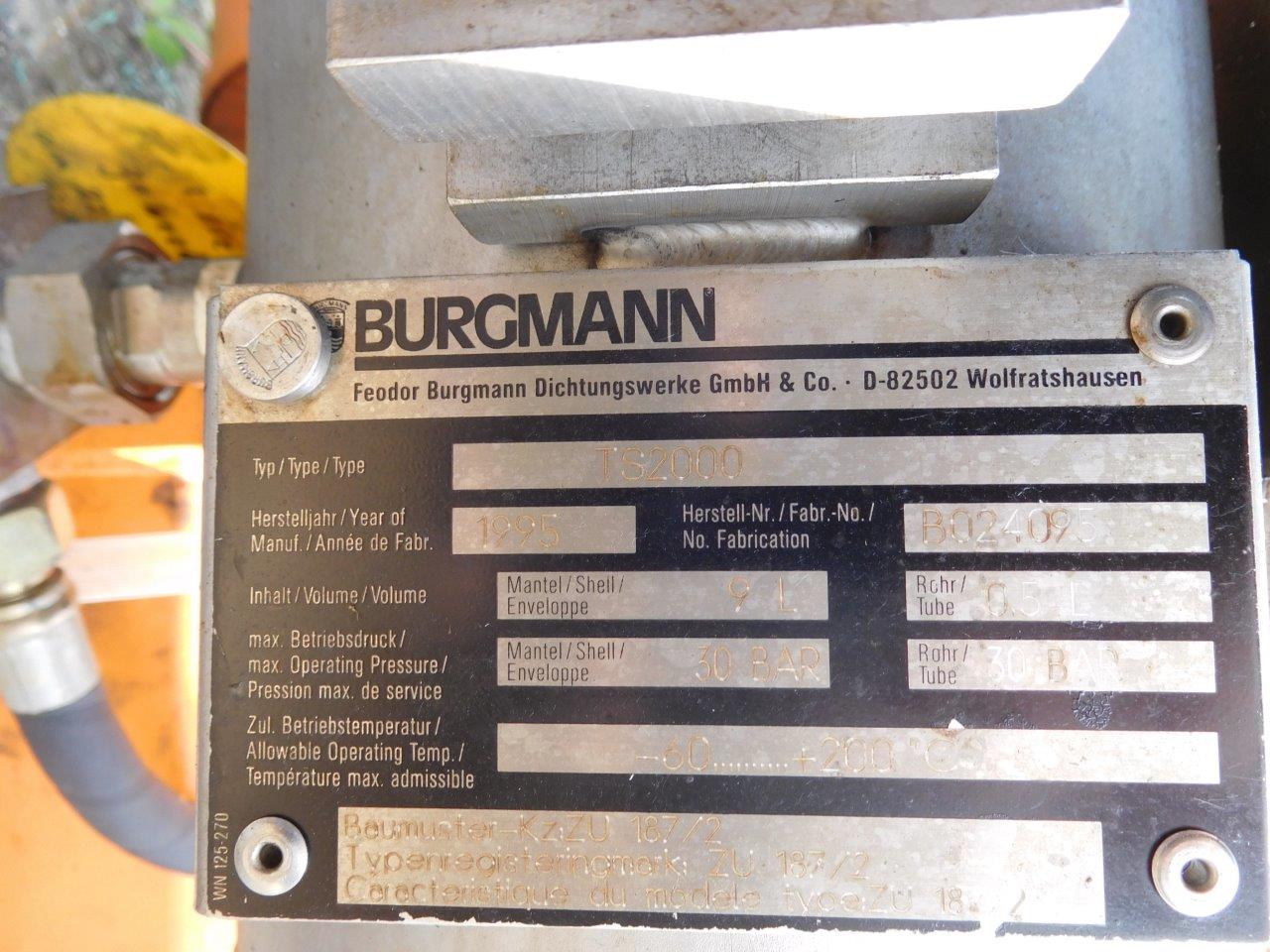

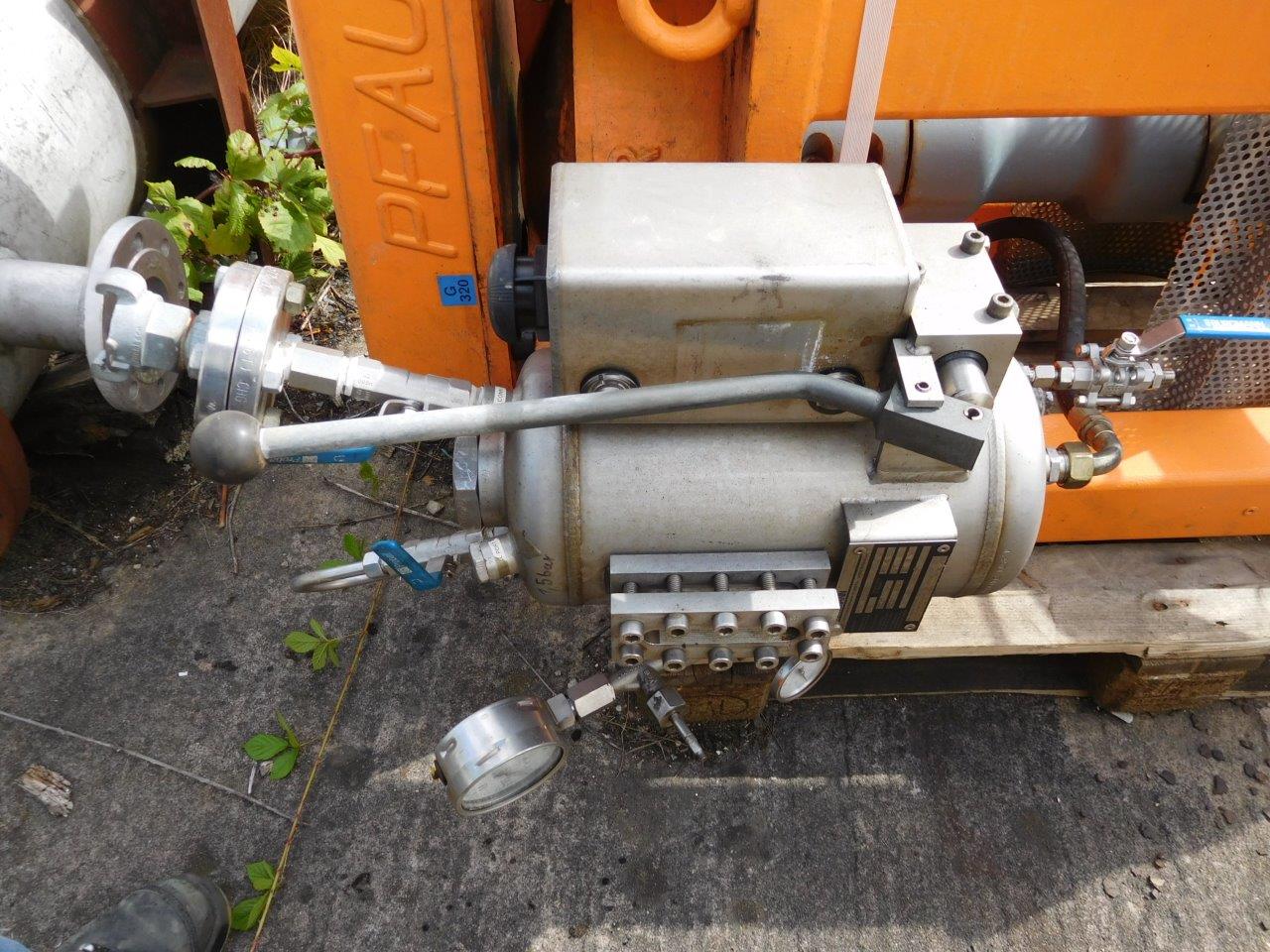

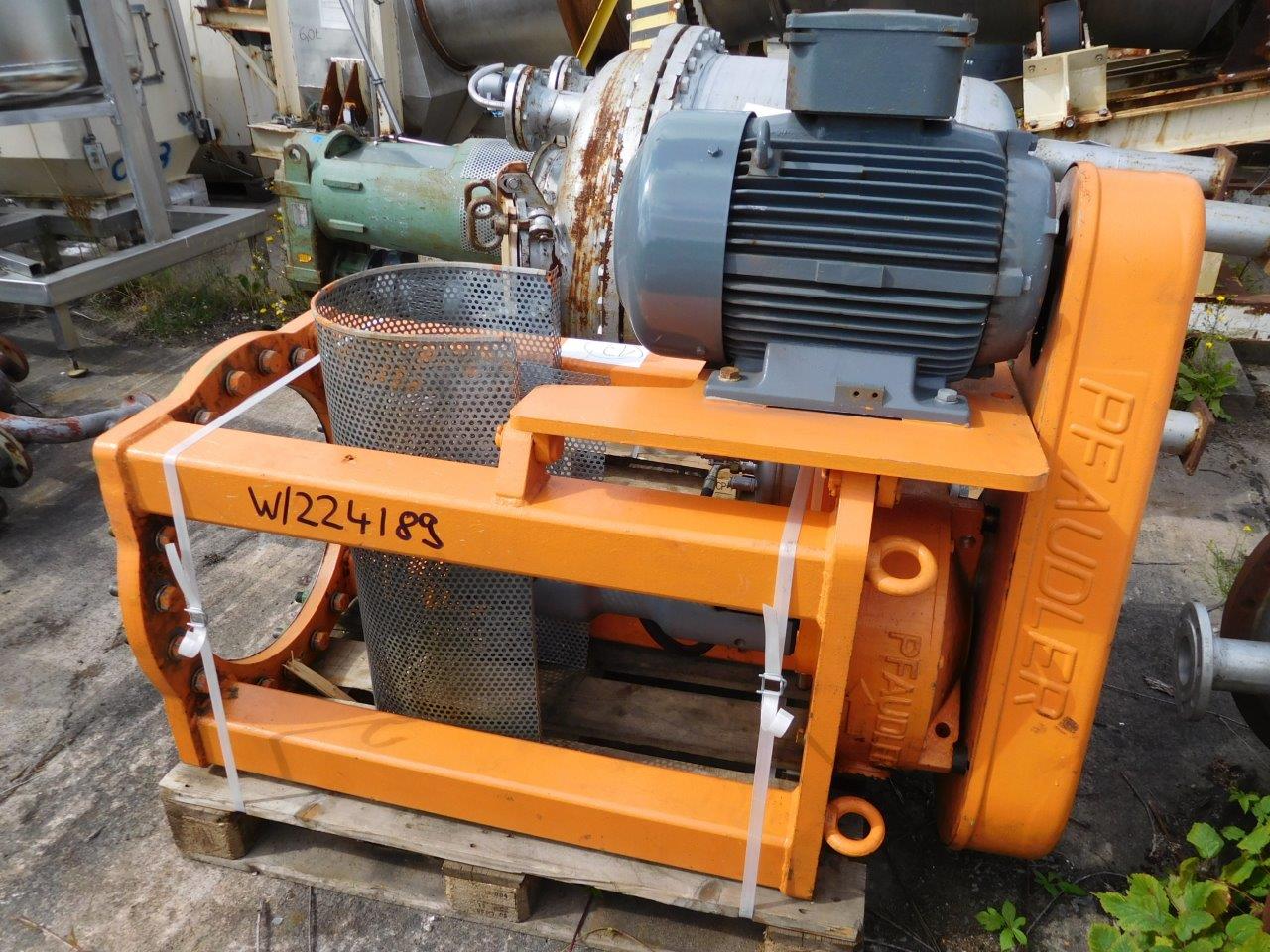

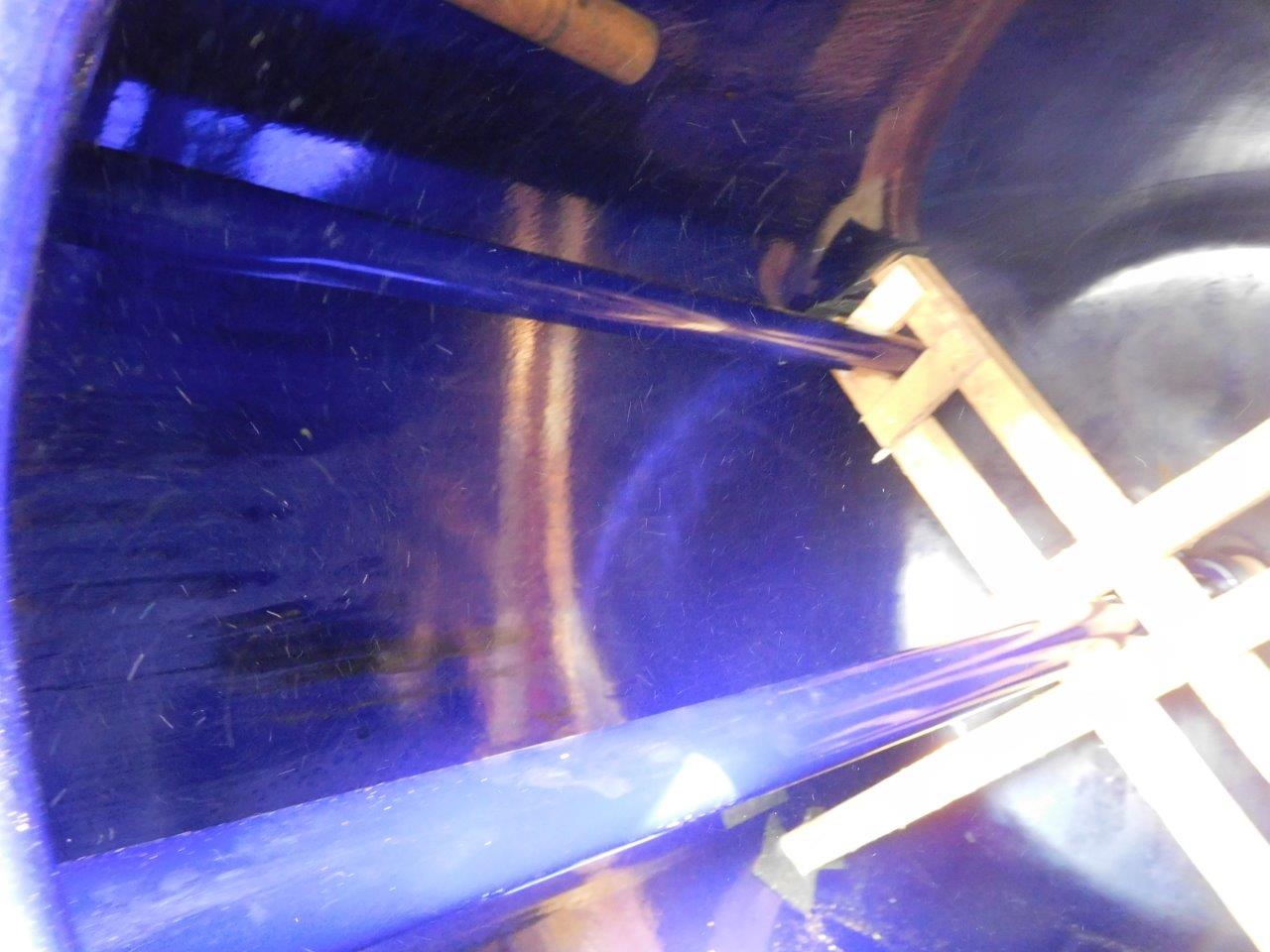

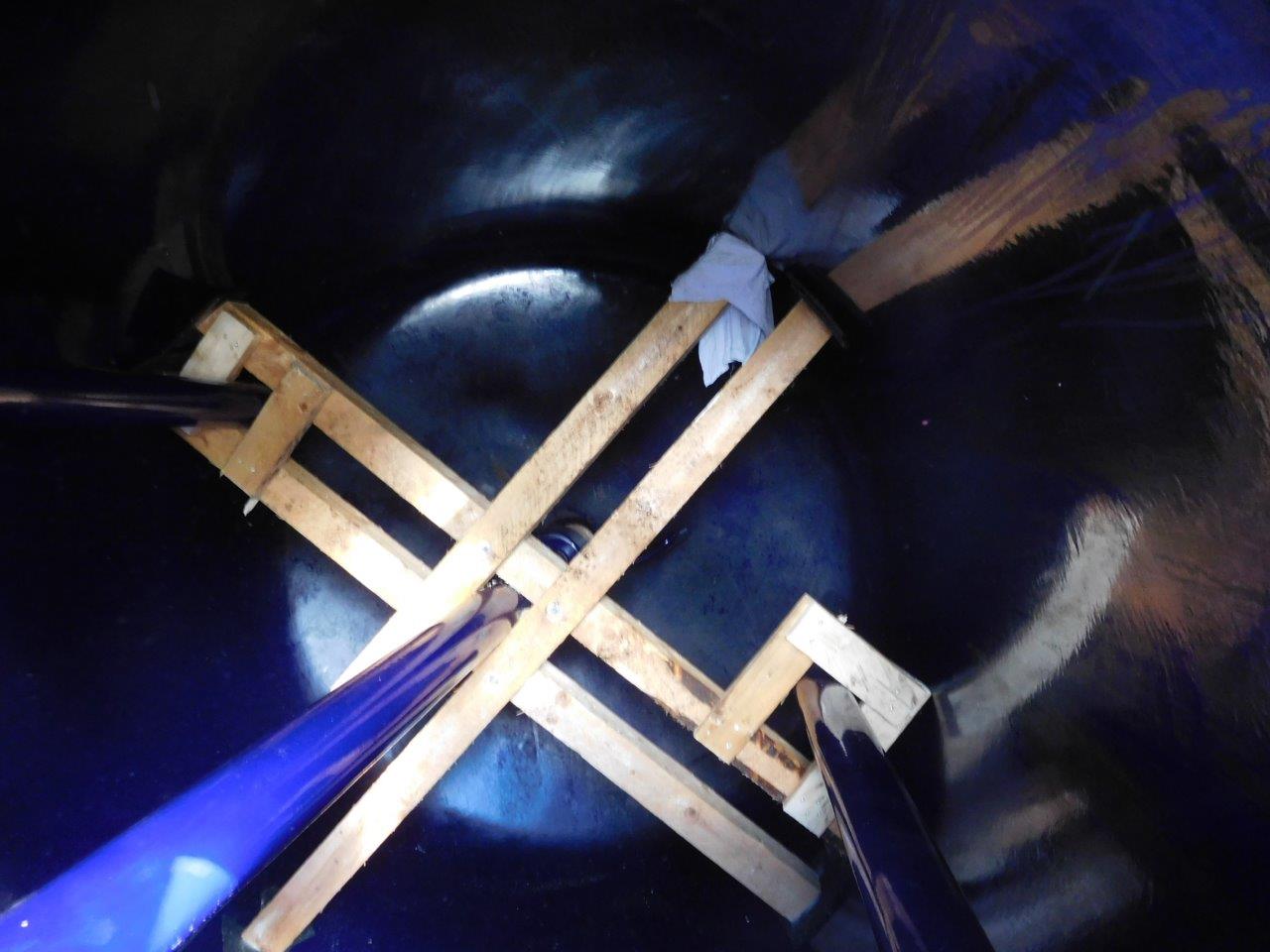

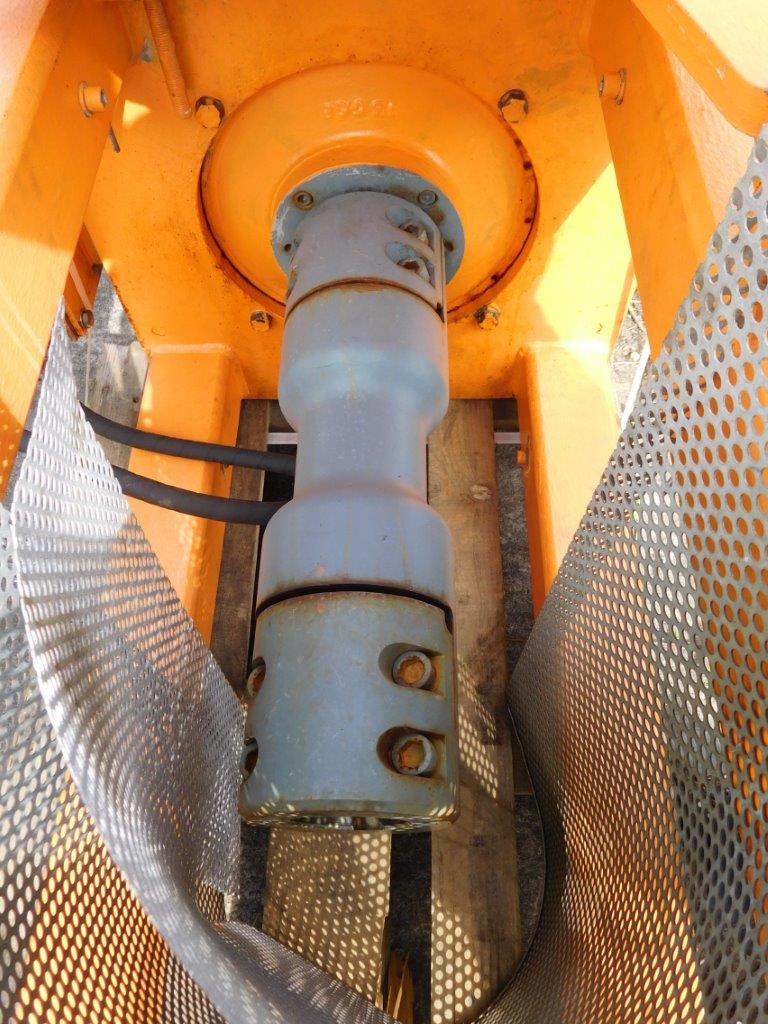

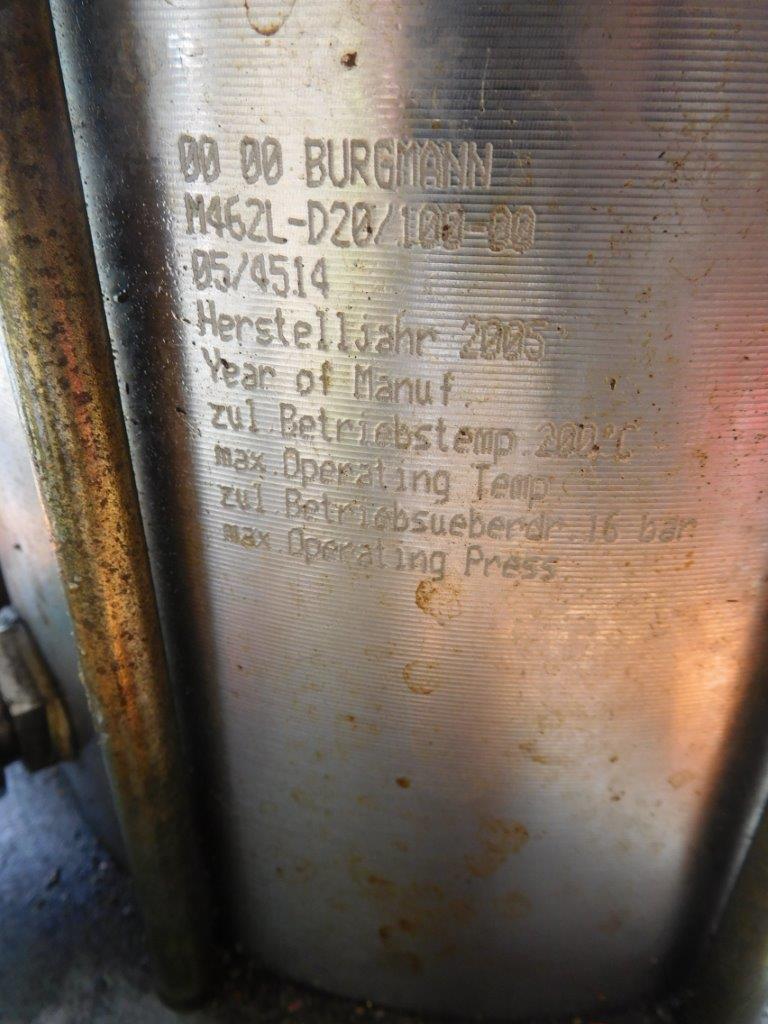

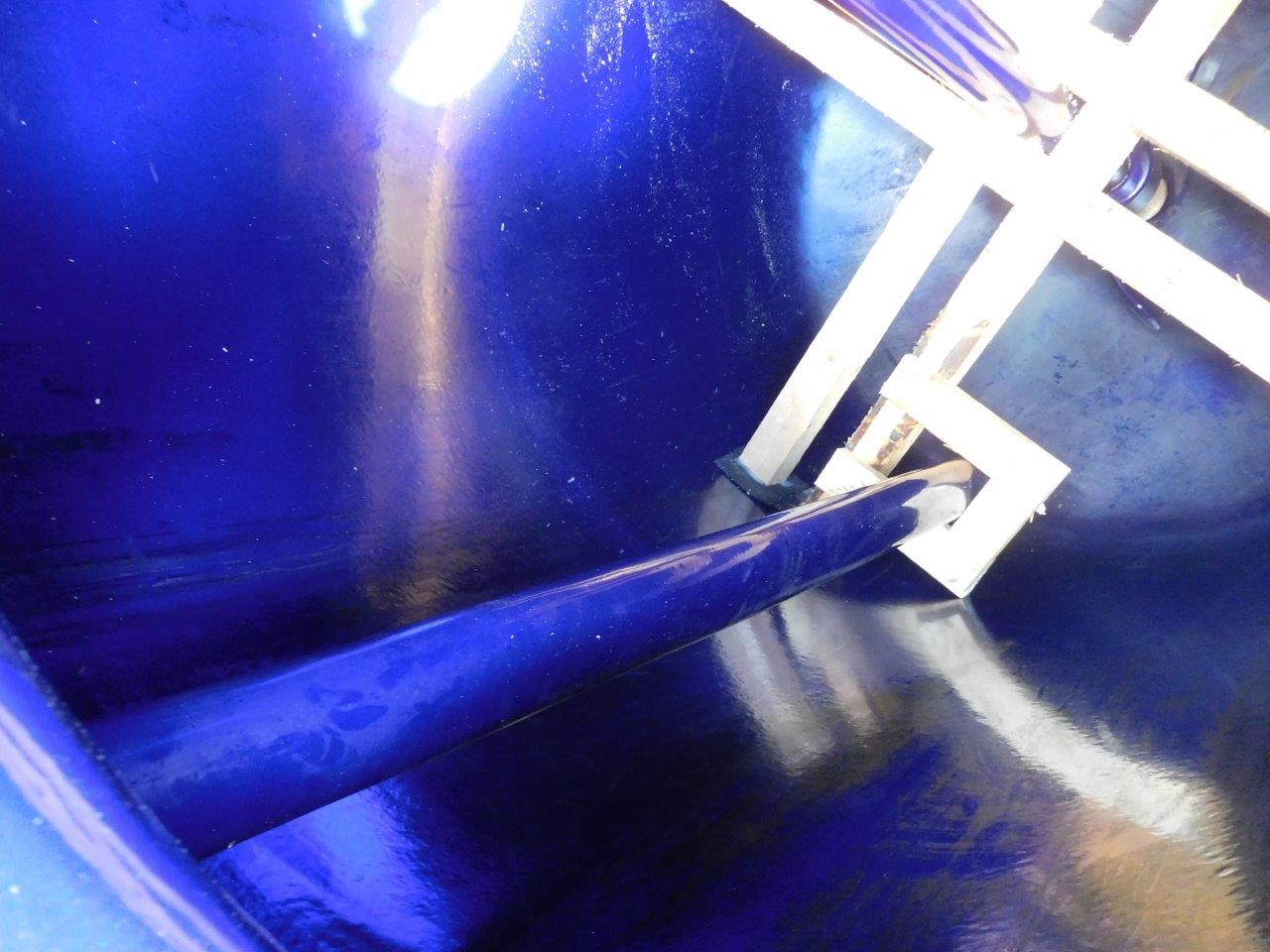

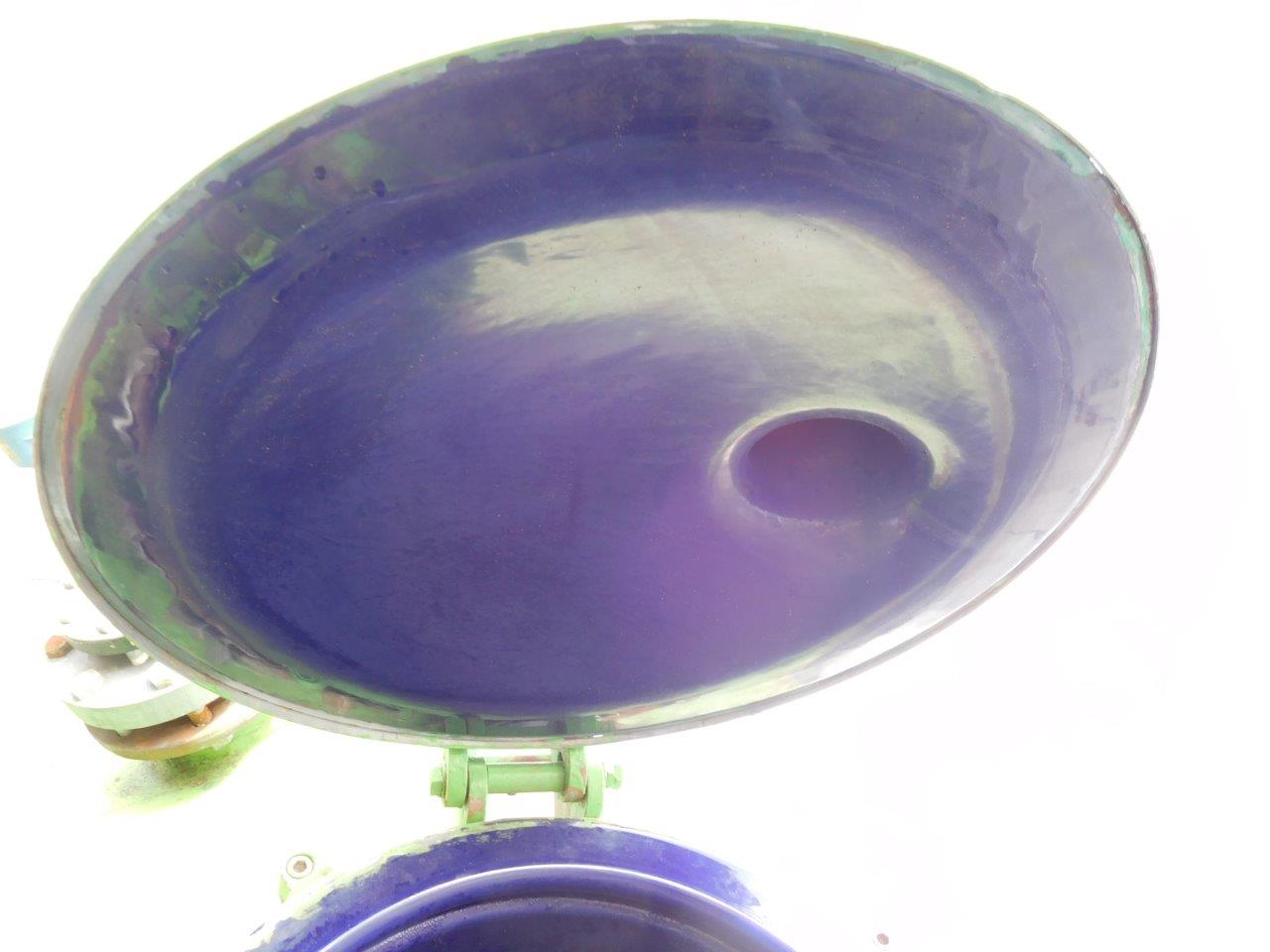

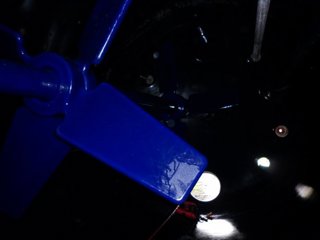

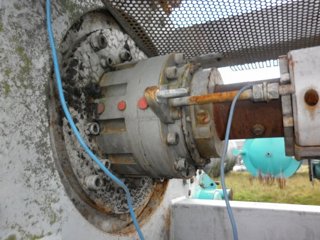

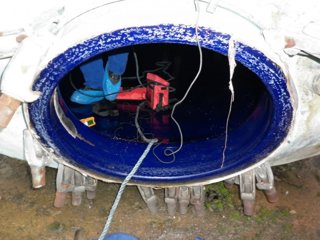

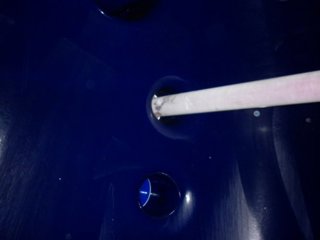

• Blue glass 9115 30/135 rpm shaft speed VSO-100 quick-change mechanical seal with lubricator,

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.6 bar (95.7 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,465 mm (57.7 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 5,861 L (1,548 gallons)

Internal Pressure: 6.6 bar (95.7 psi)

BE-5000 liter job #700071 internal and jacket -1/+6.6 bar @ -29/+200 degrees C jacket 617 liter Blue glass 9115 VSO-100 quick-change mechanical seal with lubricator

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.6 bar (95.7 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,465 mm (57.7 in). Support Type: Lugs.

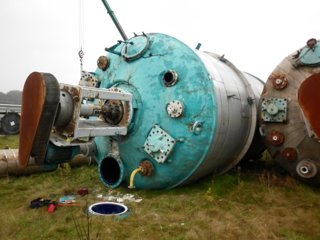

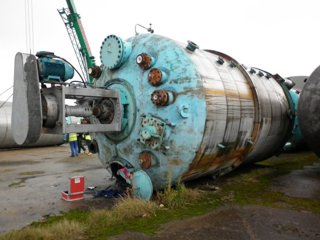

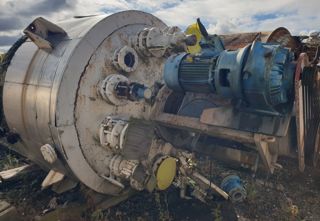

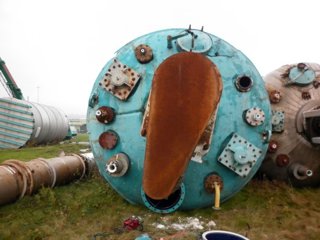

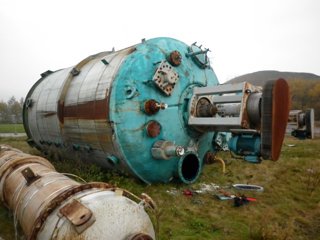

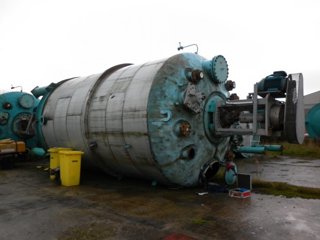

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

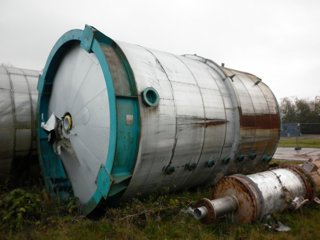

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

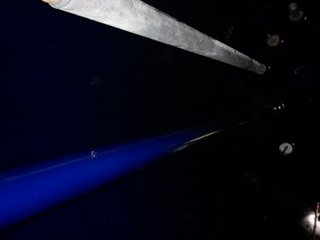

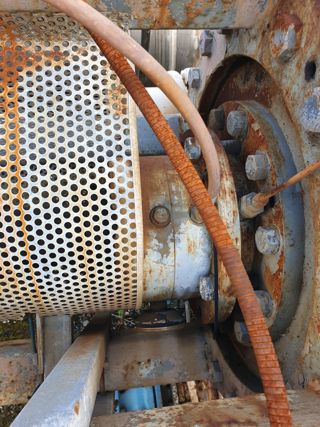

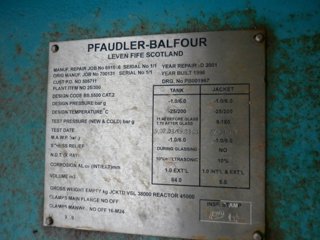

64 m3 design pressure internal -1/+6 bar @ -25/+200 deg C jacket -1/+6 bar @ -25/+200 deg C (5000ltr) job #700177 Glass type: Blue 9119-1.1/2.0 belt driven by motor Motor 3/50/380/415 volt VRA-C single Duramettalic mechanical seal, Dip tubes: (2) PTFE lined dip tubes Design code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 3,736 mm (147.1 in). Straight Side Length: 5,150 mm (202.8 in). Support Type: Skirt.

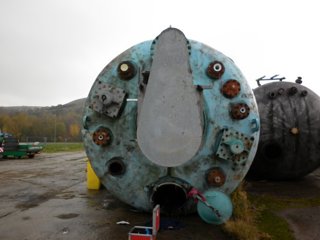

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: BE

Condition: Used

Material: Glasslined

Capacity (Design): 70,100 L (18,518 gallons)

Internal Pressure: 6 bar (87 psi)

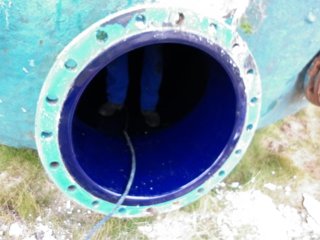

64 m3 design pressure internal -1/+6 bar @ -25/+200 deg C jacket -1/+6 bar @ -25/+200 deg C (5000ltr) Color: Blue (9119-1.1/2.0) VRA-C single Duramettalic

• Jacket: (1) 200mm opening, (8) 100mm openings, (1) 25mm opening Motor 3/50/380/415 volt
• Dip tubes: (2) PTFE lined
• Design code: BS5500

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 3,736 mm (147.1 in). Straight Side Length: 5,150 mm (202.8 in). Support Type: Lugs.
