Stainless Steel 304 Bin - IPP# 225278

Type: Bin

Condition: Used

Material: Stainless Steel 304

Clad: Yes

Capacity Design: 0.3 m3 (10.6 ft3)

Orientation: Vertical

hopper welded top, feed has s/steel rotary lock valve driven by 2-speed motor, 0.5 kw, 3/50/380-420/220-240 volt, 1400 rpm or 0.5kw, 3/60/440-480/250-280 volt, 1690 rpm, openings top 1-200mm (feed), 1-50mm, side 1-50mm, 1-25mm (sensor), bottom 1-250mm, with insulation and cladding

Width: 680 mm (26.8 in). Cone Length: 1,100 mm (43.3 in). Length: 300 mm (11.8 in). Support Type: Lugs.

Type: Bin

Condition: Used

Material: Stainless Steel 304

Capacity Design: 117 m3 (4,132 ft3)

Orientation: Vertical

mounted on a stainless steel skirt with a carbon steel frame with legs, handrail around top,

Width: 3,500 mm (137.8 in). Cone Length: 2,880 mm (113.4 in). Length: 284,988 mm (11,220 in). Support Type: Legs.

Type: Bin

Condition: Used

Material: Stainless Steel 304

Capacity Design: 1 m3 (35.3 ft3)

Orientation: Vertical

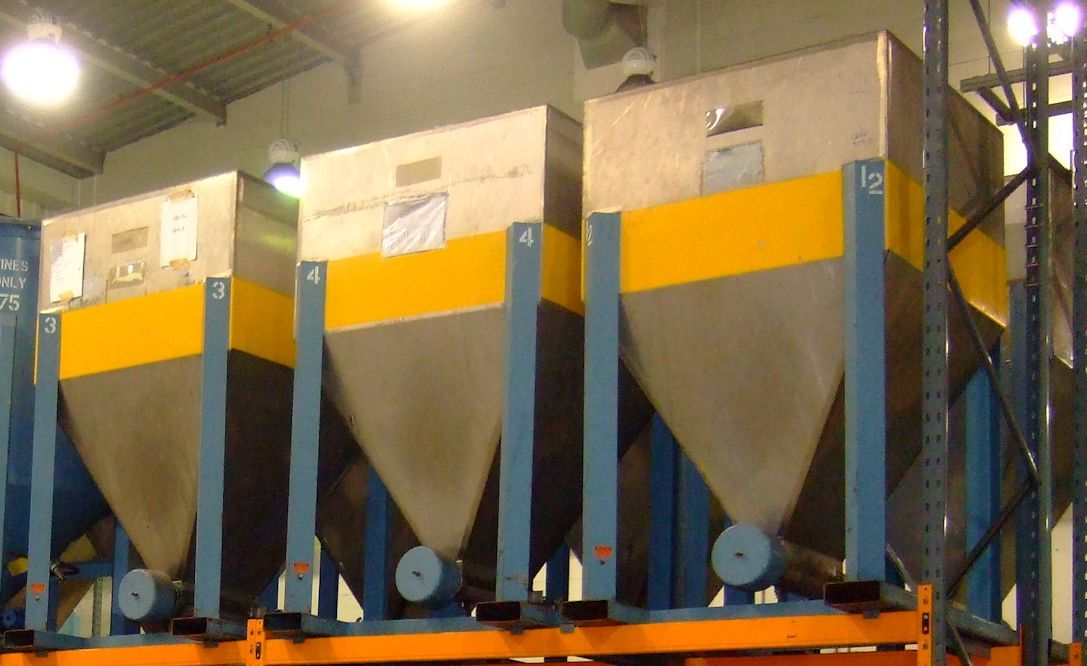

fork liftable product tote bin

Width: 1,100 mm (43.3 in). Cone Length: 1,200 mm (47.2 in). Height: 1,000 mm (39.4 in). Length: 1,100 mm (43.3 in).

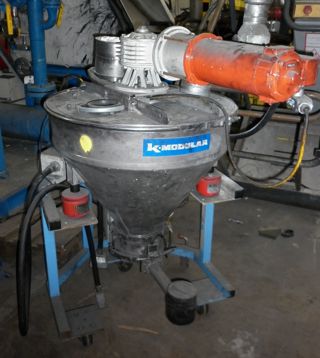

Type: Bin

Manufacturer: K-Tron

Condition: Used

Material: Stainless Steel 304

Capacity Design: 0.002 m3 (0.08 ft3)

Width: 600 mm (23.6 in)

clamped flat top, weld coned bottom agitator driven by 5 HP, 3/50/230 volt, 1750 rpm motor via SEW-Eurodrive gearbox, right angled design drive, 304 stainless steel gate type agitator, bottom outlet with a screw discharge conveyor, driven by a 0.5 hp, 3/50/180 volt motor, which are mounted on a carbon steel frame with wheels

Cone Length: 580 mm (22.8 in). Length: 120 mm (4.7 in). Support Type: Lugs.
