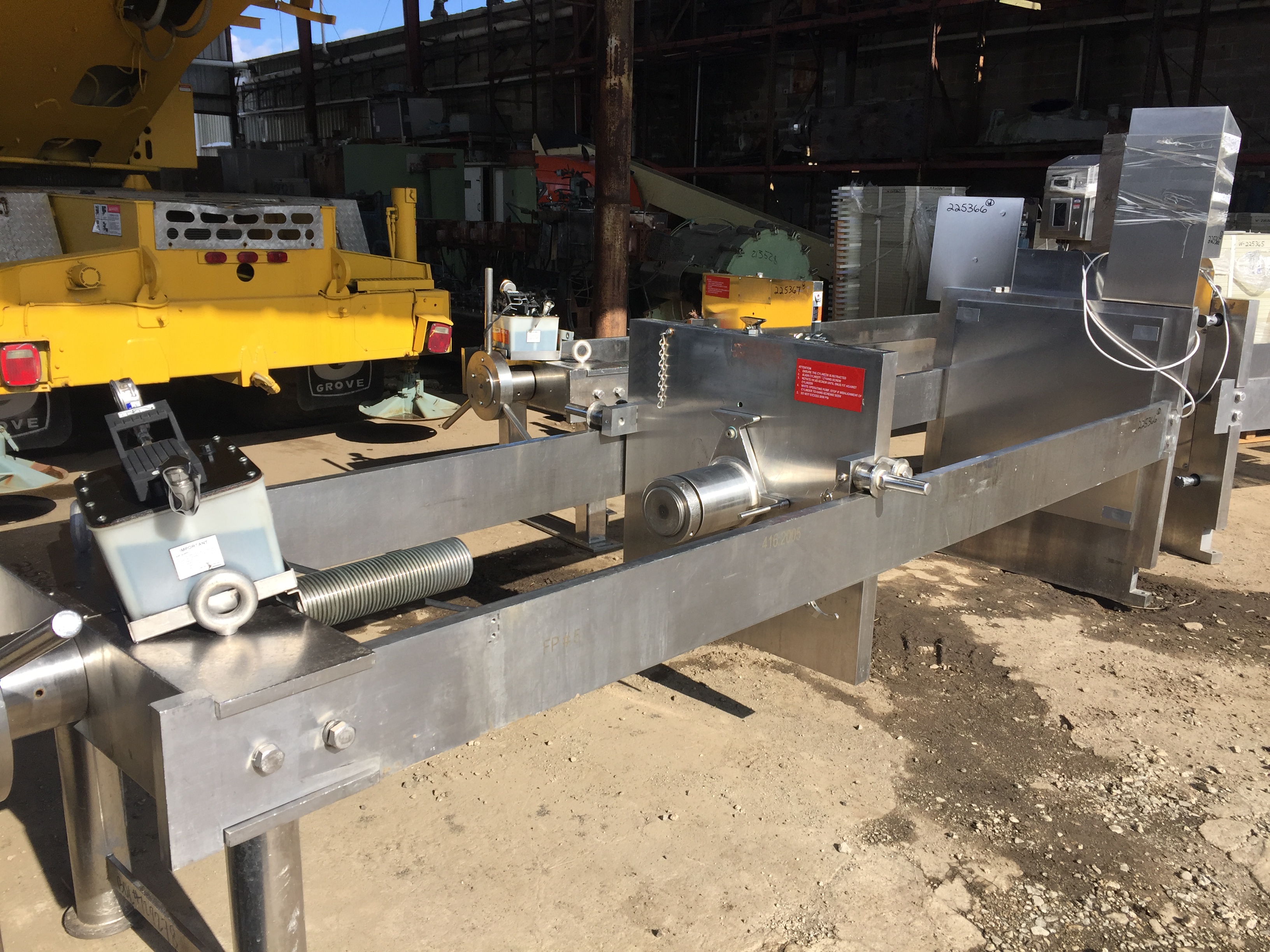

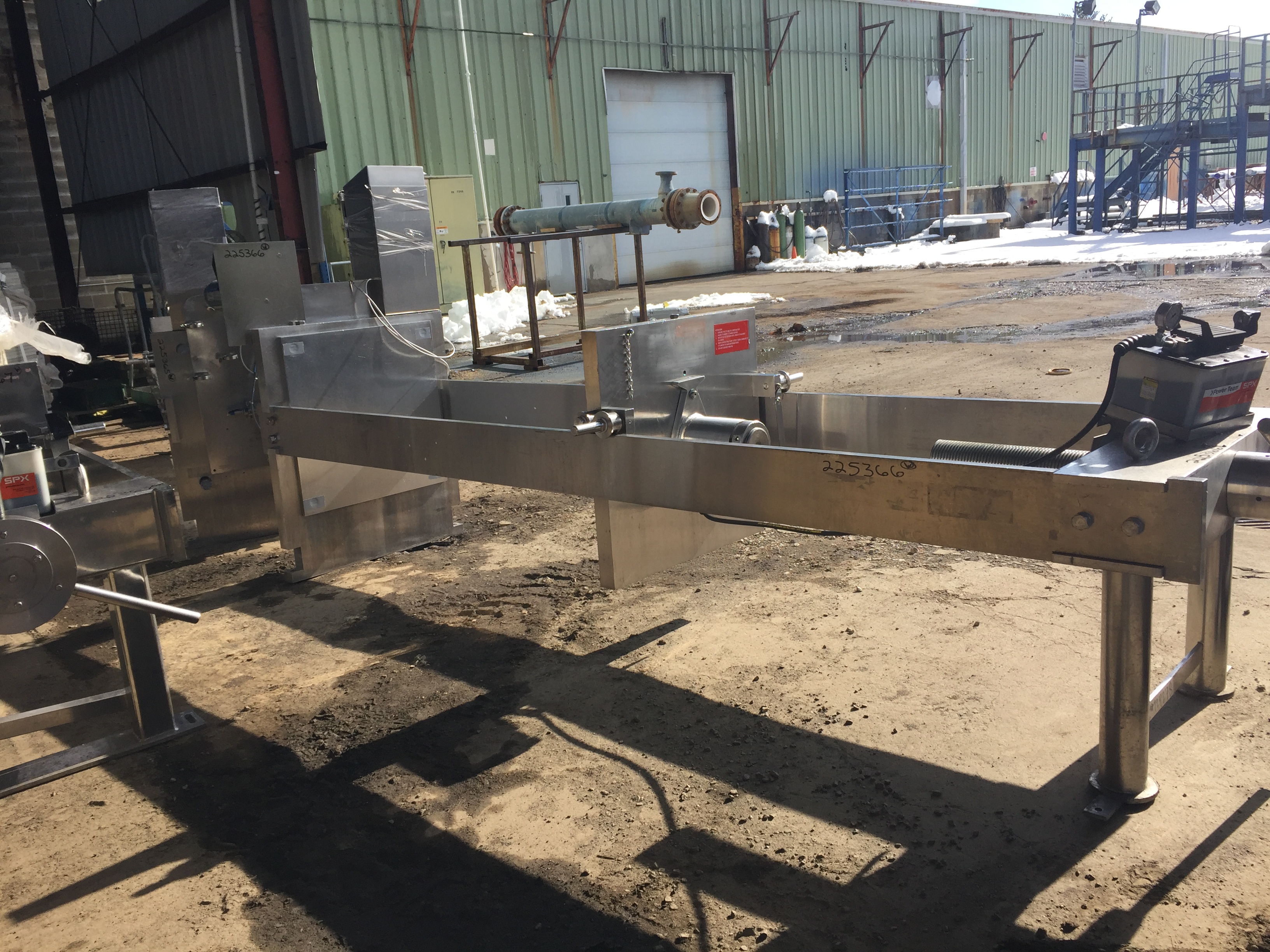

Polypropylene Perrin 100-M-30-37-PF1.0 Filter Press - IPP# 225366

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 100-M-30-37-PF1.0

Condition: Used

Material: Polypropylene

Filtration Area: 37 m² (398.3 ft²)

Pressure: 6.9 bar (100 psi)

• Plates are FDA approved- Non Gasketed.

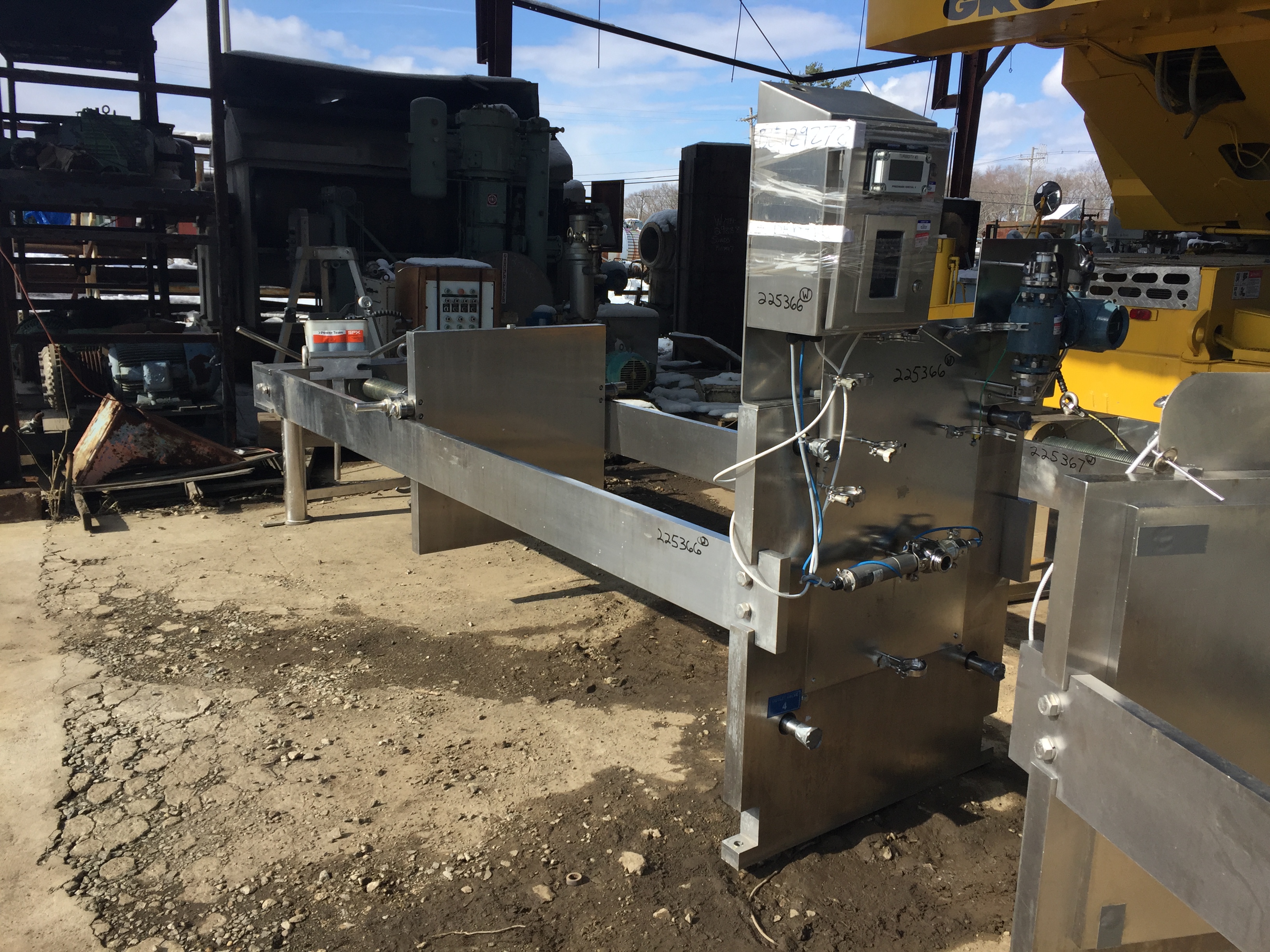

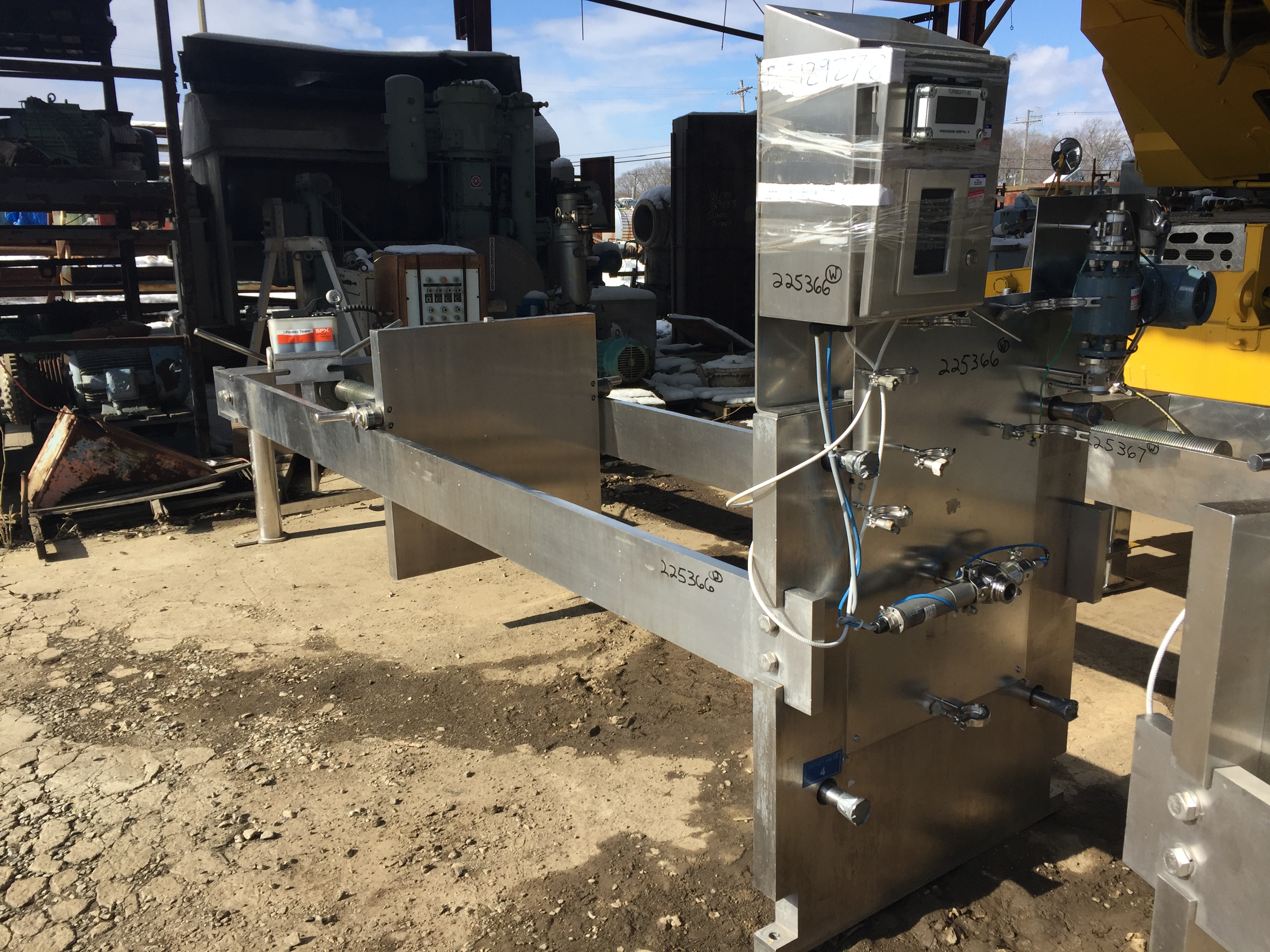

• Polypropylene plates and frames and all Stainless Steel skeleton.
• 44 chambers.4 eye closed delivery,1" inlet and outlet.

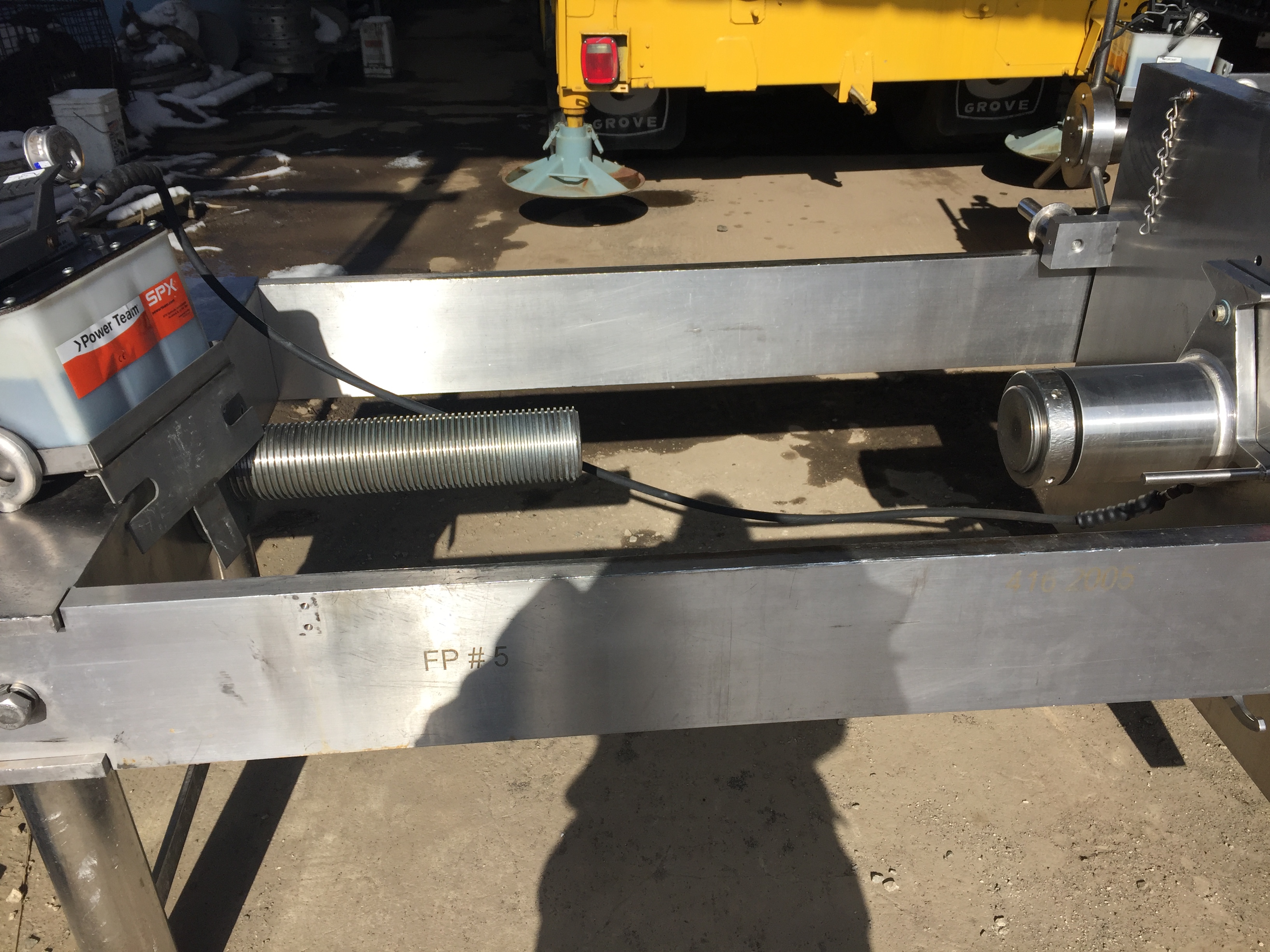

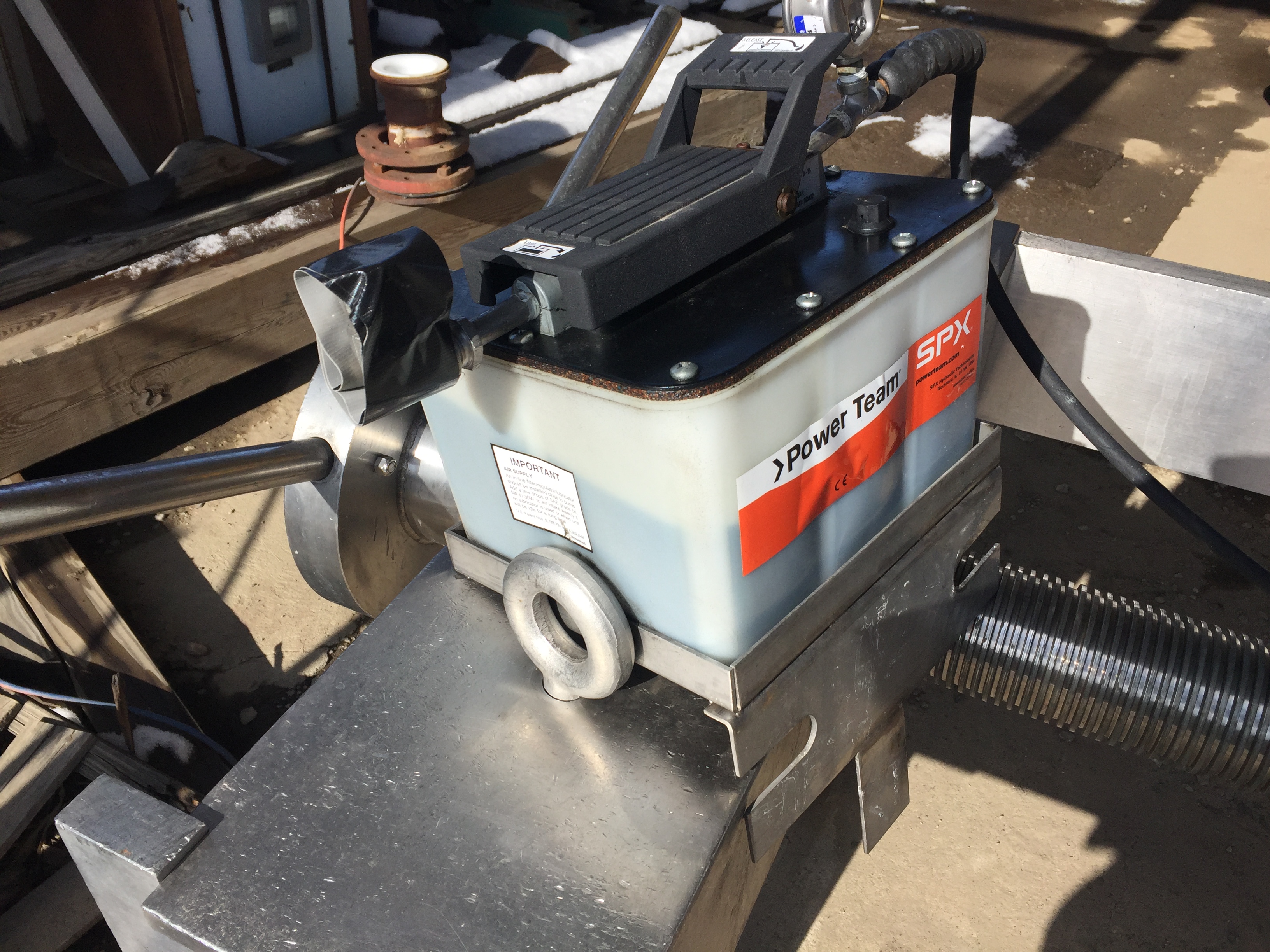

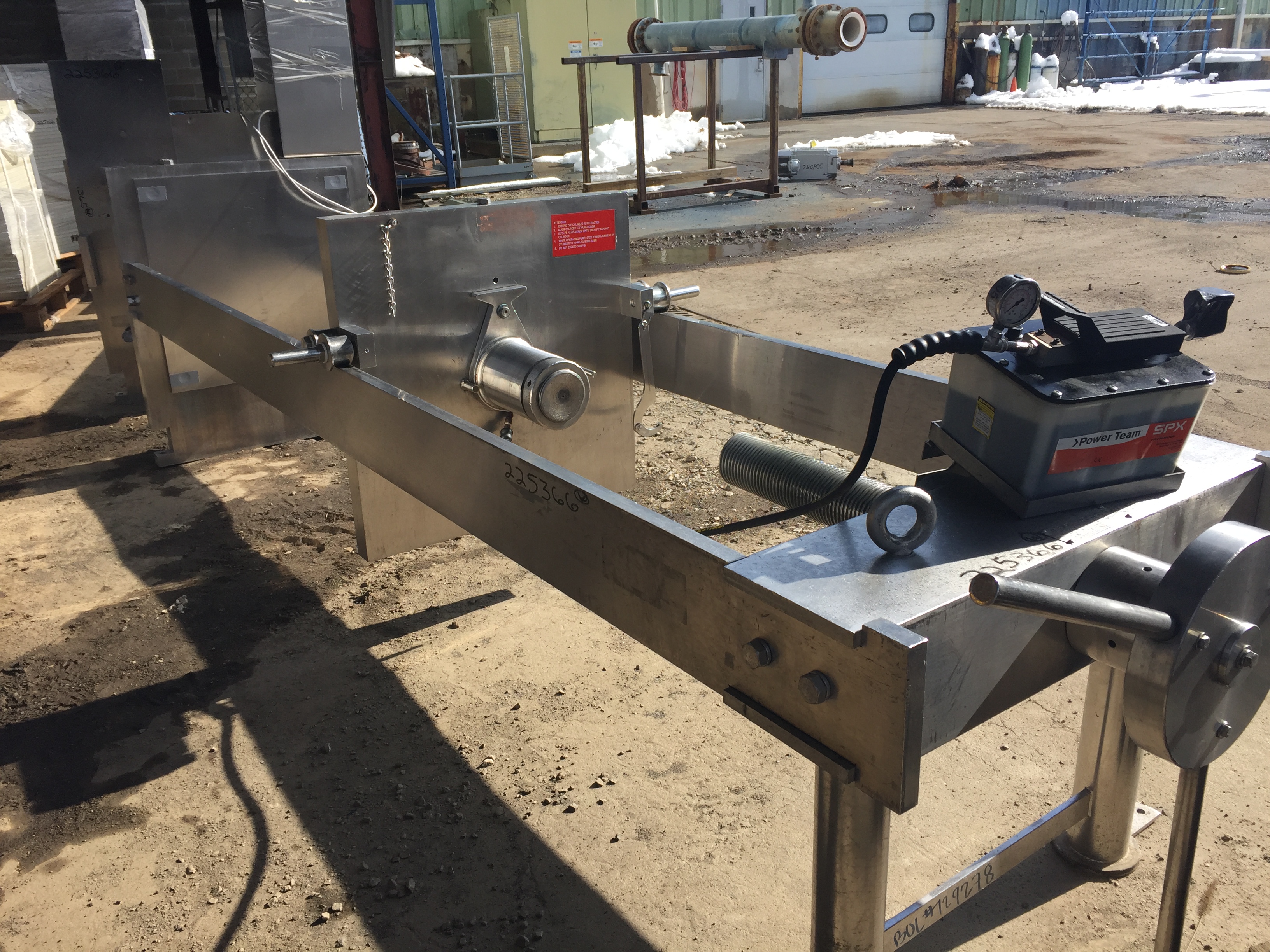

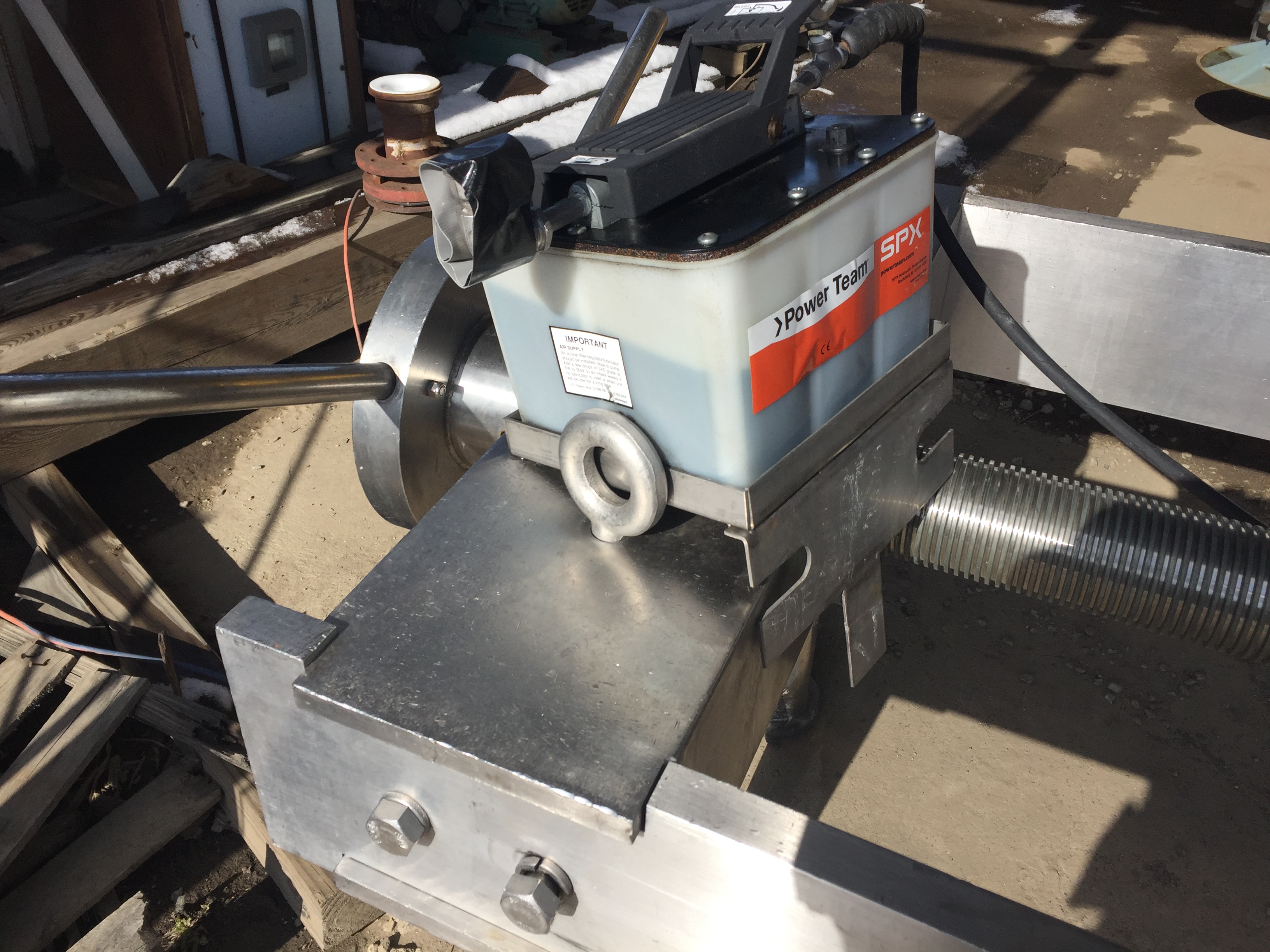

• Manual closure with Hydraulic Assist manufactured by SPX.

Temperature: 21.1 °C (70 °F). Cake Volume: 0.46 m3 (16.3 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 44. Number of Plates: 90. Plate MOC: Polypropylene. Skeleton MOC: 316 SS with a 20Ra finish. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Perrin

Model: 800—P25-50-37-17MNLS

Condition: Used

Material: Polypropylene

Filtration Area: 33 m² (355.2 ft²)

Pressure: 6.9 bar (100 psi)

• Plates are FDA approved and non gasketed.
• Polypropylene plates and frames and all Stainless Steel skeleton.
• Approximately 38 chambers.
• 4 eye closed delivery, 1" inlet and outlets.
• Manual closure with Hydraulic Assist manufactured by SPX.

Temperature: 21.1 °C (70 °F). Cake Volume: 0.46 m3 (16.3 ft3). Filter Press Plate Type: Plate and Frame. Number of Frames: 38. Number of Plates: 80. Plate MOC: Polypropylene. Skeleton MOC: 316 SS with a 20 Ra polish. Plate Diameter or Width: 800 mm (31.5 in). Plate Height: 800 mm (31.5 in). Plates Shifted By: Manual.

Type: Filter

Subtype: Press

Manufacturer: Bethlehem Corp

Condition: Used

Material: Polypropylene

Filtration Area: 3.2 m² (34.8 ft²)

Cake Volume: 0.03 m3 (1.2 ft3)

• Unit has 10 chambers recessed plates with 1/2" recess for forming 1" thick cake. 4 corner closed discharge,
• Unit has an air over oil compensating pump.

Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 10. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 457.2 mm (18 in). Plate Height: 457.2 mm (18 in). Plate Thickness: 12.7 mm (0.5 in). Plates Recessed: Yes. Plates Shifted By: Manual.

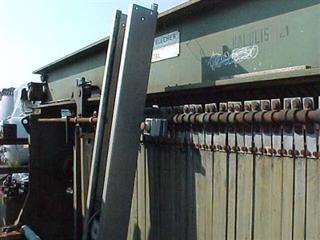

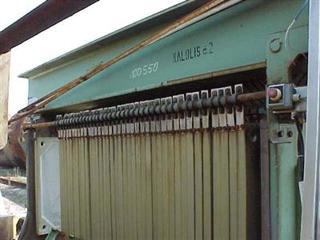

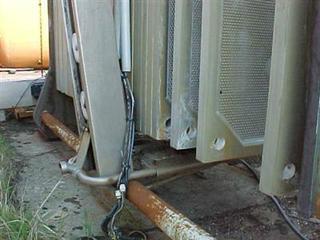

Type: Filter

Subtype: Press

Manufacturer: Rittershaus & Blecher

Condition: Used

Material: Polypropylene

Filtration Area: 62.4 m² (672 ft²)

Pressure: 6 bar (87 psi)

• Recessed filter press. 62.4 square meter filter area, can be expanded to (60) plates (96 sq. meter).
• 4 eye center feed.
• Motorized hydraulic closure. Rated 170-200 bar.
• With safety mirrors,
• Cake thickness approx. 30 mm. Filter volume approx. 0.88 cu meter.

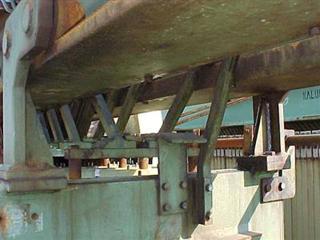

• Filter plates are suspended from an overhead beam.

Cake Volume: 0.88 m3 (31.1 ft3). Filter Press Plate Type: Un-Gasketed Recessed. Number of Plates: 39. Plate MOC: Polypropylene. Skeleton MOC: Carbon Steel. Plate Diameter or Width: 1,000 mm (39.4 in). Plate Height: 1,000 mm (39.4 in). Plate Shifter: Yes. Plates Recessed: Yes. Plates Shifted By: Automatic.
