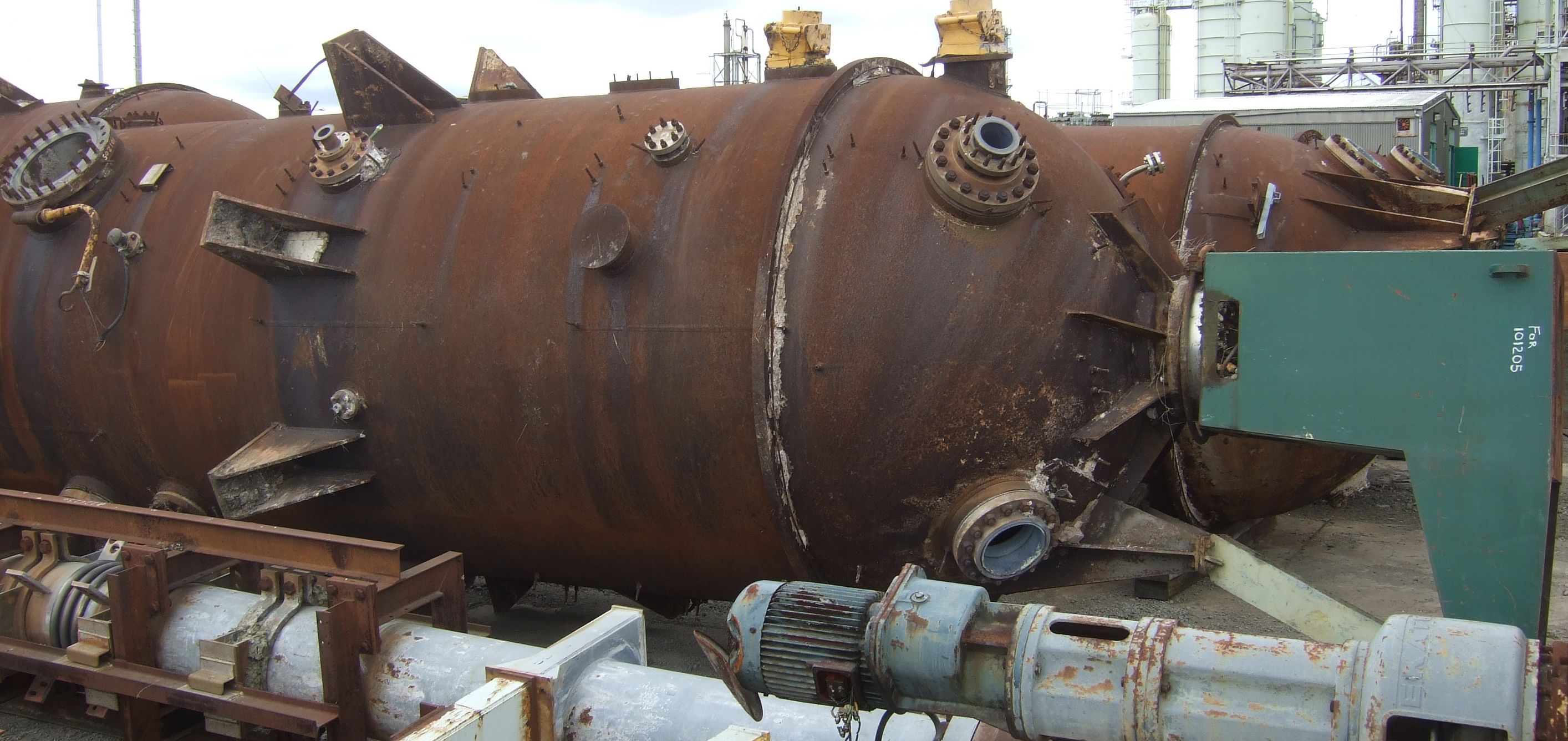

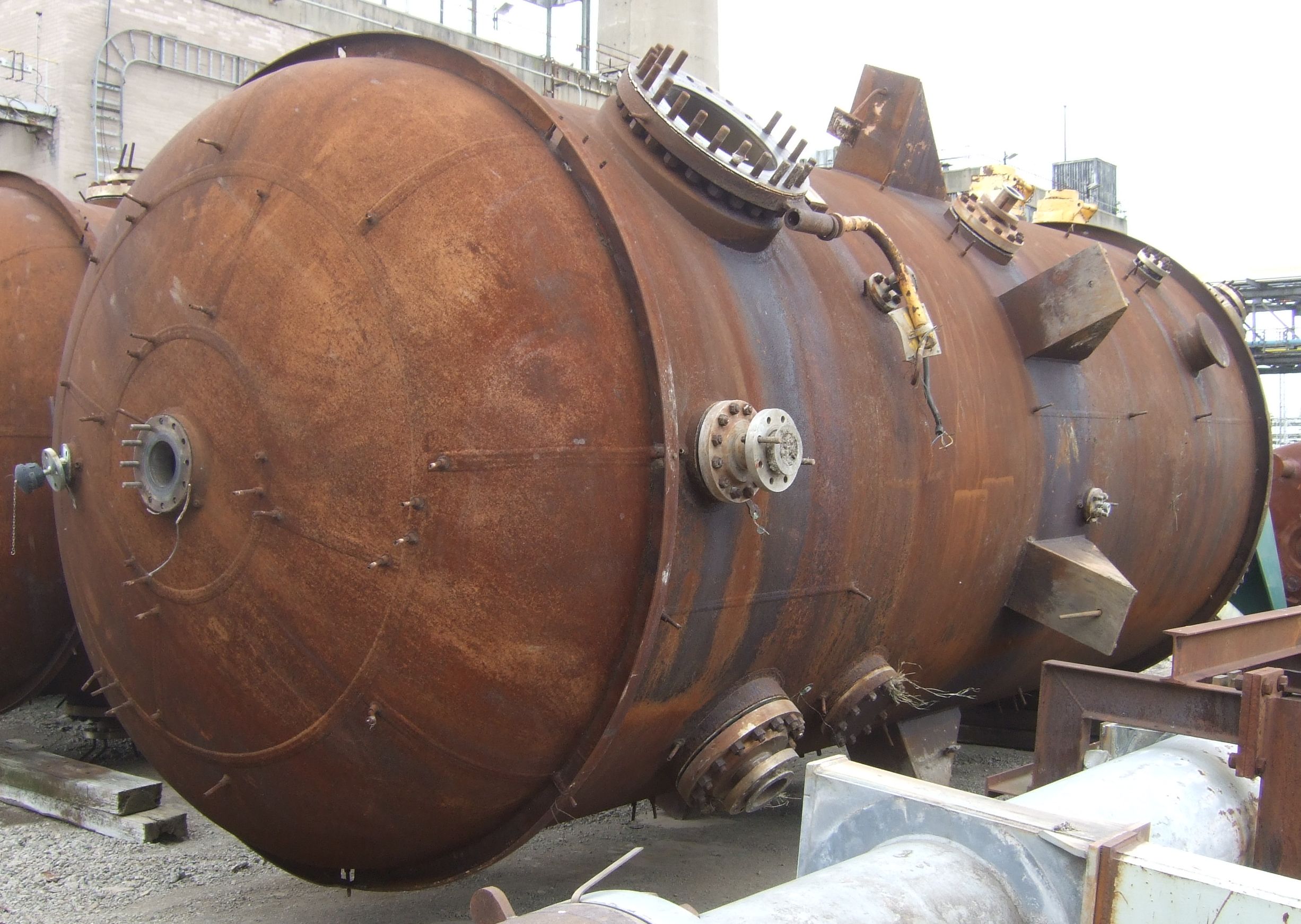

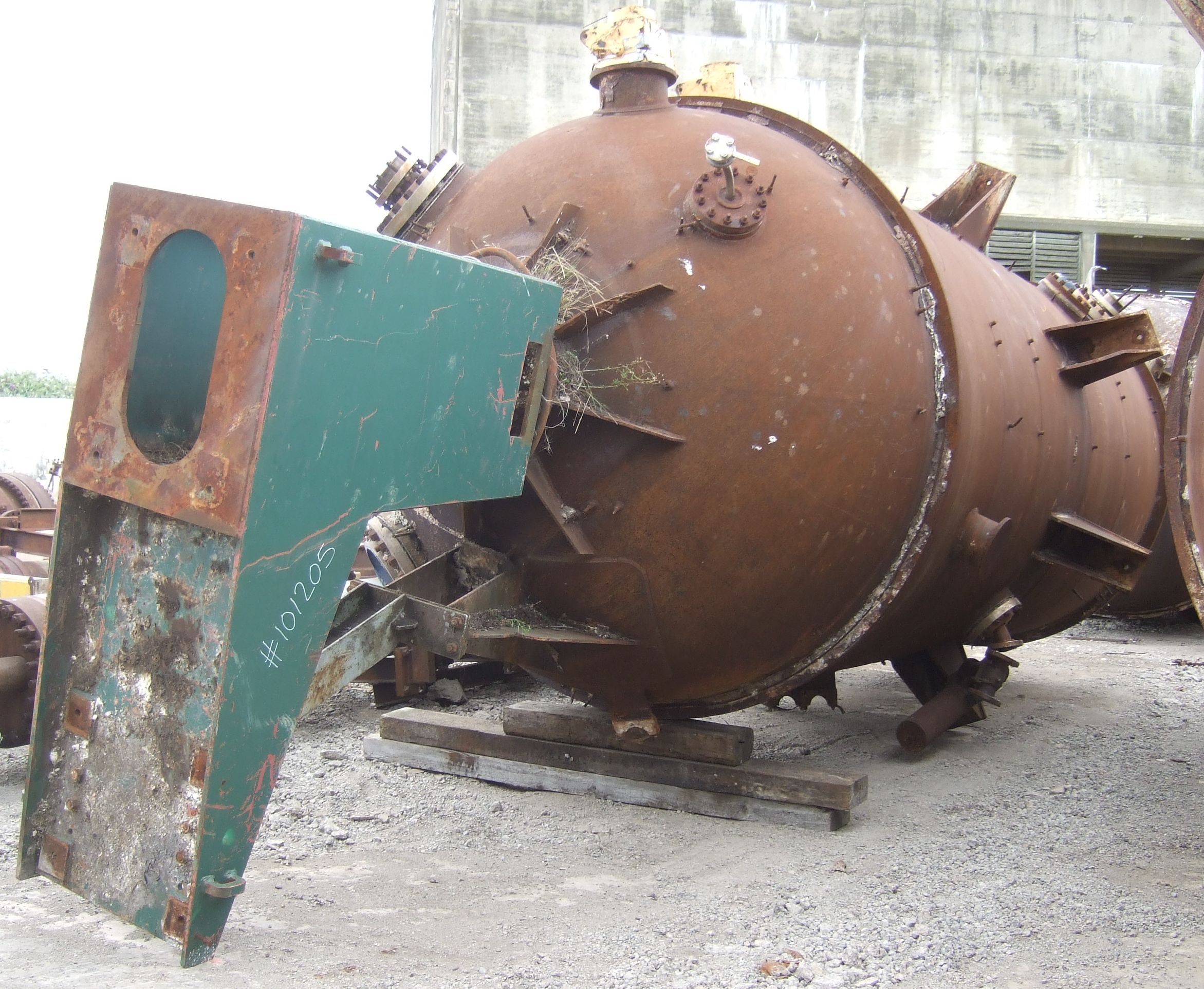

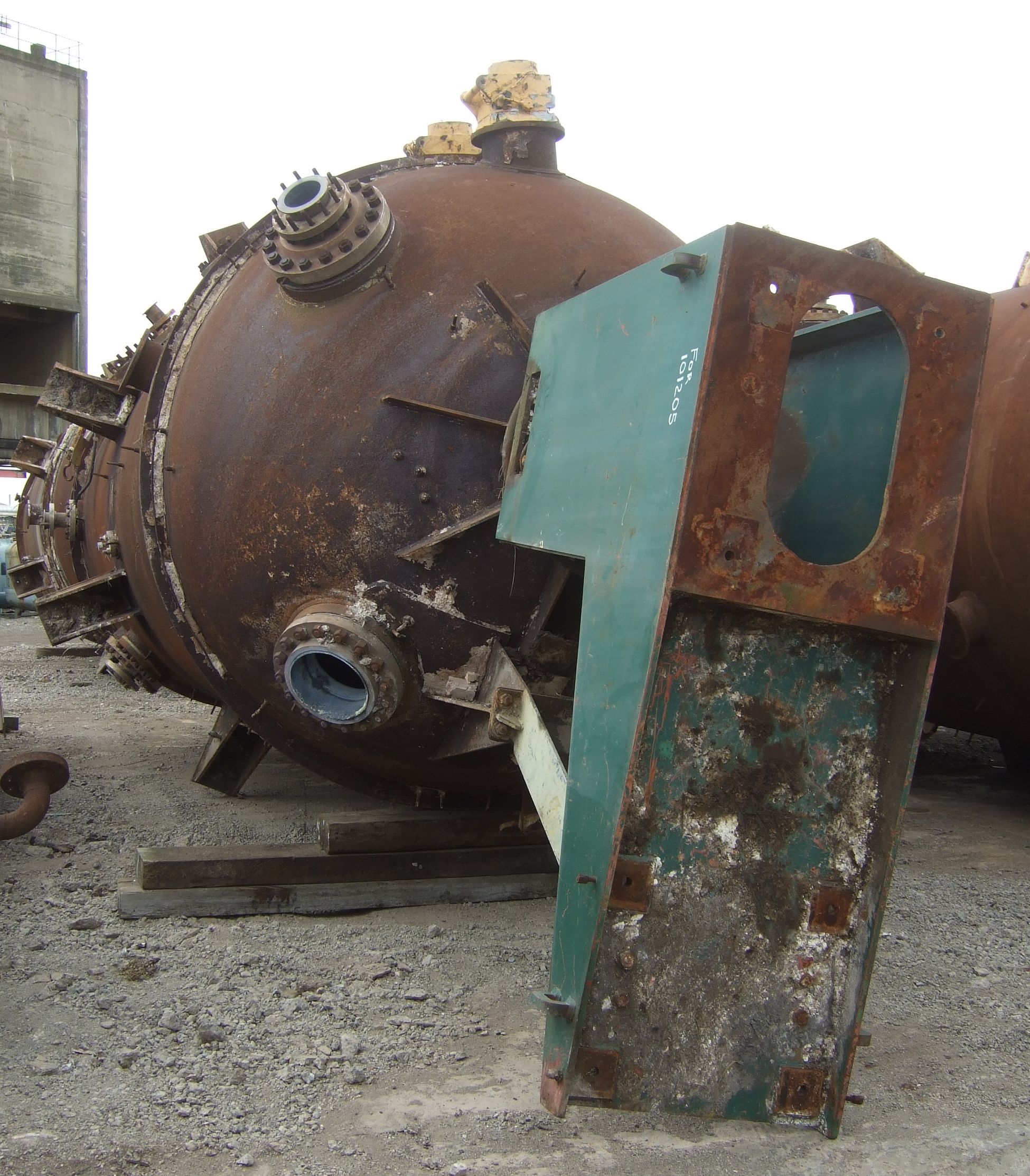

Titanium Clad Mitsui Tank - IPP# 226205

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 17,700 L (4,700 gallons)

Orientation: Vertical

• ASTM A516-70 carbon steel vessel with explosion bonded IMI 115 titanium cladding.
• Interior clad with 2mm of titanium.

Diameter: 2,000 mm (78 in). Straight-side Length: 5,500 mm (216 in). Internal Pressure: 86.4 bar (1,250 psi). Internal Temperature: 307.2 °C (585 °F). Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 58,600 L (15,500 gallons)

Orientation: Vertical

• Carbon steel vessel with 2mm of internal titanium cladding.
• With titanium agitator shaft.

Diameter: 3,350 mm (132 in). Straight-side Length: 6,100 mm (240 in). Internal Pressure: 7.2 bar (105 psi). Internal Temperature: 199 °C (390.2 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 58,600 L (15,500 gallons)

Orientation: Vertical

• Carbon steel vessel with 2mm of titanium internal cladding.
• With titanium agitator shaft.

Diameter: 3,350 mm (132 in). Straight-side Length: 6,100 mm (240 in). Internal Pressure: 13.4 bar (195 psi). Internal Temperature: 229.4 °C (444.9 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.

Type: Tank

Manufacturer: Mitsui

Condition: Used

Material: Titanium

Clad: Yes

Capacity (Design): 37,800 L (10,000 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with IMI 115 titanium cladding.

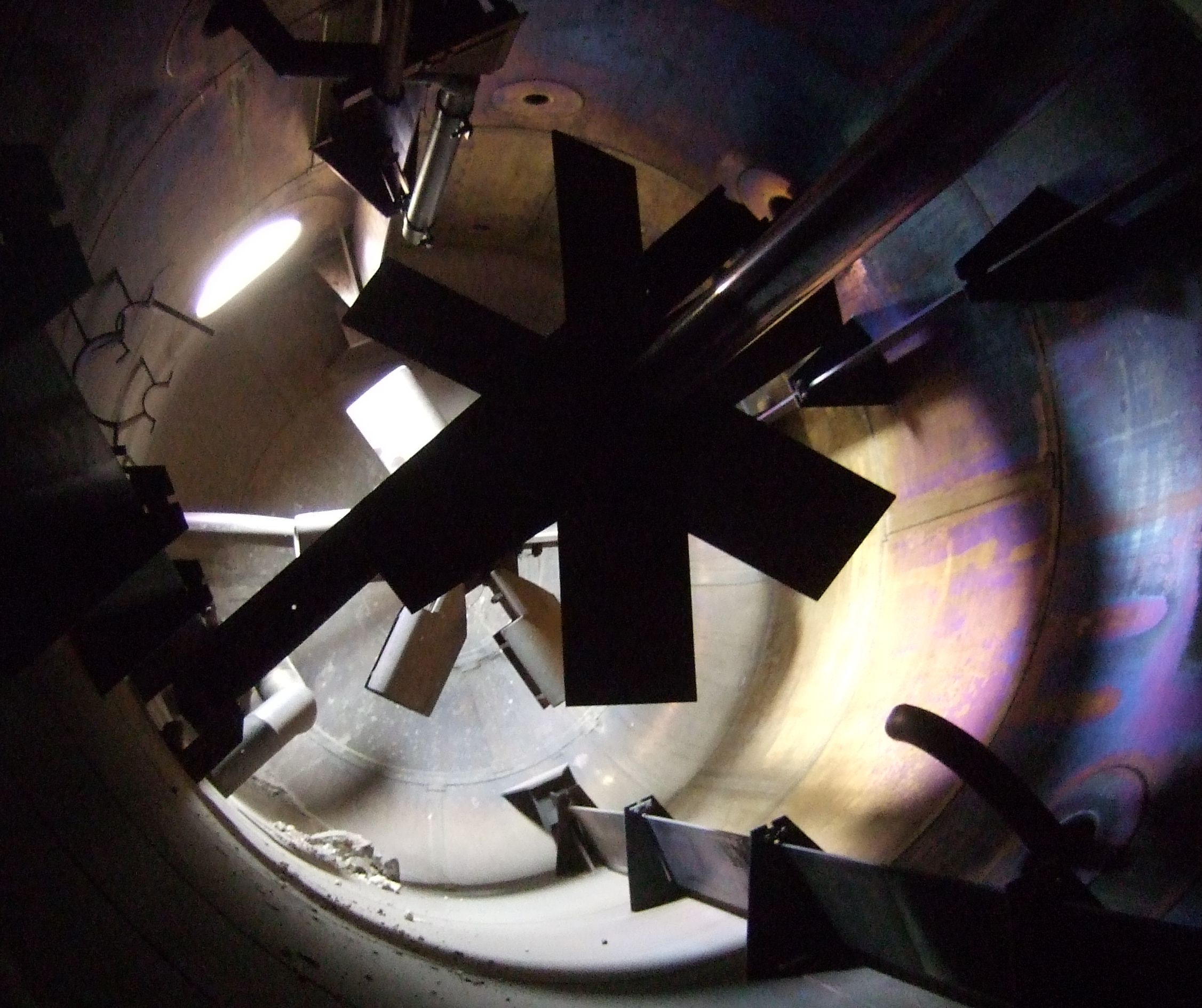

• Internal mixing equipment constructed from Grade 2 titanium.
• Top head: 17.5mm carbon steel + 3mm titanium cladding.
• Bottom head: 35mm carbon steel + 3mm titanium cladding.
• Tank shell: 35mm carbon steel + 3mm titanium cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 5,950 mm (234 in). Internal Pressure: 29.3 bar (425 psi). Internal Temperature: 252 °C (485.6 °F). Does it have Agitation ?: Yes. Baffle Type: Sidewall Mounted Straight Baffle. Support: Lugs.
